Lippert?7K?Tandem?Axle Self?Adjusting?12??Electric Brake Assemblies?& Grease?Packed Drum Hub Kit?�?8?on?6.5?Pattern,?9/16??Studs, Threaded?Cap Ready?�?Dexter,?Al?Ko,?Rockwell Compatible

Lippert 7K Tandem‑Axle 12″ Brake & Drum Hub Bundle – Self‑Adjusting, 8‑on‑6.5, 9/16″ Studs

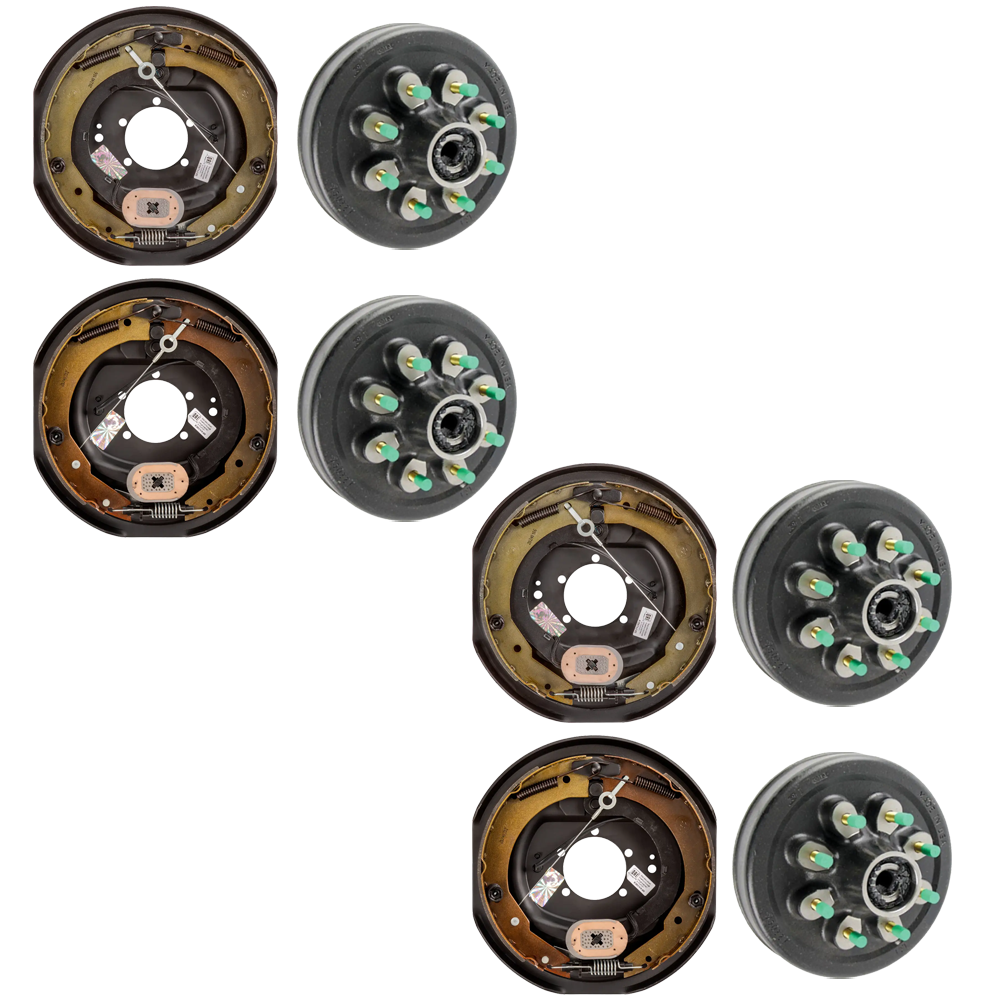

Restore both axles with one purchase. This genuine Lippert bundle supplies four self‑adjusting 12″ electric brake assemblies and four grease‑packed 12″ drum hubs with threaded dust‑cap ports. While the hubs are rated to 8,000 lbs, overall bundle capacity is 7,000 lbs per axle, limited by the brake assemblies. Fits Lippert, Dexter, Al‑Ko, Rockwell and other quality axles using the common 8‑on‑6.5 bolt circle.

Bundle Contents:

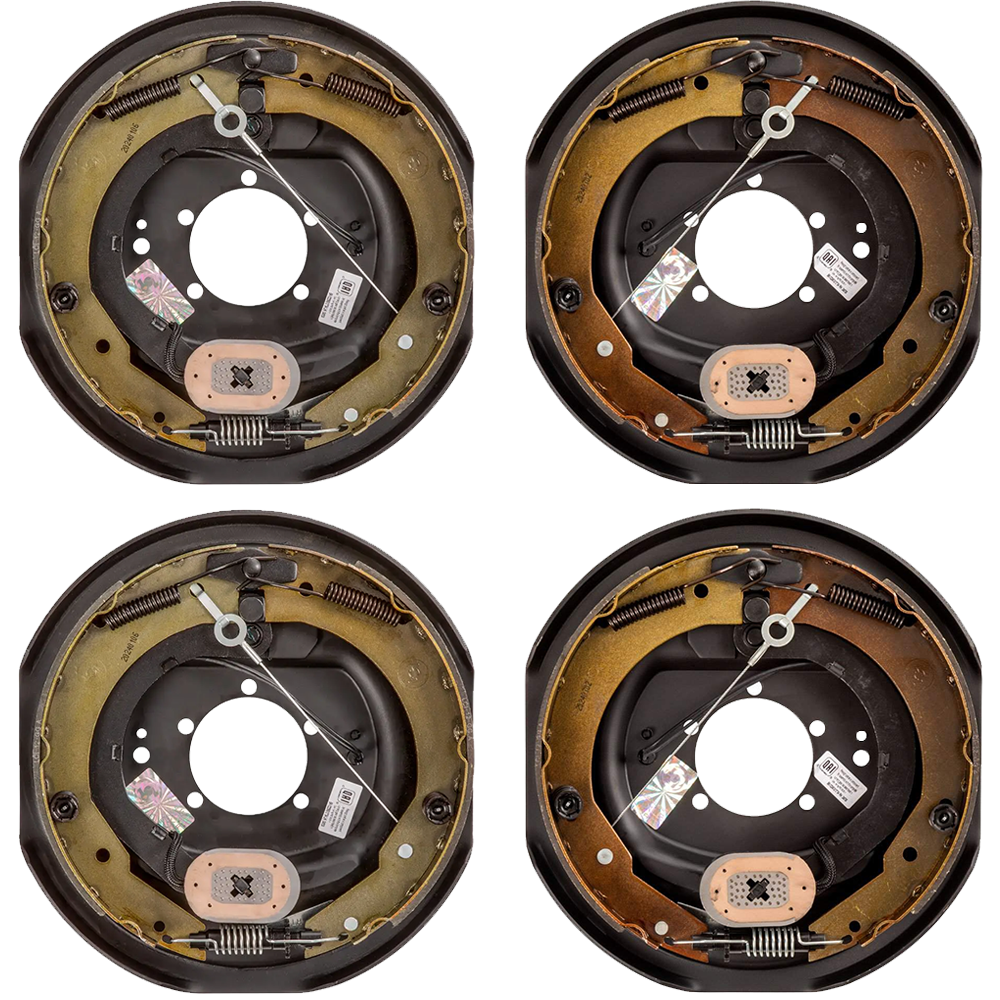

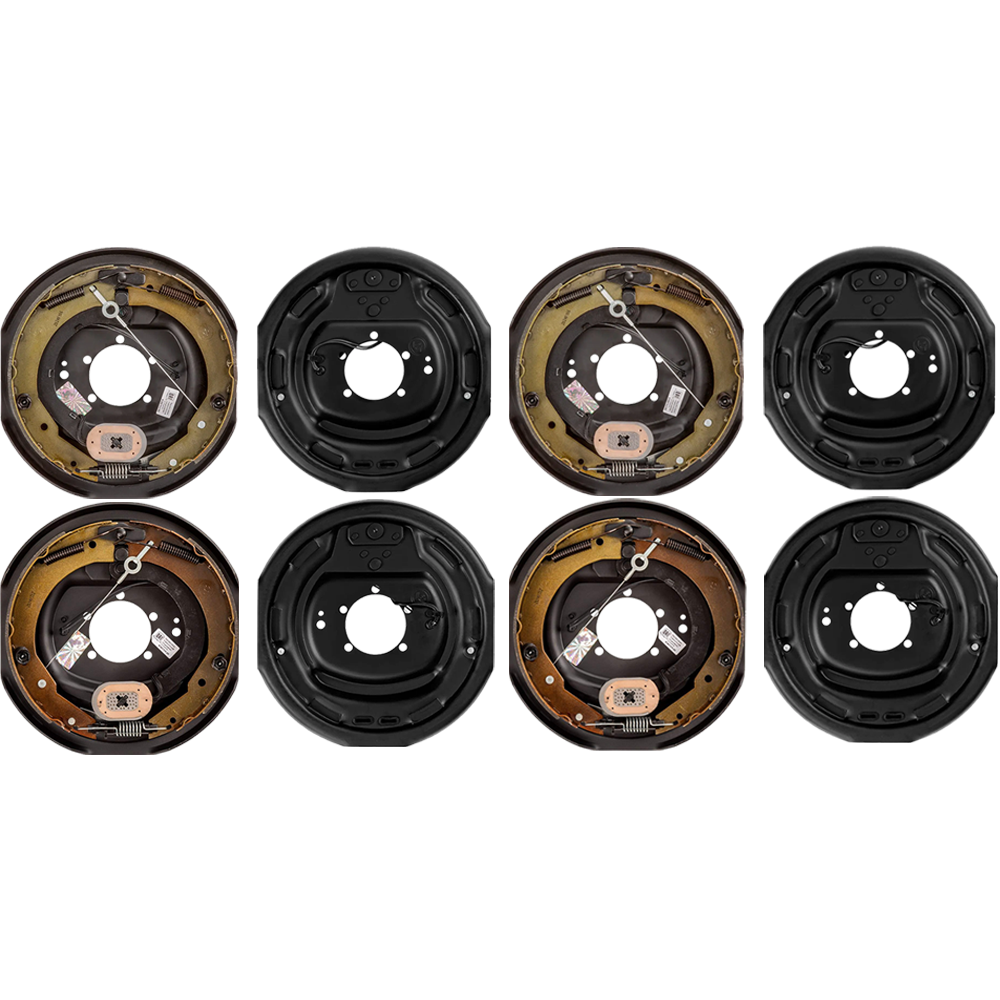

• QTY (2): Lippert Forward Self‑Adjusting Electric Brake Assembly – 12″ × 2″, 5‑Bolt, 4‑7K (Left)
  • Road‑side (left‑hand) electric drum brake
  • Self‑adjusts at every forward stop – no manual tweaking
  • Fits 4,000‑7,000 lb axles; 12″ × 2″ shoe size
  • Five‑bolt mounting flange for easy DIY install
  • Dexter compatible PN: K23‑464‑00 | 023‑464‑00
  • OE replacement backed by 1‑year Lippert warranty
• QTY (2): Lippert Forward Self‑Adjusting Electric Brake Assembly – 12″ × 2″, 5‑Bolt, 4‑7K (Right)
  • Curb‑side (right‑hand) matching brake assembly
  • Automatic shoe adjustment extends pad life
  • 12″ × 2″ drum size; 4K‑7K axle rating
  • 5‑bolt mounting pattern; magnet & hardware pre‑installed
  • Dexter compatible PN: K23‑465‑00 | 023‑465‑00
  • One‑year factory warranty for peace of mind

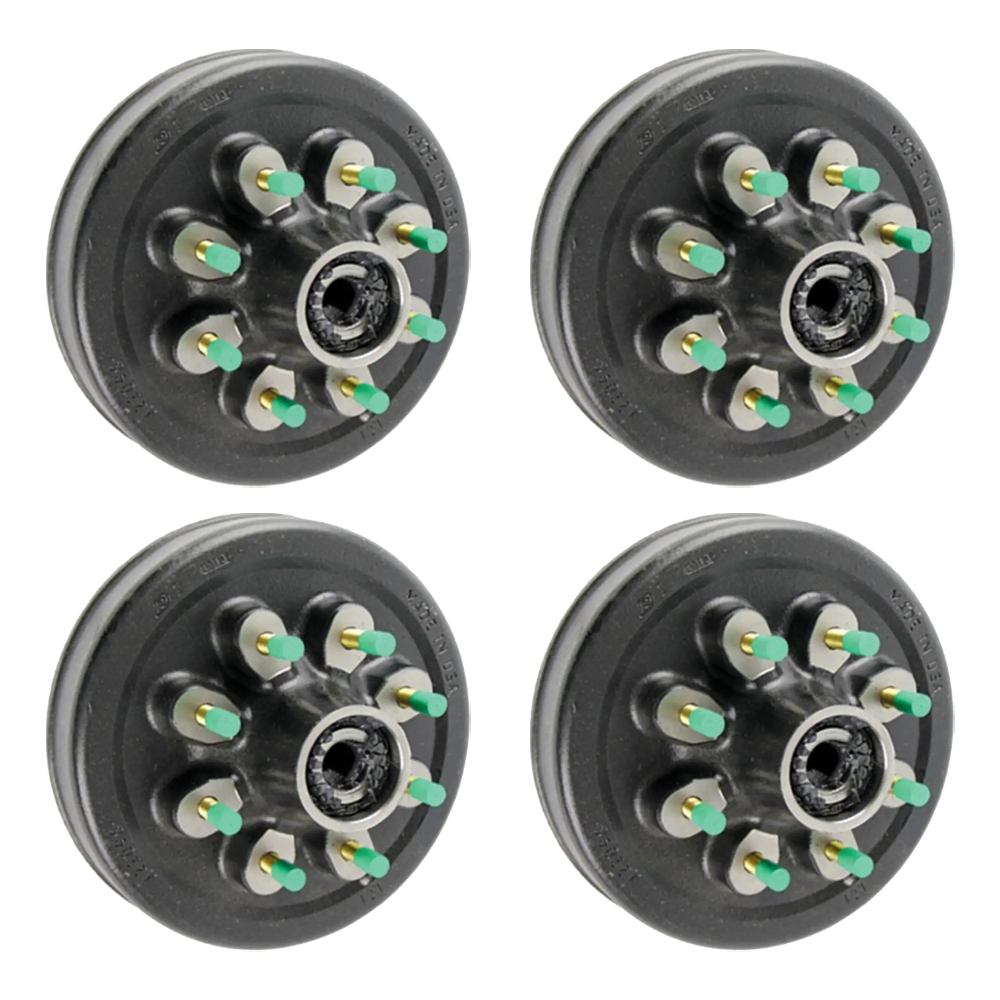

• QTY (4): Threaded Hybrid 12″ Brake Drum Hub – 8K, 8‑on‑6.5, 9/16″ Studs, Grease
  • 8,000‑lb cast‑iron hub with integrated 12″ drum
  • 8‑on‑6.5 bolt circle; races & wheel studs come pre‑installed
  • Accepts electric or hydraulic drum brakes
  • Threaded port ready for Valcrum caps; grease‑packed
  • Compatible with 16″–17‑1/2″ wheels; 1‑year warranty

Always confirm your trailer’s original equipment specifications and perform routine bearing and brake maintenance for maximum safety and longevity.
