Lippert 8,000-lb Hybrid Axle Brake Drum & Hub Assembly Pair � 8 on 6.5?, 5/8? Studs, 17.5? Wheel � Dexter / AL-KO Compatible
$529.99

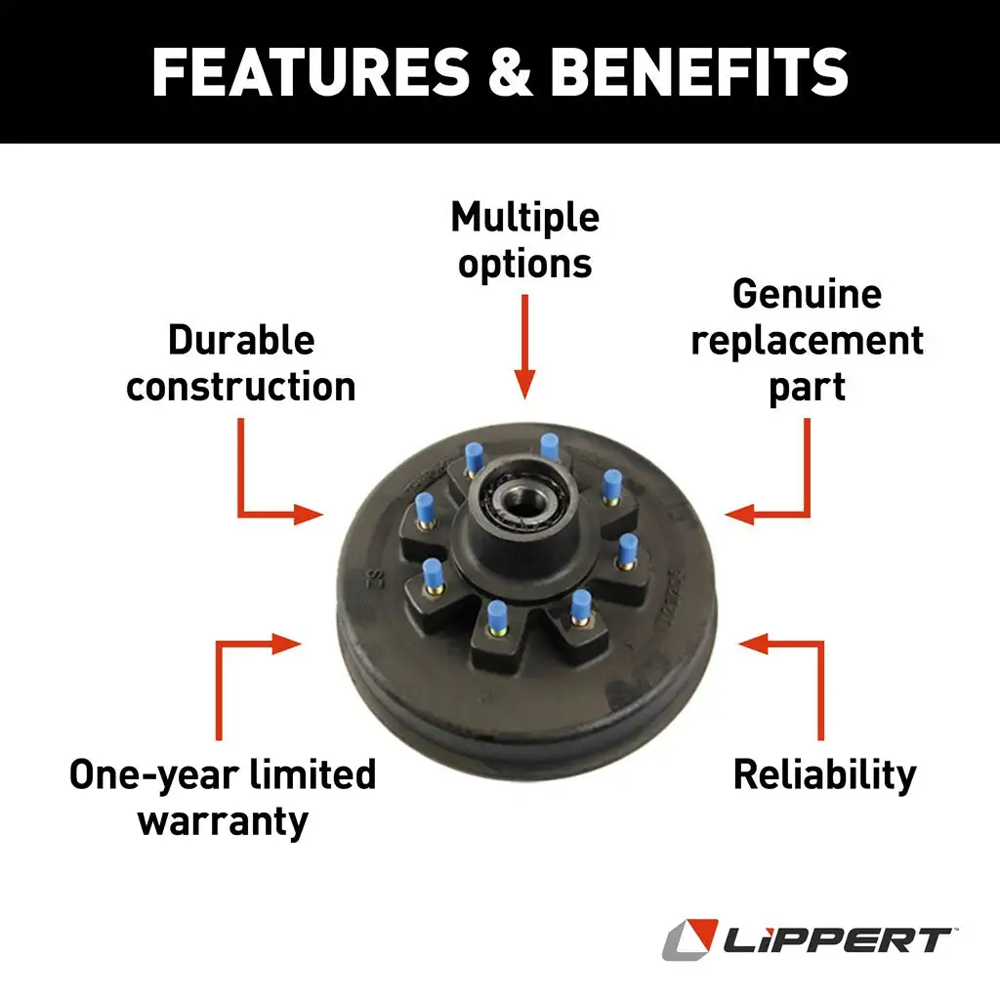

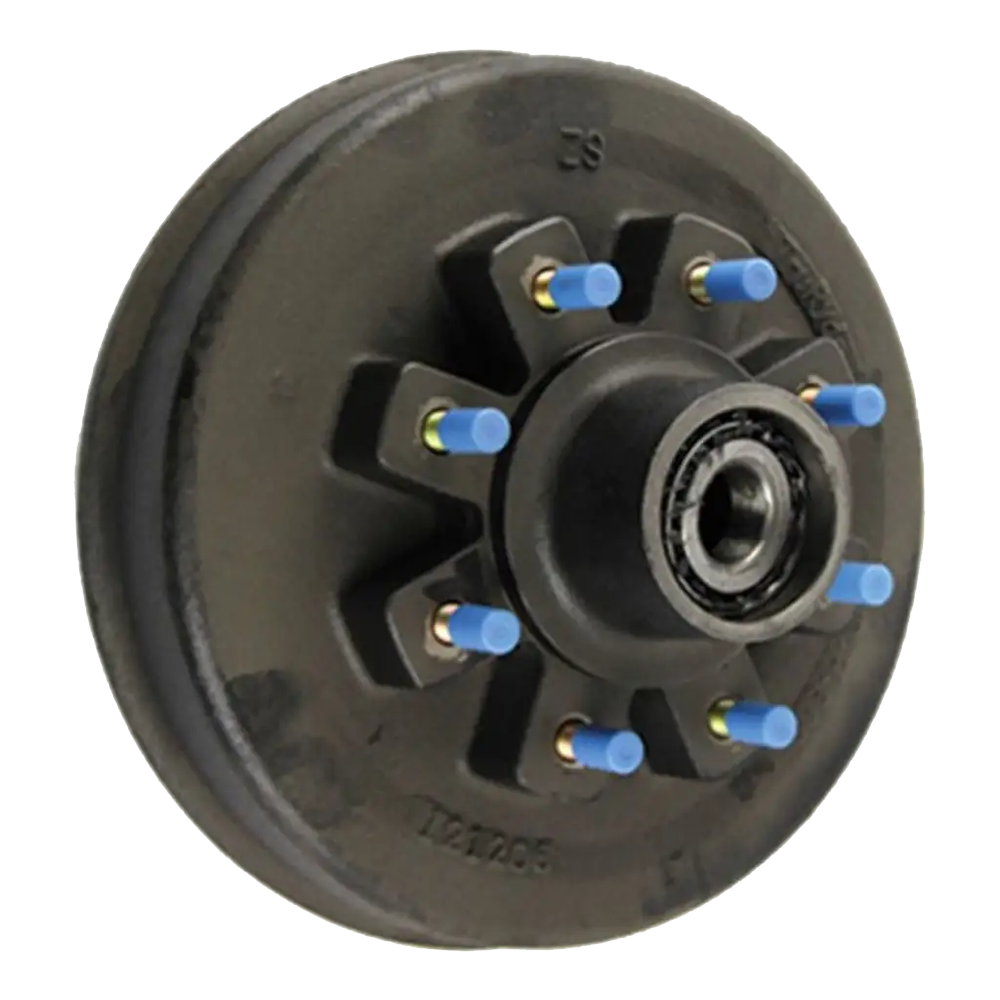

Lippert 8,000-lb Hybrid Axle Brake Drum & Hub Assembly Pair
Give your heavy-duty trailer the stopping power and reliability it deserves with this Lippert brake drum & hub assembly bundle. Designed for 8,000-lb hybrid axles, each hub is cast from durable grey iron, accepts 12" × 2" brakes, and features an 8 on 6.5" bolt pattern with large 5/8" studs — perfect for 17.5" single-wheel applications. Replace both hubs at once and hit the road with renewed confidence.
Bundle Contents:
-

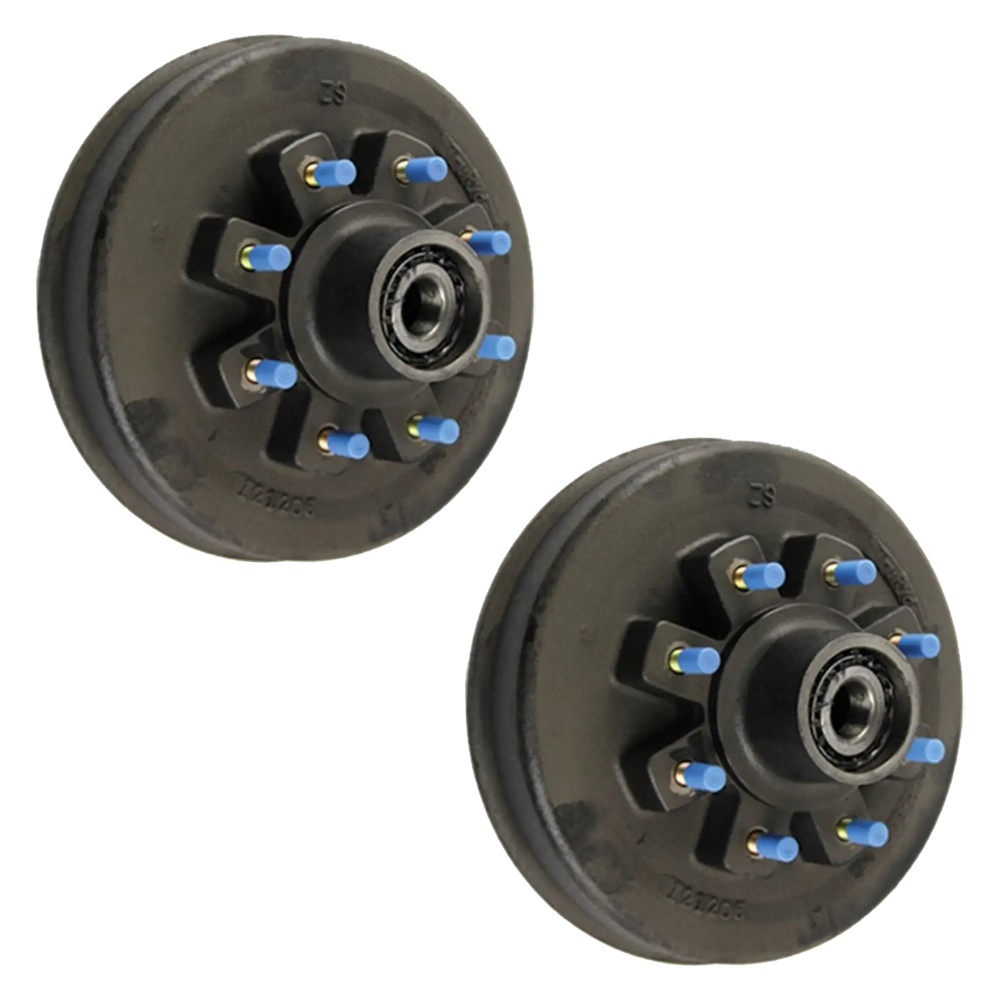

QTY (2): Lippert Brake Drum Hub Assembly – 8K Hybrid Axle, 8 on 6.5", 5/8" Stud
- Fits 12" × 2" electric or hydraulic brakes
- Grey-iron drum & hub with pre-installed bearing races
- 8 on 6.5" bolt circle, 4.75" hub pilot, 5/8" studs
- Compatible with 17.5" single-wheel setups
- Rated for 8,000-lb axles; 1-year limited warranty
Always compare to your original equipment before ordering and perform regular inspections to keep your braking system operating at peak performance.
| Specifications: | |
|---|---|
| Kit Type | Brake Drum & Hub Assembly Pair |
| Bolt Pattern | 8 on 6-1/2 Inch |
| Axle Capacity | 8,000 lbs Hybrid Axle |
| Hub Type | Hub with Integrated Drum |
| Wheel Size Compatibility | 17-1/2 Inch Single Wheel |
| Hub Size | 12" × 2" |
| Stud Size | 5/8" |
