Lippert 8K 12.25 � 3.38 Self-Adjust Electric Brake & 8-on-6.5 Grease Hub Kit � Dexter, Al-Ko, Rockwell Compatible

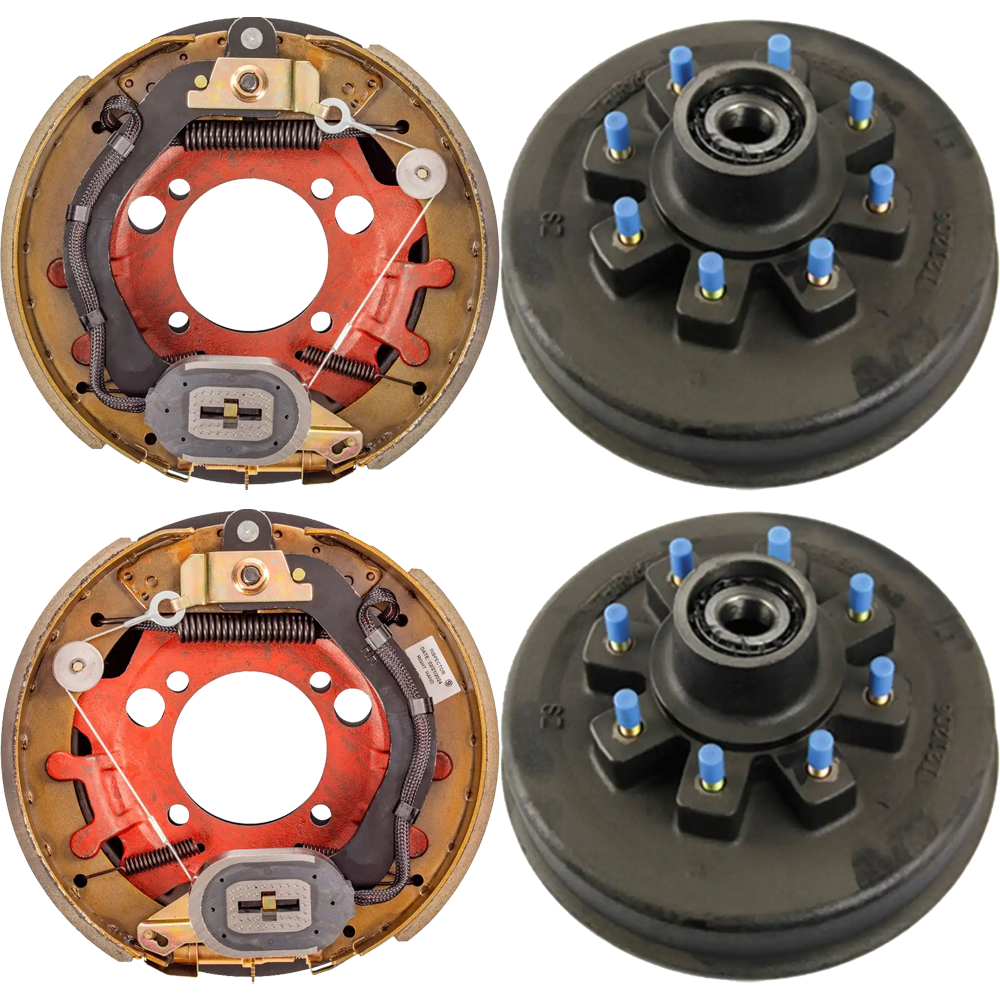

Lippert 8K Electric Brake & Grease Hub Kit – Complete Single-Axle Solution

Restore reliable stopping power on your heavy-duty trailer with this all-in-one Lippert bundle. It couples left- and right-hand, forward self-adjusting 12.25″ × 3.38″ electric brakes with two pre-greased 8-on-6.5 hubs, giving you everything required to service an 8,000-lb axle in one convenient package.

Bundle Contents:

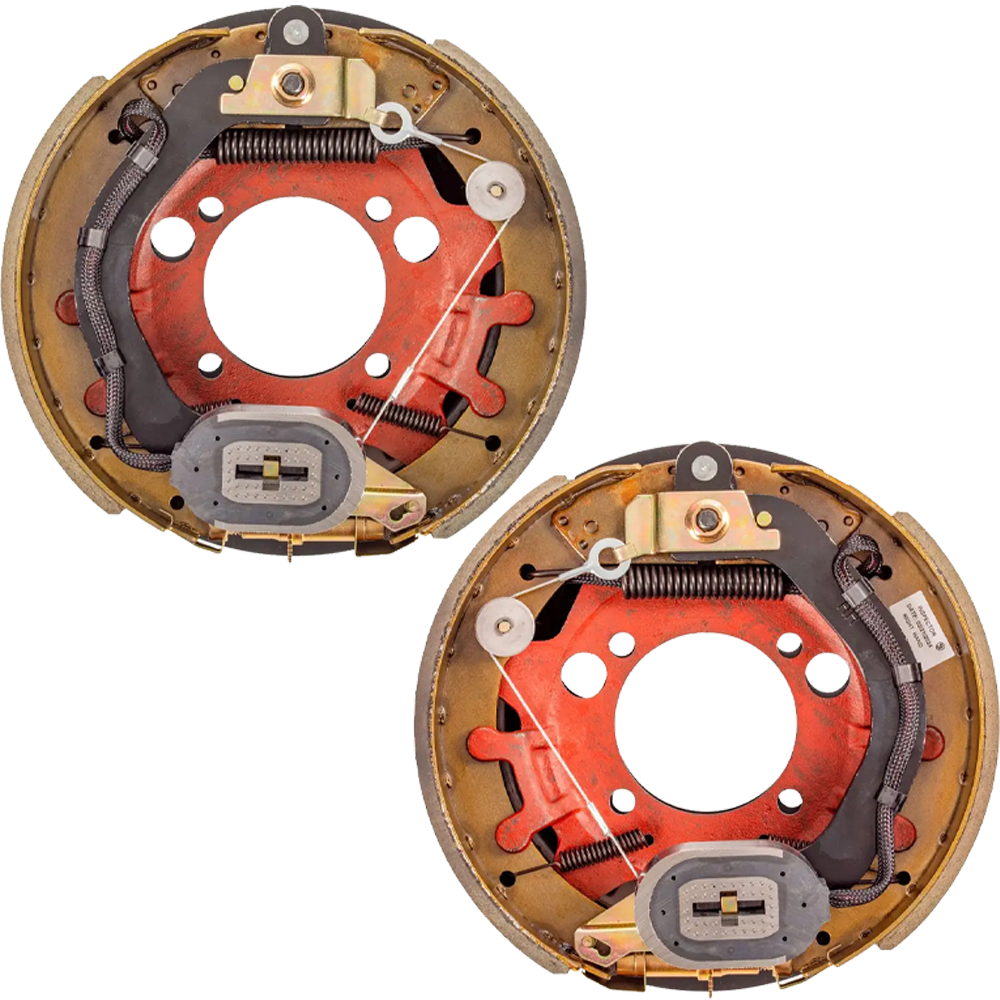

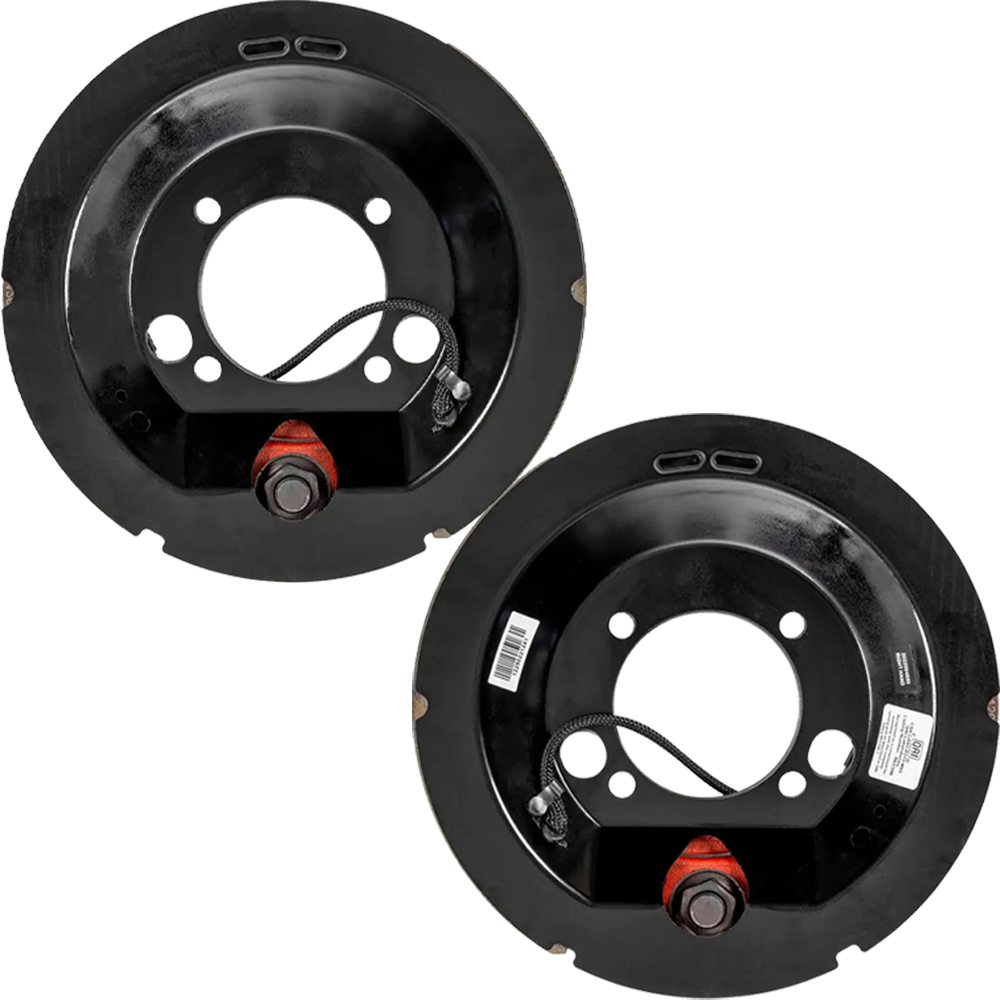

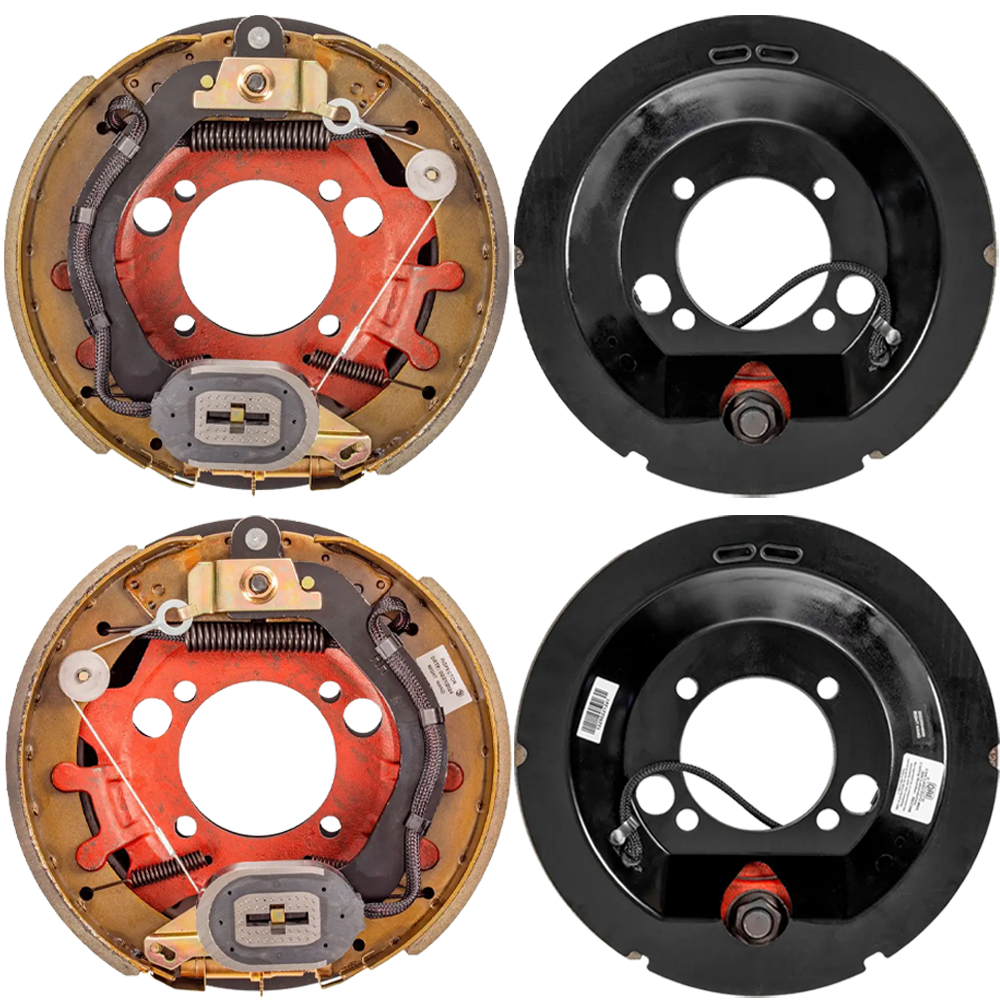

• QTY (1): Lippert 12.25″ × 3.38″ Electric Brake Assembly – Left Side
  • Self-adjusting—no manual tweaks after break-in
  • Road-side (driver) installation
  • Rated for 8,000 lb axles
  • Four-bolt mounting flange
  • Fits 16″–17.5″ wheels
  • Dexter Compatible Part Number: K23-434-00 / 023-434-00
  • New electric drum brakes require break-in for full performance
• QTY (1): Lippert 12.25″ × 3.38″ Electric Brake Assembly – Right Side
  • Forward self-adjusting configuration
  • Curb-side (passenger) installation
  • For 8,000 lb axles
  • Four-bolt mounting flange
  • Fits 16″–17.5″ wheels
  • Dexter Compatible Part Number: K23-435-00 / 023-435-00
  • Requires break-in for peak efficiency

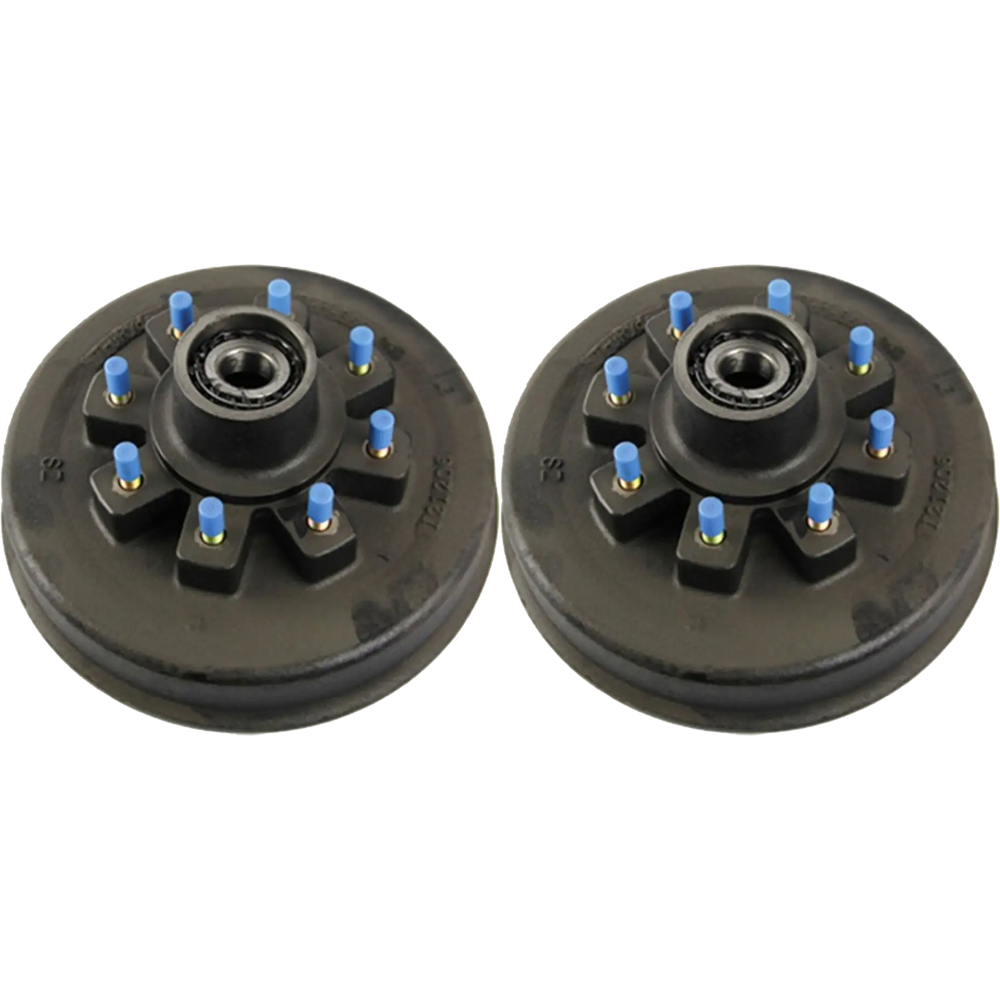

• QTY (2): Lippert Grease Hub Assembly – 8 on 6.5″, 5/8″ Stud, 8,000 lb
  • Bearing cones, seal & grease pre-installed for quick setup
  • Solid-iron hub with integrated drum
  • 8 on 6.5″ bolt pattern, 5/8″ studs
  • Fits 16″–17″ wheels
  • 1-year Lippert warranty

Always verify your original equipment specifications before installation and perform regular brake inspections for safe towing.

Product image for reference only — minor cosmetic details (casting style, cap color, stud protectors, packaging) may vary between production runs. All items ship to the exact specifications listed.
