Lippert 8K Hybrid Right-Hand 12" � 2" Self-Adjust Electric Brake + 12" Hub-Drum Kit � Dexter / Alko / Rockwell Compatible

Lippert 8K Hybrid Right-Hand 12" × 2" Self-Adjust Electric Brake & 12" Hub-Drum Kit

Refresh one Lippert 8,000-lb hybrid axle in a single, convenient purchase. This bundle mates a forward self-adjusting 12" electric brake with a heavy-duty hybrid hub-drum (5/8" studs, 8-on-6.5") — the exact combination Lippert specifies for its 8K hybrid platform. Note: Hybrid axles use the same 12" × 2" brakes found on 5.2K-7K axles but require this larger hub with 5/8" wheel studs. This kit is not intended for standard 8K heavy-duty axles that use 12.25" brakes.

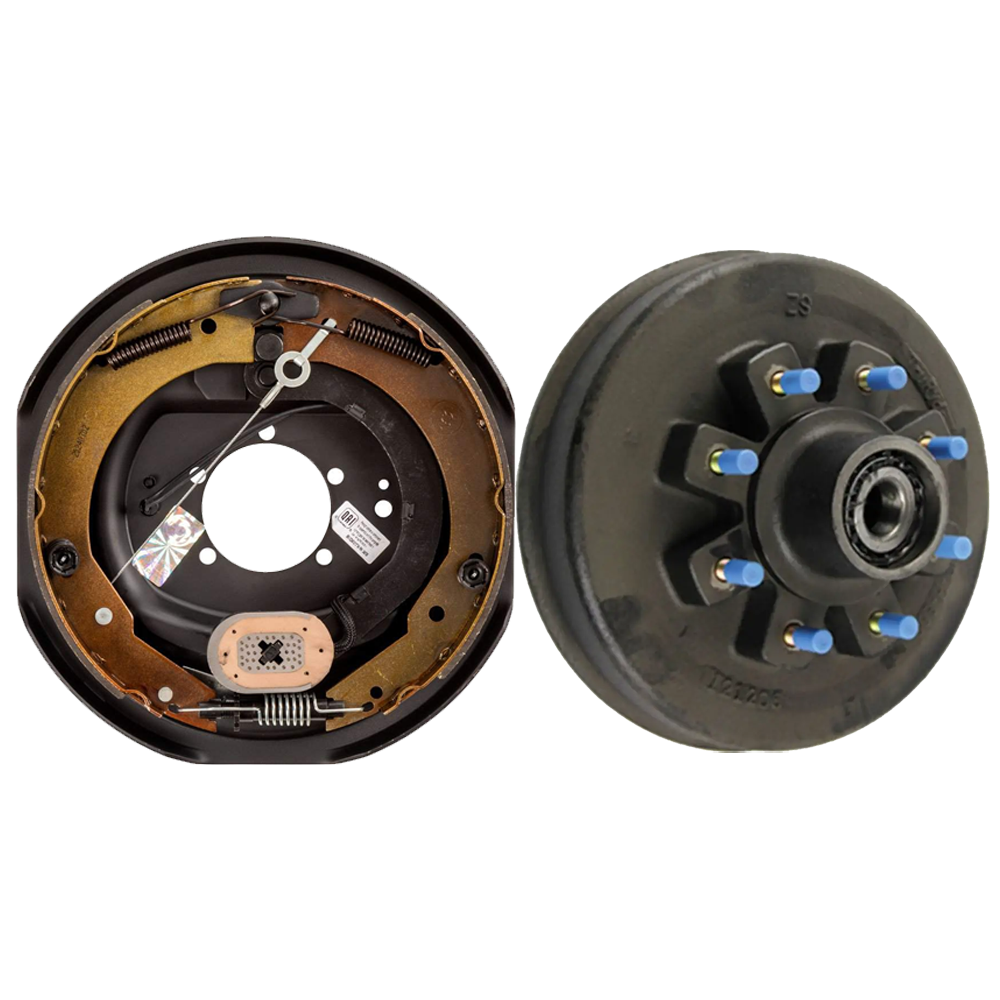

Bundle Contents:

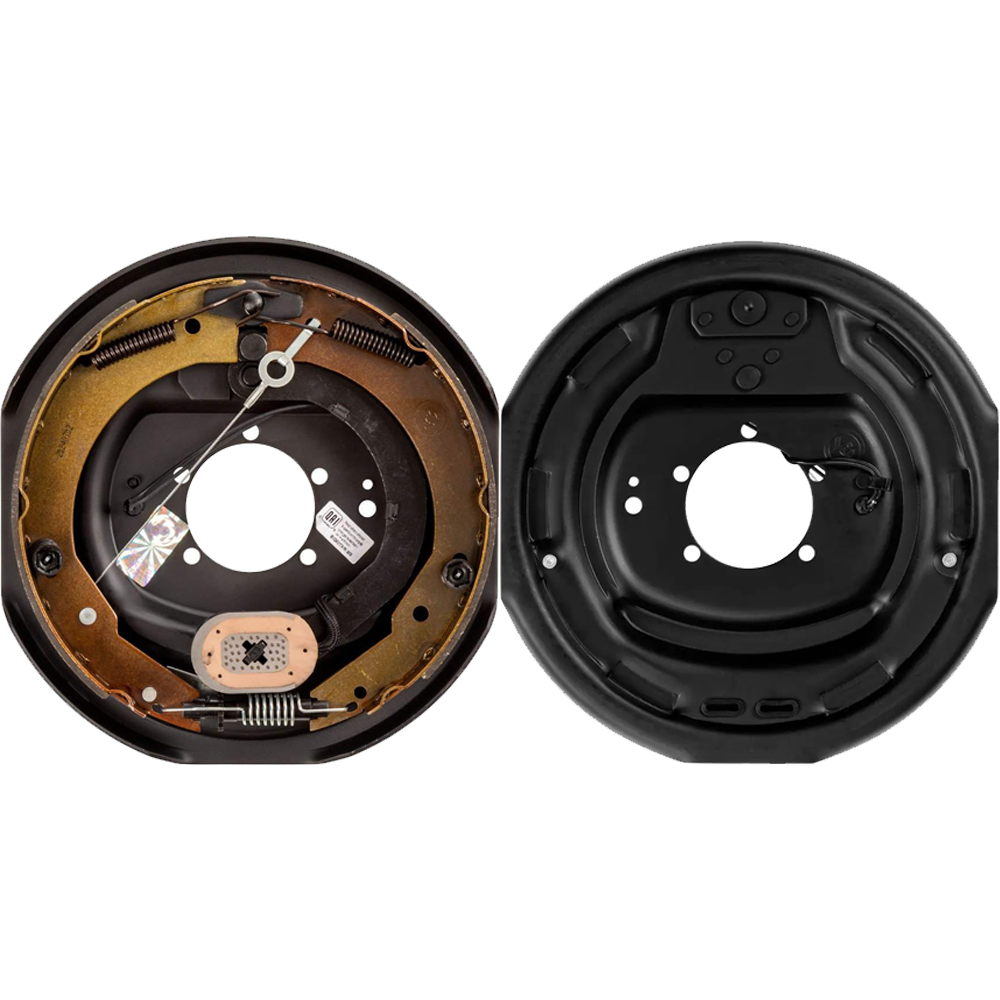

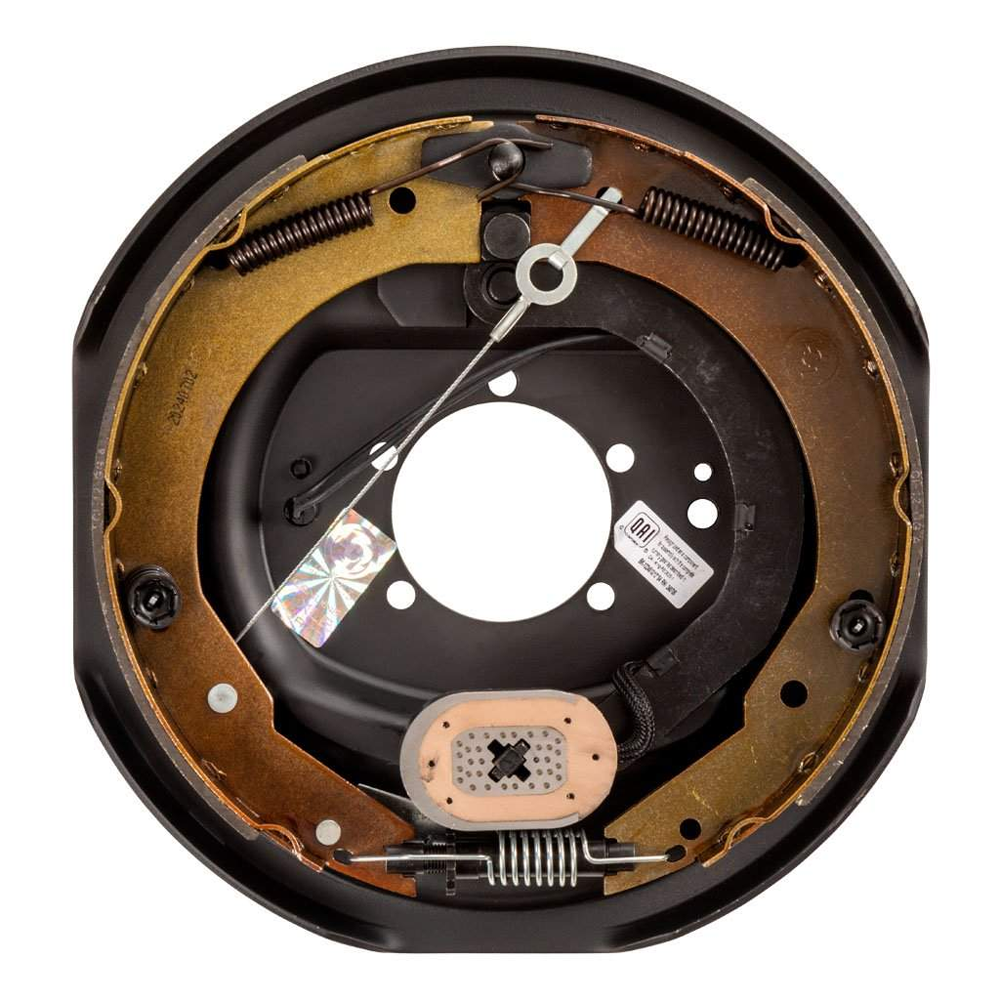

• QTY (1): Lippert Forward Self-Adjusting Brake Assembly – 12" × 2"
  • Fits 15"–17.5" wheels; right-hand (curb-side)
  • Rated 5.2K–7K on standard axles and 8K on Lippert hybrid axles

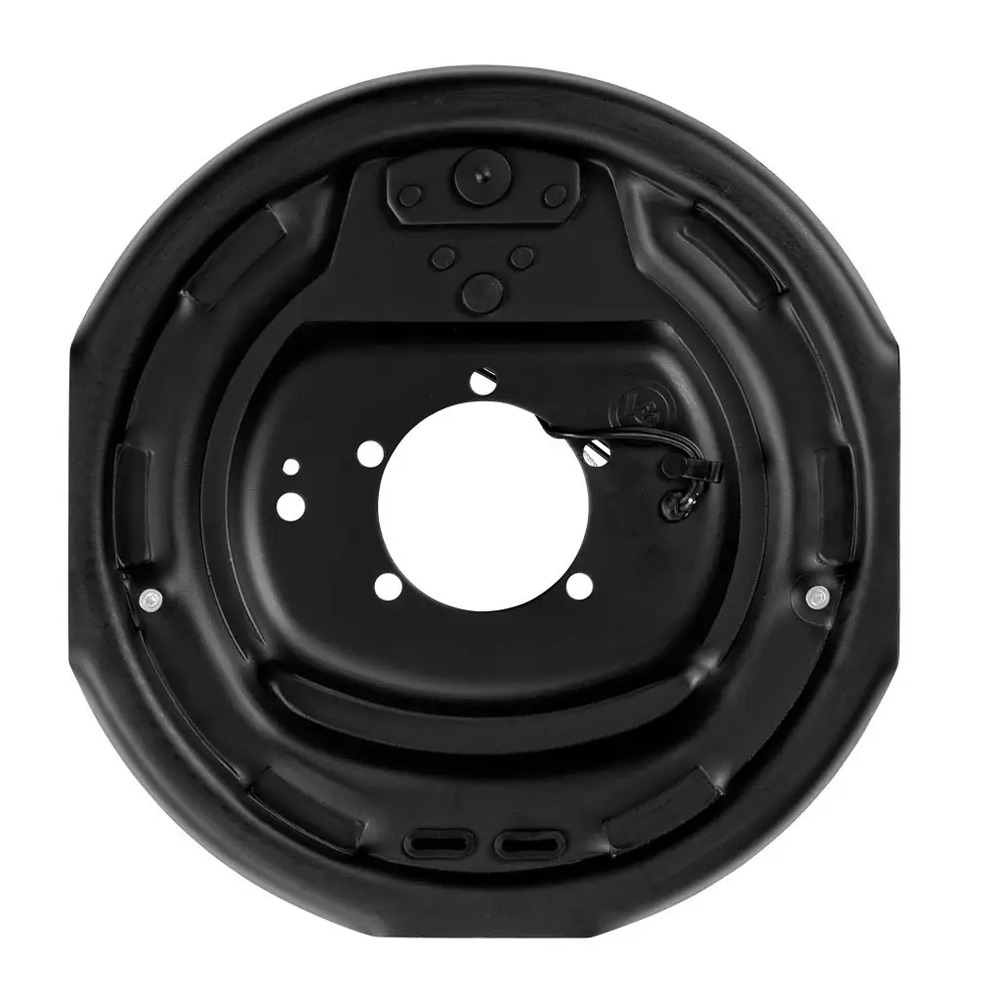

  • Five-bolt backing plate; self-adjusting mechanism
  • Dexter compatible P/N: K23-465-00, 023-465-00
  • 1-year limited warranty

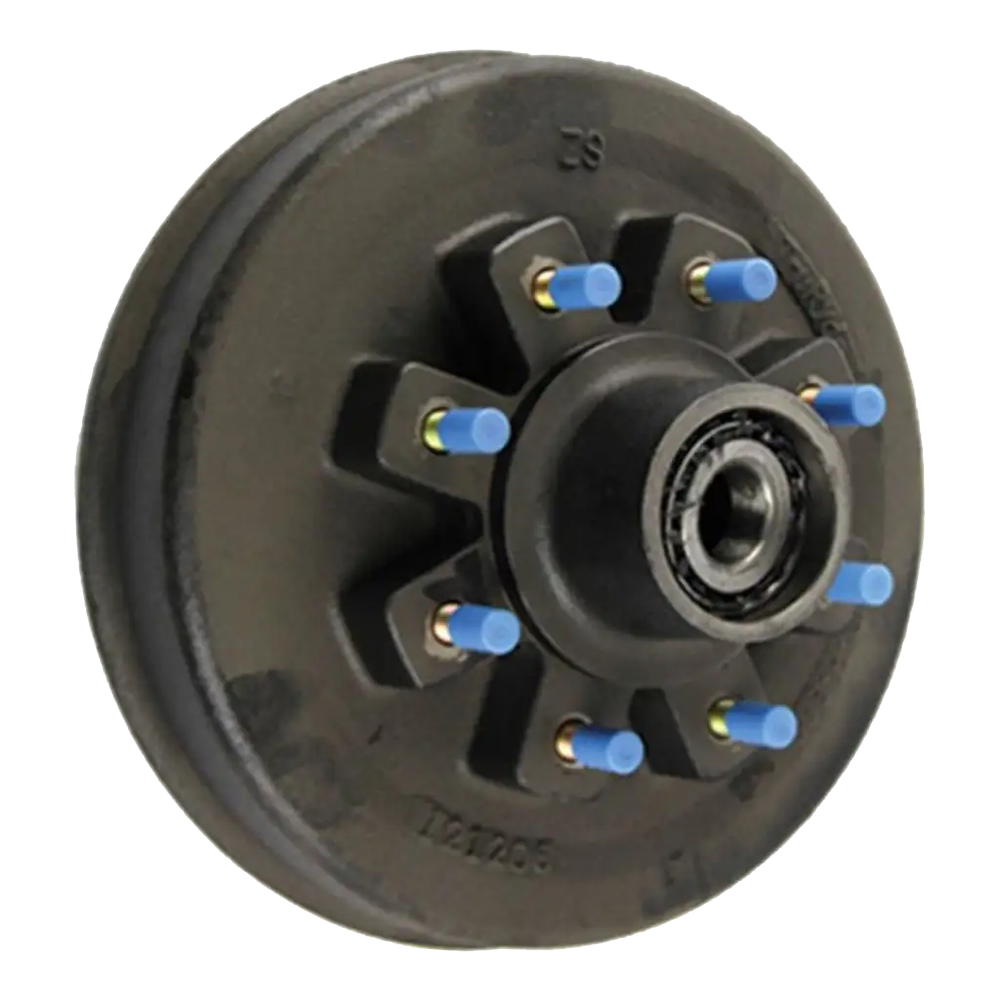

• QTY (1): Lippert Hybrid Brake Drum Hub – 12" × 2", 8-on-6.5", 5/8" Stud
  • Engineered for Lippert 8K hybrid axles
  • Grey-iron construction with pre-installed races & studs
  • For 17.5" single wheels; 4.75" hub pilot
  • Limited 1-year warranty

Always verify your axle style (standard vs. hybrid) and wheel-stud size before ordering, and perform routine inspections for maximum brake life and safety.
