Lippert 8K Triple-Axle 12.25? � 3.38? Electric Brakes & 8-on-6.5 5/8? Oil-Bath Hubs | Dexter / AL-KO Compatible

Lippert 8K Triple-Axle 12.25″ × 3.38″ Electric Brakes & 8-on-6.5 5/8″ Oil-Bath Hubs

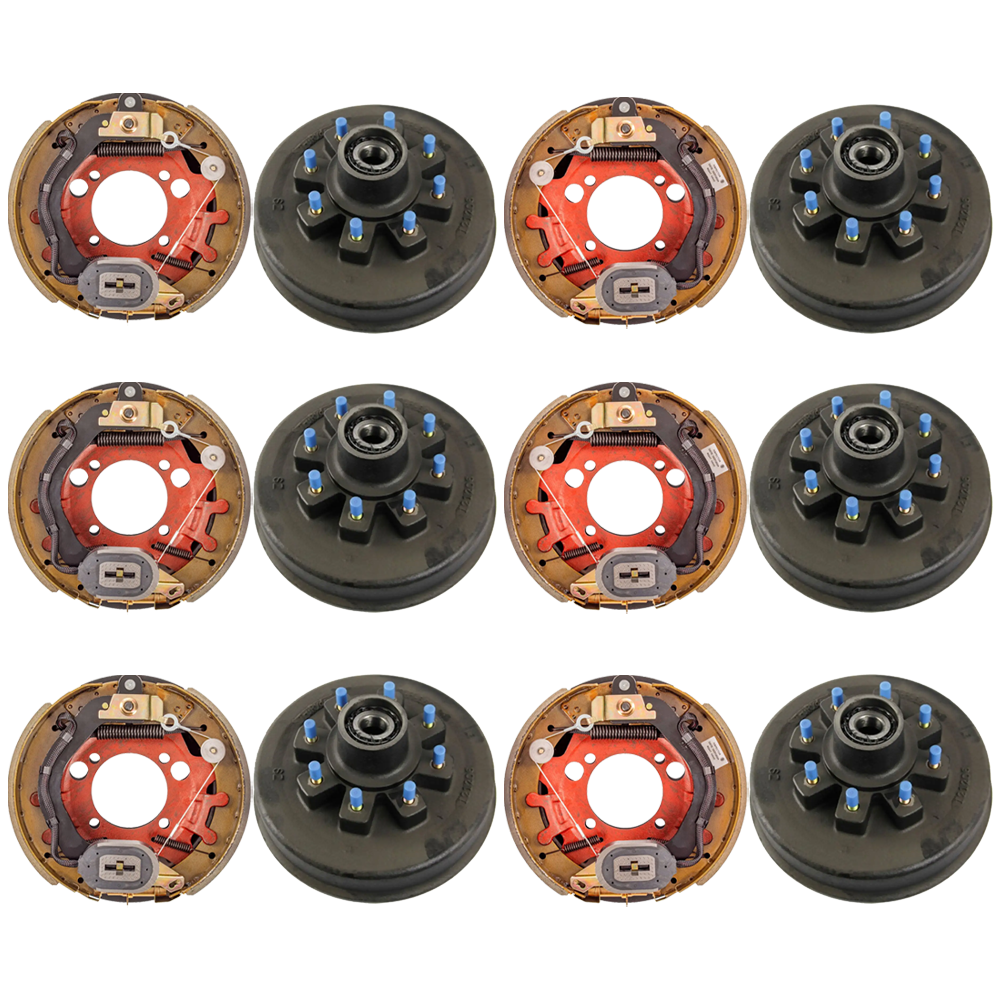

This complete triple-axle package refreshes all three 8,000-lb axles in one go. Six genuine Lippert oil-bath hub & drum units pair with matching self-adjusting electric brakes to deliver confident, even stopping power for heavy RVs, cargo, or equipment trailers.

Bundle Contents:

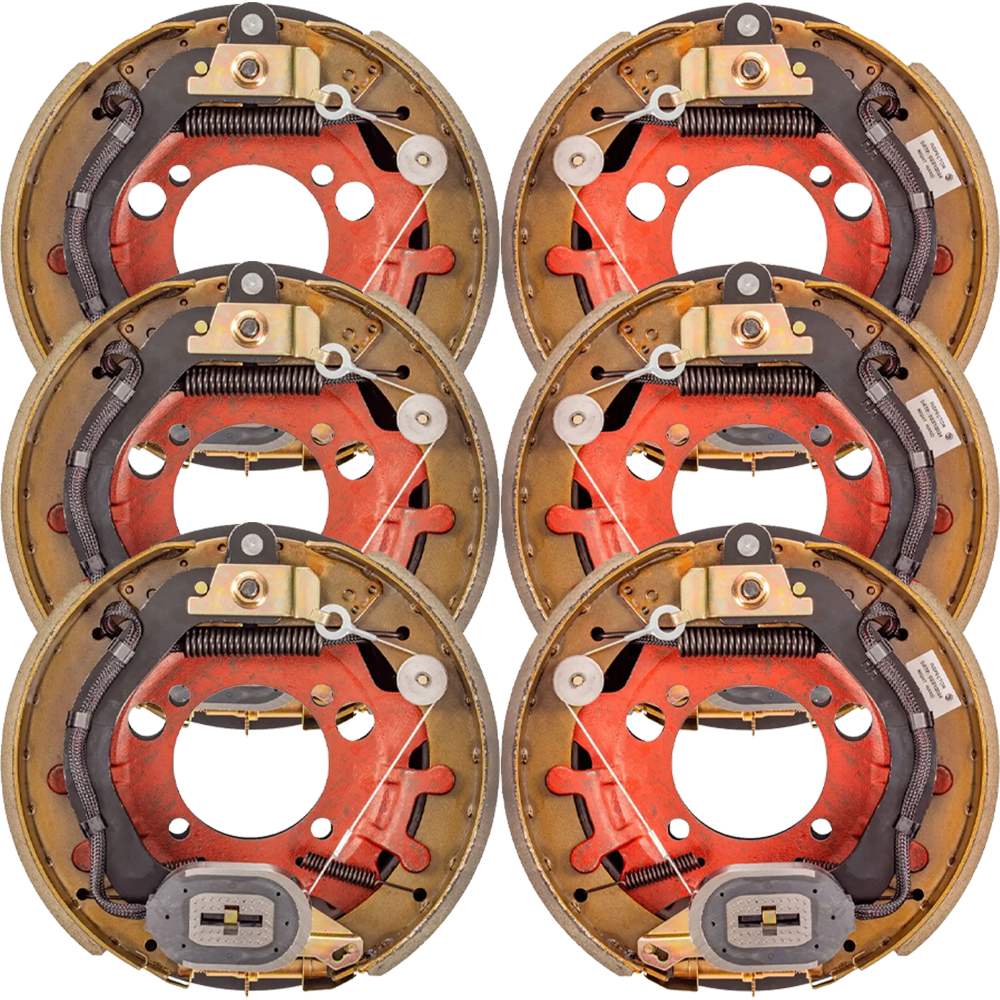

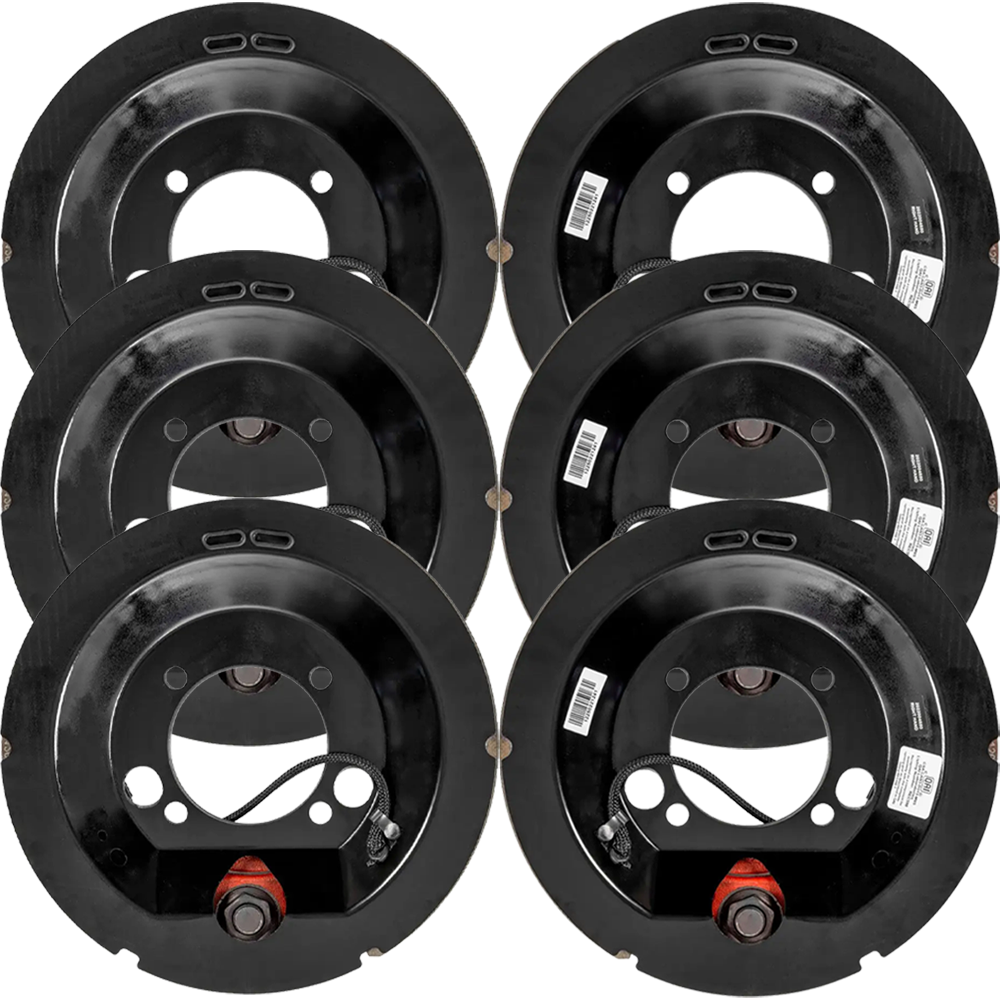

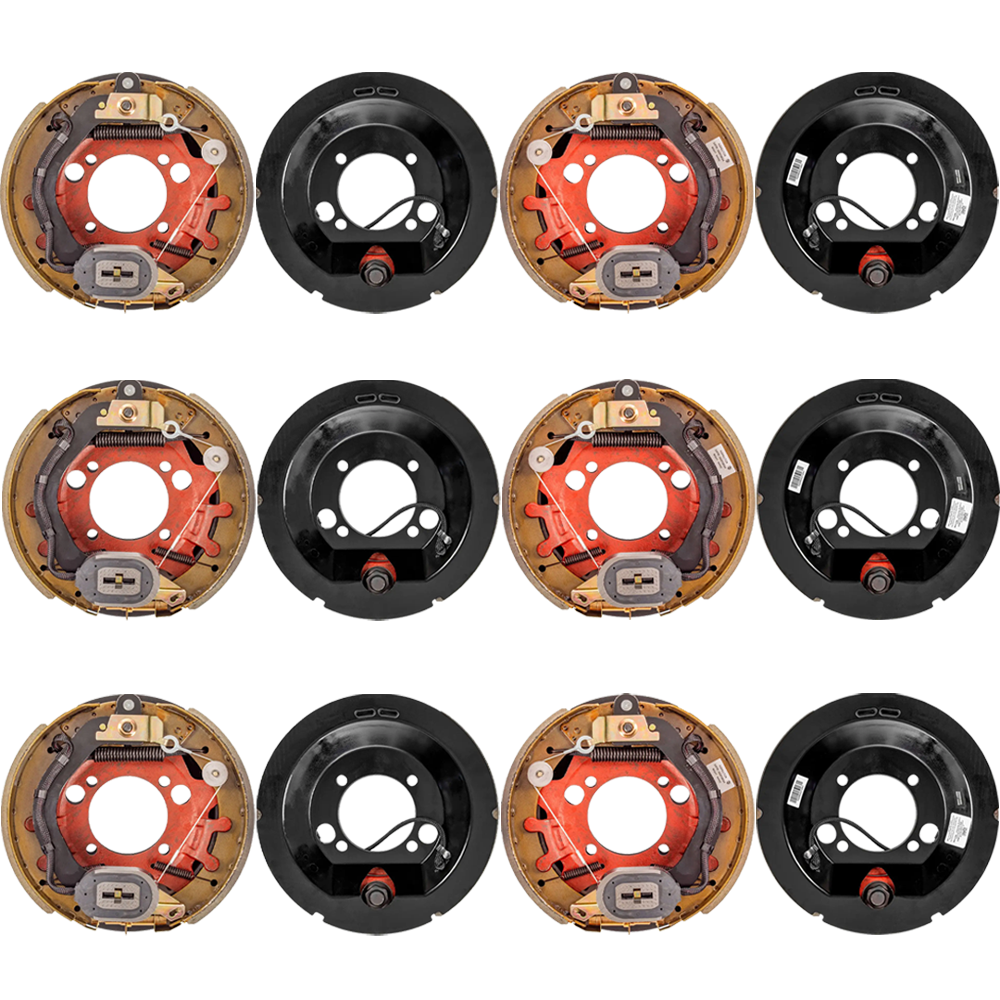

• QTY (3): Lippert 12.25″ × 3.38″ Electric Brake Assembly – Left-Hand (Roadside)
  • Dexter Compatible Part Number: K23-434-00 | 023-434-00
  • Forward self-adjusting — no manual tweaks after break-in
  • Fits 8,000-lb axles & 16-17.5″ wheels
  • Four-bolt brake-flange pattern; park-brake lever installed
• QTY (3): Lippert 12.25″ × 3.38″ Electric Brake Assembly – Right-Hand (Curbside)
  • Dexter Compatible Part Number: K23-435-00 | 023-435-00
  • Mirror-image mate to left-hand unit
  • Up to 50 % shorter stopping distance
  • Easy DIY install (hardware sold separately)

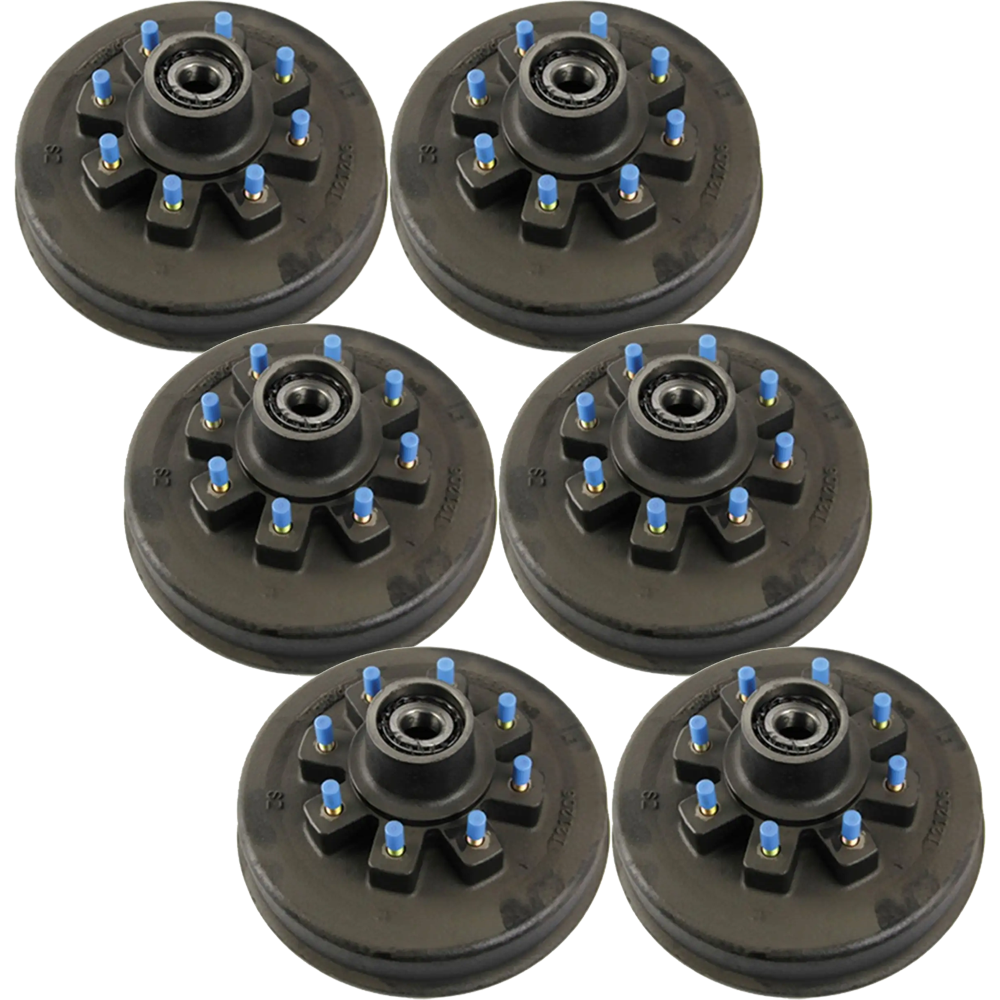

• QTY (6): Oil-Bath Trailer Hub & Drum – 8-on-6.5″, 5/8″ Stud, 8,000-lb
  • Bearing cones & unitized oil seal come pre-installed
  • Oil-bath window lets you check lube level at a glance
  • Heavy-duty 5/8″ studs on 8-on-6.5″ circle
  • Perfect match to Lippert 8K electric drums

Always confirm axle rating, brake-flange pattern, and wheel size before ordering. Inspect brakes & hubs every 3,000 miles and service with quality lubricant for maximum life.

Product image for reference only — minor cosmetic details (casting style, cap color, stud protectors, packaging) may vary between production runs. All items ship to the exact specifications listed.
