Lippert 8K Triple-Axle 12.25? � 3.38? Self-Adjusting Electric Brake Assemblies & Grease Drum Hub Kit � 8-on-6.5 (9/16?) Dexter/Al-Ko Compatible

Lippert 8K Triple-Axle Electric Brake & Grease Drum Hub Kit

Refresh or upgrade your triple-axle 8,000-lb trailer with this genuine Lippert® bundle. You’ll get forward self-adjusting 12.25″ × 3.38″ electric brake assemblies for both sides of three axles, plus six pre-greased 8-on-6.5 drum hubs. The kit speeds installation, restores factory-grade braking power and keeps heavy-duty RV, cargo and equipment trailers rolling safely.

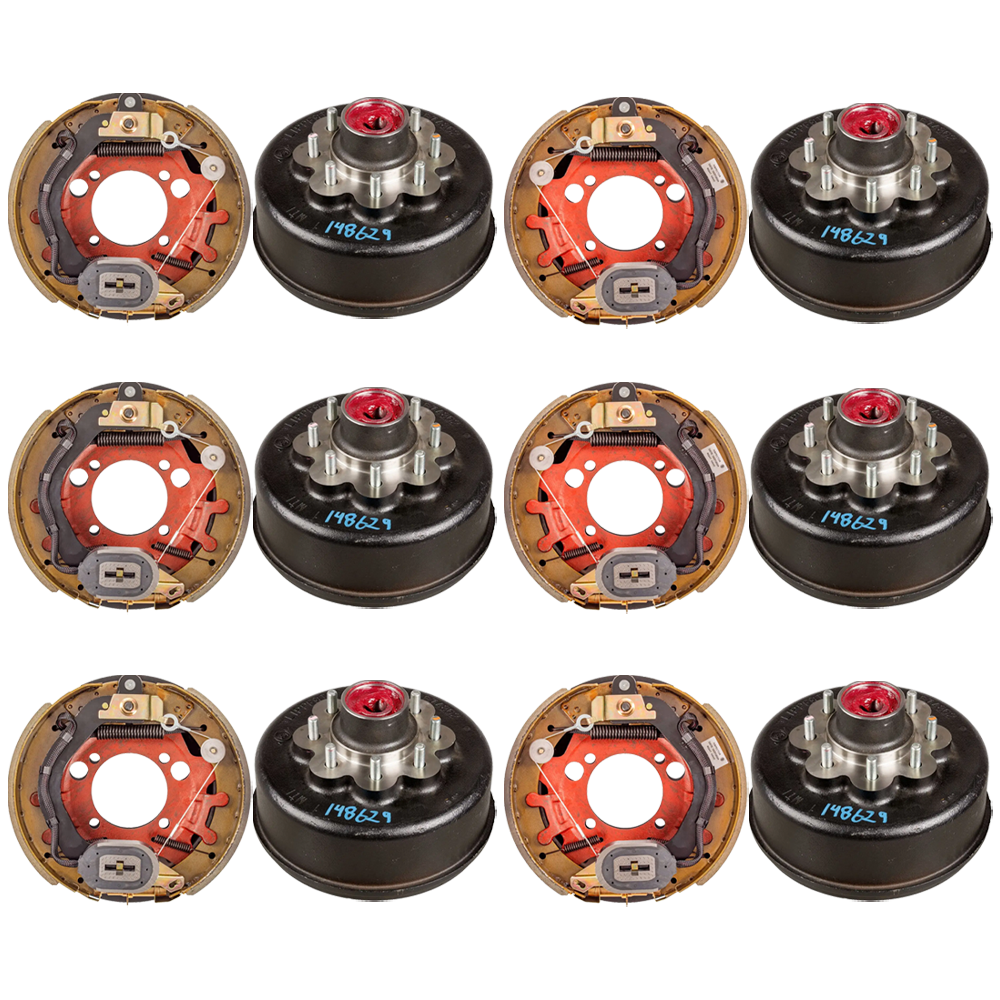

Bundle Contents:

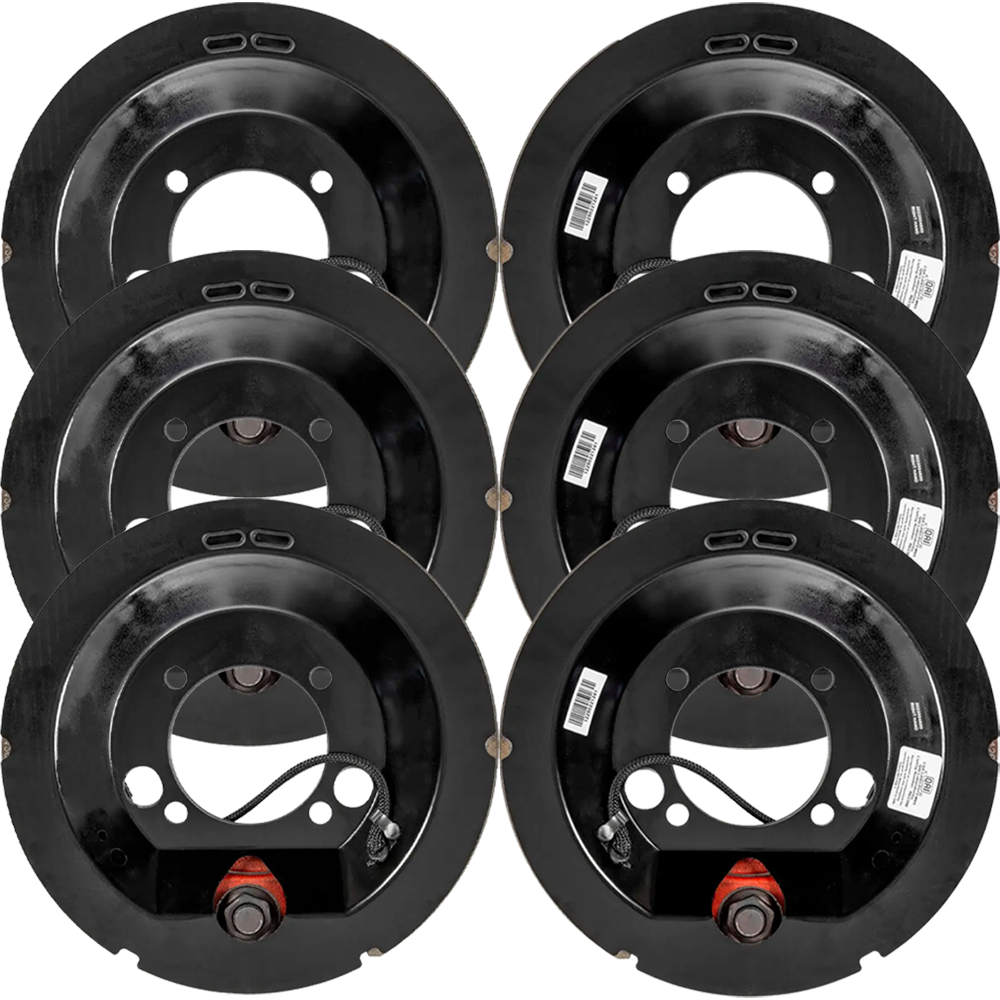

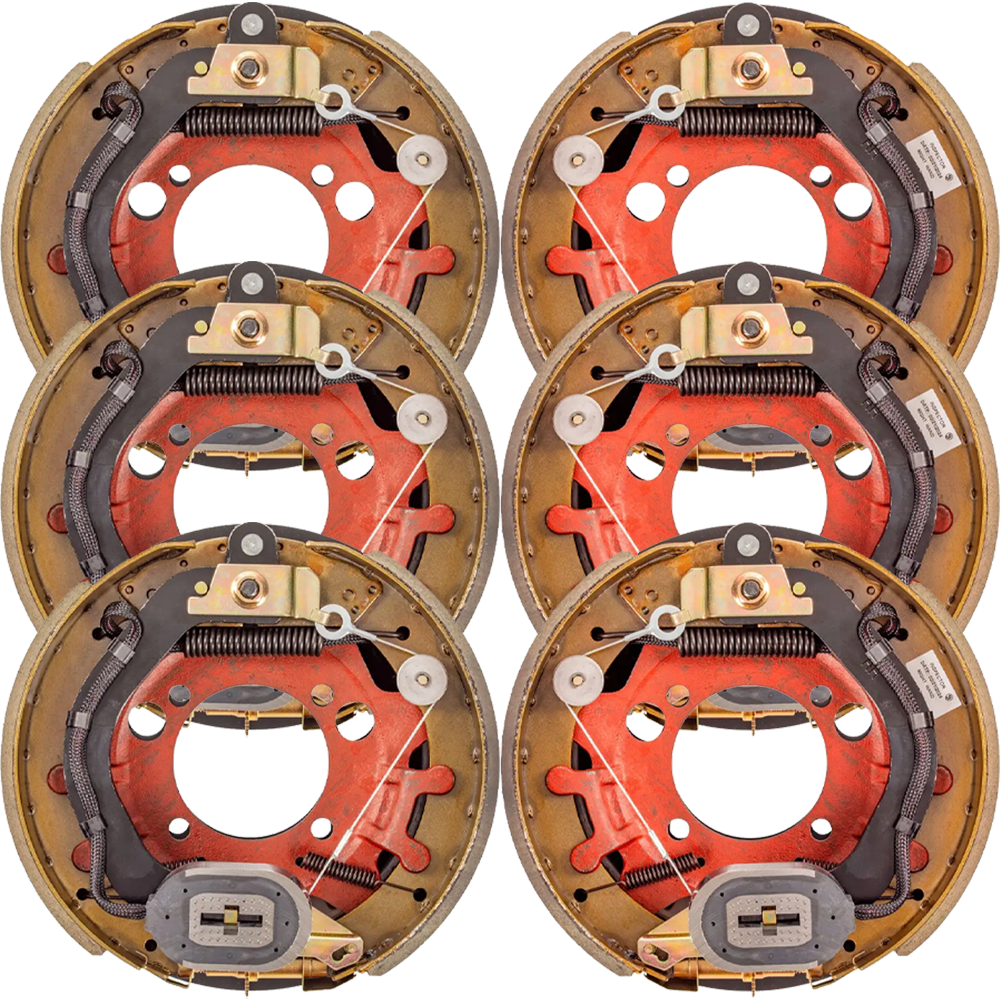

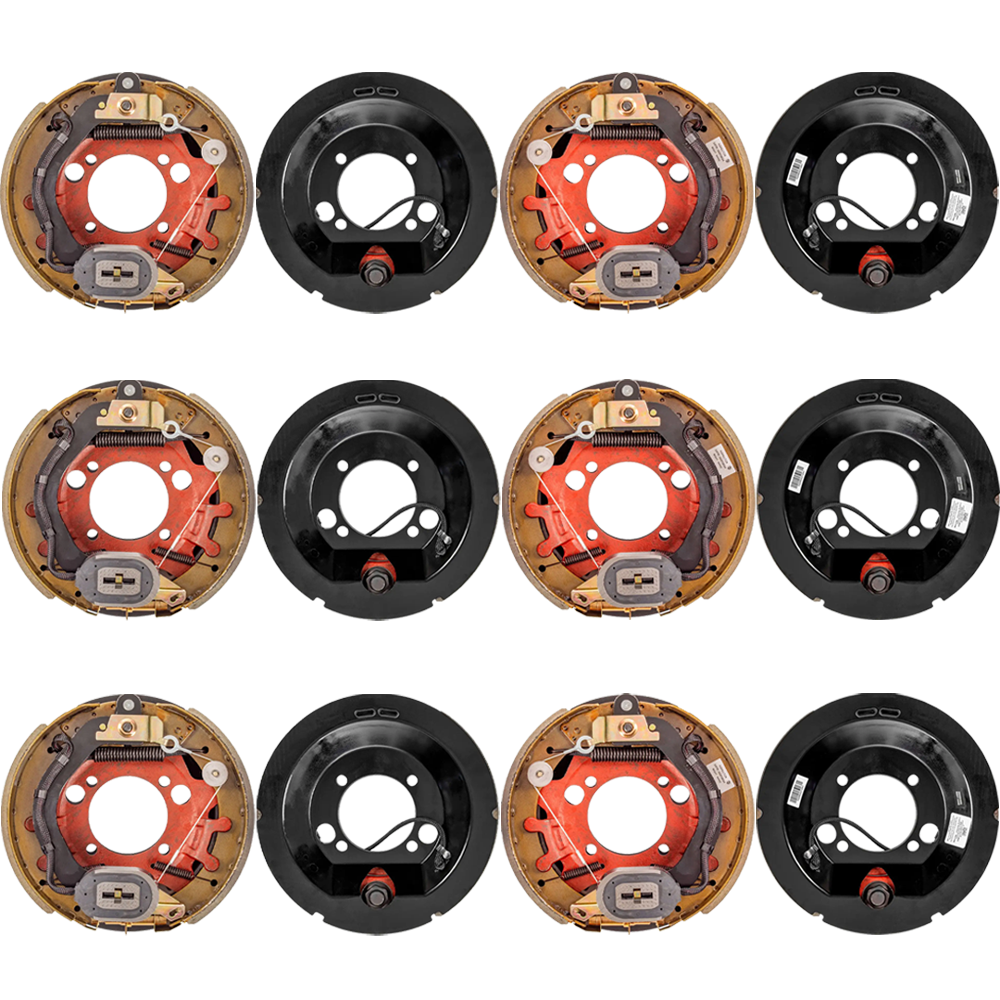

• QTY (3): Lippert Electric Trailer Brake Assembly – 12.25″ × 3.38″ 8,000 lbs. (Left)
  • Forward self-adjusting design – no manual shoe tweaks
  • Left-hand (roadside) installation with park feature
  • Four-bolt brake-flange mount; fits 16–17.5″ wheels
  • For 8 K Dexter®, Al-Ko® & Lippert® axles
  • Dexter compatible PN: K23-434-00 | 023-434-00
  • Break-in period required for full braking potency
• QTY (3): Lippert Electric Trailer Brake Assembly – 12.25″ × 3.38″ 8,000 lbs. (Right)
  • Forward self-adjusting design – maintenance-free braking
  • Right-hand (curb-side) installation with park feature
  • Four-bolt brake-flange mount; fits 16–17.5″ wheels
  • For 8 K Dexter®, Al-Ko® & Lippert® axles
  • Dexter compatible PN: K23-435-00 | 023-435-00
  • Break-in period required for full braking potency

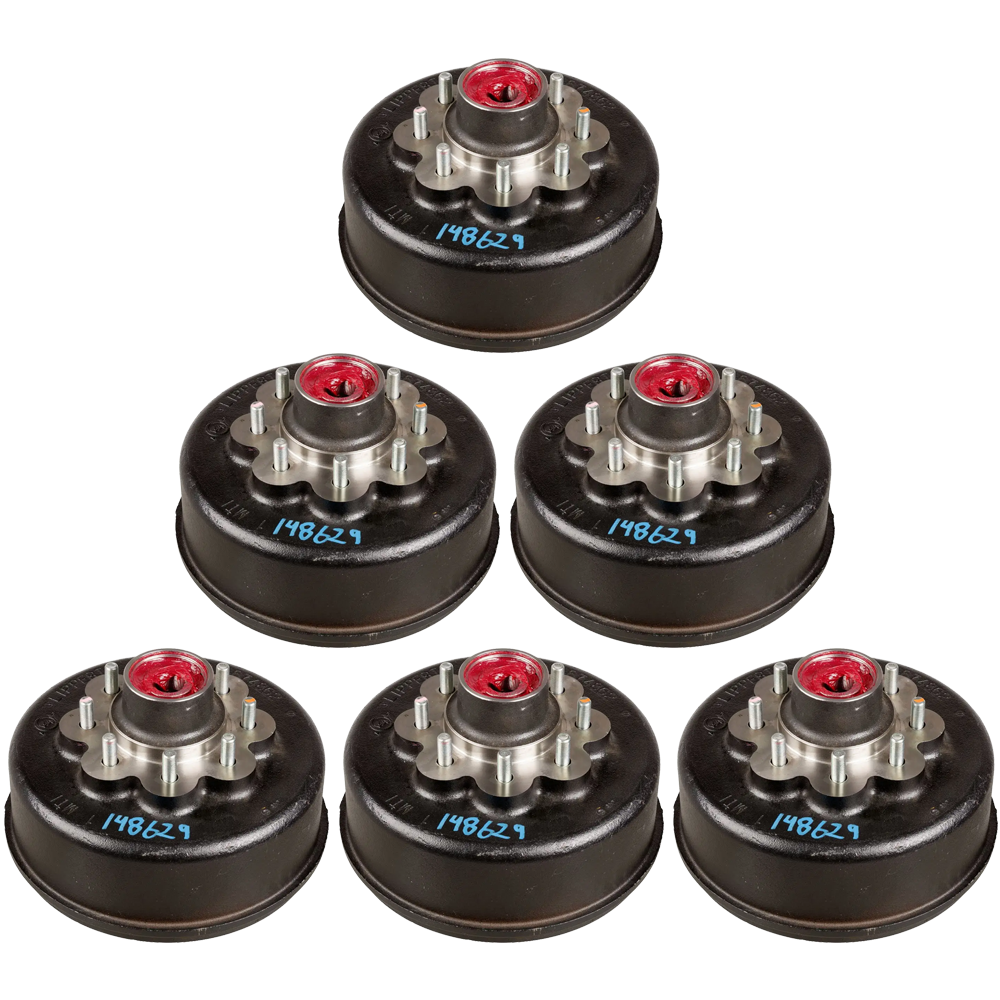

• QTY (6): Lippert Grease Drum Hub Assembly – 8 on 6.5″ Pattern, 9/16″ Stud
  • Rated for 8,000-lb axles; rugged cast-iron construction
  • 8 × 6.5″ bolt pattern with 9/16″ studs
  • Pre-installed bearing cones, seal & grease
  • Compatible with 16–17.5″ wheels
  • Designed to mate perfectly with the included electric brake assemblies
  • Limited 1-year manufacturer warranty

Always verify fitment with your original equipment labels and perform routine brake and hub maintenance to ensure safe towing.

Product image for reference only — minor cosmetic details (casting style, cap color, stud protectors, packaging) may vary between production runs. All items ship to the exact specifications listed.
