Lippert Quad-Axle 10? Manual-Adjust Electric Brake & Bare Hub/Drum Kit � 4,400 lb Axles � Dexter/Alko/Rockwell Compatible
$985.99
Lippert 10″ Manual-Adjust Electric Brakes & Bare Hubs/Drums – Quad-Axle Kit (Dexter/Alko/Rockwell Compatible)
Refresh all four of your 4,400-lb trailer axles with this genuine Lippert bundle. Eight matched 10″ manual-adjust electric brakes pair with eight 10″ bare hub/drums (6 on 5.5″), restoring confident, even stopping power while fitting popular Dexter, Alko, and Rockwell axles.

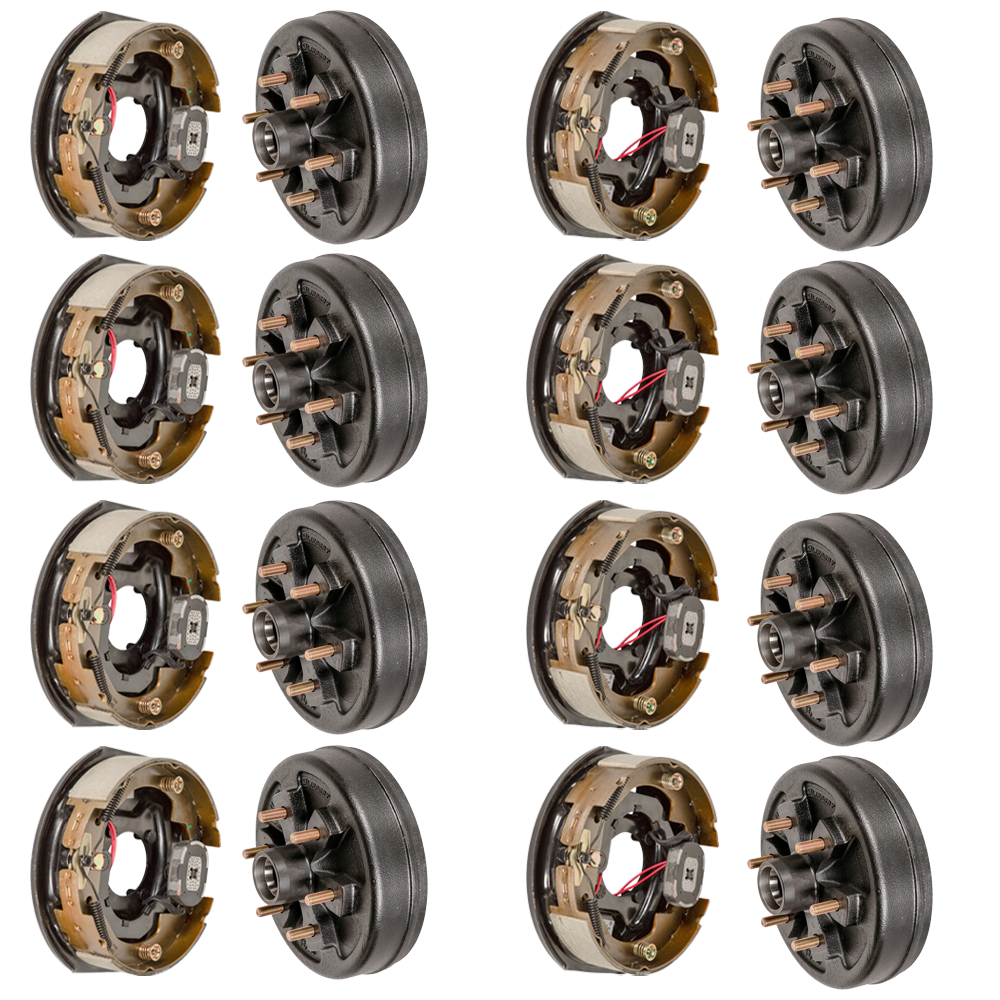

Bundle Contents:
-

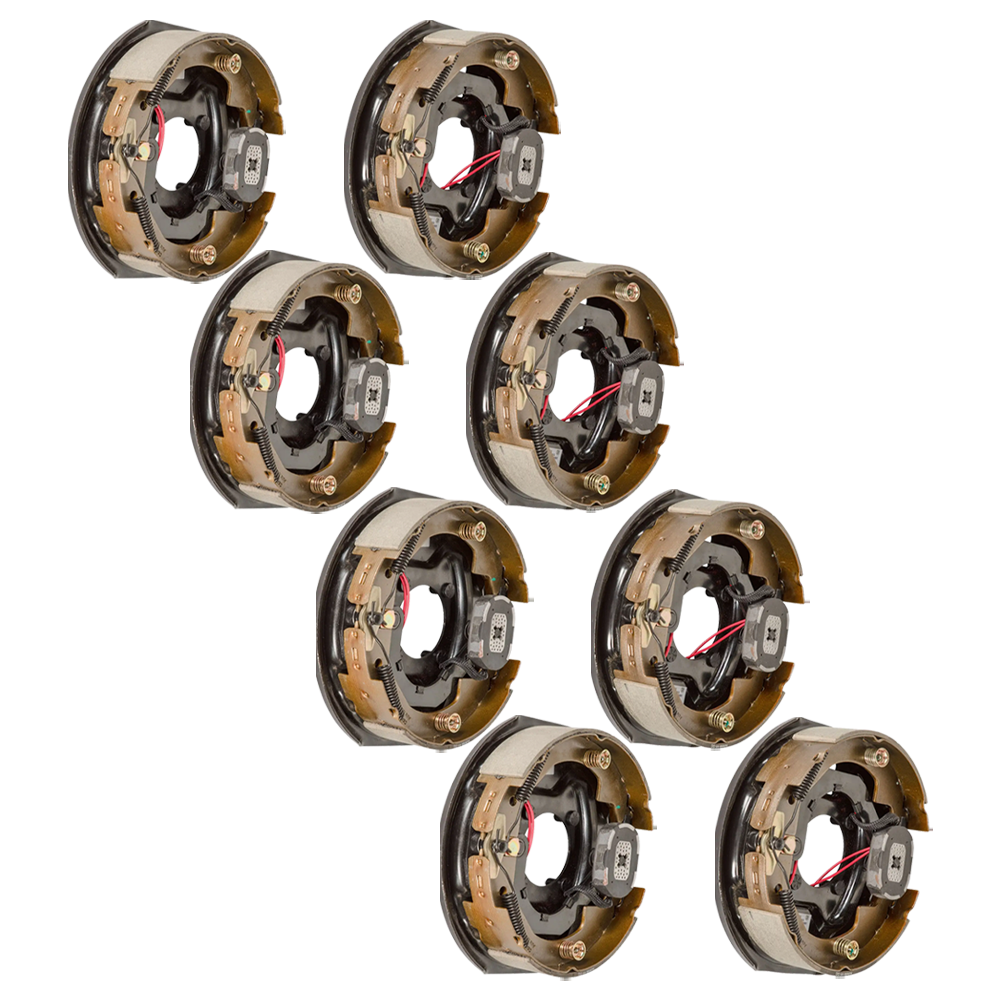

QTY (4): Electric Trailer Brake Assembly – Driver-Side, 10″ × 2-1/4″, 4,400 lb
- Manual-adjust backing plate with pre-wired magnet
- Fits standard 4-bolt mounting flange
- Formulated brake shoes for smooth, quiet stops
- Dexter compatible part number: K23-462-00 / 023-462-00
- Direct Lippert replacement; Alko & Rockwell friendly
-
QTY (4): Electric Trailer Brake Assembly – Passenger-Side, 10″ × 2-1/4″, 4,400 lb
- Mirror-image right-hand unit for quick install
- Rated for 4,400 lb axles, 10″ drums
- Manual adjuster enables precise shoe clearance
- Dexter compatible part number: K23-463-00 / 023-463-00
- OE-grade components for long service life
-

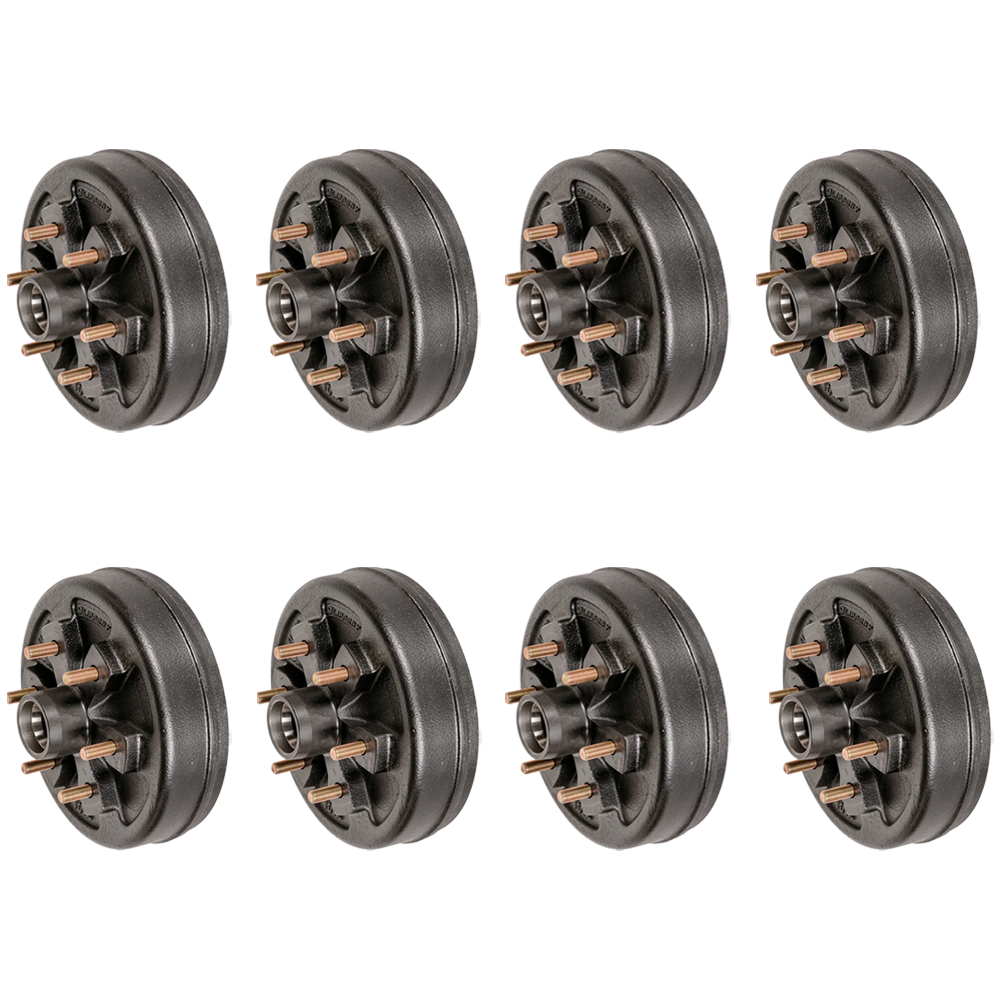

QTY (8): 10″ Bare Brake Hub/Drum – 6 on 5.5″, 1/2″ Studs, 4,400 lb
- Solid cast-iron construction, races pre-installed
- Hub only – full assembly not included
- Accepts 14.5″–16.5″ wheels
- One-year Lippert warranty for peace of mind
Always confirm axle rating, mounting flange, and bolt pattern before installation. Adjust new brakes after the first 200 miles and inspect bearings and seals during routine service.
| Specifications: | |
|---|---|
| Kit Type | Complete Quad-Axle Brake & Hub Set |
| Axle Rating | 4,400 lb per axle (17,600 lb combined) |
| Brake Drum Dimensions | 10″ diameter × 2-1/4″ width |
| Brake Mounting Pattern | 4-bolt standard brake flange |
| Hub Bolt Pattern | 6 on 5.5″ |
| Hub Type | Bare Drum with Integrated Hub |
| Stud Size | 1/2″ |
| Type of Adjustment | Manual-Adjust |
| Brake Location | Driver (LH) & Passenger (RH) |
| Wheel Size Compatibility | 14.5″, 15″, 16″, 16.5″ Wheels |
| Brand Compatibility | Lippert, Dexter, Alko, Rockwell |
Order today or call us at 877-869-6690 for expert advice and personalized service.
