Lippert?Quad?Axle?12?1/4"?x?5"?Self?Adjusting?Electric?Brake?(7?Bolt)?&?Threaded?Grease?Hub?(8?on?6?1/2,?5/8"?Studs)?Kit?�?12K?Axles?|?Dexter?�?Alko?�?Rockwell
$3,544.99
Lippert Quad‑Axle 12‑1/4" x 5" Self‑Adjusting Electric Brake (7‑Bolt) & Threaded Grease Hub Kit
This all‑inclusive quad‑axle bundle delivers eight forward self‑adjusting electric brakes and eight high‑capacity threaded grease hubs for confident 12K‑rated stopping power. Ideal for livestock, construction and equipment trailers that demand smooth, low‑maintenance braking and fast, hassle‑free installation.

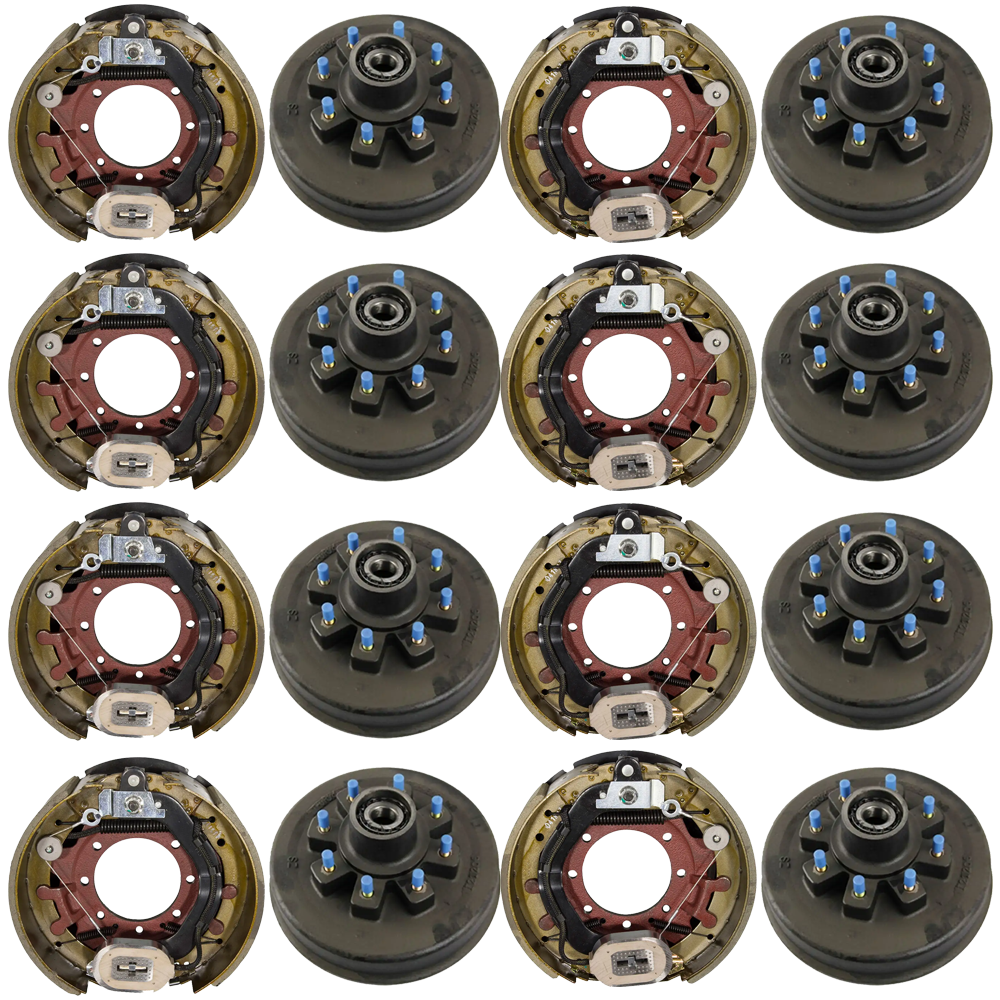

Bundle Contents:
-

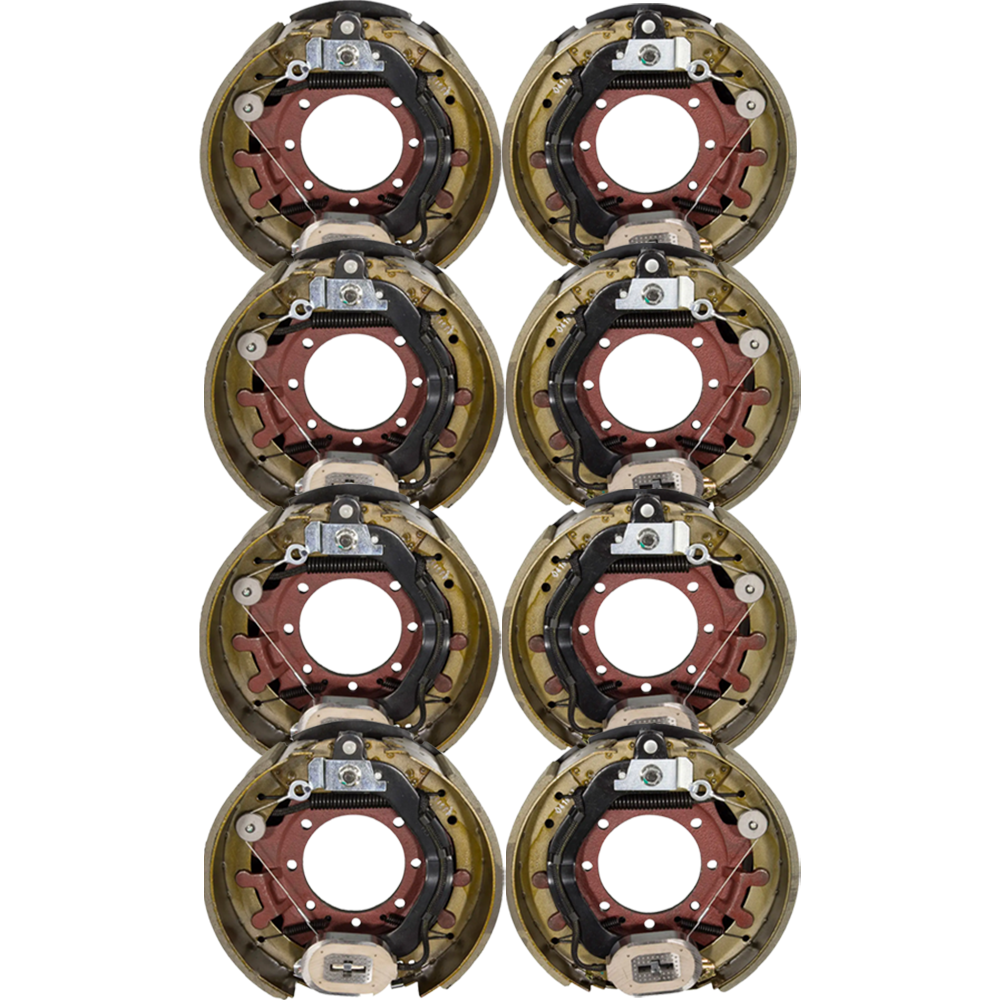

QTY (4): Forward Self‑Adjusting Brake – 12‑1/4" x 5" Driver‑Side, 12‑16K, 7‑Bolt
- 12‑1/4" x 5" electric drum brake
- Driver/left side – 7‑bolt mounting
- Self‑adjusting; fits 12K–16K axles
- Genuine Lippert part, Dexter‑compatible
- Up to 50 % shorter stopping distance
- Dexter compatible PN: K23‑442‑00 / 023‑442‑00
-
QTY (4): Forward Self‑Adjusting Brake – 12‑1/4" x 5" Passenger‑Side, 12‑16K, 7‑Bolt
- 12‑1/4" x 5" electric drum brake
- Passenger/right side – 7‑bolt mounting
- Self‑adjusting; fits 12K–16K axles
- Genuine Lippert part, Dexter‑compatible
- Improves pad life and safety
- Dexter compatible PN: K23‑443‑00 / 023‑443‑00
-

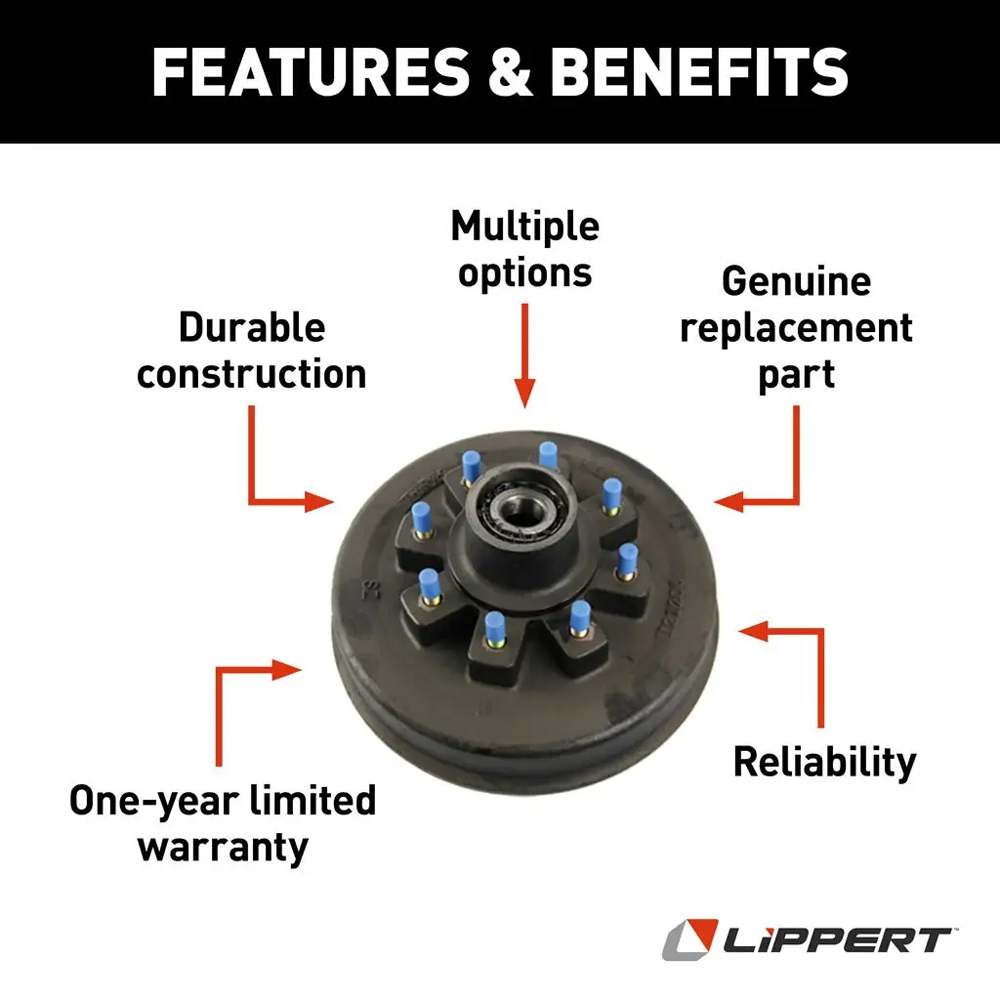

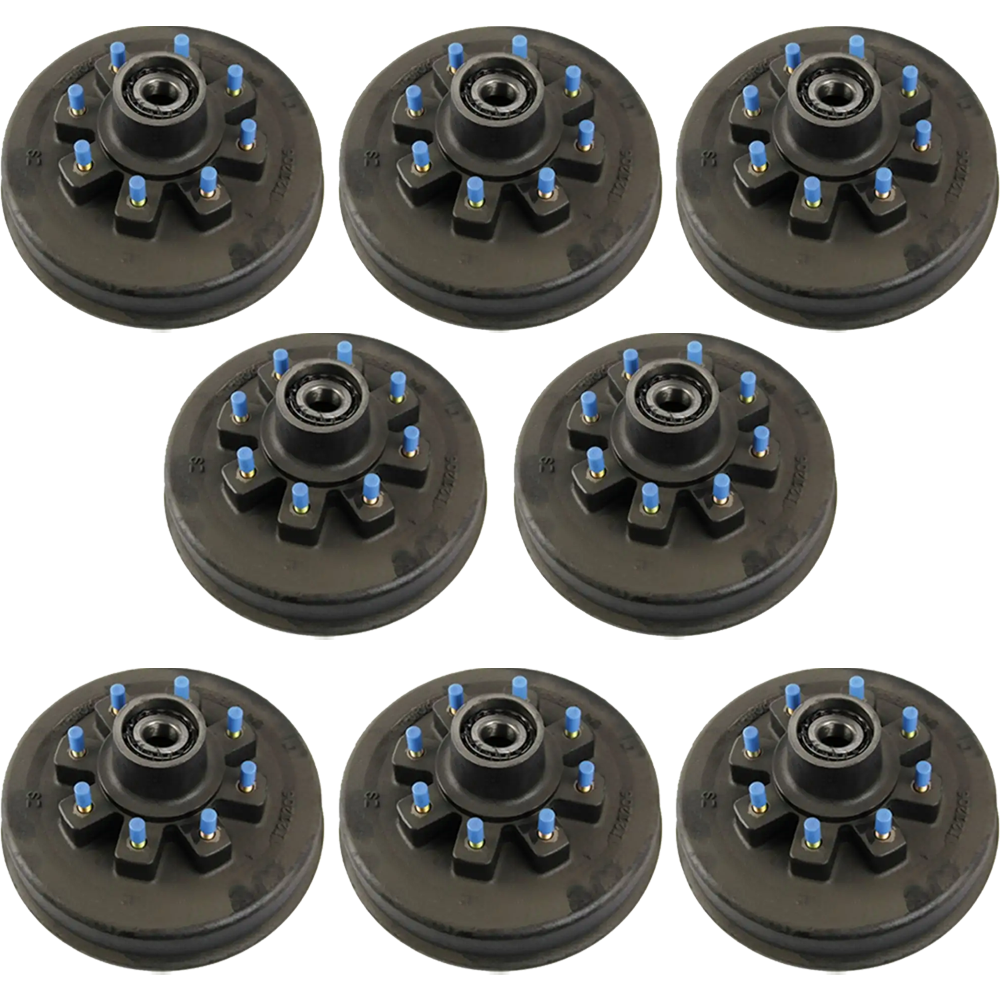

QTY (8): Threaded Trailer Brake Hub Assembly – 12K, 8 on 6‑1/2", 5/8" Studs
- 12,000‑lb axle‑rated grease hub & drum
- 8 on 6‑1/2" bolt pattern, 5/8" studs
- Fits 16"–17.5" wheels
- Durable cast‑iron drum; races & wheel studs come pre‑installed
- Accepts Valcrum threaded dust caps
Always verify axle rating, brake‑flange pattern and hub dimensions before ordering. Replace bearings, seals and hardware during routine service to maximize performance and longevity.
| Specifications: | |
|---|---|
| Kit Type | Complete Quad‑Axle Electric Brake & Grease Hub Kit |
| Axle Rating | 12,000 lbs per axle (bundle‑limited) |
| Brake Drum Dimensions | 12‑1/4" x 5" |
| Brake Mounting Pattern | 7‑Bolt |
| Hub Bolt Pattern | 8 on 6‑1/2" |
| Hub Type | Threaded Grease Hub with Integrated Drum |
| Stud Size | 5/8" |
| Type of Adjustment | Forward Self‑Adjusting |
| Brake Location | Driver & Passenger Side Sets |
| Wheel Size Compatibility | 16"–17.5" (hub) • 16"–17.5" (brake drum) |
Product image for reference only — minor cosmetic details (casting style, cap color, stud protectors, packaging) may vary between production runs. All items ship to the exact specifications listed.
Order today or call us at 877‑869‑6690 for expert advice and personalized service.
