Lippert?Quad?Axle?12"?Electric?Brake?&?6?on?5.5"?Drum?Hub?Kit?with?Bearing?Sets?�?Fits?6,000?7,000?lb?Trailer?Axles?�?Dexter?&?Alko?Compatible

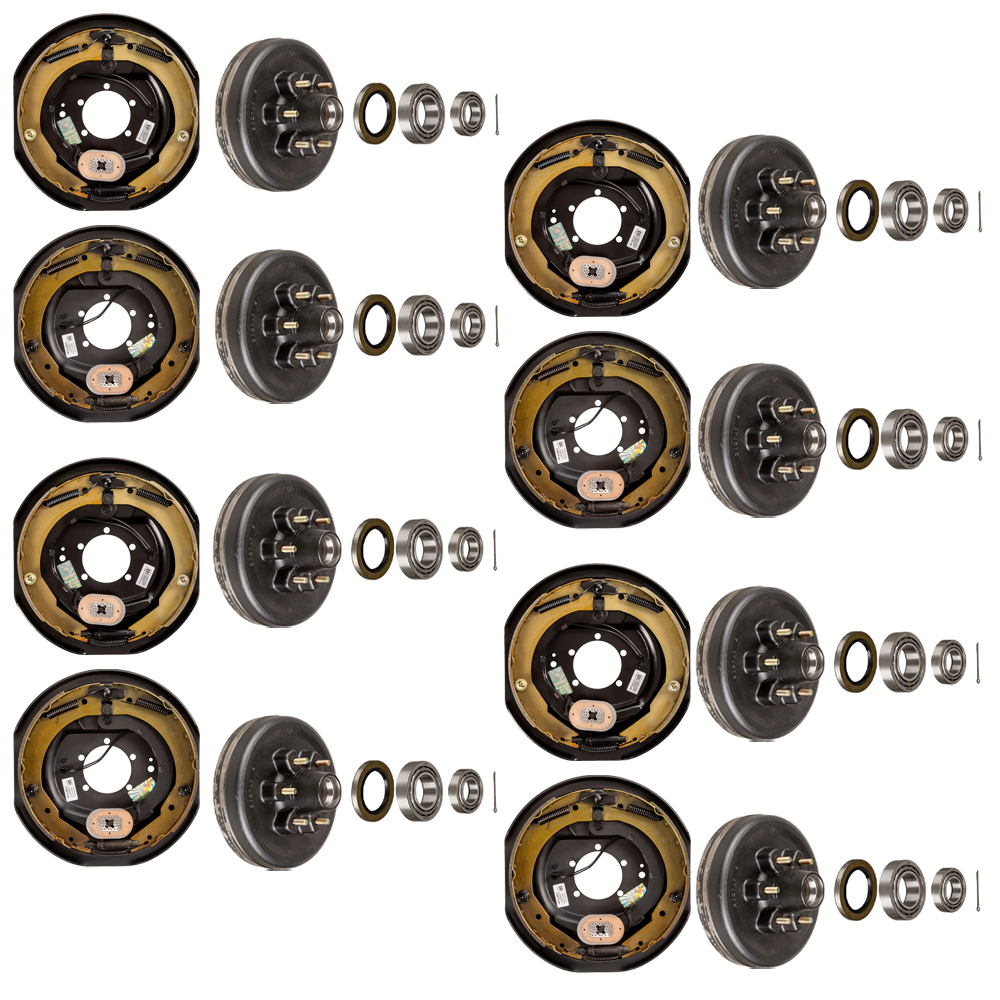

Lippert Quad‑Axle 12" Electric Brake & Drum Hub Upgrade Kit

Give your quad‑axle trailer the stopping power and durability it deserves. This complete bundle pairs eight genuine Lippert 12" x 2" electric brake assemblies with eight matching 6‑on‑5.5" drum hubs and bearing kits, delivering a factory‑fresh solution for 6,000‑lb rated axles. Whether you’re rebuilding worn components or upgrading for heavy loads, Lippert’s OEM‑grade parts ensure smooth, dependable braking mile after mile.

Bundle Contents:

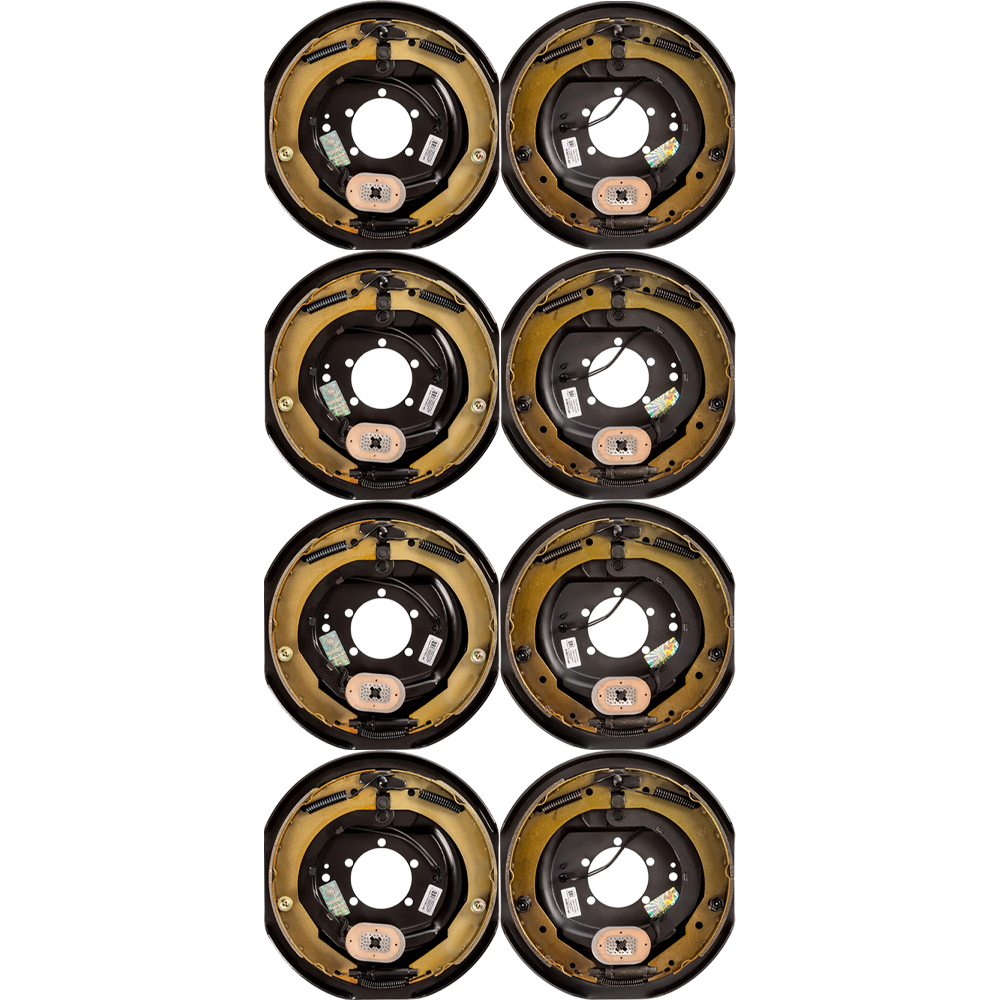

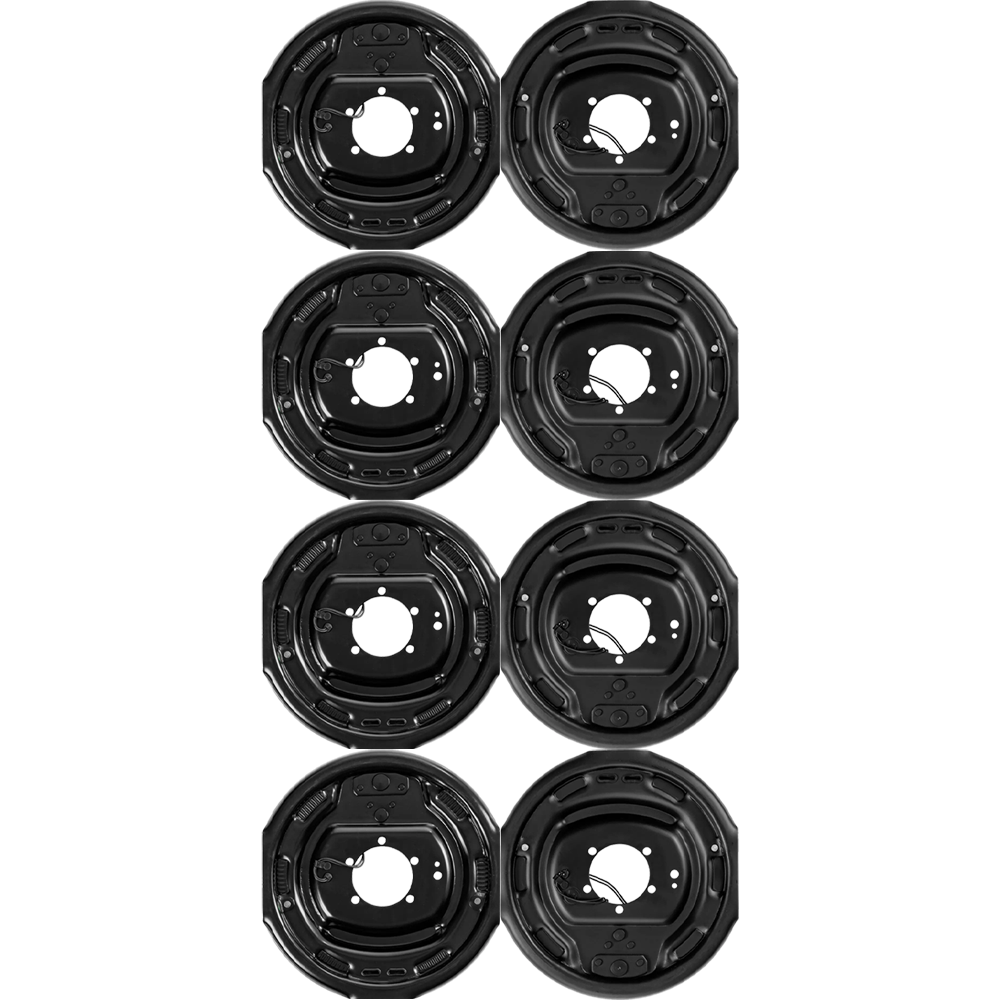

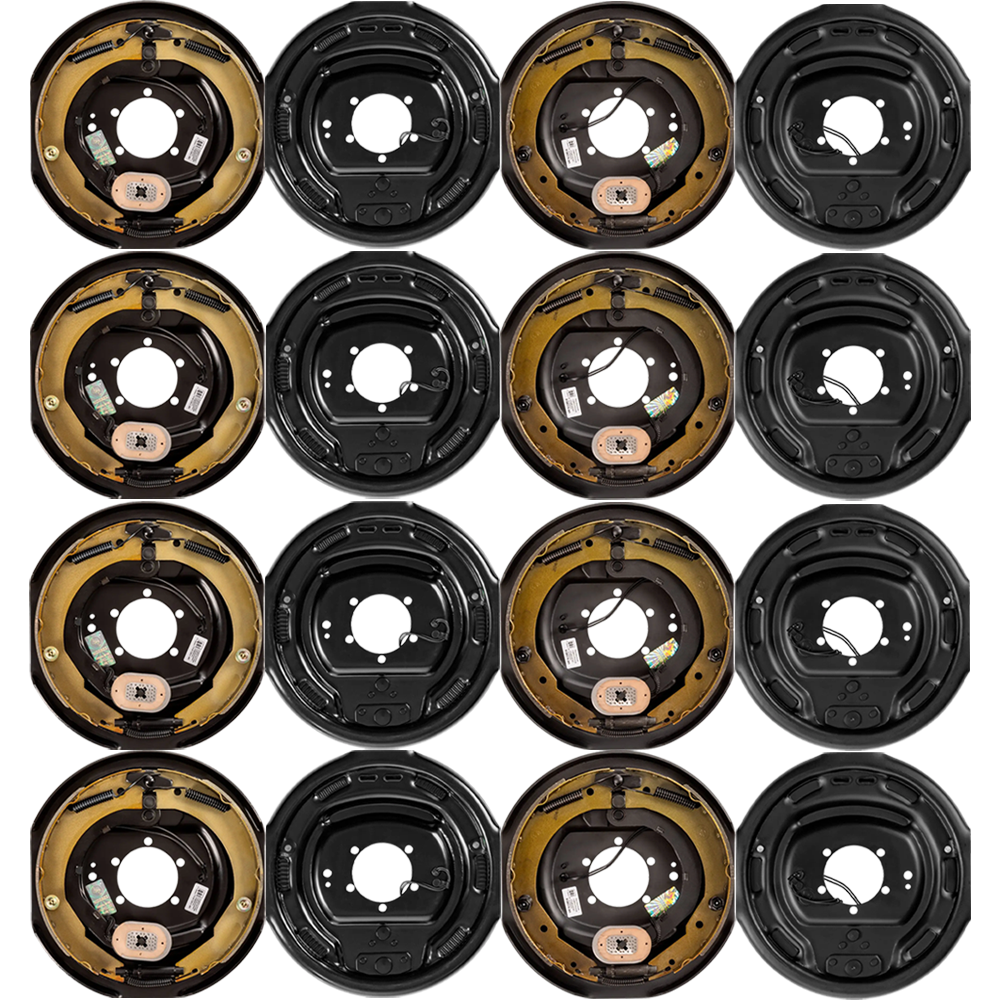

• QTY (4): Lippert 12" x 2" Electric Brake Assembly – Left‑Hand (Roadside)
  • Replacement standard electric brake with built‑in park feature
  • Manual‑adjust design for consistent stopping power
  • Left‑hand installation; 5‑bolt brake flange pattern
  • Rated for 5,200‑7,000 lb & 8,000‑lb hybrid axles
  • Fits 15" – 17.5" wheels; 12" x 2" shoes
  • Dexter compatible part numbers: K23‑180‑00 / 023‑180‑00
• QTY (4): Lippert 12" x 2" Electric Brake Assembly – Right‑Hand (Curbside)
  • Mirror‑image unit for curbside placement
  • Manual‑adjust with parking feature
  • Right‑hand installation; 5‑bolt brake flange
  • Rated for 5,200‑7,000 lb & 8,000‑lb hybrid axles
  • Fits 15" – 17.5" wheels; 12" x 2" shoes
  • Dexter compatible part numbers: K23‑181‑00 / 023‑181‑00

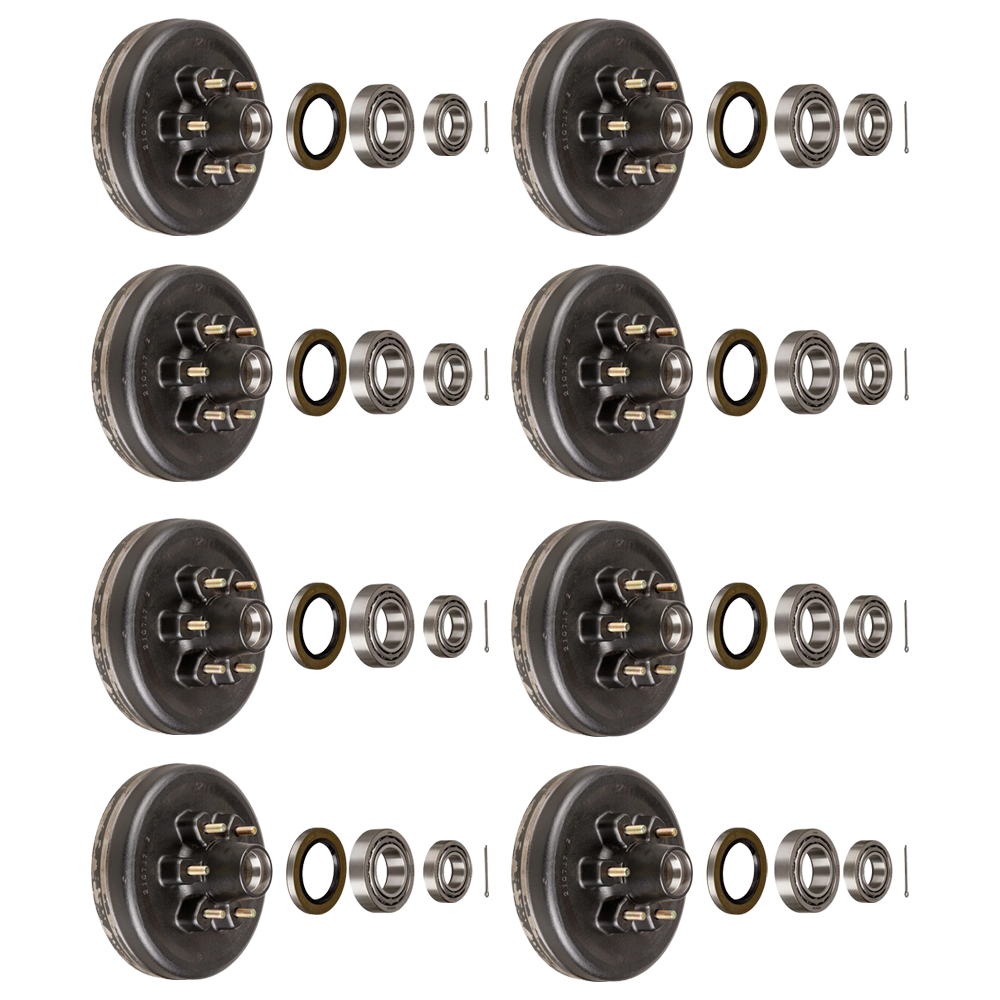

• QTY (8): Lippert 12" Drum & Hub Assembly – 6 on 5.5", 1/2" Stud
  • Cast‑iron drum hub rated for 6,000 lb axles
  • 6 on 5.5" bolt pattern with 1/2" wheel studs
  • Bearing kit (bagged separately, one per hub) includes:
    • Inner bearing cone
    • Inner/outer bearing cone
    • Inner bearing cup
    • Inner/outer bearing cup
    • Cotter pin
    • Double‑lip grease seal
  • Fits 14.5" – 16.5" wheels
  • Hub #122094 / Bearing Kit #333950 – 1‑year warranty
  • Dexter compatible part number: K08‑201‑9A

Before ordering, confirm your axle’s bolt pattern, brake flange, and weight rating. Perform regular inspections and lubrication to maximize component life and on‑road safety.
