Lippert Quad?Axle?12? Electric Brake Assemblies?&?8?on?6.5?Hub?Only Drums?(7K,?1/2??Stud)?� Complete Upgrade Kit?�?Compatible?with?Dexter,?Alko?&?Rockwell
$1,182.99

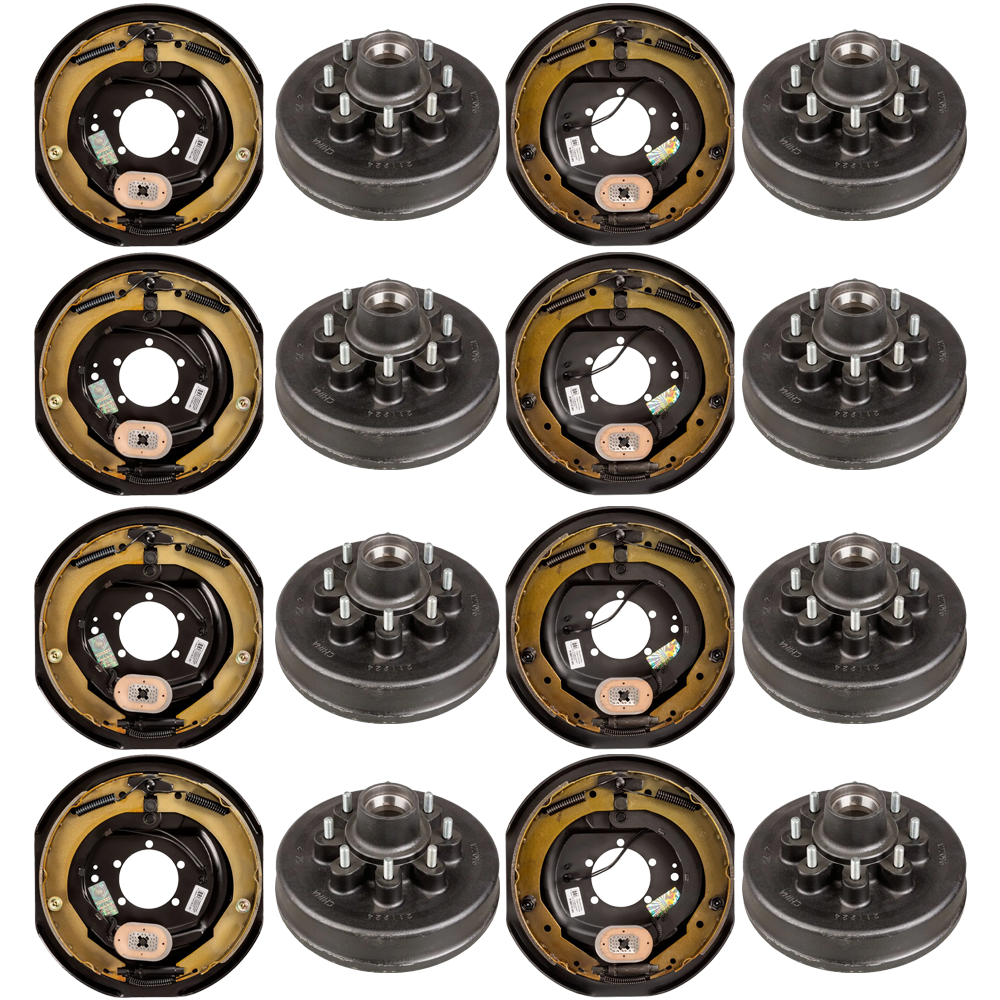

Lippert Quad‑Axle 12″ Brake & Hub Drum Upgrade Kit
Upgrade or service your quad‑axle trailer with this genuine Lippert package, combining eight hub‑only 12″ drums with matched left‑ and right‑hand 12″ × 2″ electric brake assemblies. Designed for 7,000‑lb axles, the kit delivers smooth stopping power, universal brand compatibility, and the proven durability that has defined Lippert since 1956.
Bundle Contents:
-

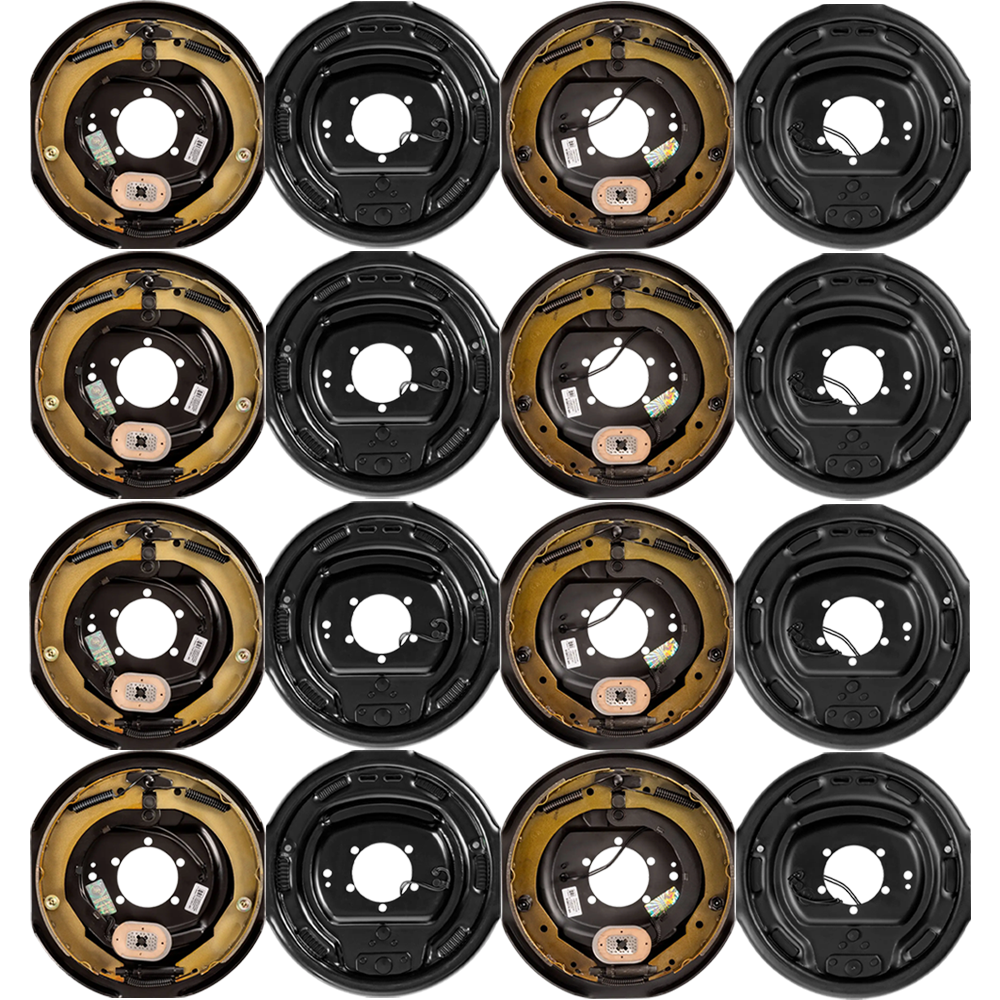

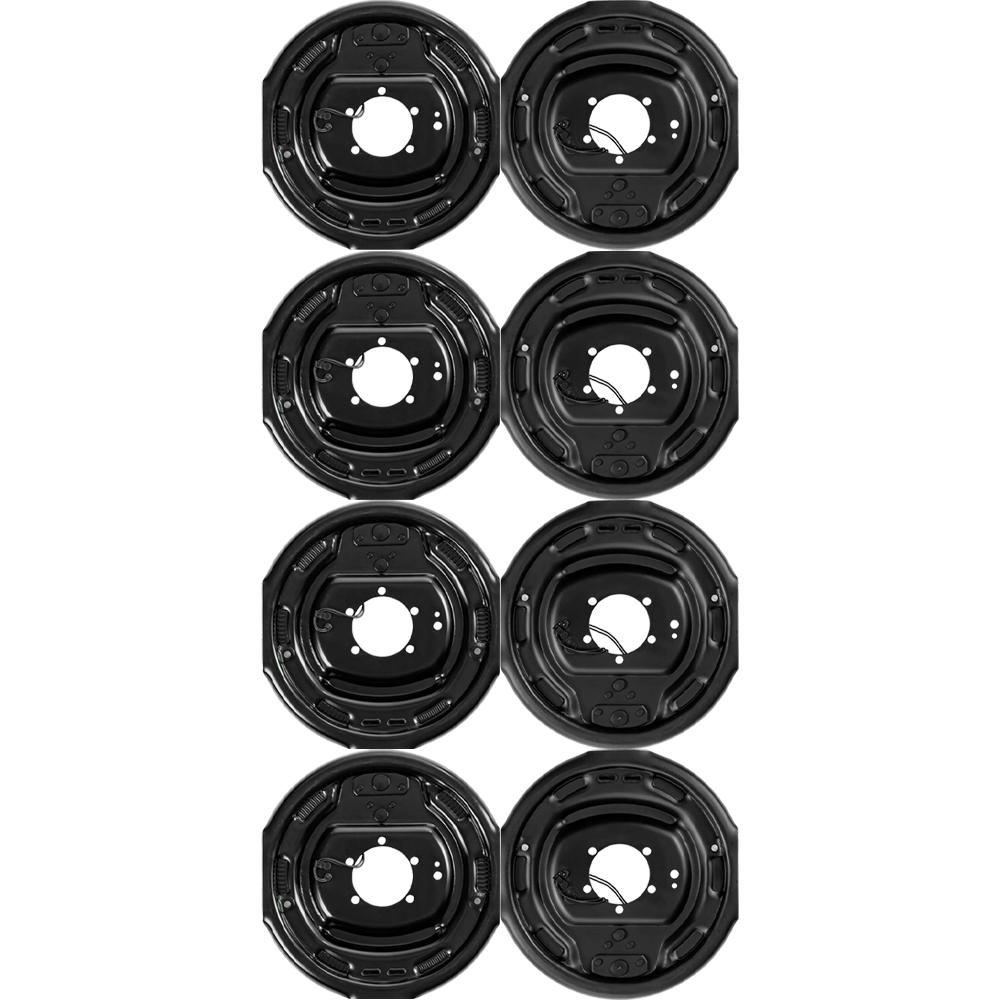

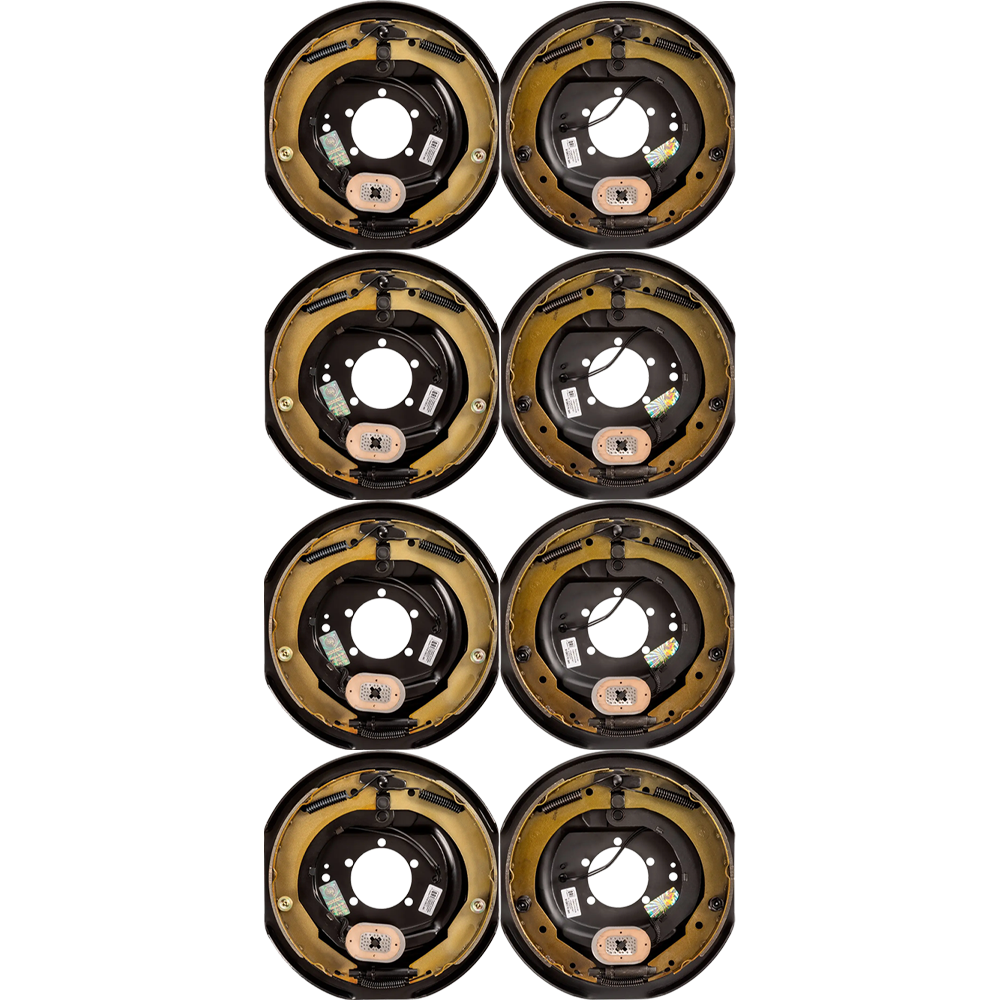

QTY (4): Lippert Electric Trailer Brake Assembly – Left (12″ × 2″, 4K‑7K)
- Replacement standard electric brake with parking feature
- Manual‑adjust design for consistent stopping
- Left‑hand (roadside) installation
- Fits 5,200–7,000 lb & 8,000‑lb hybrid axles
- Five‑bolt brake‑flange mount
- Works with 15″–17.5″ wheels
- 12″ × 2″ brake shoes; break‑in period required
- Dexter compatible part numbers: K23‑180‑00 | 023‑180‑00
-
QTY (4): Lippert Electric Trailer Brake Assembly – Right (12″ × 2″, 4K‑7K)
- Replacement standard electric brake with parking feature
- Manual‑adjust design for consistent stopping
- Right‑hand (curb‑side) installation
- Fits 5,200–7,000 lb & 8,000‑lb hybrid axles
- Five‑bolt brake‑flange mount
- Works with 15″–17.5″ wheels
- 12″ × 2″ brake shoes; break‑in period required
- Dexter compatible part numbers: K23‑181‑00 | 023‑181‑00
-

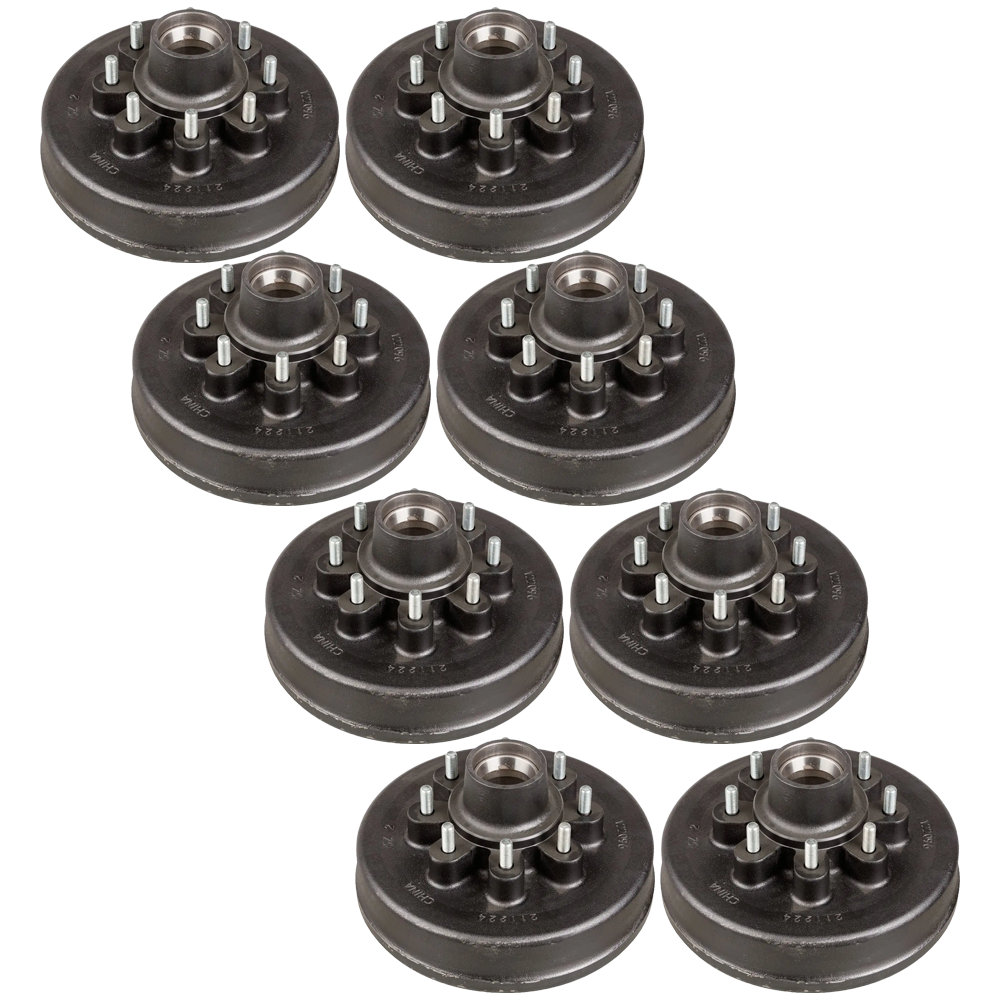

QTY (8): 12″ Trailer Brake Hub‑Only Drum – 7,000 lb, 8 on 6‑1/2″, 1/2″ Studs
- Rated for 7,000‑lb axles
- 12″ cast‑iron hub‑only drum
- 8 on 6‑1/2″ bolt pattern with pre‑installed 1/2″ studs
- Races and wheel studs come pre‑installed; accepts press‑in dust caps
- Accepts electric or hydraulic drum brakes
- Compatible with Lippert, Dexter, Alko & Rockwell
- Supports 16″ wheels
- Backed by a 1‑year Lippert warranty
Always verify your existing axle ratings, brake‑flange pattern, and hub bolt circle before ordering, and follow a regular maintenance schedule for optimal performance and safety.
| Specifications: | |
|---|---|
| Kit Type | Complete Quad‑Axle Brake & Hub Drum Kit |
| Axle Rating | 7,000 lbs per axle (bundle‑rated) |
| Brake Drum Dimensions | 12″ diameter drum surface, 2″ shoe width |
| Brake Mounting Pattern | 5‑bolt brake‑flange |
| Hub Bolt Pattern | 8 on 6‑1/2″ |
| Hub Type | Hub‑Only Drum with Integrated Brake Surface |
| Stud Size | 1/2″ |
| Type of Adjustment | Manual |
| Brake Location | Left & Right assemblies included |
| Wheel Size Compatibility | 15″–17.5″ (brakes), 16″ (hubs) |
| Cross‑Brand Compatibility | Lippert, Dexter, Alko, Rockwell |
Order today or call us at 877‑869‑6690 for expert advice and personalized service.
