Lippert Quad‑Axle 12″ Manual‑Adjust Electric Brake & Drum Hub Bundle

Service or upgrade your heavy‑duty trailer the right way with this genuine Lippert kit. Built for quad‑axle trailers rated up to 7,000 lbs per axle, the package pairs four left‑hand and four right‑hand 12″ manual‑adjust electric brake assemblies with eight cast‑iron 8‑lug drum hubs. Every hub ships with its own bearing kit bagged separately, so installation is fast, organized, and reliable.

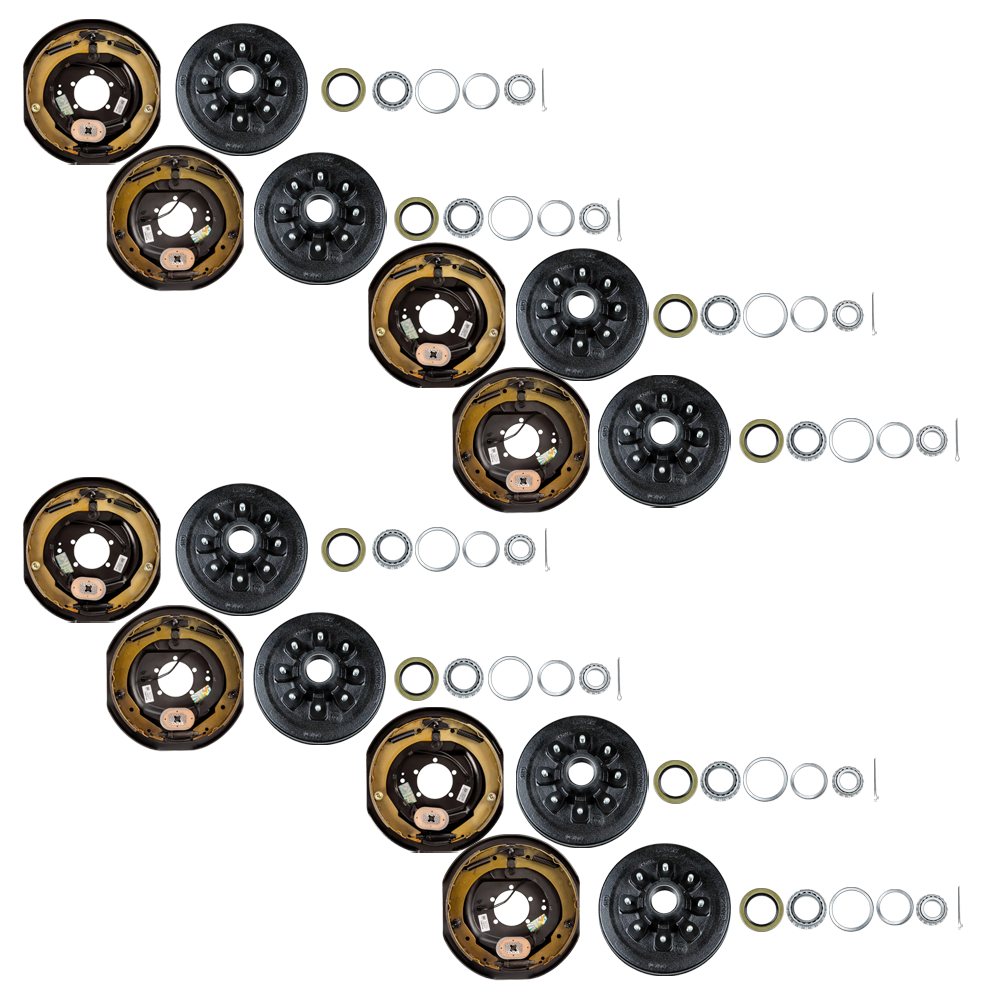

Bundle Contents:

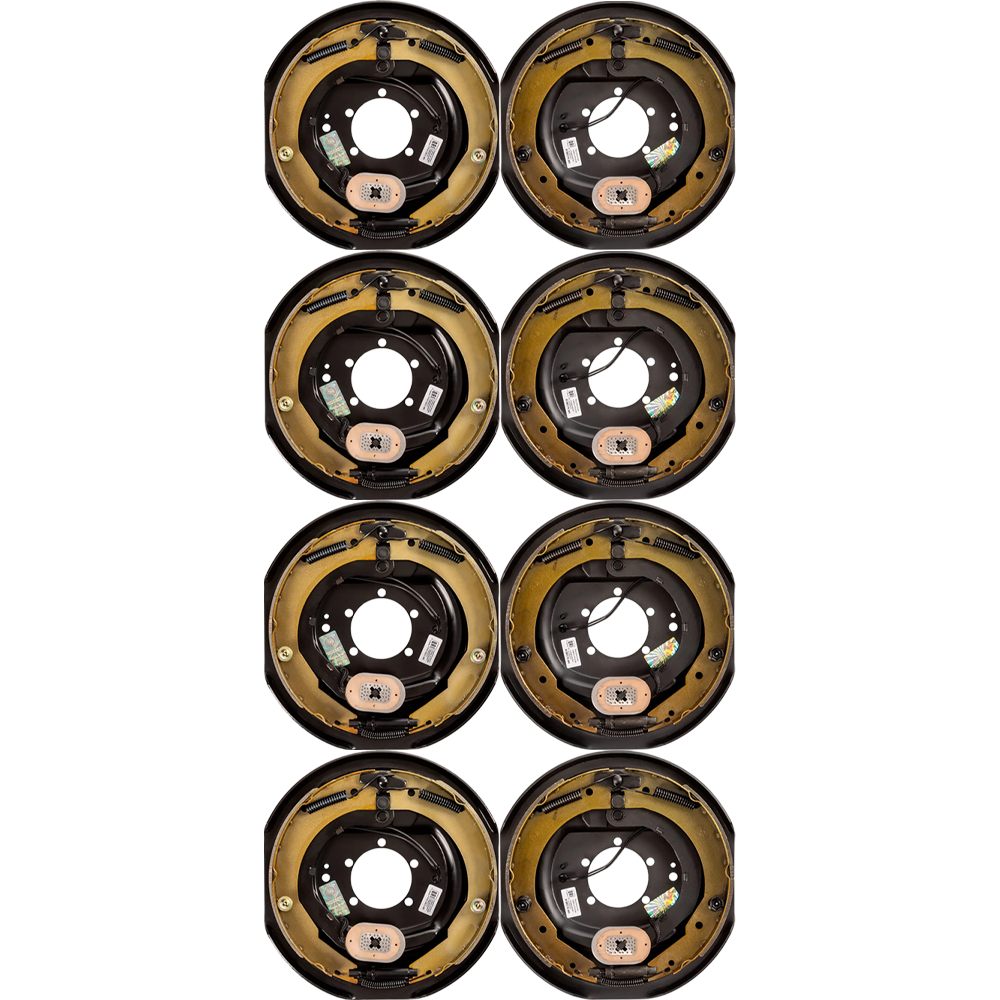

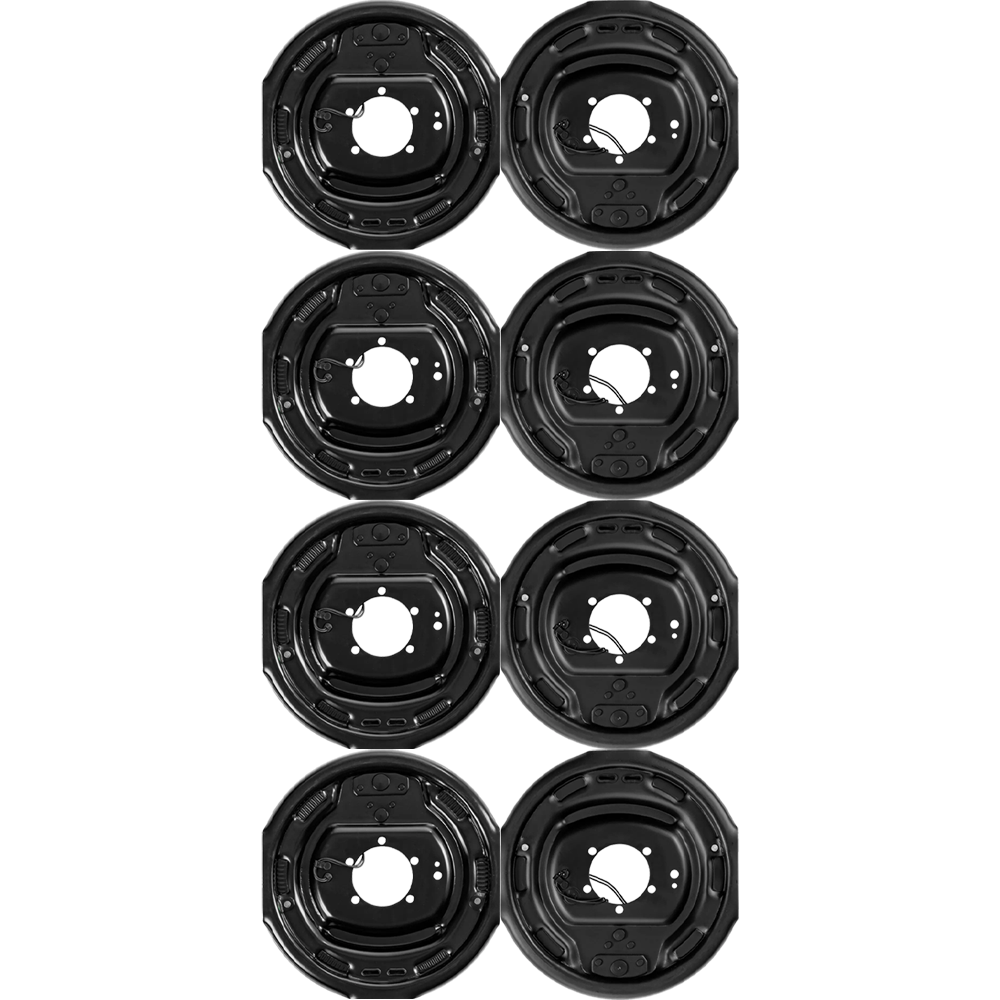

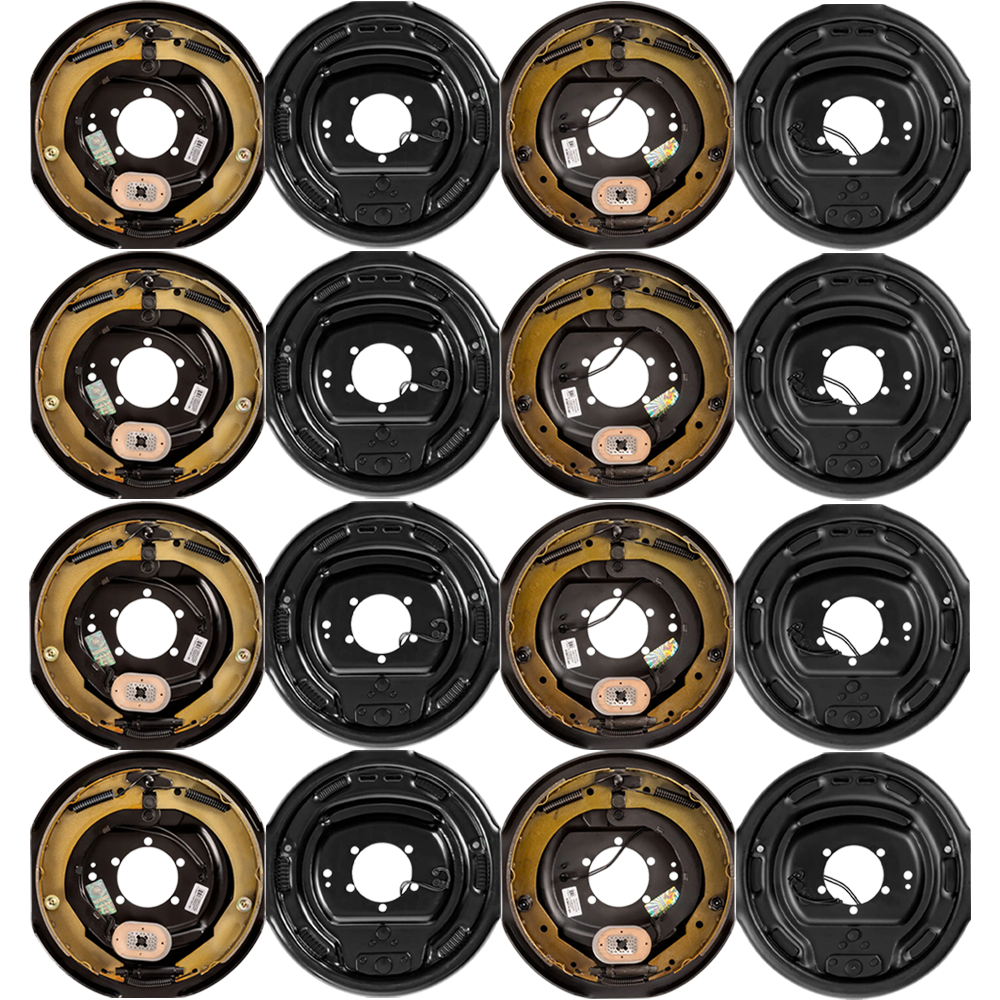

• QTY (4): Lippert 12″ x 2″ Manual‑Adjust Electric Brake Assembly – Left‑Hand
  • Road‑side fitment for 5,200‑7,000 lb (and 8,000 lb hybrid) axles
  • Manual adjuster with integrated park feature
  • Five‑bolt mounting flange; 12″ x 2″ shoes
  • Compatible wheel sizes: 15″ – 17.5″
  • Dexter Compatible Part Number: K23‑180‑00 | 023‑180‑00
• QTY (4): Lippert 12″ x 2″ Manual‑Adjust Electric Brake Assembly – Right‑Hand
  • Curb‑side fitment for 5,200‑7,000 lb (and 8,000 lb hybrid) axles
  • Manual adjuster with integrated park feature
  • Five‑bolt mounting flange; 12″ x 2″ shoes
  • Compatible wheel sizes: 15″ – 17.5″
  • Dexter Compatible Part Number: K23‑181‑00 | 023‑181‑00

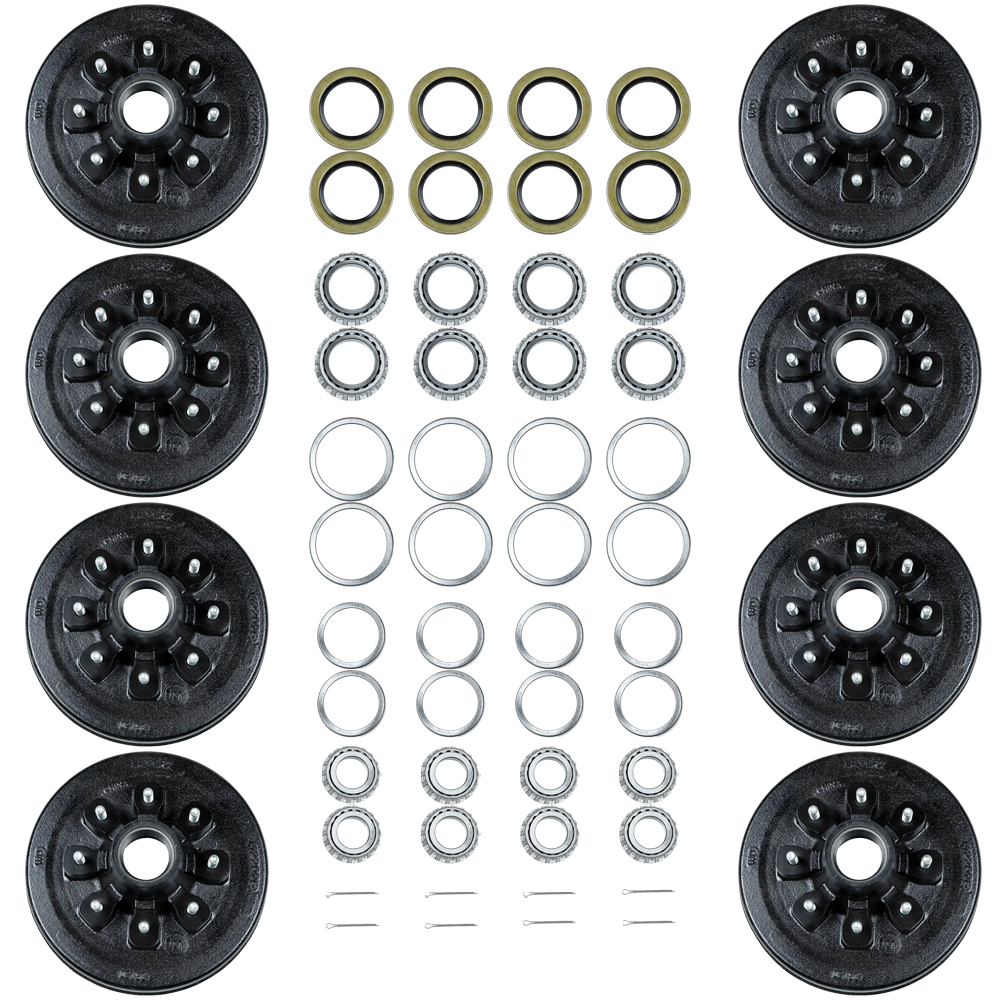

• QTY (8): Lippert 12″ Drum Hub Assembly – 8 on 6.5″, 1/2″ Stud
  • Rated 7,000 lb; cast‑iron hub with integrated drum (Hub #122096)
  • 8‑lug, 6.5″ bolt circle with 1/2″ studs
  • Compatible wheel sizes: 16″ – 17.5″
  • Dexter Compatible Part Number: K08‑219‑9B
  • Bearing Kit (bagged separately, one per hub) includes:
    • Inner Bearing Cone
    • Inner Bearing Cup
    • Outer Bearing Cone
    • Outer Bearing Cup
    • Cotter Pin
    • Double‑Lip Grease Seal

Always confirm axle rating, bolt pattern, and mounting flange before purchase. Break‑in new electric brakes per Lippert guidelines and follow a regular maintenance schedule.
