Lippert Quad Axle 12" Electric Brake & Fully Assembled 8‑on‑6.5" Hub‑Drum Bundle – 7K, 1/2" Stud

Outfit your 7,000‑lb quad‑axle trailer with a factory‑matched package: four manual‑adjust Lippert 12" electric brake assemblies (left & right) and eight fully assembled, pre‑greased 8‑on‑6.5" hub‑drum units with 1/2" studs. Pre‑packed bearings and seals slash install time while manual‑adjust brakes let you fine‑tune stopping power for heavy loads. Ideal for RV, horse, equipment and flatbed trailers.

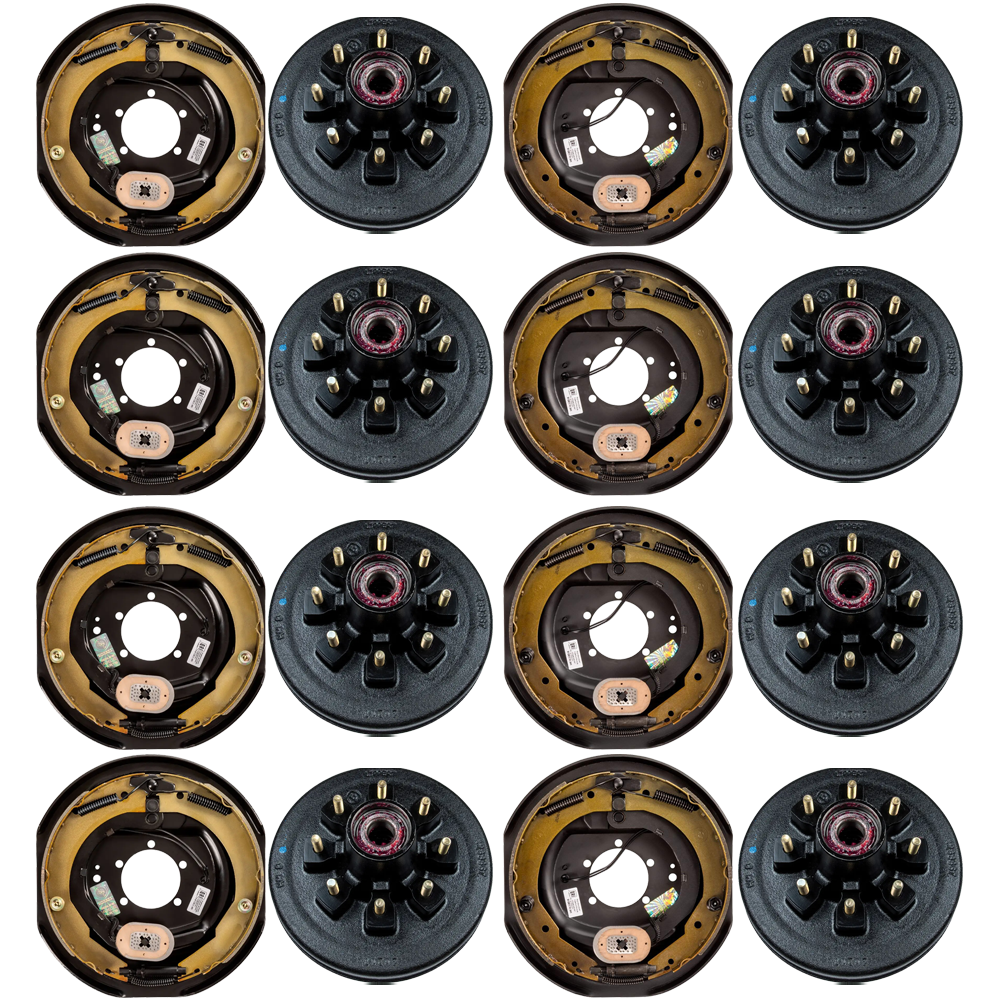

Bundle Contents:

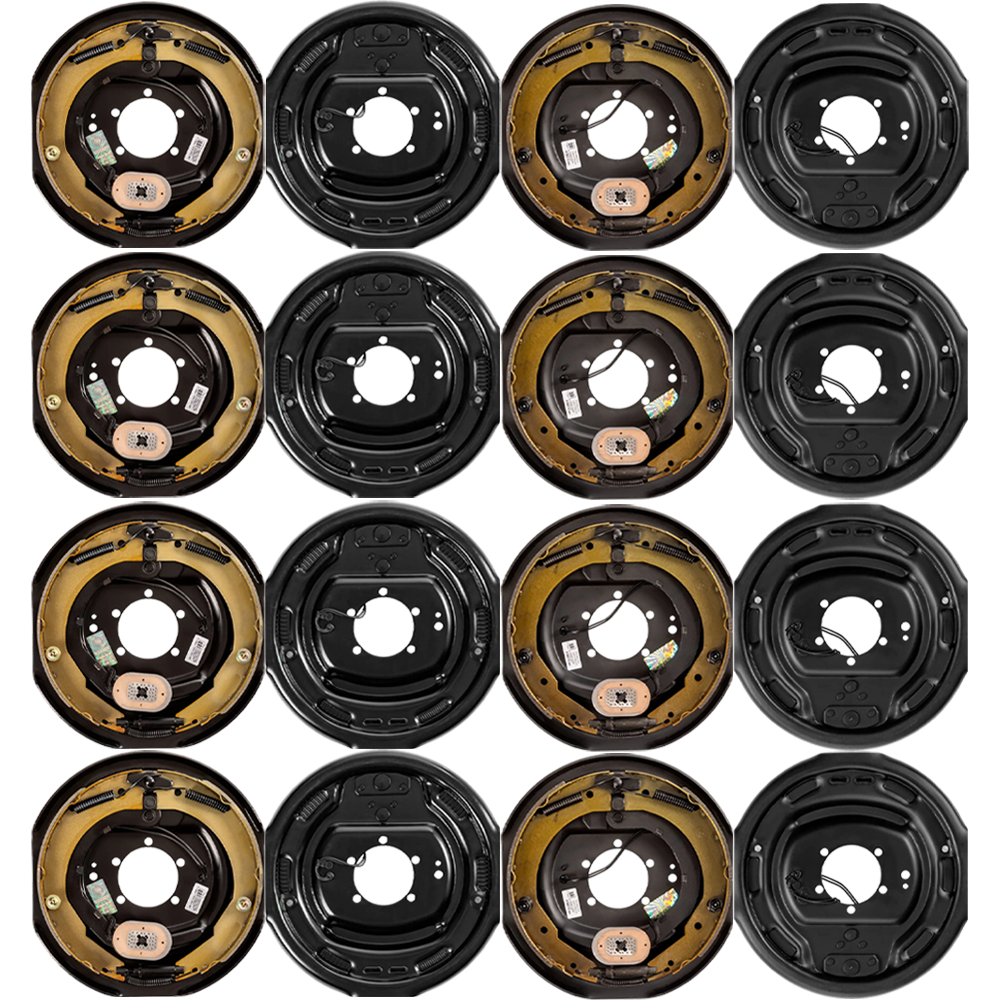

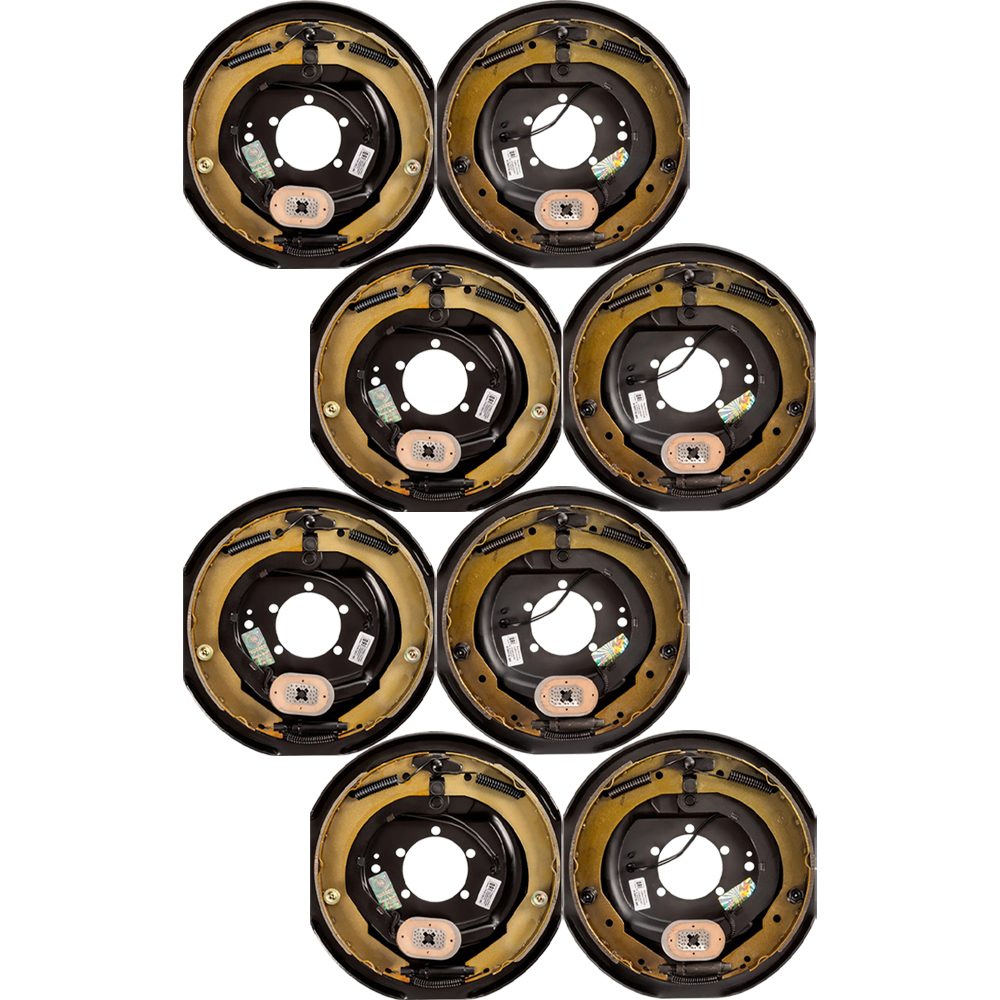

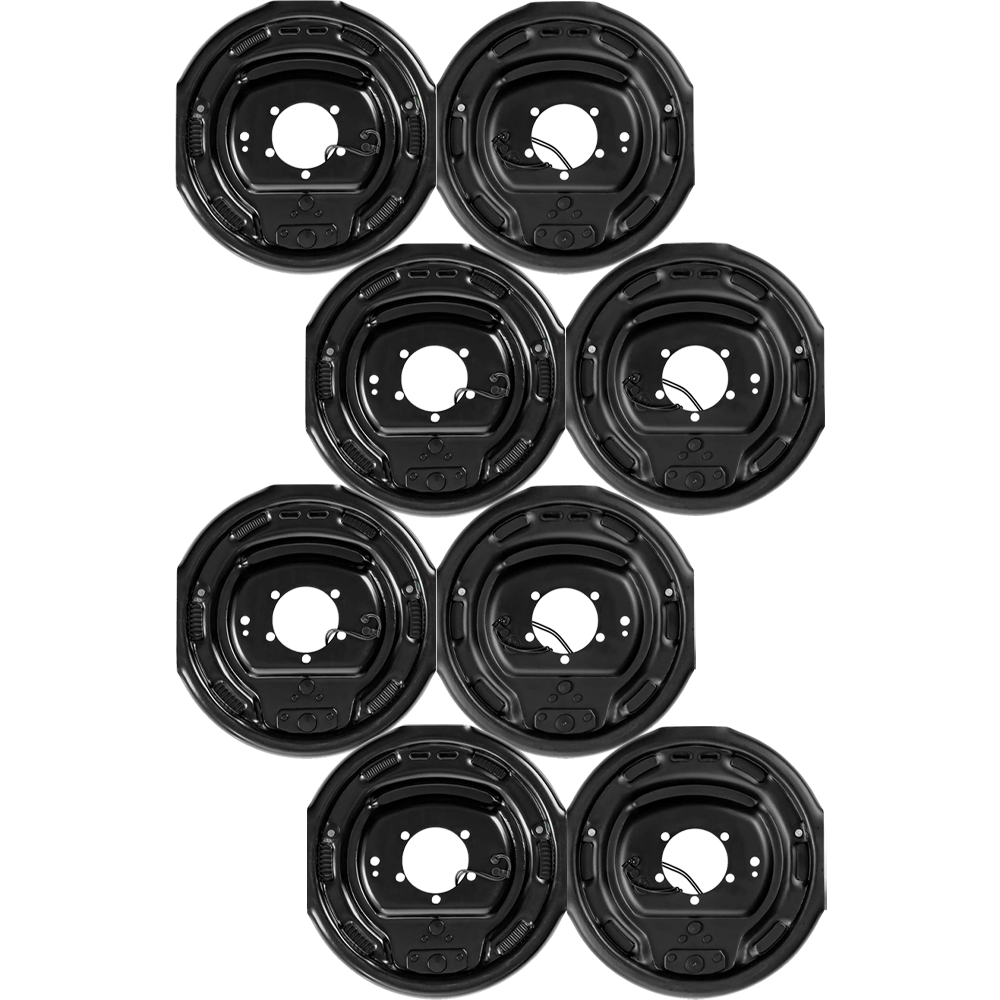

• QTY (4): Lippert 12" x 2" Electric Brake Assembly – Left Hand
  • Road‑side (left) replacement brake
  • 12" × 2" shoe, rated 4,000‑7,000 lbs
  • Manual‑adjust; smoother, surer stops
  • 4‑bolt brake flange; DIY friendly
  • Dexter compatible PN: K23‑180‑00 | 023‑180‑00
  • Authentic Lippert part, 1‑year warranty
• QTY (4): Lippert 12" x 2" Electric Brake Assembly – Right Hand
  • Curb‑side (right) replacement brake
  • 12" × 2" shoe, rated 4,000‑7,000 lbs
  • Manual‑adjust; precise control
  • 4‑bolt brake flange; DIY friendly
  • Dexter compatible PN: K23‑181‑00 | 023‑181‑00
  • Authentic Lippert part, 1‑year warranty

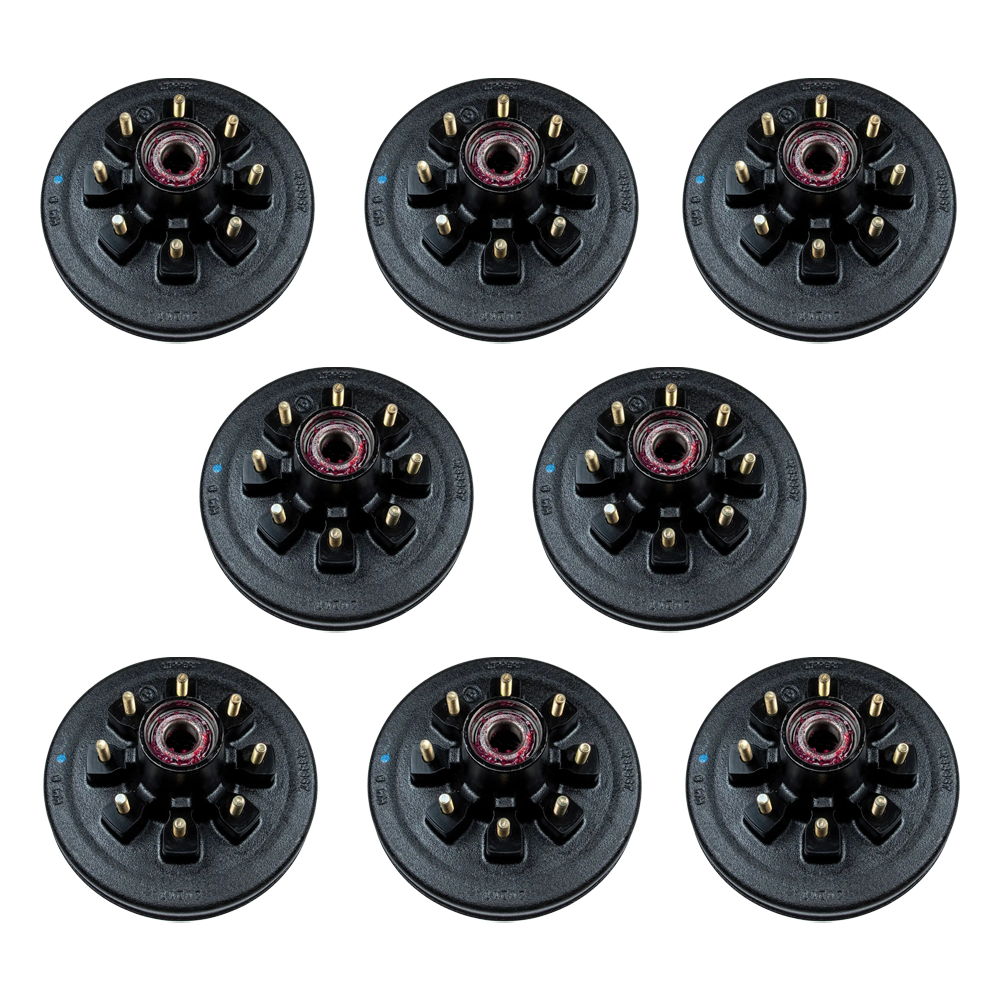

• QTY (8): Lippert 12" Fully Assembled Hub‑Drum – 8 on 6.5", 1/2" Stud
  • Cast‑iron hub with integrated drum
  • Fits 7K axles; wheels 16"–17.5"
  • 8‑on‑6.5" bolt circle, 1/2" studs
  • Fully assembled – bearings, cones, seal & grease installed
  • Lippert #122465, 1‑year warranty

Always verify your existing axle, brake‑flange pattern and wheel specs before ordering, and perform regular brake adjustments and bearing service for maximum safety and component life.
