Lippert Quad-Axle 12? Self-Adjust Brake & 8-on-6.5 Drum Hub Kit � 7K Axles | Dexter / Alko / Rockwell Compatible

Lippert Quad-Axle Self-Adjusting Brake & 12″ Drum-Hub Bundle

Outfit four 7,000-lb trailer axles in one shot with Lippert’s forward self-adjusting electric brakes and matching 12″ iron drum hubs. Enjoy shorter stops, longer component life, and everything — bearings, seals, hardware — bagged and ready for a swift install.

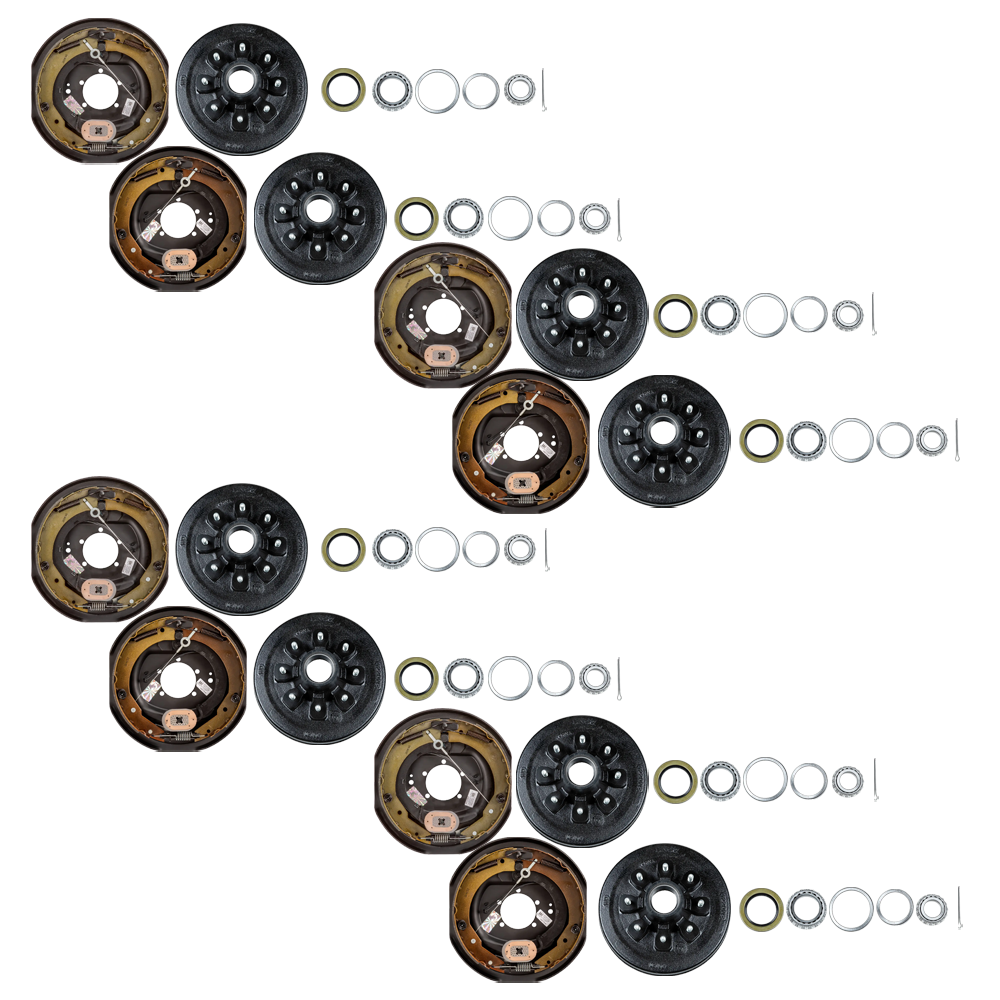

Bundle Contents:

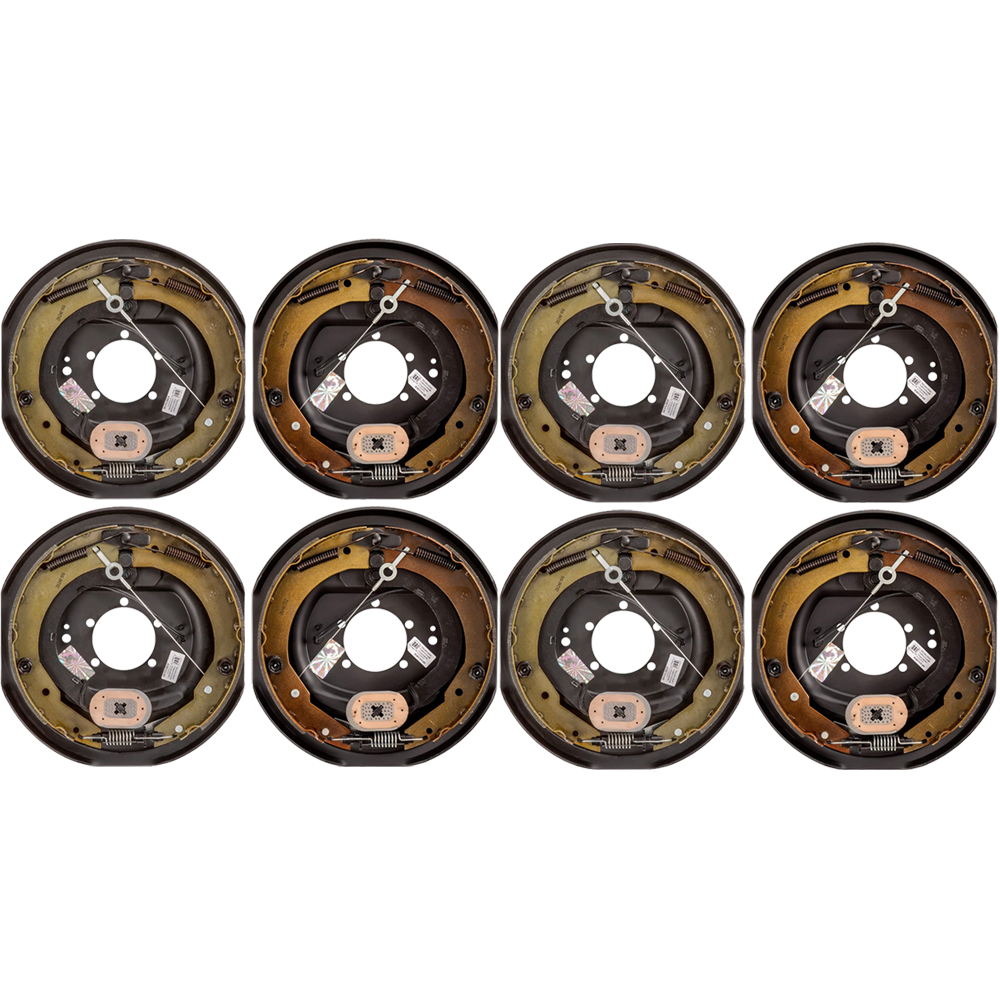

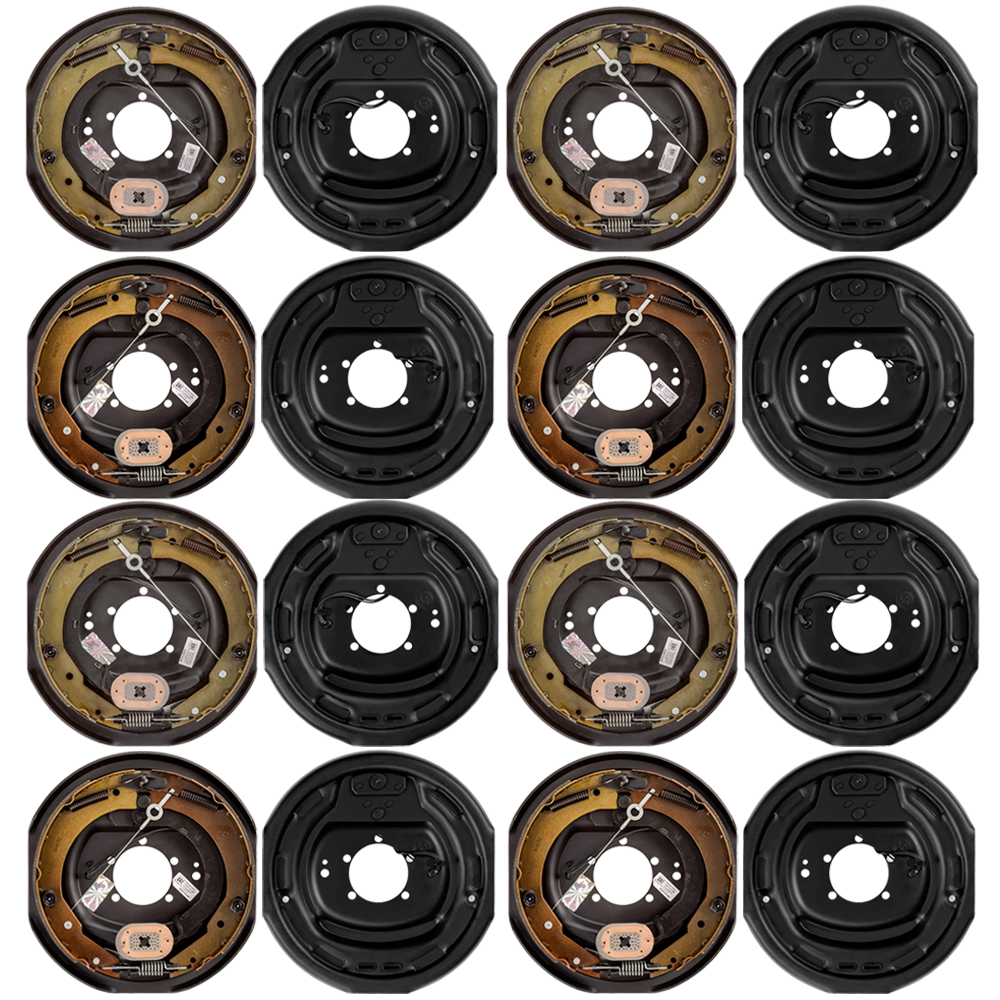

• QTY (4): Lippert 12″ × 2″ Self-Adjusting Electric Brake Assembly – Left (Road-Side)
  • Direct-fit replacement forward electric brake
  • 12″ × 2″ shoes for 4 K – 7 K axles
  • Five-bolt backing-plate pattern
  • Self-adjusts automatically with every forward stop
  • Dexter compatible part numbers: K23-464-00 | 023-464-00
  • DIY friendly; 1-year limited warranty
• QTY (4): Lippert 12″ × 2″ Self-Adjusting Electric Brake Assembly – Right (Curb-Side)
  • Curb-side (RH) replacement brake
  • 12″ × 2″ shoes for 4 K – 7 K axles
  • Five-bolt backing-plate pattern
  • Self-adjusts automatically with every forward stop
  • Dexter compatible part numbers: K23-465-00 | 023-465-00
  • DIY friendly; 1-year limited warranty

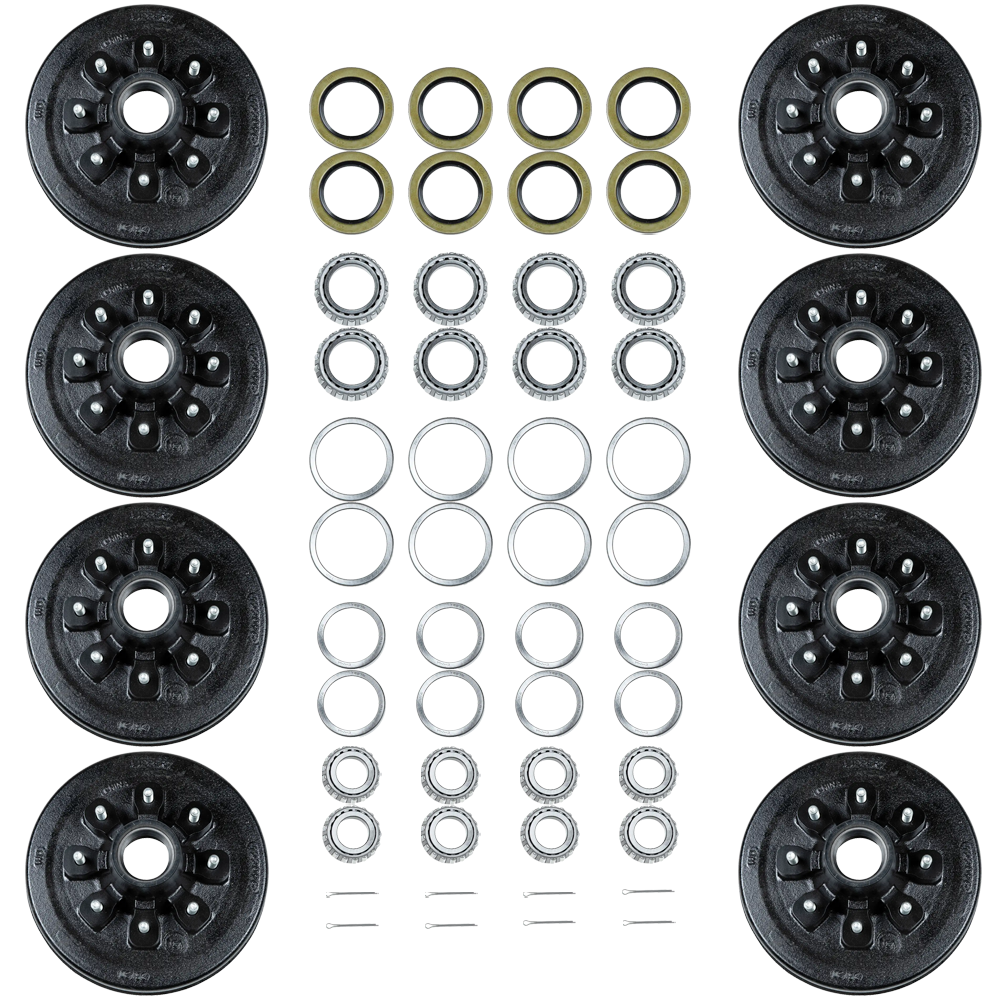

• QTY (8): Lippert 12″ Brake Drum & Hub Assembly – 8 on 6.5″, 1/2″ Studs
  • Fits 7,000-lb axles; machined cast-iron drum
  • 8-lug on 6.5″ bolt circle with 1/2″ studs
  • Accepts 16″ – 17.5″ wheels
  • Dexter compatible part number: K08-219-9B
  • Includes bagged bearing kit (one per hub):
    • Inner bearing cone
    • Inner bearing cup
    • Outer bearing cone
    • Outer bearing cup
    • Double-lip grease seal
    • Cotter pin
  • Brake Hub #122096 • Bearing Kit #333951 • 1-year limited warranty

Match all replacement parts to your original equipment, torque lugs to spec, and inspect shoe and magnet wear at every service interval for peak safety.
