Lippert Quad?Axle?12" Self?Adjusting Electric Brake?&?12" Drum?Hub Kit �?7K,?8?on?6.5,?9/16"?Studs �?Dexter?/?Alko?/?Rockwell?Compatible

Lippert Quad‑Axle 12" Self‑Adjusting Brake & Drum‑Hub Bundle

Refresh all four 7,000‑lb axles with this complete Lippert kit. You receive four left‑hand and four right‑hand forward self‑adjusting 12" electric brake assemblies plus eight heavy‑duty 12" drum hubs (8‑on‑6.5", 9/16" studs). Expect shorter stopping distances, hands‑free adjustment, and true OEM fitment—fully compatible with Dexter, Alko, and Rockwell running gear.

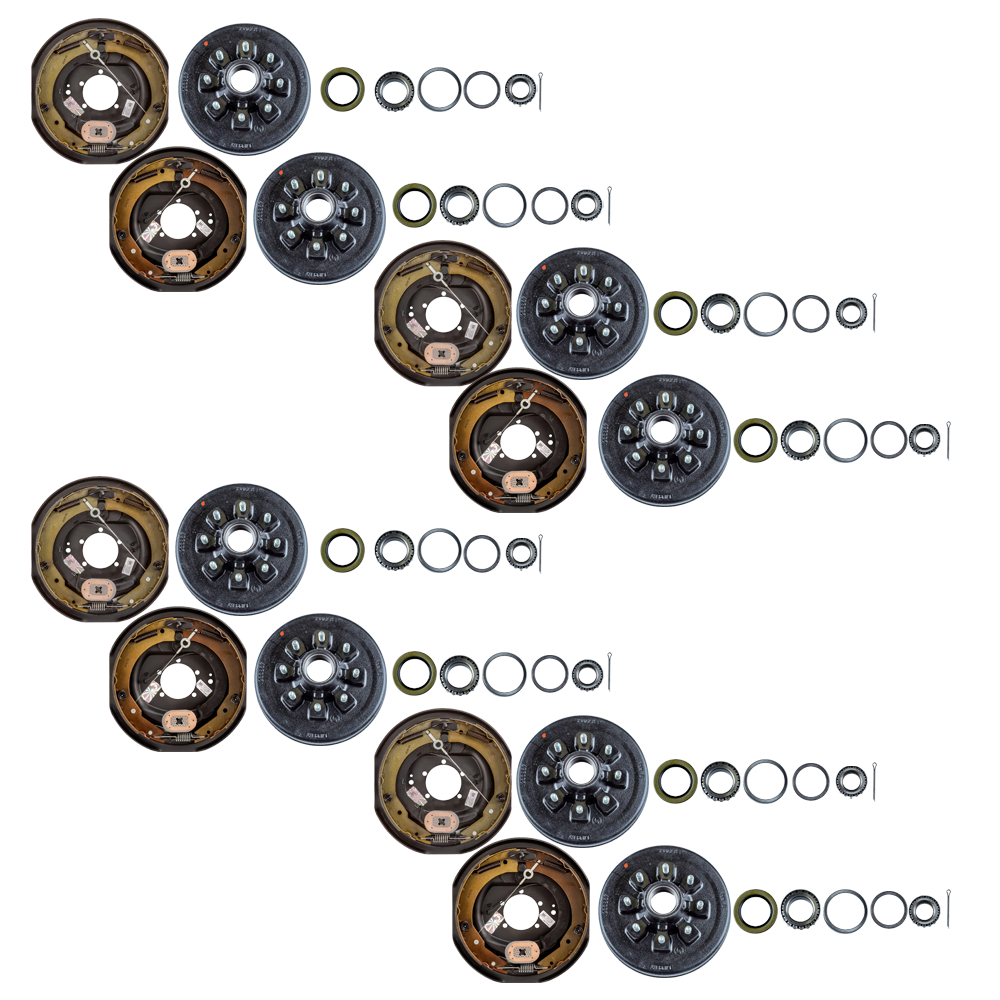

Bundle Contents:

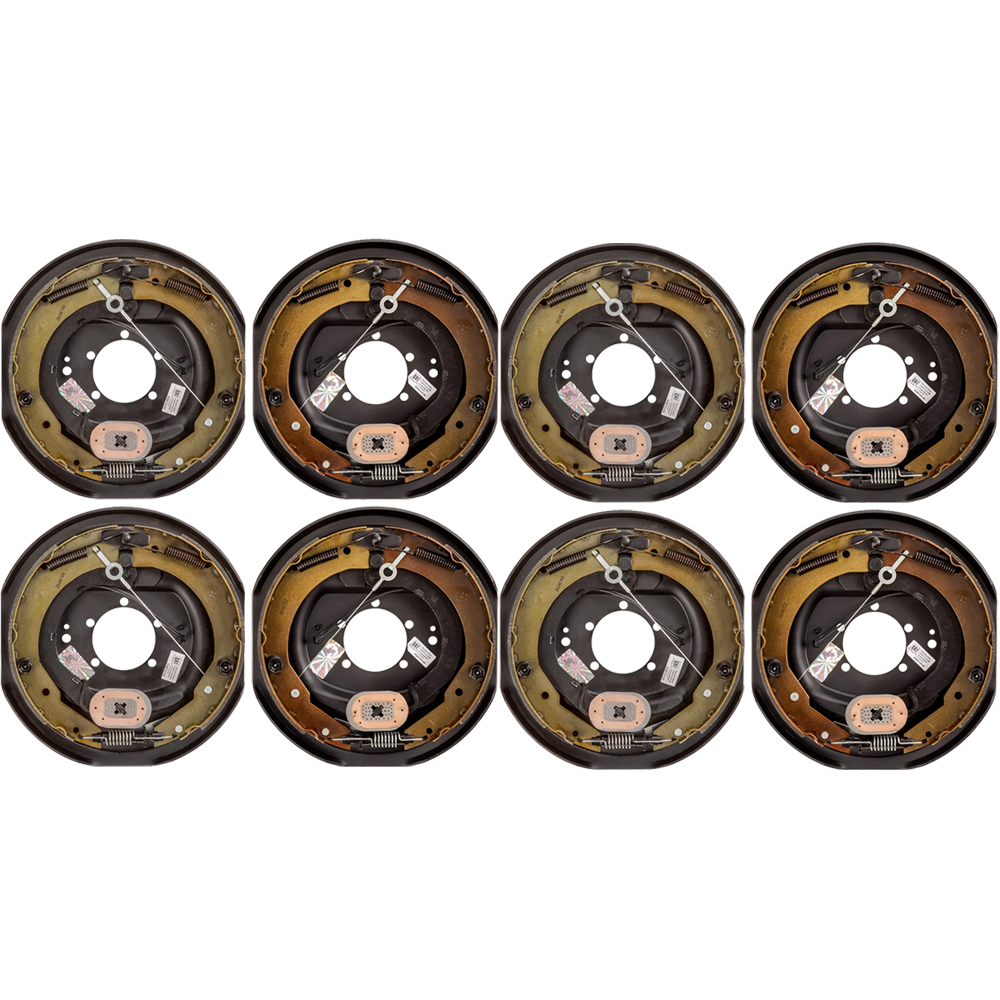

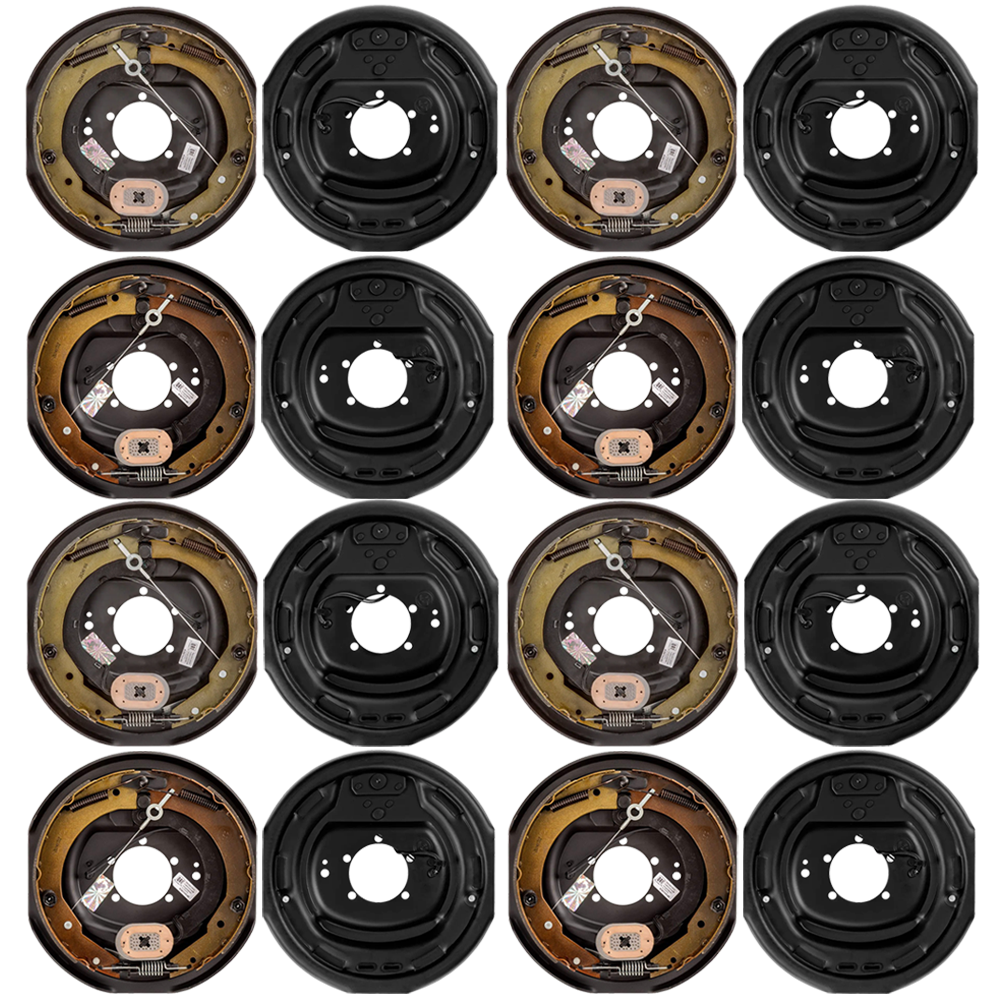

• QTY (4): Lippert Forward Self‑Adjusting Electric Brake Assembly – 12" × 2", Left Hand
  • Self‑adjusts on every forward stop for consistent braking power
  • Road‑side (left) unit; 5‑bolt brake‑flange mounting
  • Fits 4,000‑7,000 lb axles; improves stopping distance up to 50%
  • Dexter compatible PN: K23‑464‑00 | 023‑464‑00
  • Easy DIY installation; 1‑year Lippert warranty
• QTY (4): Lippert Forward Self‑Adjusting Electric Brake Assembly – 12" × 2", Right Hand
  • Mirror‑image curb‑side (right) configuration; 5‑bolt flange
  • 12" × 2" electric brakes with forward self‑adjusting mechanism
  • Rated for 4,000‑7,000 lb axles—no manual adjustments required
  • Dexter compatible PN: K23‑465‑00 | 023‑465‑00
  • DIY friendly; backed by Lippert’s 1‑year warranty

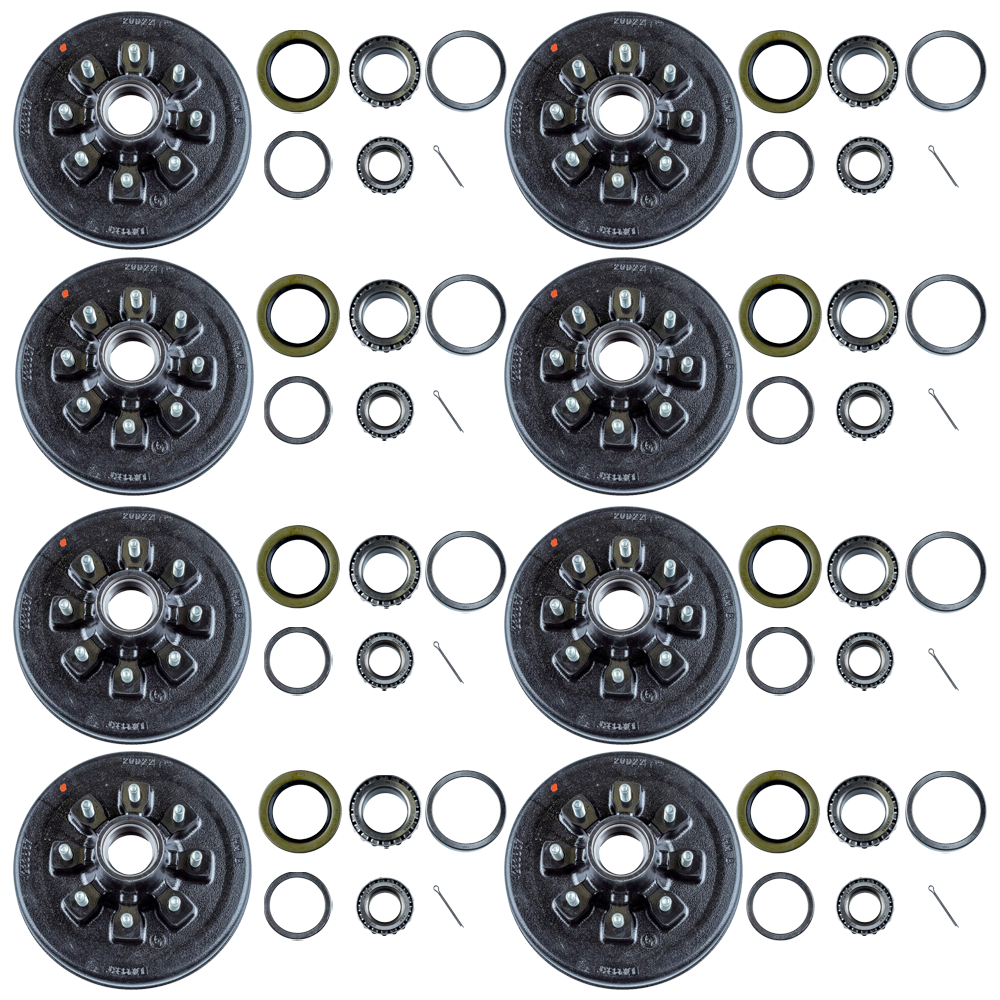

• QTY (8): Lippert 12" Brake Drum‑Hub Assembly – 8‑on‑6.5", 9/16" Studs
  • Precision‑machined cast‑iron drum hub for 7,000 lb axles
  • 8‑on‑6.5" bolt circle with 9/16" studs; OE #134543
  • Dexter compatible PN: K08‑219‑9C
  • Wheel compatibility: 16" – 17.5" rims
  • Bearing kit (bagged separately – one per hub):
    • Inner bearing cone
    • Outer bearing cone
    • Inner bearing cup
    • Outer bearing cup
    • Double‑lip grease seal
    • Cotter pin
  • Limited 1‑year warranty

Always confirm axle rating, brake‑flange pattern, and bolt pattern before installation. Inspect brakes and hubs regularly for top performance and safety.
