Lippert Quad?Axle 12? Self?Adjusting Electric Brake Assemblies &?12? Bare Drum Hubs Kit � 6?on?5.5?BP, 1/2? Studs

Lippert Quad‑Axle 12″ Self‑Adjusting Electric Brake Assemblies & 12″ Bare Drum Hubs Kit — 6‑on‑5.5 Bolt Pattern, 1/2″ Studs

Outfit your four‑axle trailer with one complete, factory‑matched braking solution from Lippert. This bundle combines eight self‑adjusting 12″ electric brake assemblies (left and right pairs) with eight rugged 12″ bare drum hubs, giving you dependable stopping power and quicker installs. Designed for 6,000‑lb axles with a 6‑on‑5.5 wheel bolt pattern, it’s the perfect upgrade or replacement package for RVs, cargo, utility, and livestock trailers.

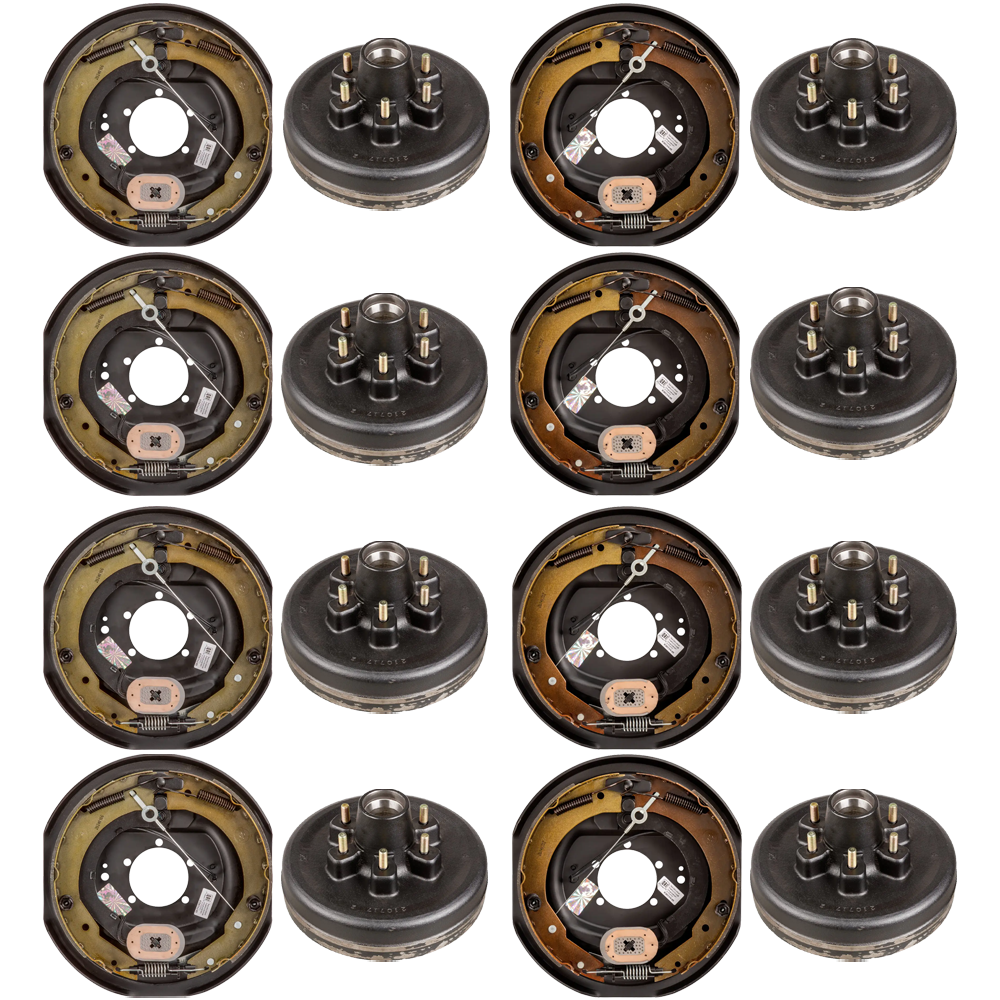

Bundle Contents:

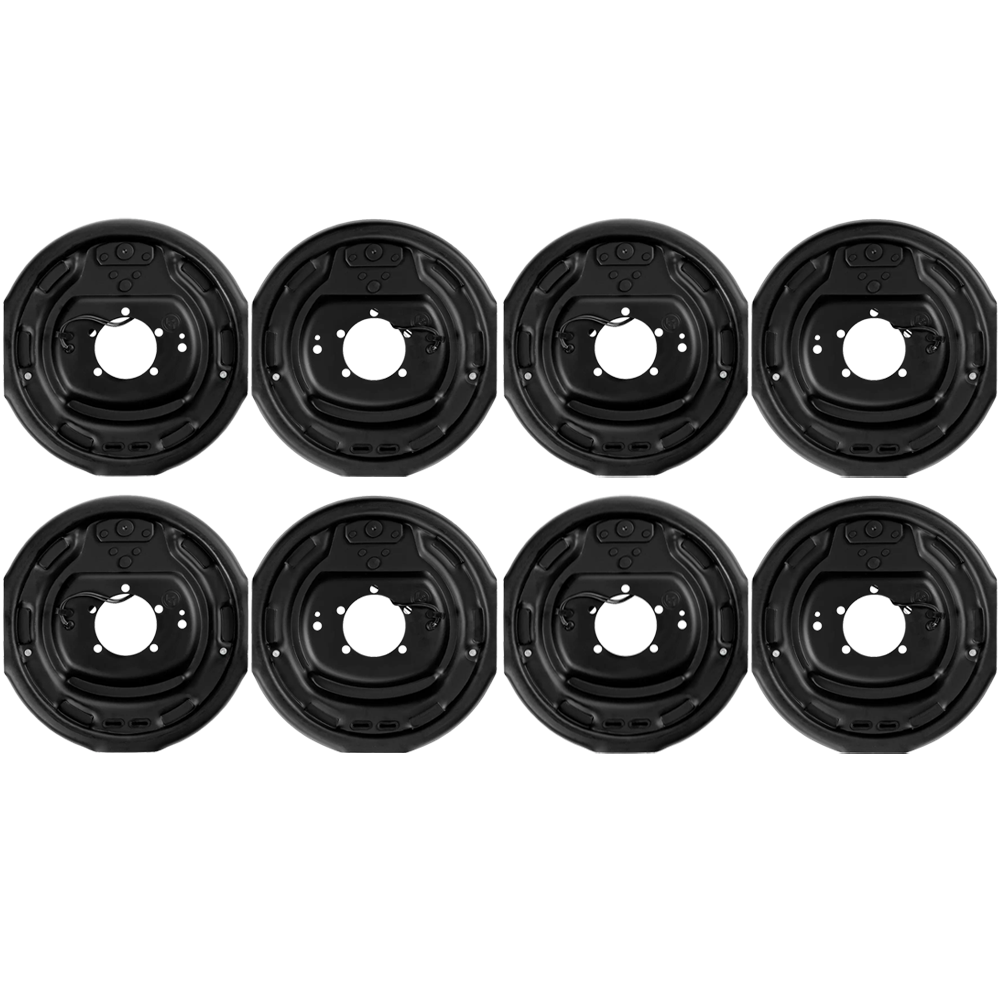

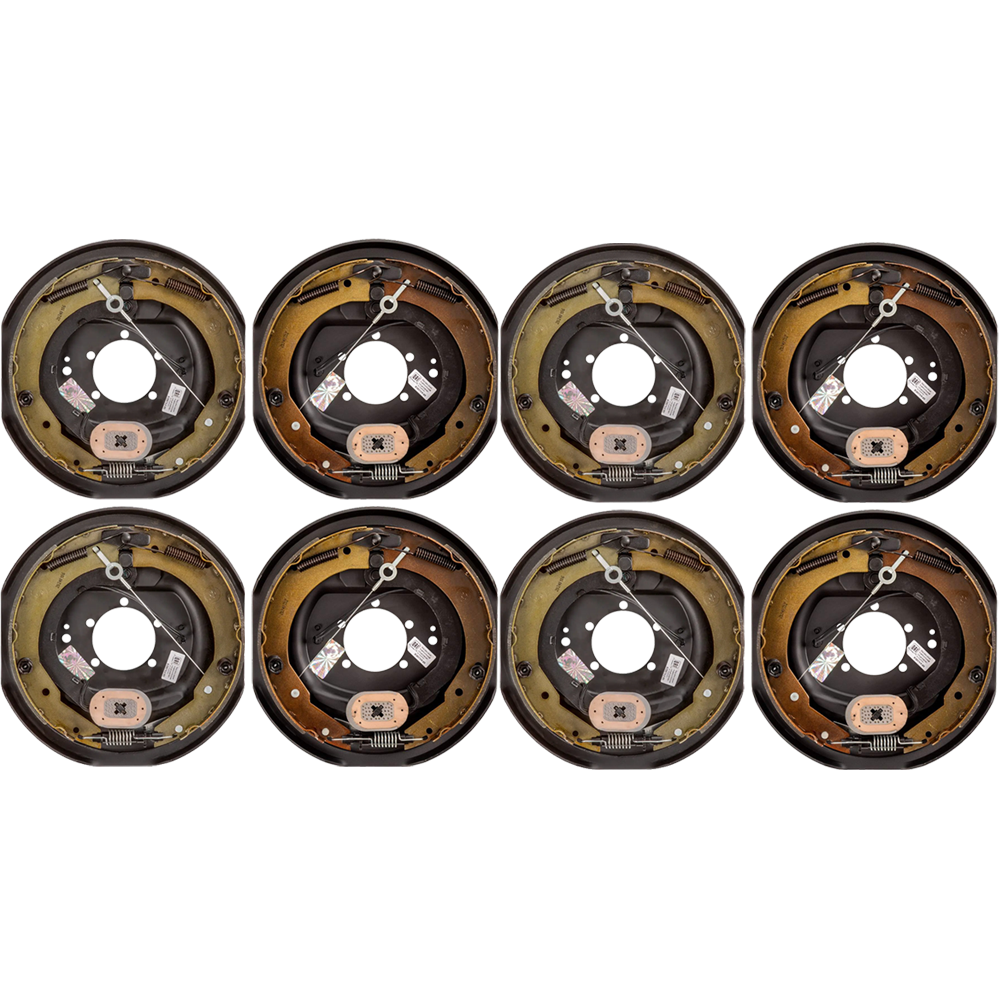

• QTY (4): Lippert Forward Self‑Adjusting Brake Assembly — 12″ × 2″, 5‑Bolt, 4‑7K (Left‑Hand)
  • Left‑hand (road‑side) configuration
  • Self‑adjusts on every forward stop—no manual tuning
  • Fits 12″ × 2″ electric brake drums
  • 5‑bolt brake‑flange pattern; 4K‑7K‑lb axle rating
  • Pre‑wired magnet & hardware for easy DIY install
• QTY (4): Lippert Forward Self‑Adjusting Brake Assembly — 12″ × 2″, 5‑Bolt, 4‑7K (Right‑Hand)
  • Right‑hand (curb‑side) configuration
  • Self‑adjusts automatically for consistent braking
  • 12″ × 2″ shoe & lining size
  • 5‑bolt mounting, 4K‑7K‑lb axle compatibility
  • Durable magnets, springs & friction material

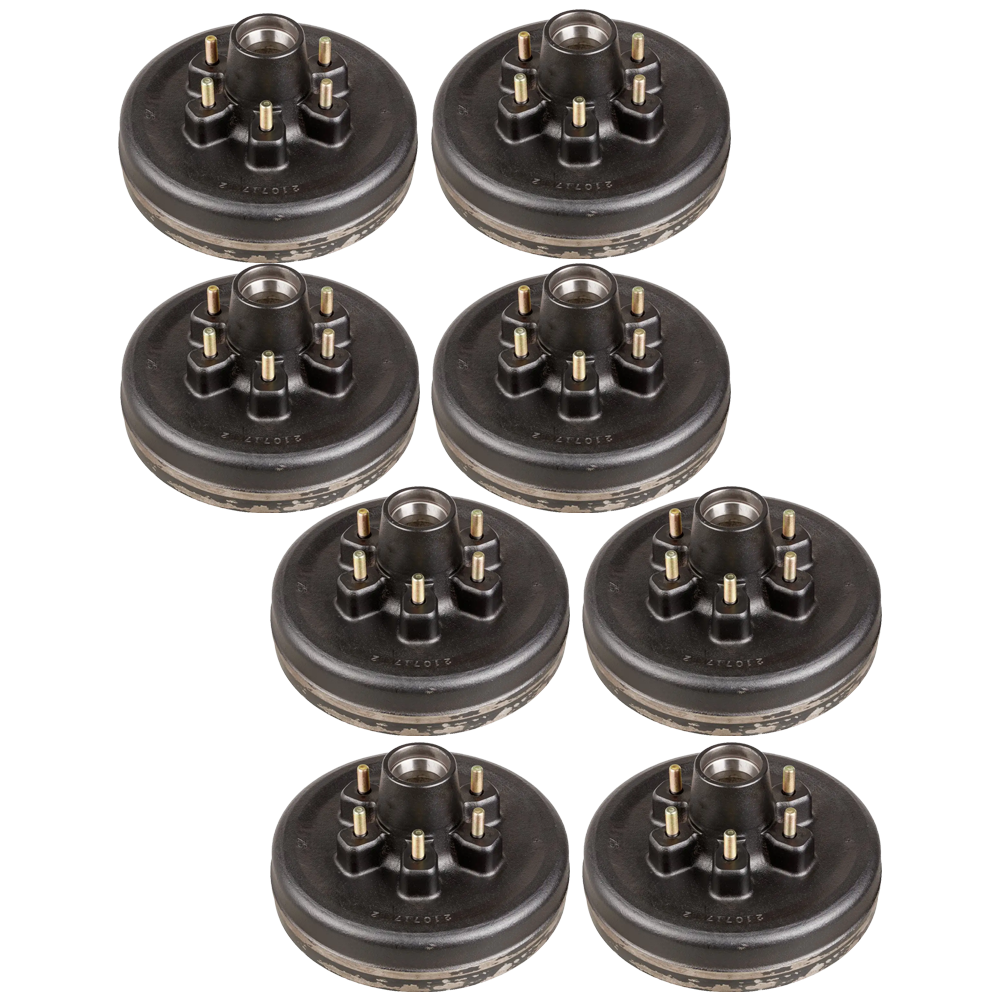

• QTY (8): Lippert 12″ Brake Drum Hub — 6,000‑lb Axle, 6‑on‑5.5, 1/2″ Stud
  • One‑piece cast‑iron hub with integrated 12″ drum
  • 6‑on‑5.5 wheel bolt pattern with 1/2″ pressed studs
  • Rated for 6,000‑lb trailer axles
  • Accepts 14.5″ – 16.5″ wheels
  • Raw “bare” finish—use your existing bearings & seals

Always verify your existing axle specs and brake‑flange pattern before ordering. Inspect shoes, magnets, and drums at regular service intervals for safe, fade‑free braking.
