Lippert?Quad?Axle?12"?Self?Adjusting?Electric?Brake?Assemblies?&?Fully?Assembled?Drum?Hub?Bundle � 8?on?6.5?BP,?9/16"?Studs,?Fits?7,000?lb?Axles � Dexter?/?Alko?/?Rockwell?Compatible

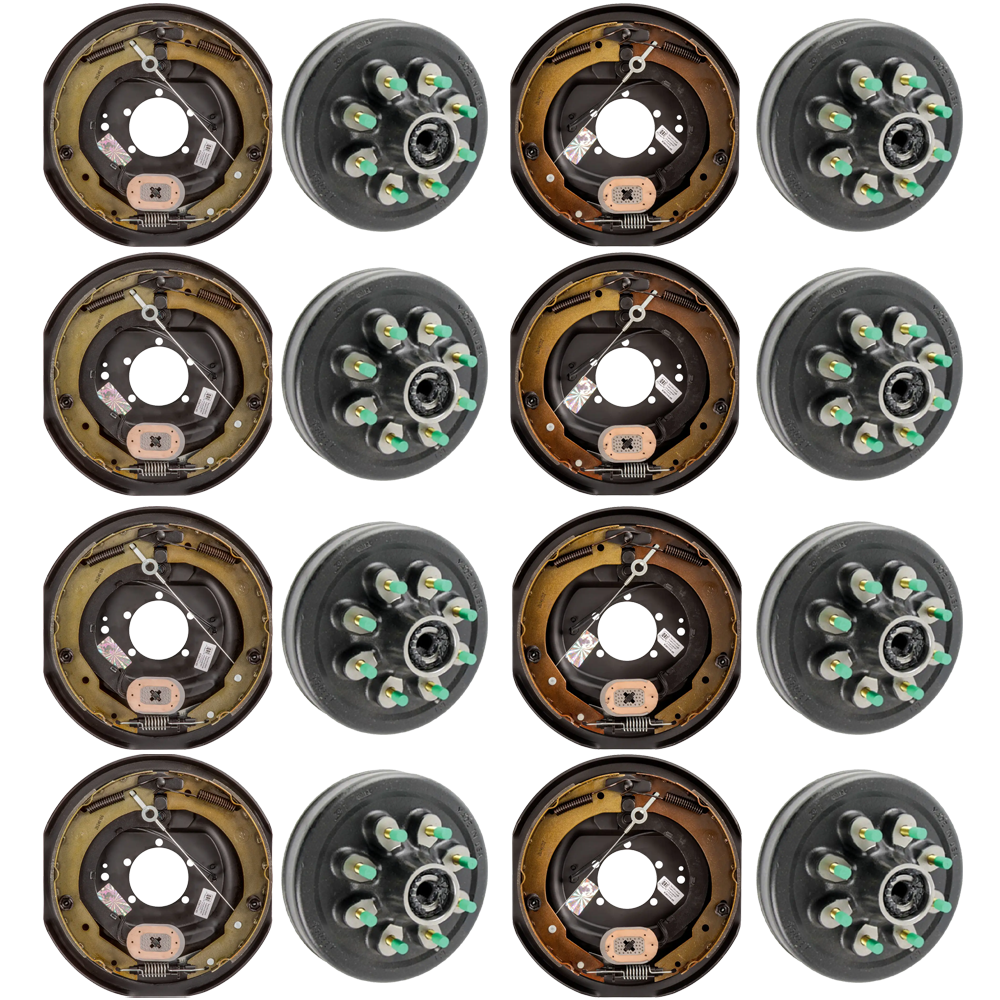

Lippert Quad‑Axle 12" Brake Assemblies & Fully Assembled Drum Hubs Bundle

Upgrade all four axles with a race‑installed, fully assembled braking solution. This Lippert bundle combines eight 12" self‑adjusting electric brake assemblies with eight fully assembled 12" bare drum hubs, delivering dependable stopping power and straightforward maintenance for 7,000‑lb axles with an 8‑on‑6.5 bolt pattern.

Bundle Contents:

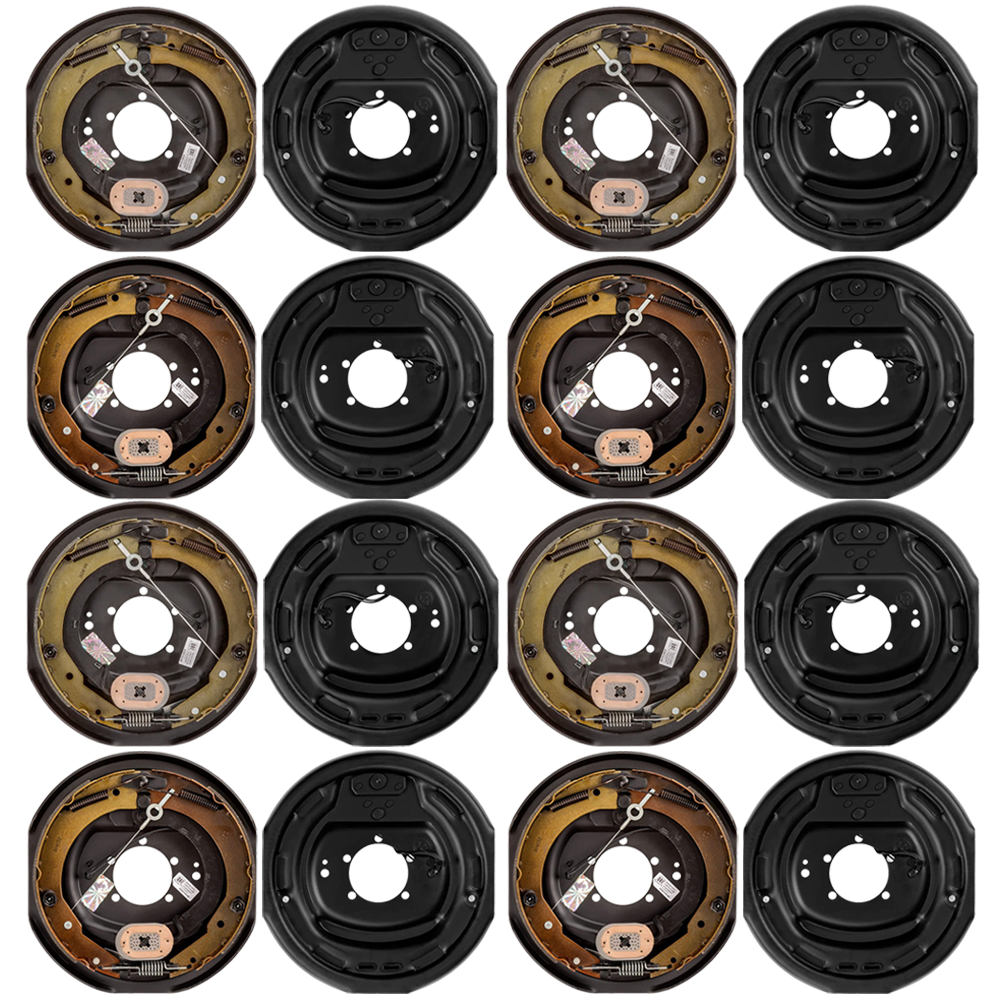

• QTY (4): Lippert Forward Self‑Adjusting Brake Assembly – 12" x 2", 5‑Bolt, 4‑7K (Left)
  • Self‑adjusts after initial setup—no manual tuning
  • 12" x 2" electric brake rated up to 7,000 lb axles
  • Five‑bolt mounting flange; easy DIY install
  • Dexter compatible PN: K23‑464‑00 | 023‑464‑00
  • OEM Lippert part with 1‑year warranty
• QTY (4): Lippert Forward Self‑Adjusting Brake Assembly – 12" x 2", 5‑Bolt, 4‑7K (Right)
  • Mirror‑image right‑side unit with automatic adjust
  • 12" x 2" braking surface for 7K axles
  • Five‑bolt pattern for straightforward mounting
  • Dexter compatible PN: K23‑465‑00 | 023‑465‑00
  • Reduces lining and magnet wear

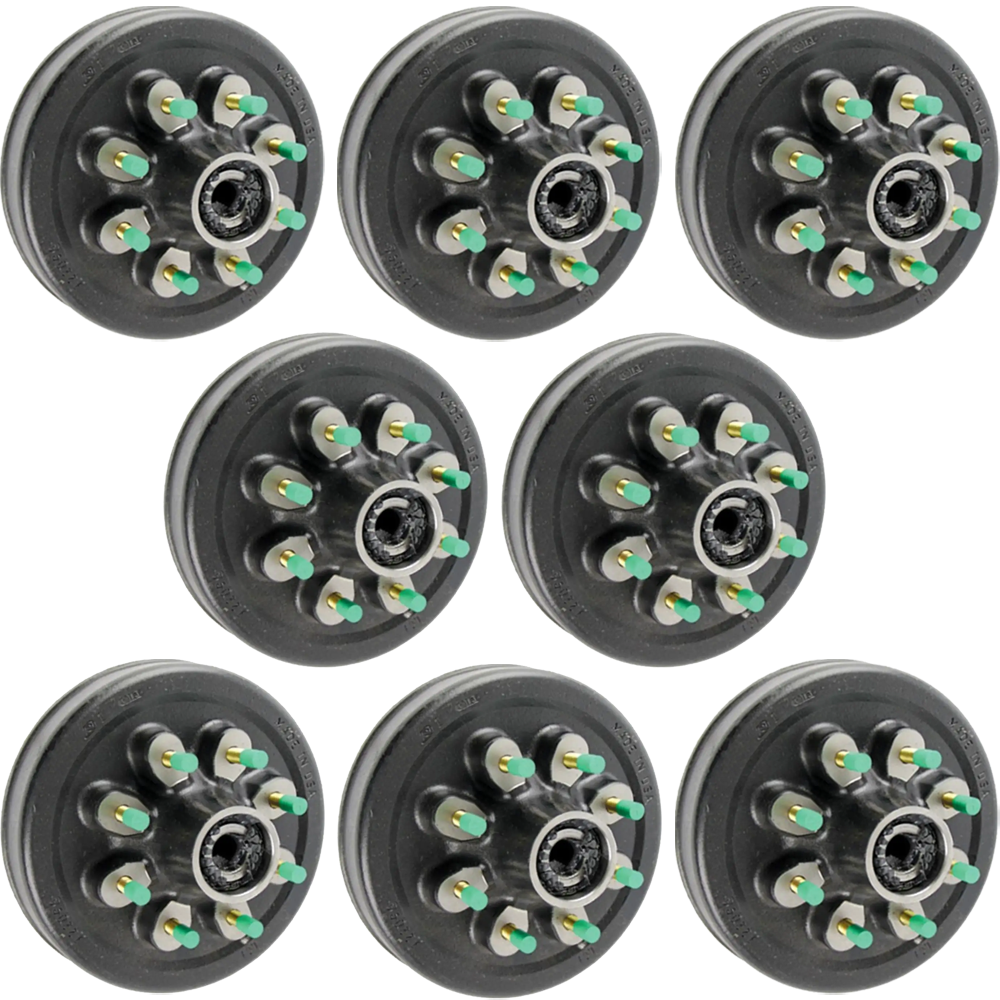

• QTY (8): Lippert Brake Drum Hub Assembly – 8 K Axle, 8 on 6.5", 9/16" Stud
  • Fully assembled hub: pre‑installed races, studs, & grease cap
  • Durable cast‑iron 12" drum for smooth braking
  • 8 on 6.5" bolt pattern, 9/16" drive‑in studs
  • Engineered for 8,000‑lb hubs; bundle limited to 7K by brakes
  • 1‑year limited Lippert warranty

Always verify original equipment specs and perform routine brake and hub inspections. Proper maintenance maximizes component life and keeps your trailer safe on the road.
