Lippert Quad‑Axle 12″ Electric Brake & Drum‑Hub Bundle

This complete kit refreshes four axles with eight heavy‑duty 8‑on‑6.5″ hybrid‑grease hubs and matching Lippert 12″ x 2″ manual‑adjust electric brake assemblies. Rated for up to 7,000 lbs per axle (fully compatible with light‑duty 8,000 lb “hybrid” axles that use the 12″ backing‑plate platform), it delivers smoother stops, straightforward maintenance, and Lippert’s proven reliability – all in one convenient package.

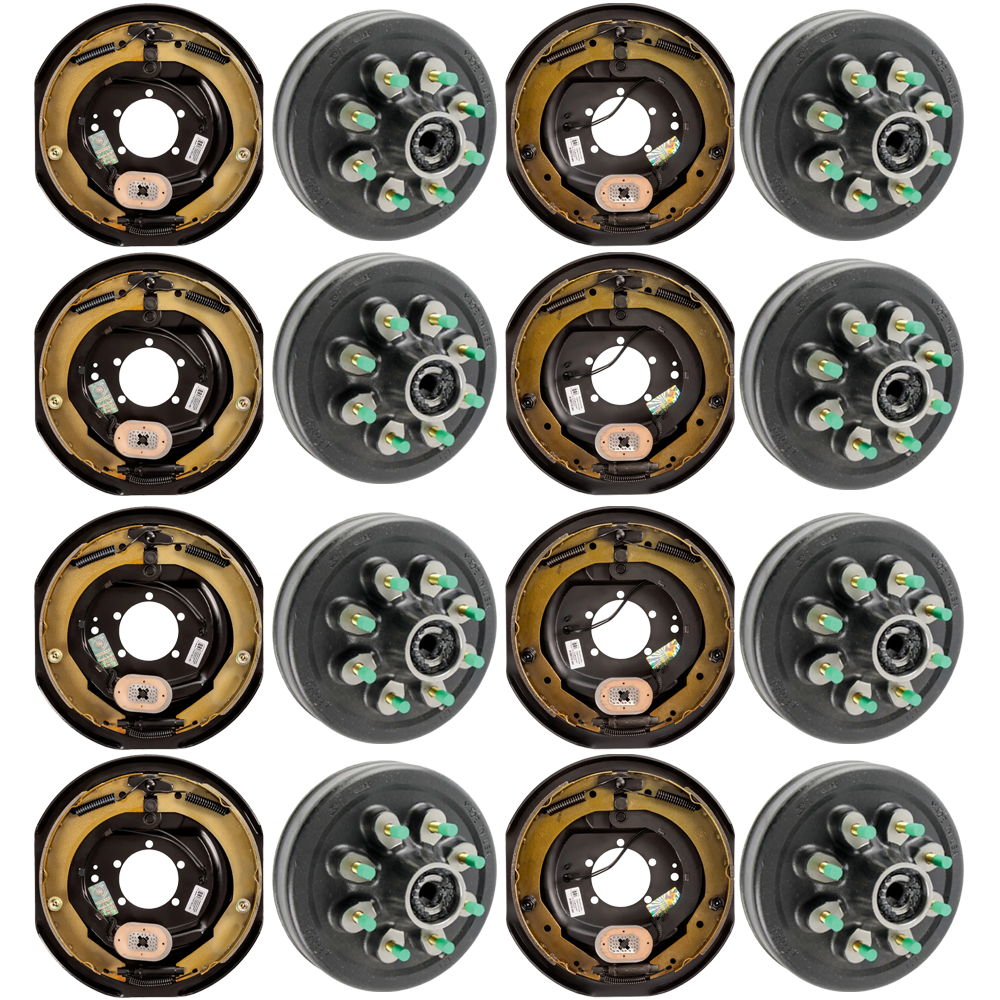

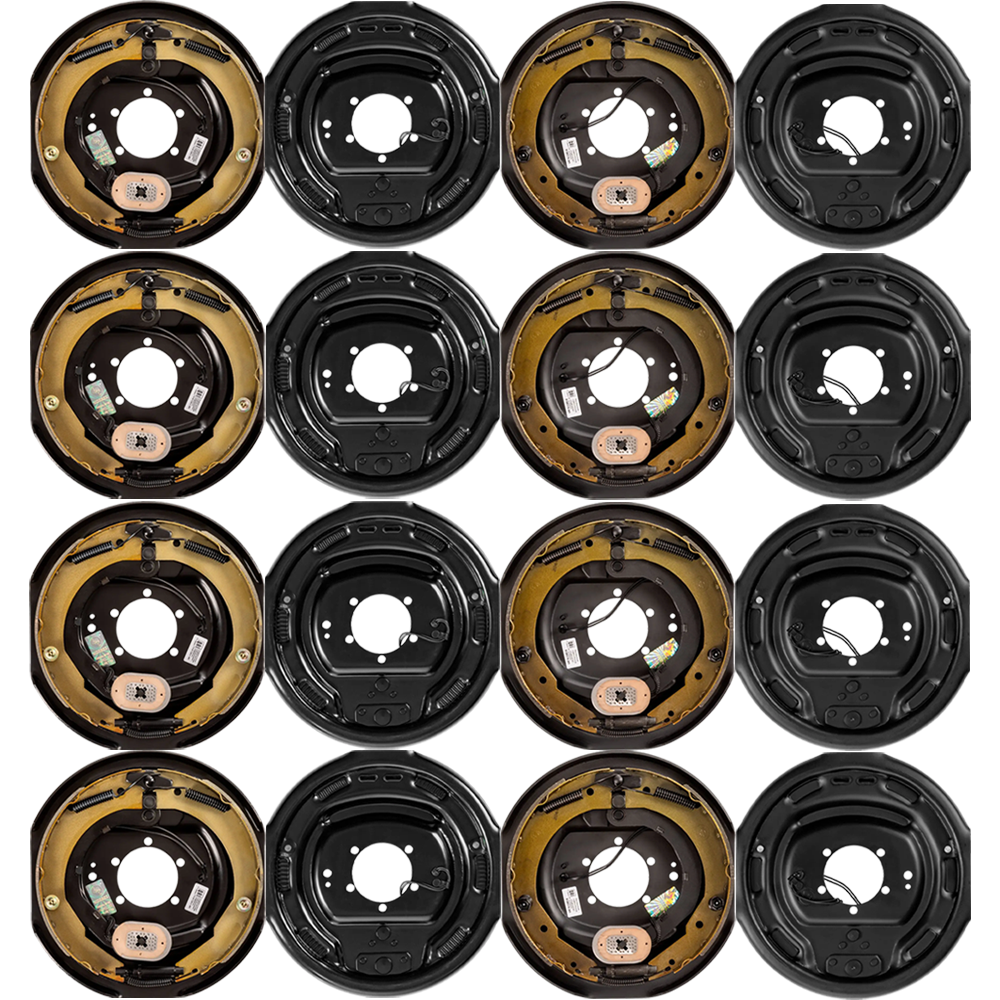

Bundle Contents:

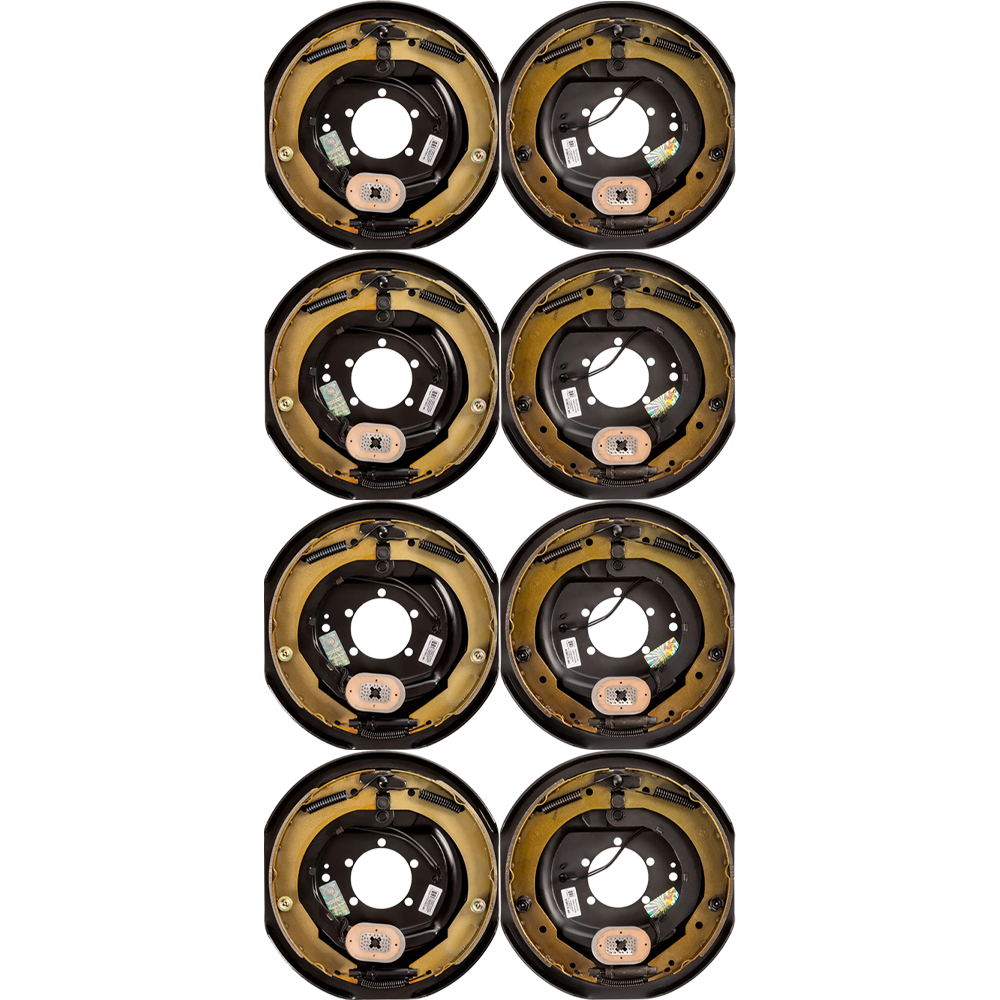

• QTY (4): Lippert 12″ x 2″ Electric Trailer Brake Assembly – Left Side
  • Replacement standard electric brake with park function
  • Manual adjustment keeps maintenance simple
  • Road‑side (LH) installation; 5‑bolt brake flange
  • Fits 5,200‑7,000‑lb & 8,000‑lb hybrid axles
  • Works with 15″ – 17.5″ wheels
  • 12″ x 2″ drum size; break‑in required for full performance
  • Dexter compatible part numbers: K23‑180‑00 | 023‑180‑00
• QTY (4): Lippert 12″ x 2″ Electric Trailer Brake Assembly – Right Side
  • Replacement standard electric brake with park function
  • Manual adjustment for precise shoe clearance
  • Curb‑side (RH) installation; 5‑bolt brake flange
  • Fits 5,200‑7,000‑lb & 8,000‑lb hybrid axles
  • Works with 15″ – 17.5″ wheels
  • 12″ x 2″ drum size; break‑in required for full performance
  • Dexter compatible part numbers: K23‑181‑00 | 023‑181‑00

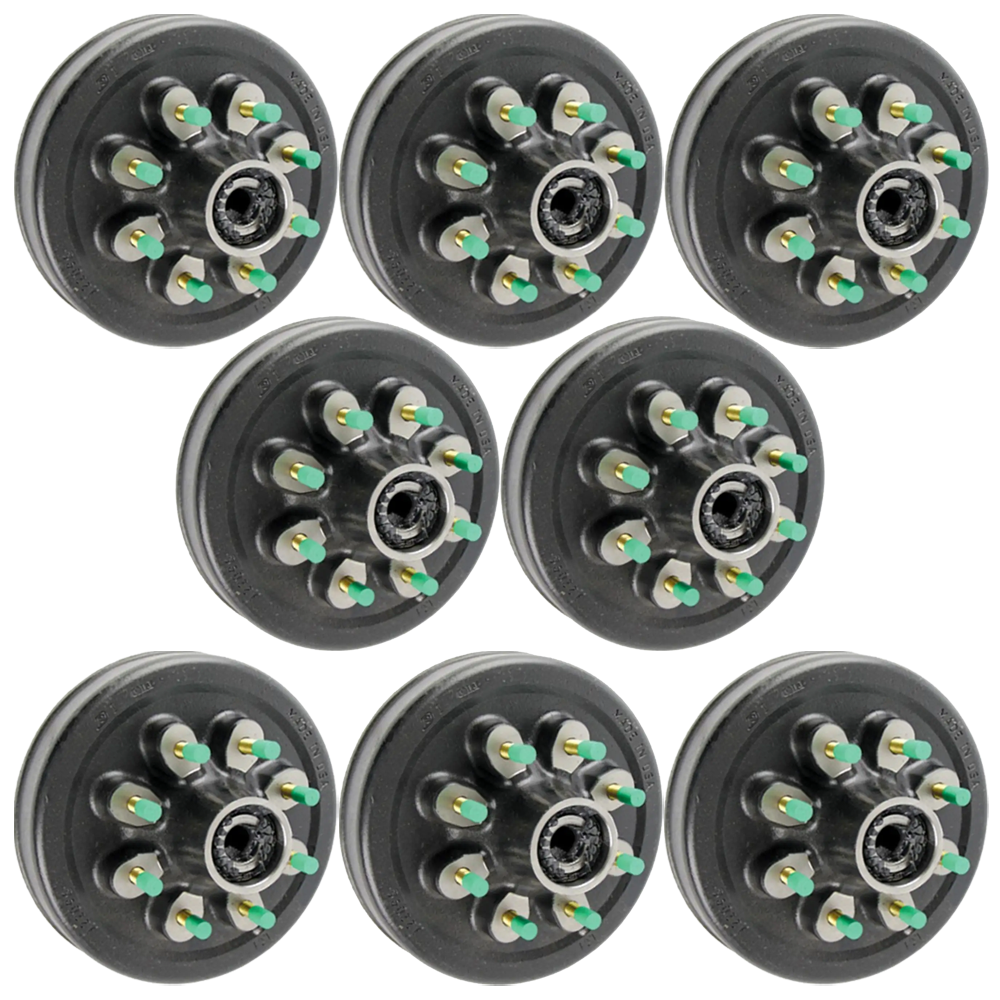

• QTY (8): Threaded Hybrid Grease Hub & Drum – 8,000 lb, 8‑on‑6.5″, 9/16″ Stud
  • Cast‑iron hub/drum rated for 8,000 lb axles
  • 12″ drum accepts electric or hydraulic brakes
  • 8‑on‑6.5″ bolt pattern, 9/16″ wheel studs
  • Races & wheel studs come pre‑installed
  • Compatible with 16″ – 17.5″ wheels
  • Lippert genuine replacement, 1‑year warranty

Recommendation: Verify axle rating, brake‑flange pattern, and bolt circle before ordering. After installation, adjust and bed‑in brakes per manufacturer instructions, and inspect hubs & bearings regularly for maximum service life.
