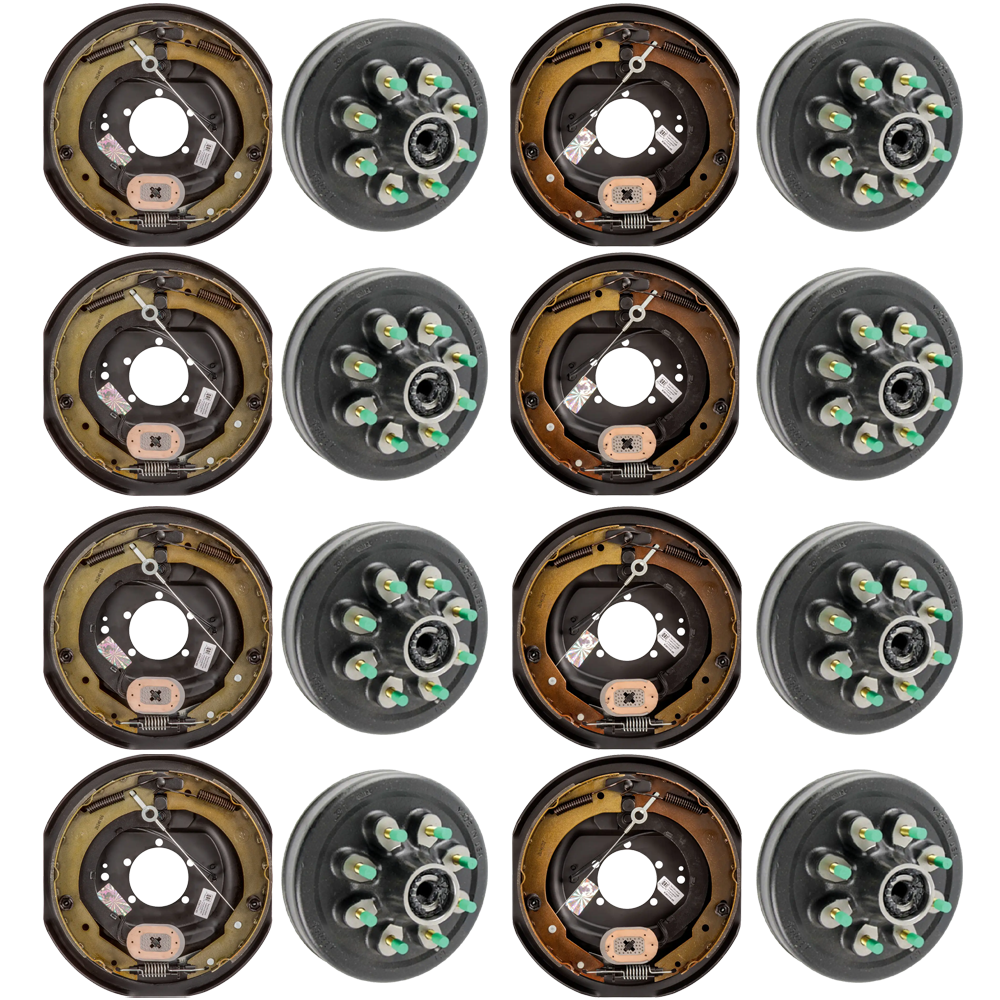

Lippert Quad-Axle 12" x 2" Self-Adjust Electric Brake Assemblies & 12" Oil-Bath Drum Hubs Kit, 8-on-6.5 Pattern, 9/16" Threaded Studs, 7K Axles � Dexter, Al-Ko, Rockwell Compatible

Lippert Quad-Axle 12" Self-Adjust Electric Brake & 12" Oil-Bath Hub Drum Kit

Upgrade all four axles at once with this complete Lippert bundle featuring self-adjusting 12" x 2" electric brake assemblies and heavy-duty 12" threaded oil-bath drum hubs. Rated for 7,000-lb axles, the kit shortens stopping distances, reduces maintenance, and fits the popular 8-on-6.5" bolt pattern with robust 9/16" studs.

Bundle Contents:

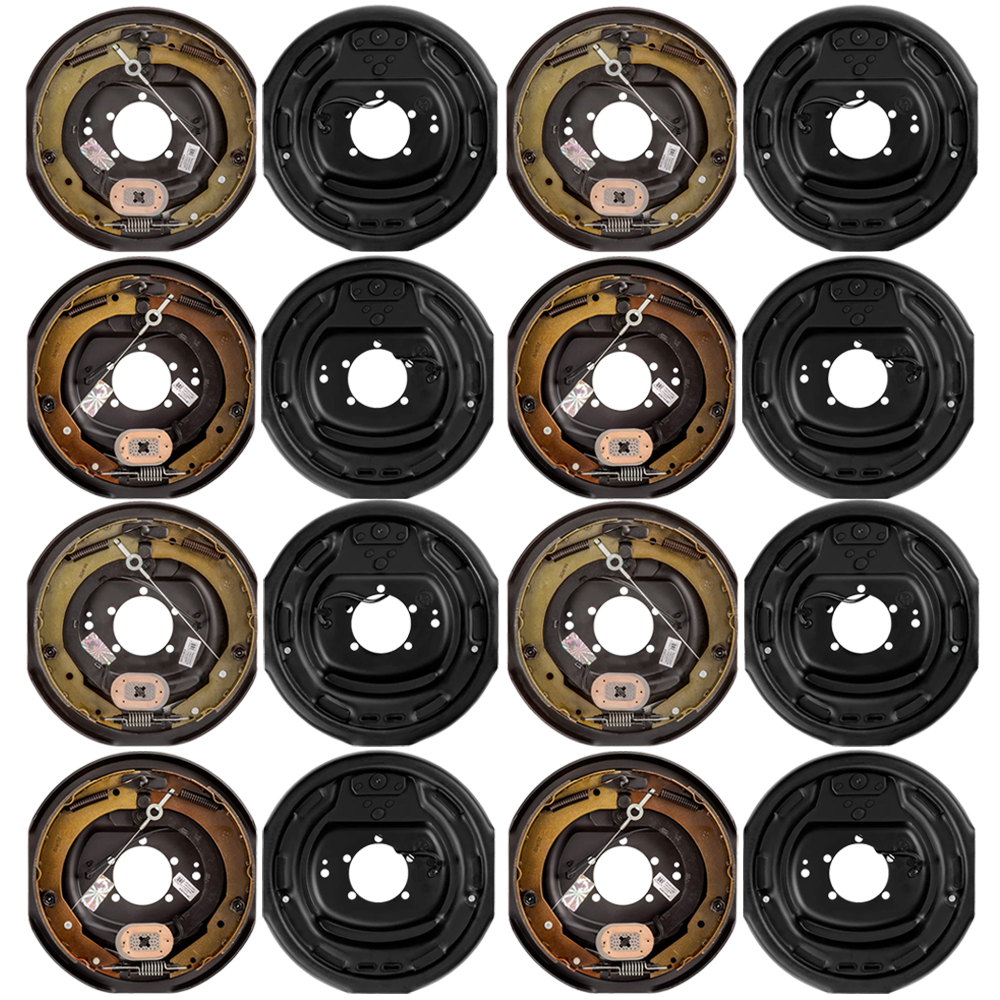

• QTY (4): Lippert 12" x 2" Forward Self-Adjust Electric Brake Assembly – Left
  • Fits 4K-7K axles, left (road) side
  • Self-adjusts at every forward stop; up to 50 % shorter stops
  • Five-bolt brake flange; easy DIY install
  • Dexter compatible part #: K23-464-00 | 023-464-00
  • Lippert genuine part; 1-year warranty
• QTY (4): Lippert 12" x 2" Forward Self-Adjust Electric Brake Assembly – Right
  • Fits 4K-7K axles, right (curb) side
  • Self-adjusts at every forward stop; up to 50 % shorter stops
  • Five-bolt brake flange; quick bolt-on
  • Dexter compatible part #: K23-465-00 | 023-465-00
  • Lippert genuine part; 1-year warranty

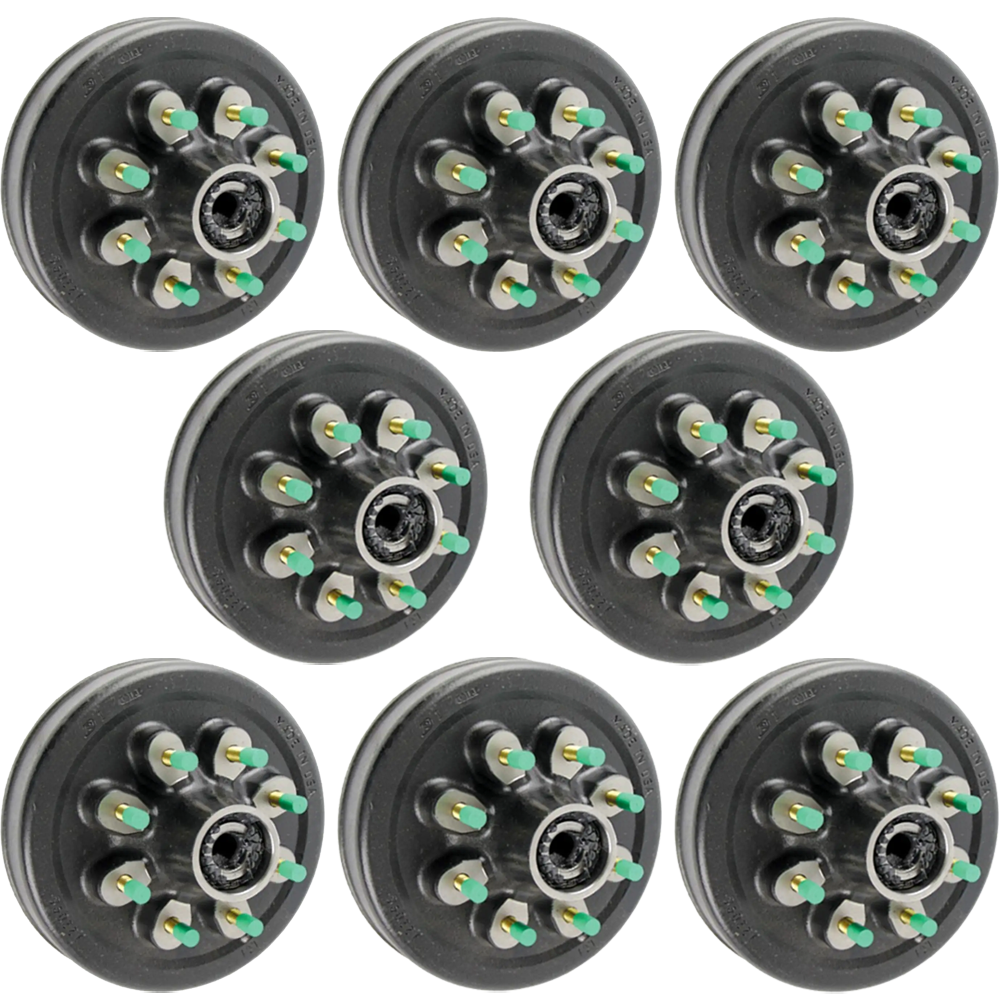

• QTY (8): 12" Threaded Oil-Bath Brake Drum Hub – 8K, 8-on-6.5", 9/16" Studs
  • 8,000-lb hub capacity; 12" drum (races & wheel studs pre-installed)
  • 8-on-6.5" bolt pattern with 9/16" threaded studs
  • Oil-bath design accepts Valcrum caps
  • Durable cast-iron construction
  • Compatible with Dexter & other 8K axles
  • Works with electric or hydraulic drum brakes

Always verify your existing axle specifications and perform routine brake and hub maintenance to ensure safe, reliable towing.
