Lippert?Quad?Axle?12"?x?2"?Self?Adjusting?Electric?Brake Assemblies?&?12"?8?on?6.5?Bare?Drum?Hubs Bundle?�?7,000?lb Capacity,?1/2" Studs �?Dexter,?Alko,?Rockwell?Compatible

Lippert Quad‑Axle Self‑Adjusting Brake & Drum Hub Kit – 7 K, 8‑on‑6.5

Upgrade your heavy‑duty quad‑axle trailer with this genuine Lippert bundle. Eight 12" bare drum hubs come paired with four left‑hand and four right‑hand 12" × 2" forward self‑adjusting electric brakes, delivering up to 50 % shorter stopping distances and eliminating manual adjustments.

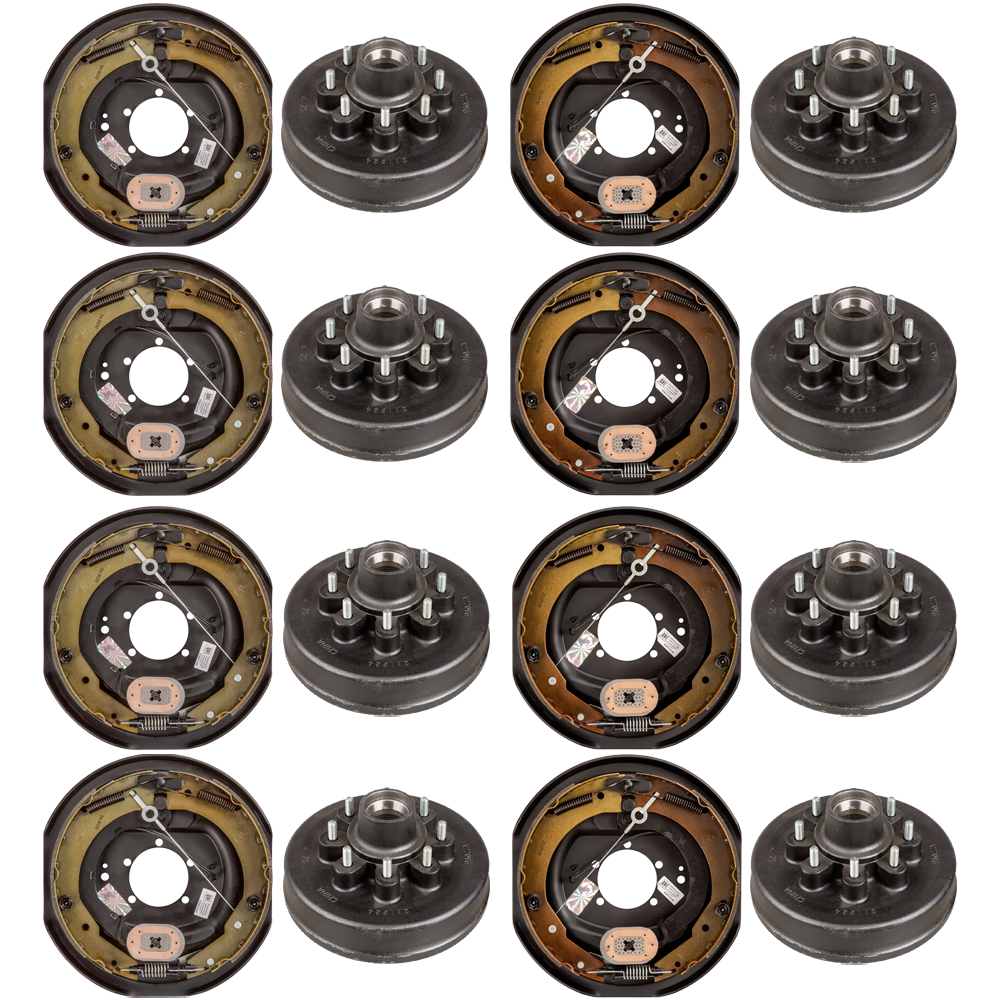

Bundle Contents:

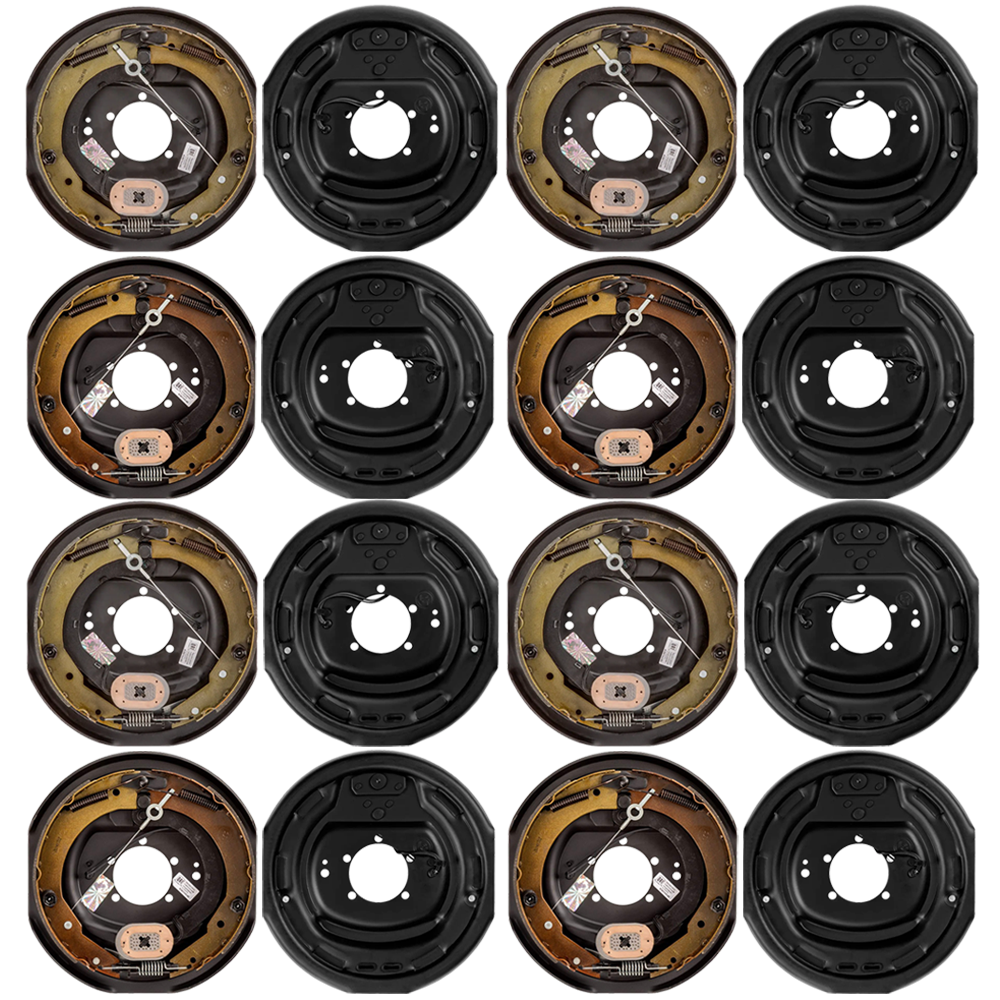

• QTY (4): Lippert 12" × 2" Forward Self‑Adjusting Electric Brake – LEFT (Road‑Side)
  • Fits 4 K–7 K axles
  • Self‑adjusts on every forward stop
  • Five‑bolt brake flange, easy DIY install
  • Dexter Compatible PN: K23‑464‑00 / 023‑464‑00
  • Reduces brake wear & improves stopping power
  • 1‑year Lippert warranty
• QTY (4): Lippert 12" × 2" Forward Self‑Adjusting Electric Brake – RIGHT (Curb‑Side)
  • Mirror‑image curb‑side installation
  • Automatic forward self‑adjustment
  • Five‑bolt mounting pattern
  • Dexter Compatible PN: K23‑465‑00 / 023‑465‑00
  • Improves braking distance by up to 50 %
  • 1‑year Lippert warranty

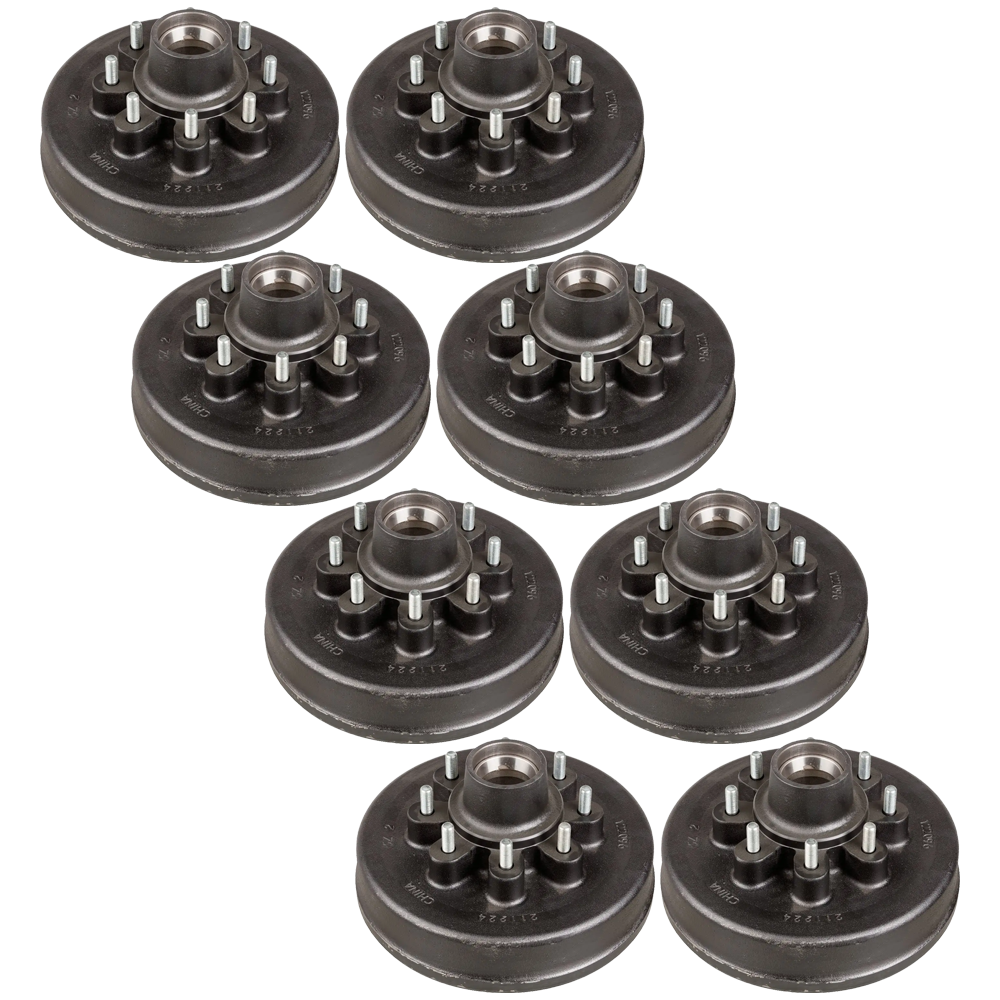

• QTY (8): 12" Trailer Brake Drum Hub – 7 K, 8 on 6‑1/2", 1/2" Studs
  • Rated 7,000 lbs each (28 K total for 4 axles)
  • 8‑on‑6.5 bolt circle with 1/2"‑20 press‑in studs
  • Cast‑iron drum accepts electric or hydraulic brakes
  • Races & wheel studs come pre‑installed
  • Universally compatible with Lippert, Dexter, Al‑Ko, Rockwell axles

Always match replacement parts to your original equipment and perform routine brake inspections. Proper maintenance prevents premature wear and keeps your trailer safe on the road.
