Lippert Quad-Axle 3,500-lb Electric Brake & Pre-Greased 10? Drum-Hub Kit � 4 LH + 4 RH Brakes & 8 5-on-4.5 Hubs, Dexter Compatible

Lippert Quad-Axle 3,500-lb Electric Brake & 10″ Drum-Hub Bundle – Dexter Compatible

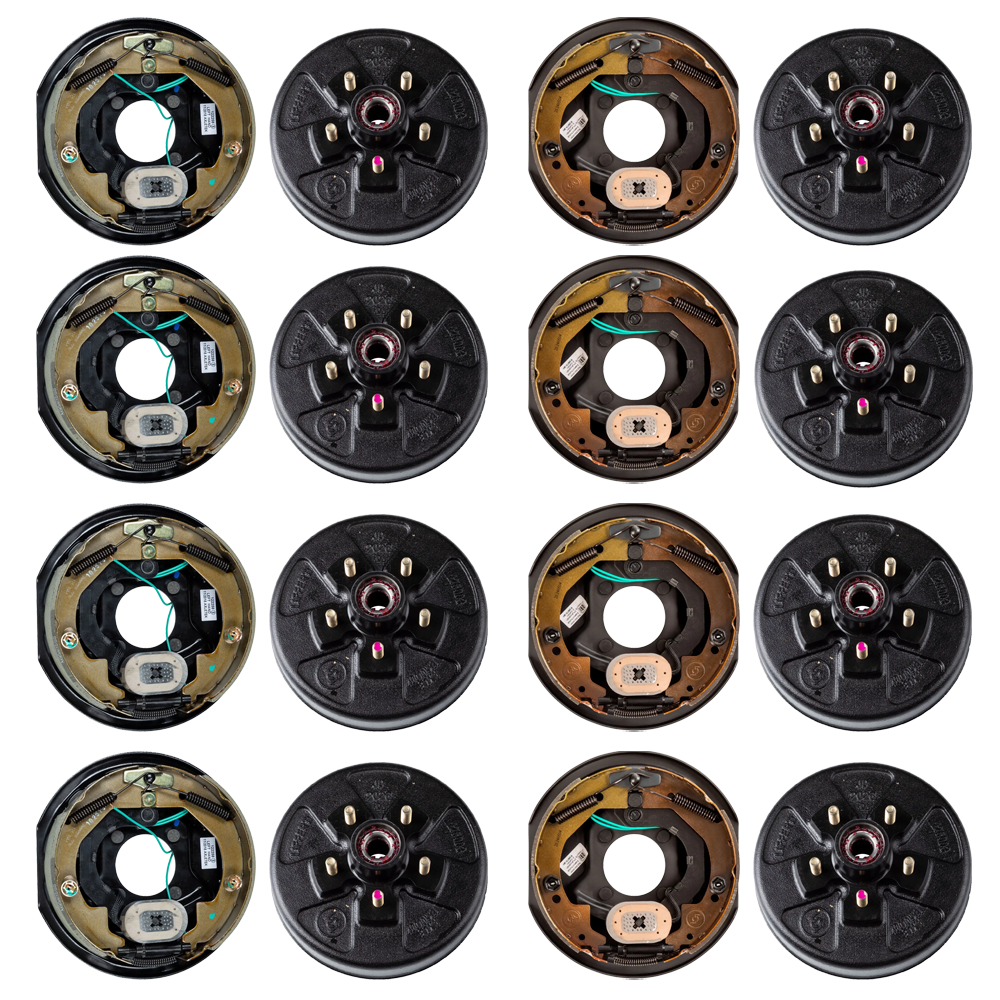

Make four 3,500-lb axles park-ready in one shot. This Lippert bundle pairs left- and right-hand 10″ electric brakes with eight fully assembled, pre-greased drum-hubs (5-on-4.5″ pattern). Everything arrives ready to bolt on for quicker DIY service and confident stopping on RV, cargo, livestock, or utility trailers.

Bundle Contents:

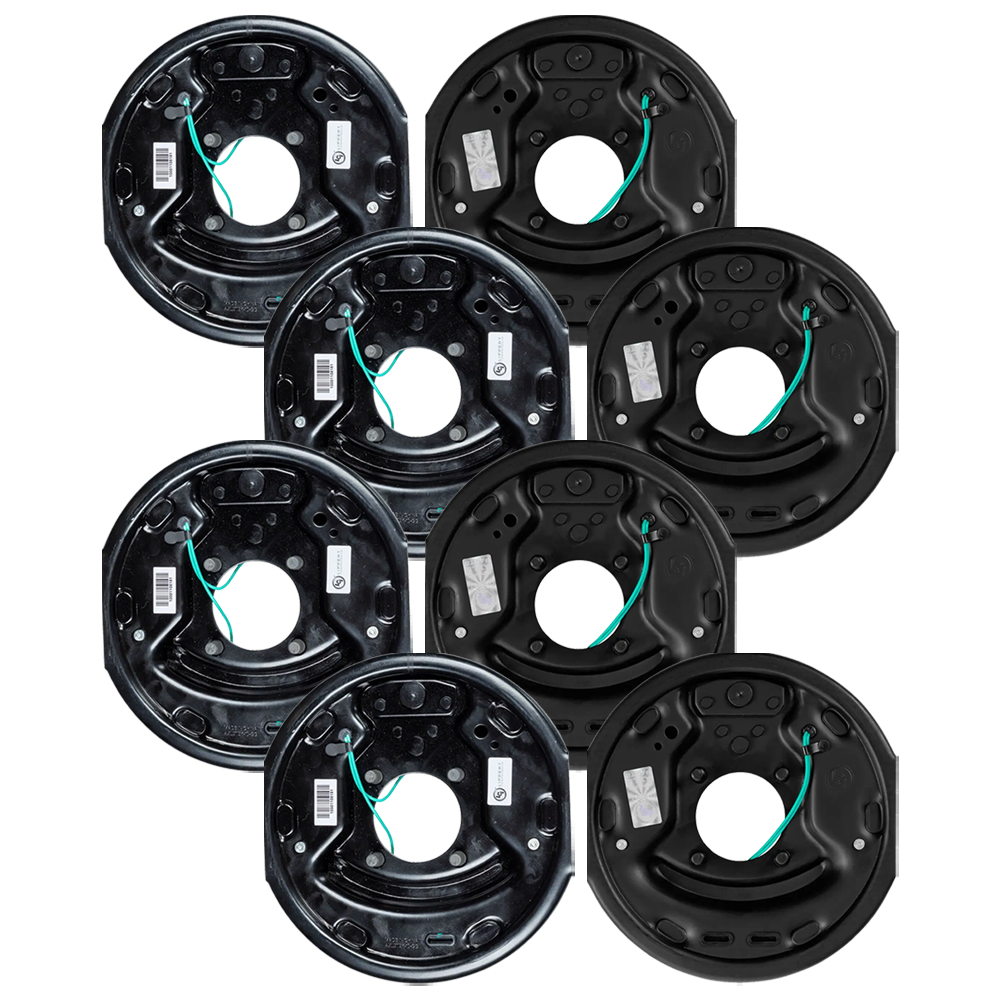

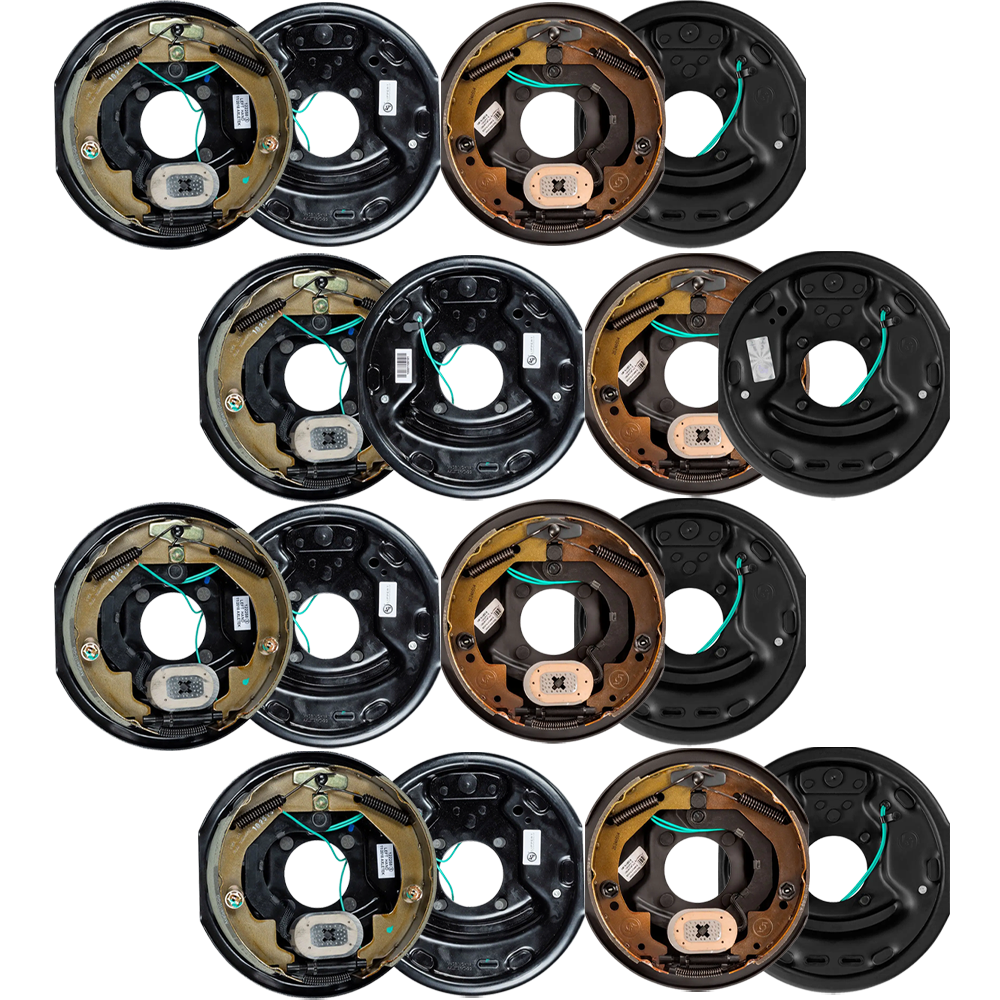

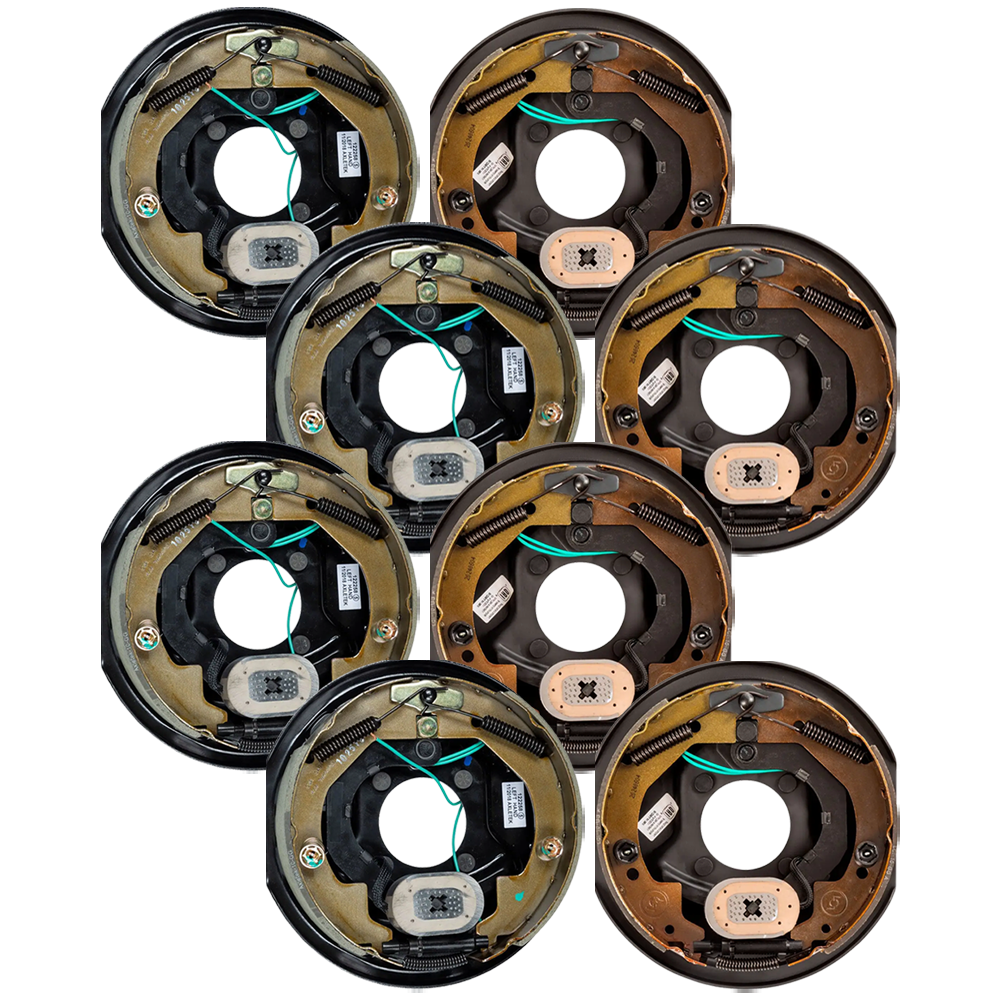

• QTY (4): Lippert Electric Trailer Brake Assembly – 10″ × 2.25″ Left-Hand
  • Integrated parking-brake feature
  • Manual star-wheel adjustment
  • Fits 3,500-lb axles • 4-bolt mount
  • Works with 13-15″ wheels
  • Dexter compatible P/N: K23-026-00 | 023-026-00
  • Requires break-in for peak performance
• QTY (4): Lippert Electric Trailer Brake Assembly – 10″ × 2.25″ Right-Hand
  • Passenger-side counterpart with park
  • Manual star-wheel adjustment
  • Fits 3,500-lb axles • 4-bolt mount
  • Works with 13-15″ wheels
  • Dexter compatible P/N: K23-027-00 | 023-027-00
  • Requires break-in for peak performance

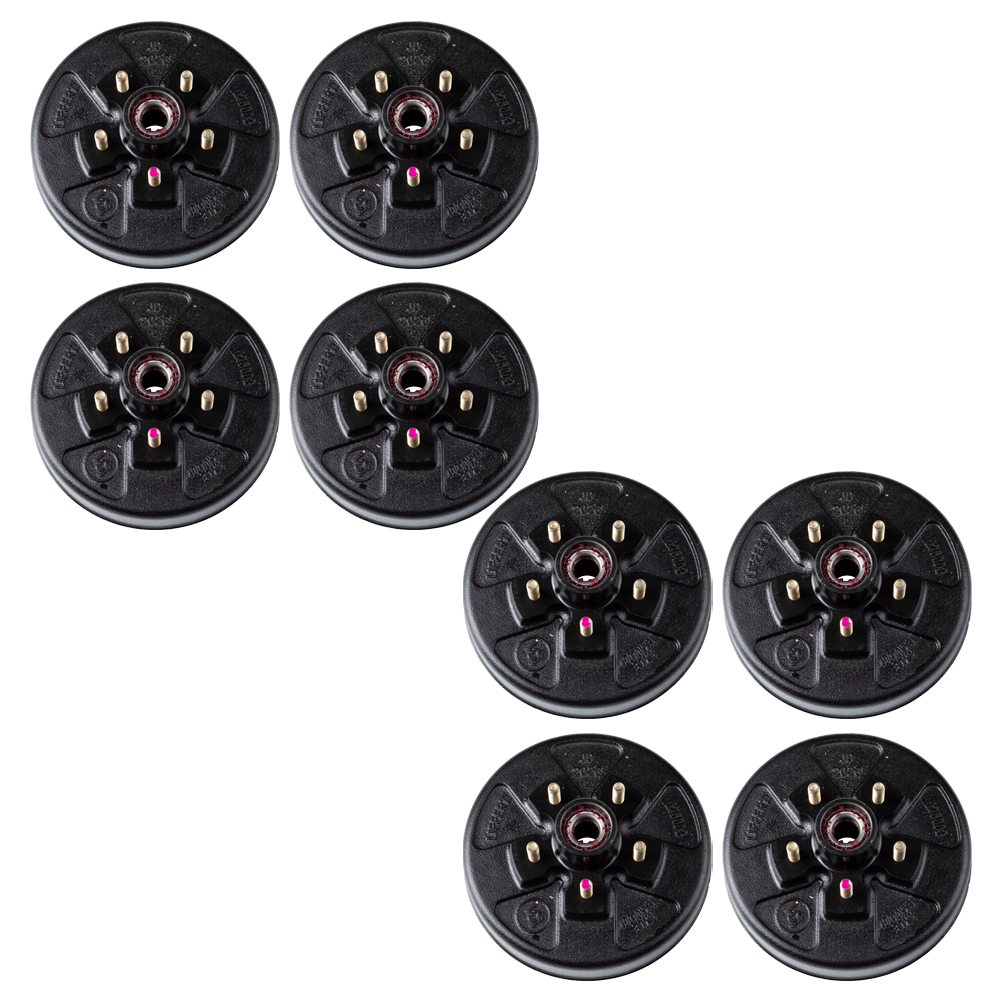

• QTY (8): Lippert 10″ Pre-Greased Drum-Hub Assembly – 5 on 4.5″, 1/2″ Stud
  • Fully assembled hub & drum — ready to install
  • Solid cast-iron construction
  • Bearing cones, seal & grease factory-installed
  • Axle rating: 3,500 lbs • 5 on 4.5″ pattern
  • Fits 13-15″ wheels • Lippert #122460

Verify axle capacity, brake-flange pattern, and bolt circle before installation, and service brakes and bearings at recommended intervals for safe operation.
