Lippert Quad-Axle 3,500-lb Self-Adjusting Electric Brake & 10? Hub-Drum Kit � 5-on-4.5? Pattern � Dexter / Alko / Rockwell Compatible

Lippert Quad-Axle 3,500-lb Self-Adjusting Electric Brake & 10″ Hub-Drum Kit – 5-on-4.5″ Pattern – Dexter / Alko / Rockwell Compatible

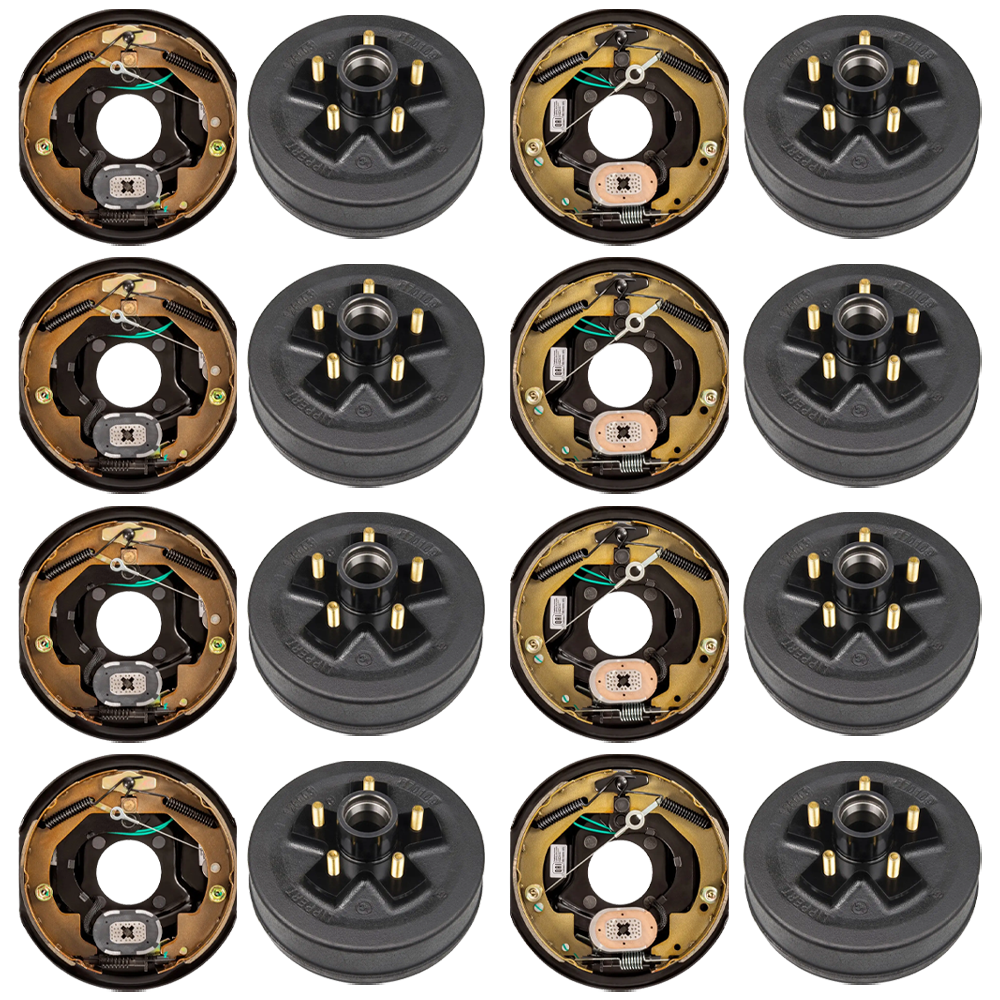

Service or upgrade every wheel on your quad-axle trailer with this complete Lippert bundle. The kit delivers four left-hand and four right-hand 10″ forward self-adjusting electric brake assemblies plus eight matching 10″ hub-drums with a 5-on-4.5″ bolt pattern—everything required for confident, consistent stopping on 3,500-lb axles, compatible with Dexter, Alko, and Rockwell setups.

Bundle Contents:

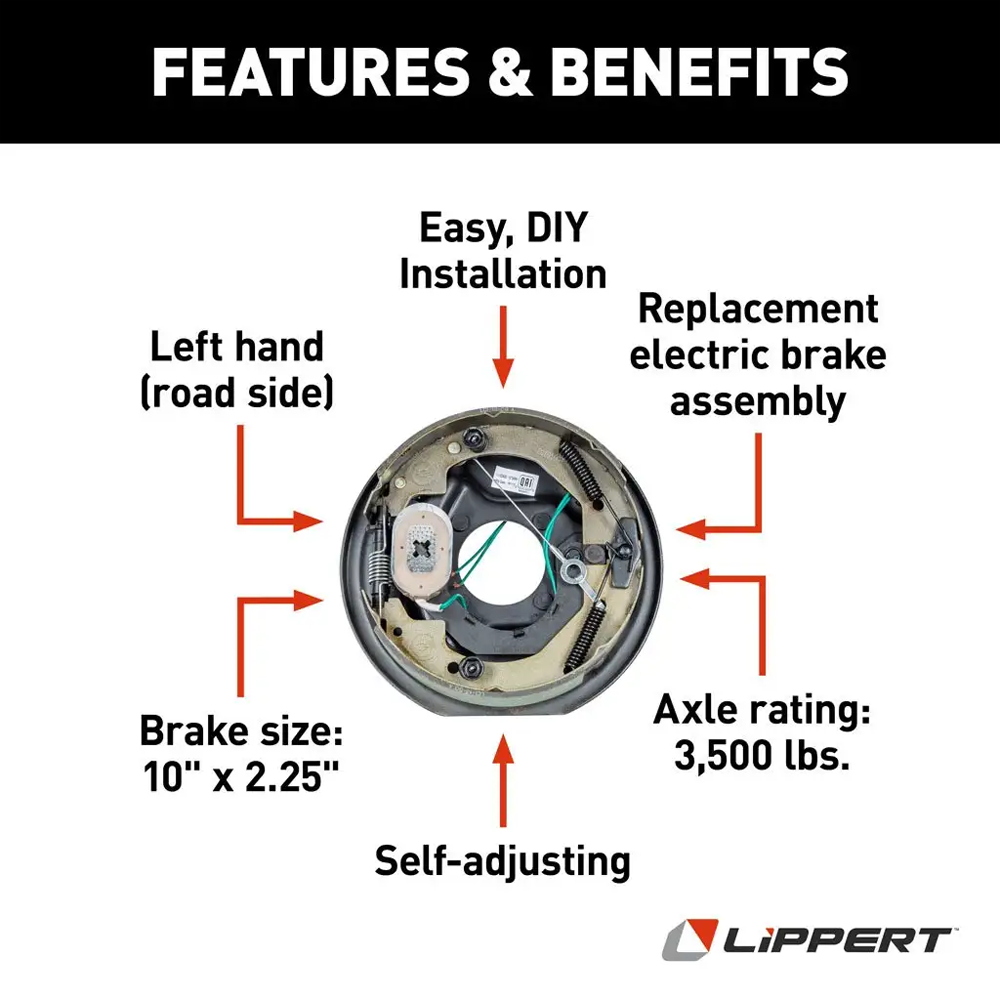

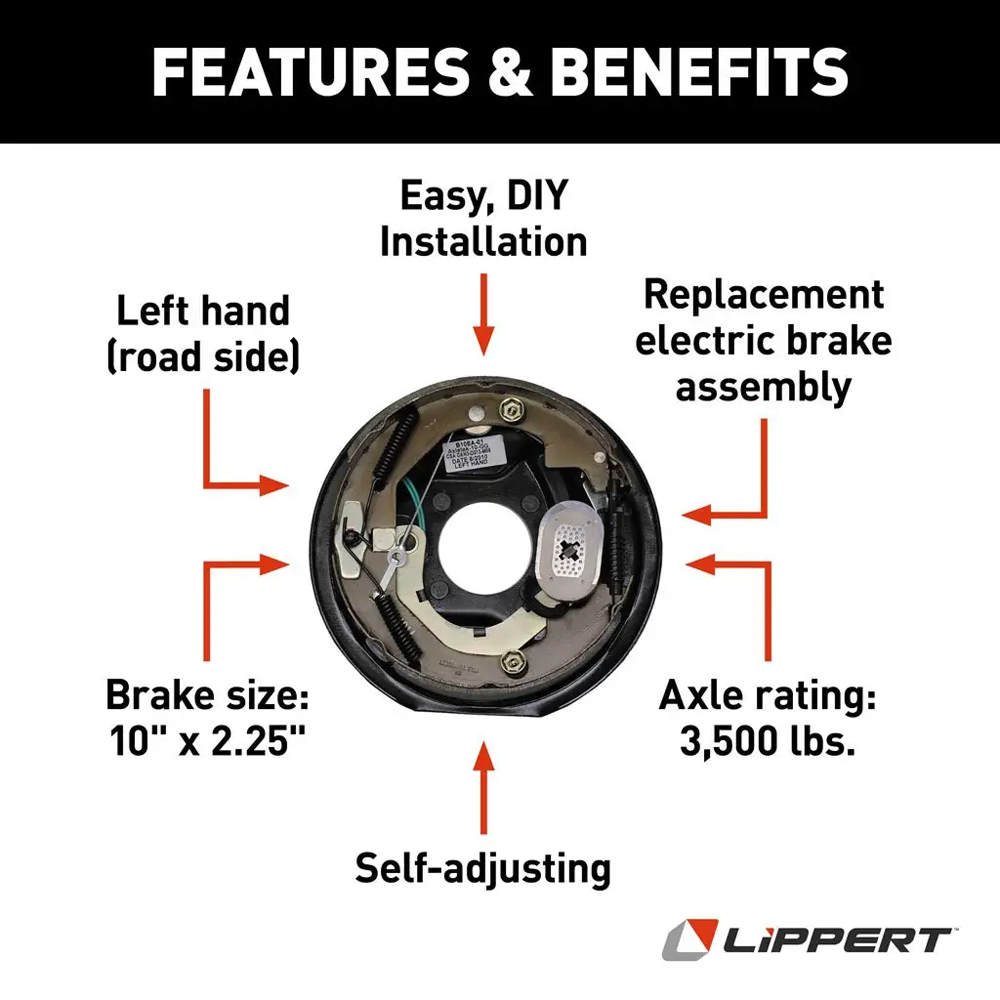

• QTY (4): Lippert Forward Self-Adjusting Electric Brake Assembly – 10″ × 2.25″, 3.5K, Left
  • Left-hand (road-side) mount, 4-bolt flange
  • Maintenance-free forward self-adjusting mechanism
  • Improves stopping distance up to 50 %
  • Fits 3,500-lb axles, 10″ × 2.25″ drums
  • Dexter compatible part numbers: K23-468-00 | 023-468-00
  • Lippert OEM quality – 1-year warranty
• QTY (4): Lippert Forward Self-Adjusting Electric Brake Assembly – 10″ × 2.25″, 3.5K, Right
  • Right-hand (curb-side) mount, 4-bolt flange
  • Forward self-adjusting—no manual tweaks
  • 10″ × 2.25″ shoe size for 3,500-lb axles
  • Dexter compatible part numbers: K23-469-00 | 023-469-00
  • Reduces magnet & lining wear
  • Lippert OEM quality – 1-year warranty

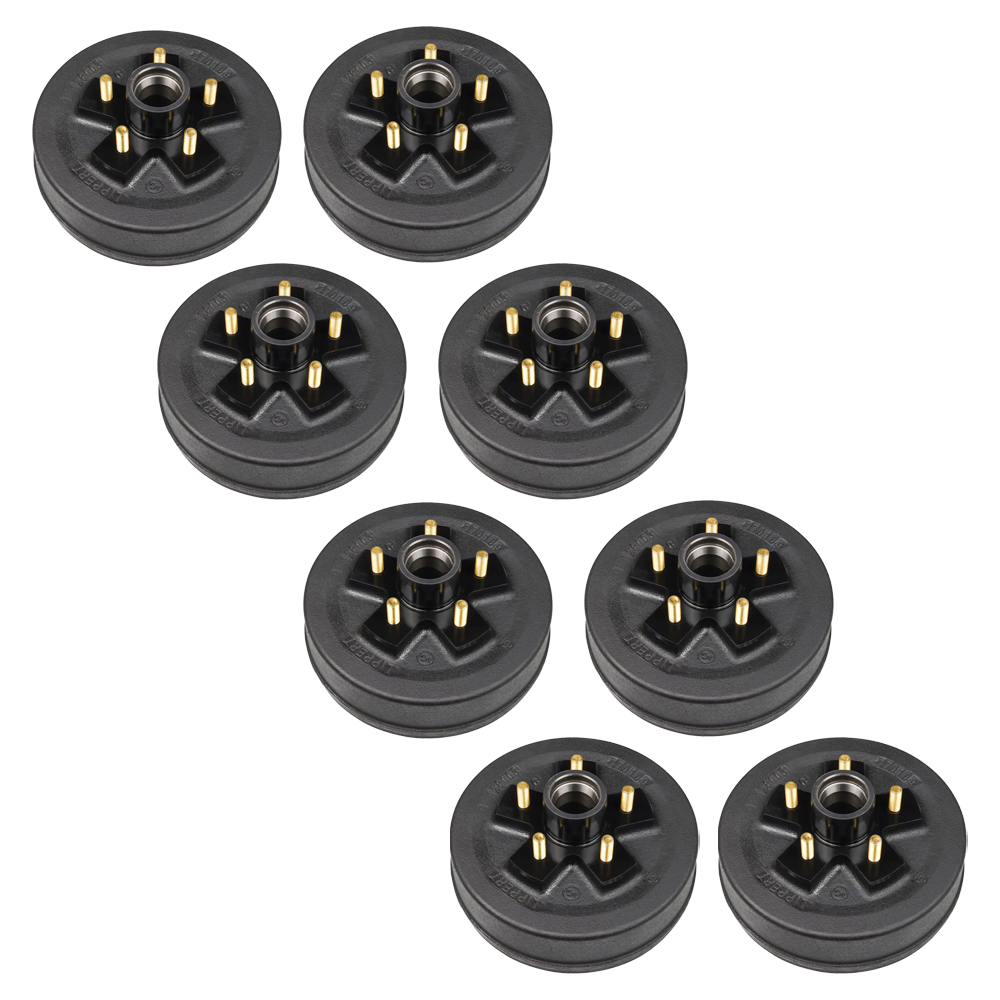

• QTY (8): Lippert 10″ Brake Drum Hub – 3,500-lb Axle, 5-on-4.5″, 1/2″ Studs
  • Integrated cast-iron hub & 10″ drum
  • Hub only—full bearing assembly not included
  • 5-on-4.5″ bolt pattern, pre-installed 1/2″ studs
  • Fits 13″–15″ wheels on 3,500-lb axles
  • Heavy-duty construction for long service life
  • Limited 1-year warranty

Please verify your existing axle and brake specifications before installation, and perform routine inspections to ensure peak performance and safety.
