Lippert Quad-Axle 3.5K Electric Brake & 10? Drum-Hub Kit � Dexter / Alko / Rockwell Compatible

Lippert Quad-Axle 3.5K Electric Brake & Hub Package – Complete 10″ Upgrade Kit

Restore factory-fresh stopping power on every wheel of your four 3,500-lb axles with this genuine Lippert bundle. Eight matched 10″ brake drum-hubs plus left- and right-hand 10″ × 2.25″ electric brake assemblies give you everything you need for a fast, OE-grade overhaul on RV, cargo, horse, utility and boat trailers that use the popular 5 on 4.5″ bolt circle.

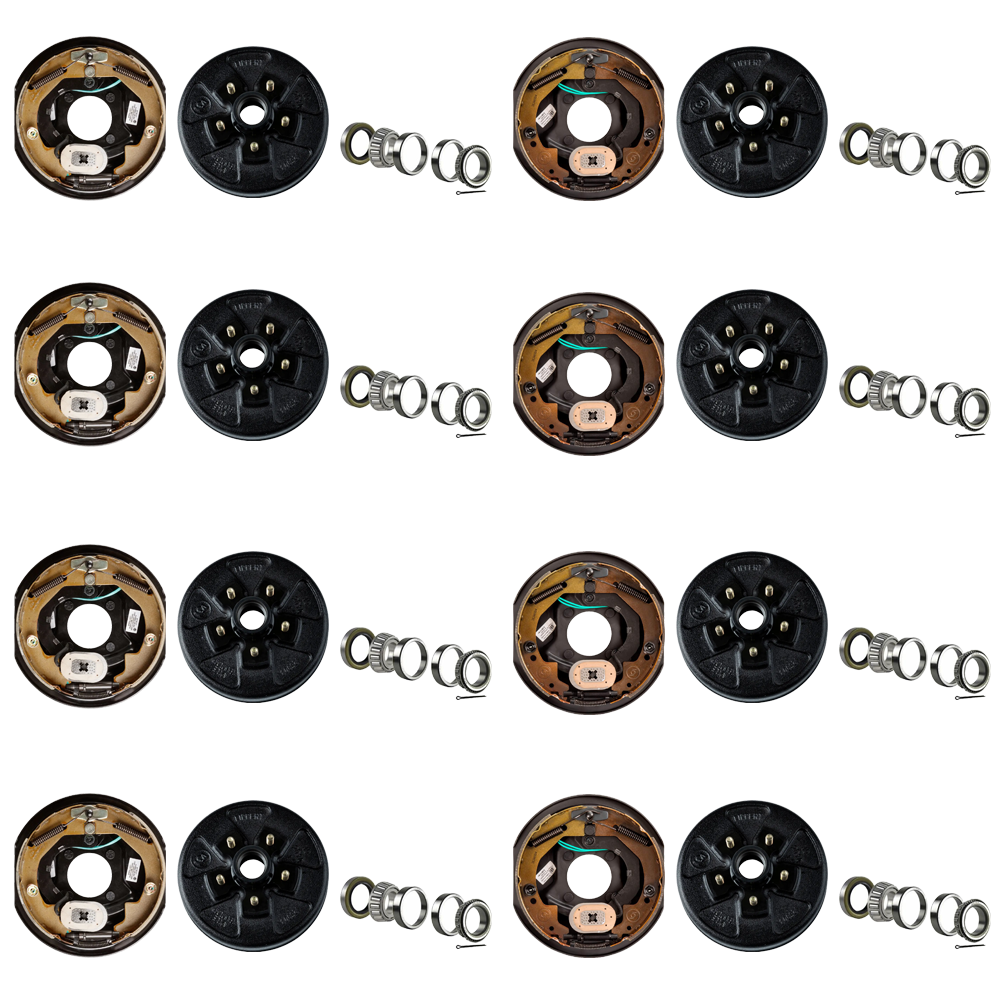

Bundle Contents:

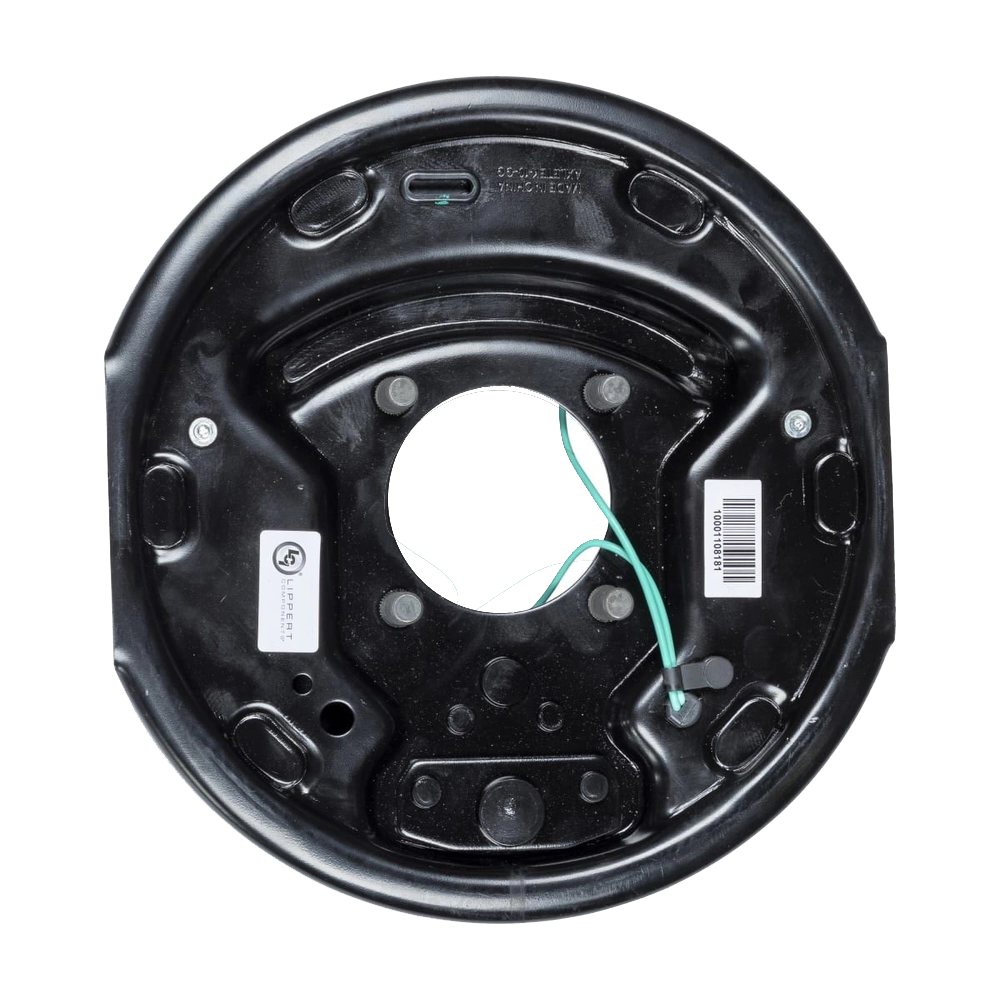

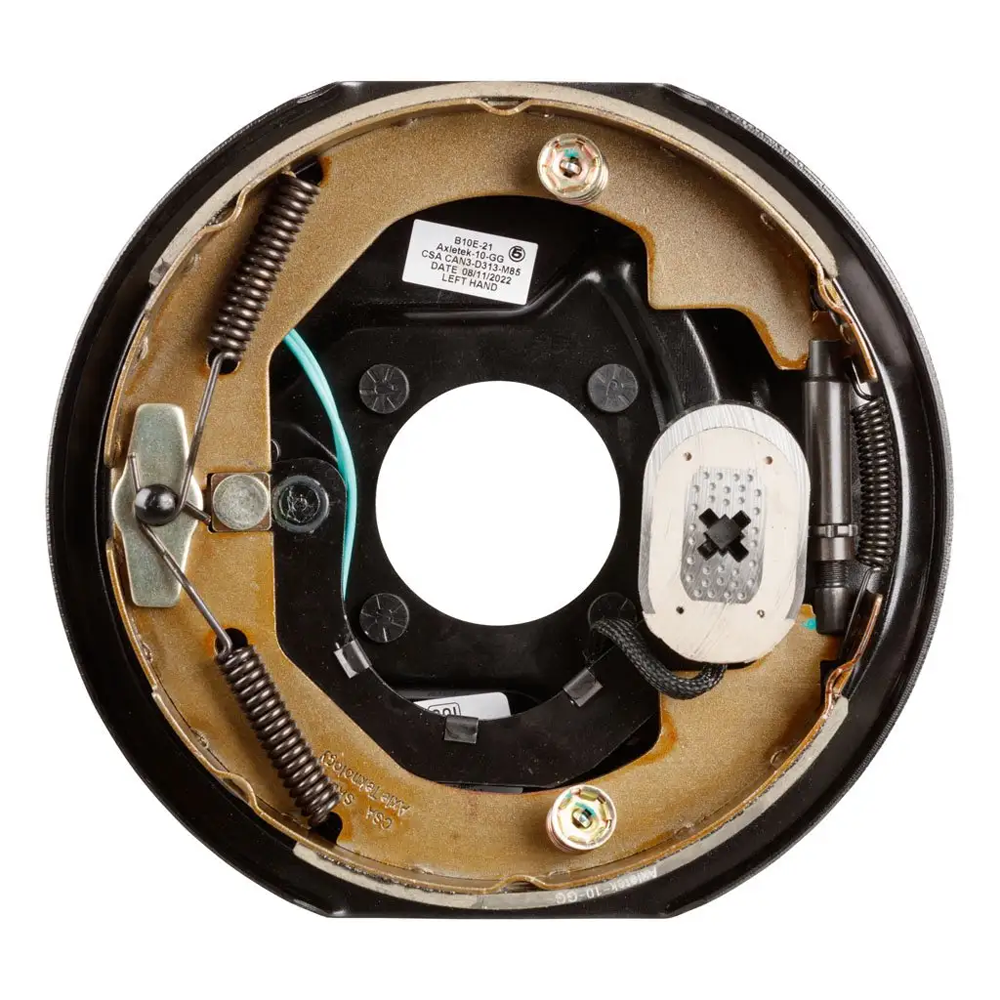

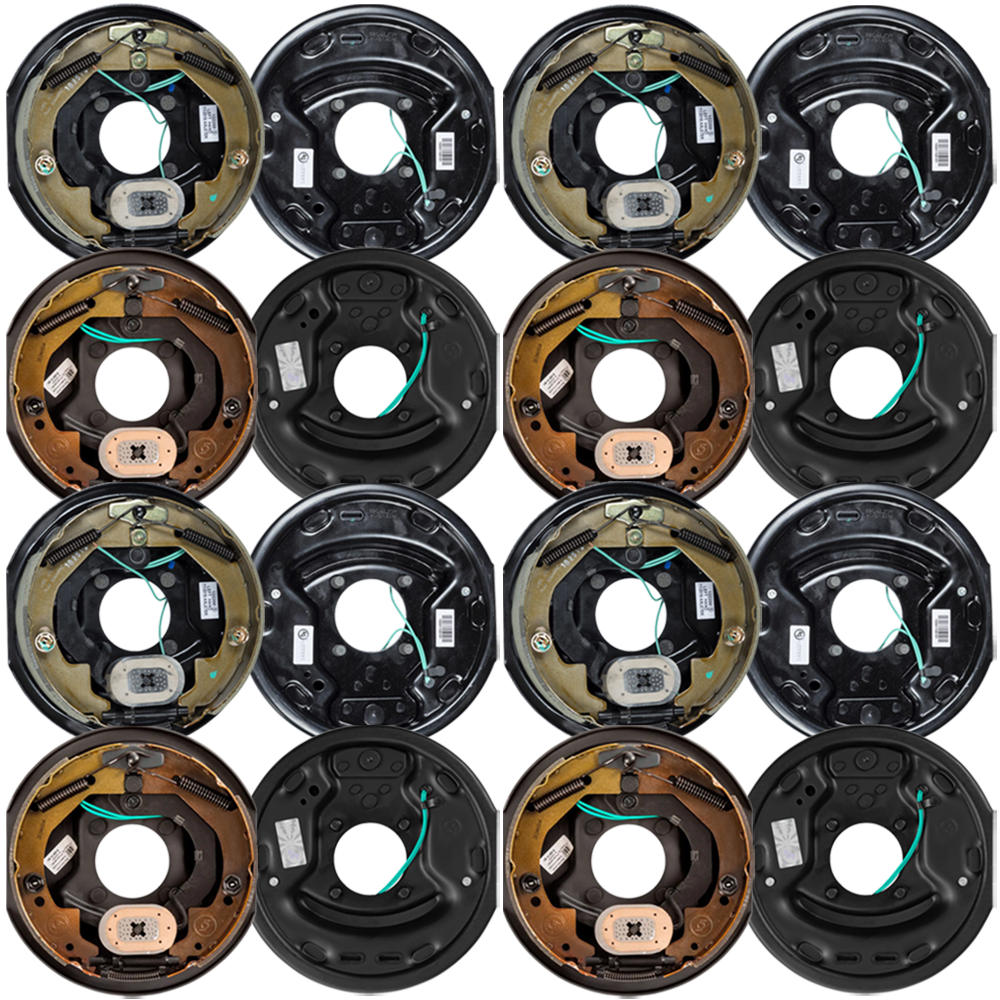

• QTY (4): Lippert 10″ × 2.25″ Electric Brake Assembly – Left-Hand
  • Direct replacement for 3,500-lb trailer axles
  • Manual-adjust design for precise braking control
  • Road-side (LH) orientation
  • Pre-wired magnet lead; simple bolt-on install
  • Dexter cross-ref: K23-026-00 / 023-026-00
  • 1-year limited warranty
• QTY (4): Lippert 10″ × 2.25″ Electric Brake Assembly – Right-Hand
  • Direct replacement for 3,500-lb trailer axles
  • Manual-adjust design; curb-side (RH) orientation
  • Pre-wired magnet lead; simple bolt-on install
  • Dexter cross-ref: K23-451-00 / 023-451-00
  • 1-year limited warranty

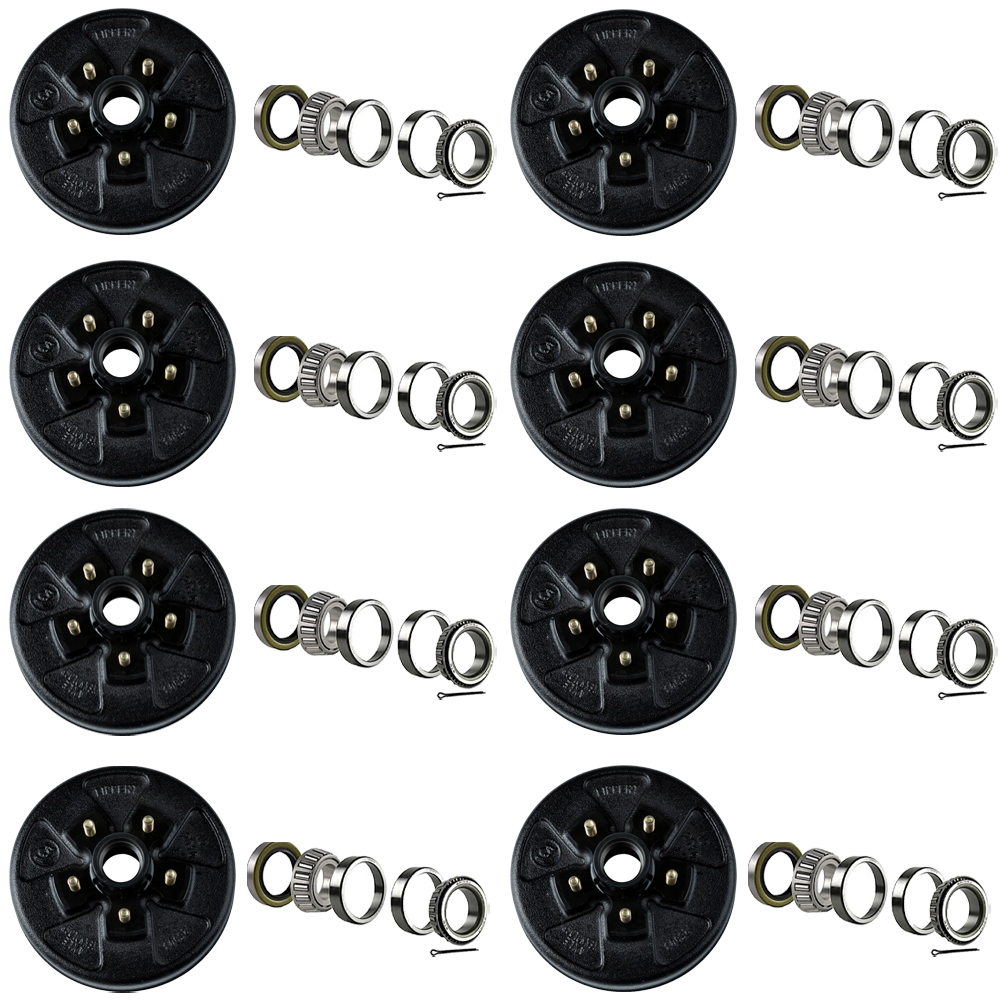

• QTY (8): Lippert 10″ Brake Drum-Hub Assembly – 5 on 4.5″, 1/2″ Stud
  • Solid cast-iron hub/drum for 3,500-lb axles
  • 5 on 4.5″ bolt pattern, 1/2″ press-in studs
  • Fits 13″ – 15″ wheels
  • Bearing kit supplied with every hub (×8 kits total):
    • (1) Inner bearing cone L68149 & cup L68111
    • (1) Outer bearing cone L44649 & cup L44610
    • (1) Double-lip grease seal 010-036-00
    • (1) Cotter pin
  • Hub part #126003 & bearing kit #333948 – 1-year warranty

Always verify axle tags, brake size, mounting flange and bolt pattern before ordering, and perform routine maintenance to ensure safe, reliable stopping power on every trip.
