Lippert Quad Axle 7? � 1.25? Electric Brake & 5-on-4.5? Hub + Bearing Bundle � 2,200 lb � Dexter & Alko Compatible

Lippert 2,200-lb Quad-Axle Electric Brake, Hub & Bearing Bundle

Service or upgrade all four of your 2,200-lb axles at once. This package delivers eight genuine Lippert® 7″ × 1.25″ manual-adjust electric brakes, matching 5-on-4.5″ brake-drums/hubs, and complete bearing kits—supplying every piece of hardware you need (nuts, bolts, cotter pins, washers – not pre-installed) for a factory-fresh braking system. Grease is not included so you can use your preferred premium lubricant.

Bundle Contents:

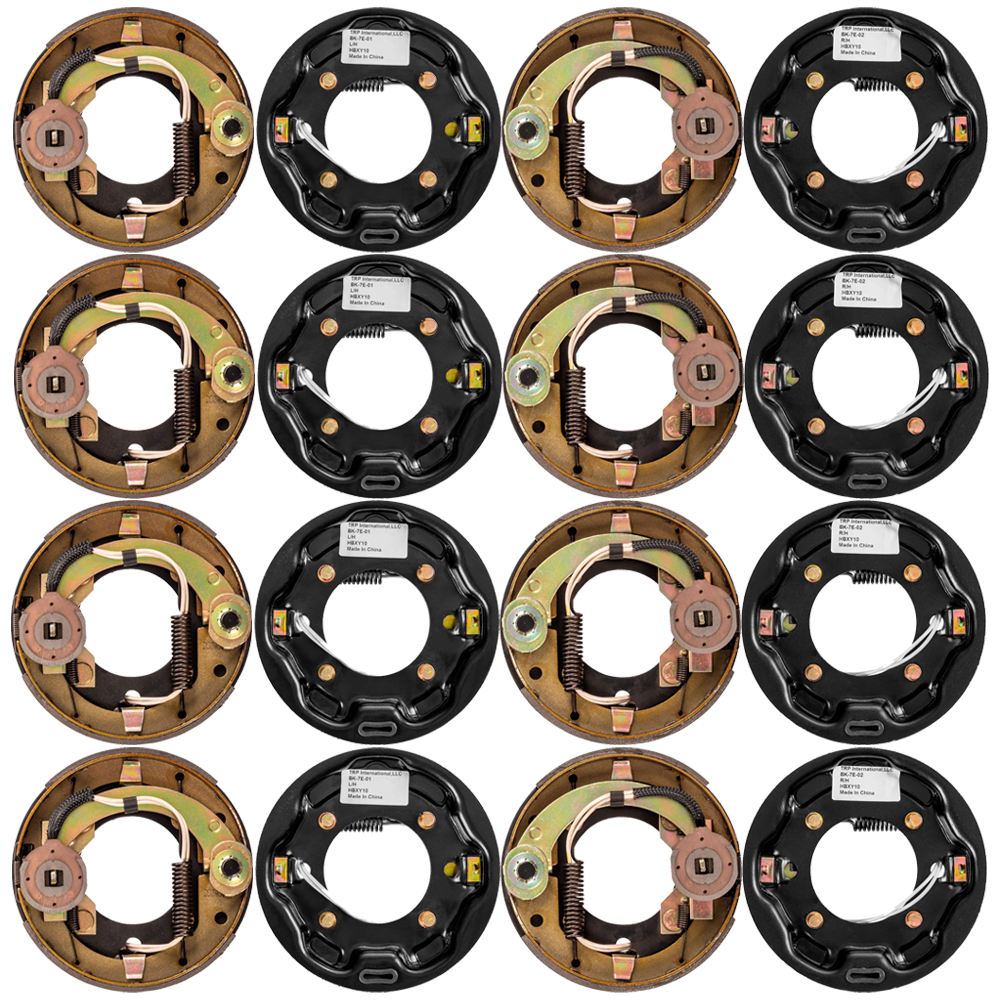

• QTY (4): 7″ × 1.25″ Electric Brake Assembly – Left (Roadside)
  • Genuine Lippert® replacement part
  • Dexter Compatible Part No: K23-047-00 | 023-047-00
  • Manual-adjust • 4-bolt mounting flange
  • Fits 10″–13″ wheels • 2,200-lb axle
  • 1-year manufacturer warranty
• QTY (4): 7″ × 1.25″ Electric Brake Assembly – Right (Curbside)
  • Genuine Lippert® replacement part
  • Dexter Compatible Part No: K23-048-00 | 023-048-00
  • Manual-adjust • 4-bolt mounting flange
  • Fits 10″–13″ wheels • 2,200-lb axle
  • 1-year manufacturer warranty

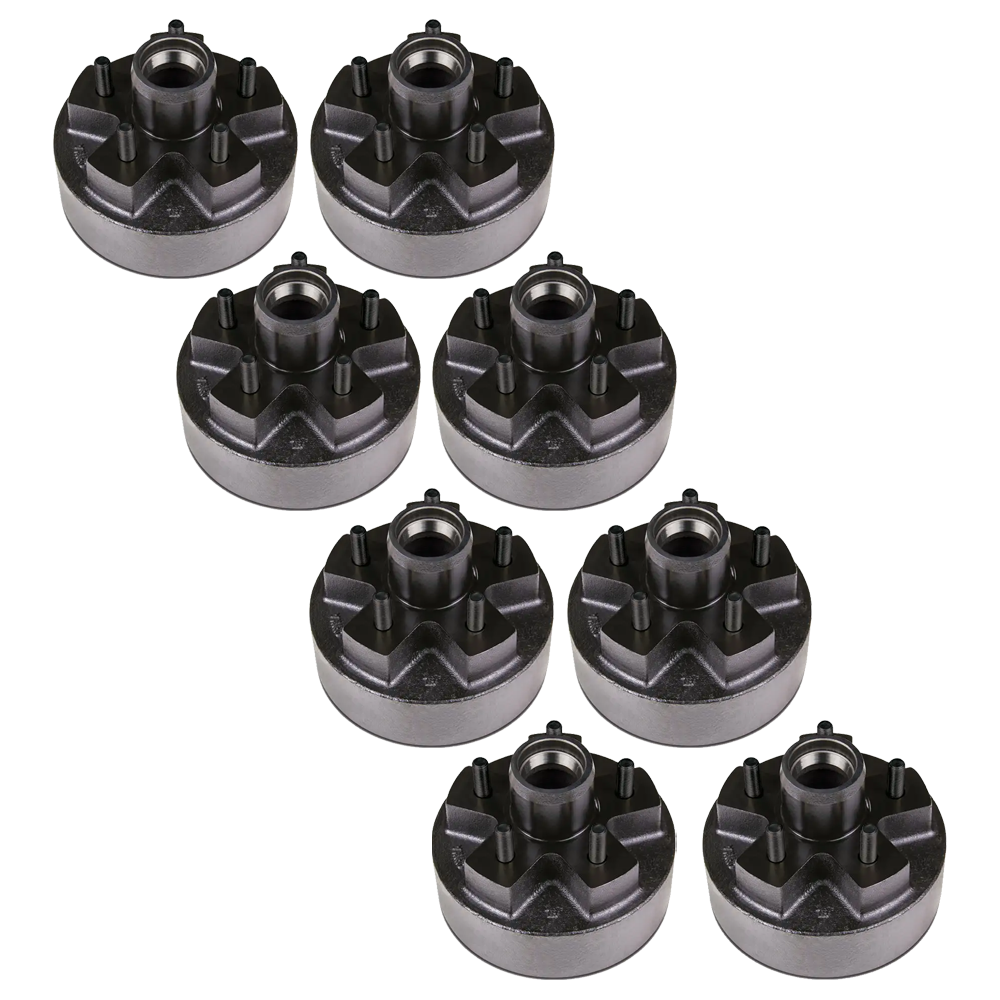

• QTY (8): 7″ Brake Drum & Hub – 5 on 4.5″, 1/2″ Studs
  • Solid-iron hub/drum • 2,200-lb rating
  • Wheel size compatibility: 8″–12″
  • Bolt pattern: 5 on 4.5″ • Stud size: 1/2″
  • Genuine Lippert™ replacement part • 1-year warranty

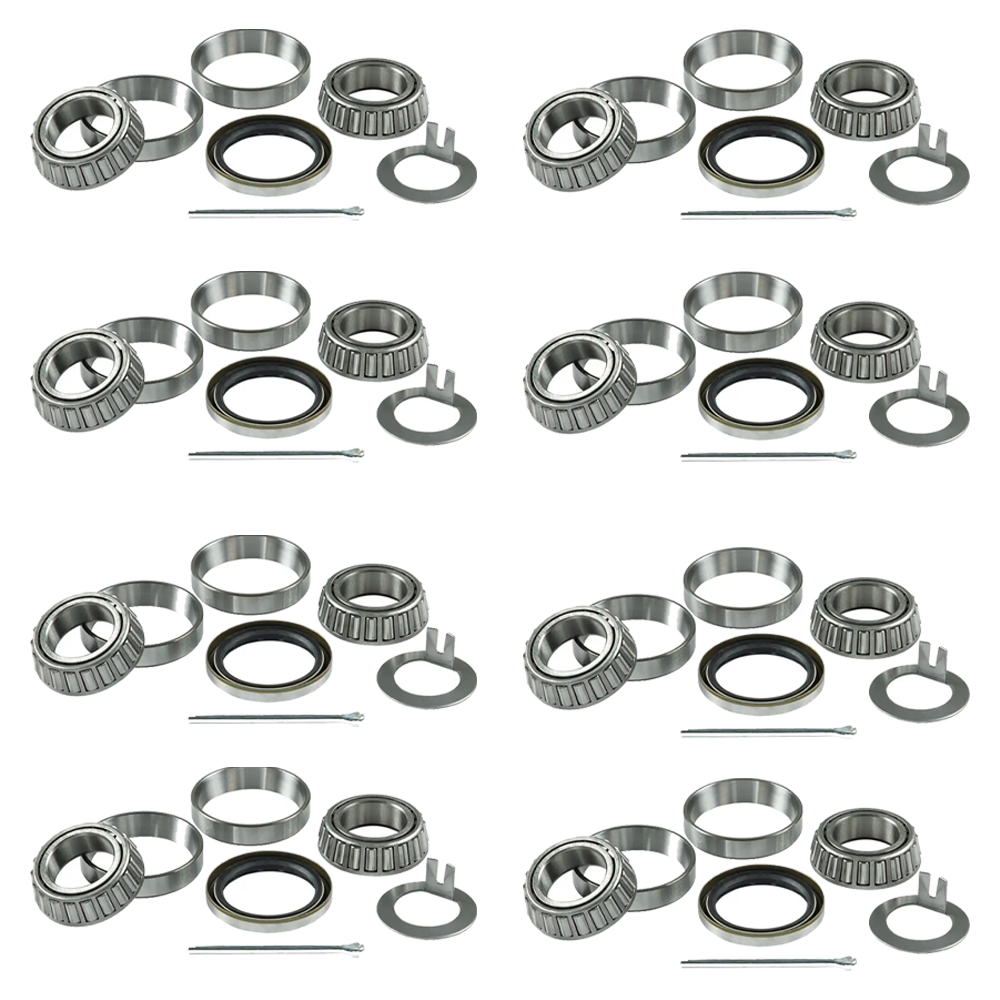

• QTY (8): Bearing Replacement Kit – 1.5″ Seal (1 kit per hub)
  • (2) Inner bearing cones & races
  • (2) Outer bearing cones & races
  • (1) 1.5″ double-lip grease seal
  • (1) 1.75″ cotter pin
  • (1) 1.5″ tang spindle washer
  • One complete kit services one hub (8 kits total)

Recommendation: Verify bolt pattern, brake-flange fit and bearing dimensions with your original equipment. Re-pack bearings every 12 months or 12 000 miles and torque lug nuts to factory spec.
