Lippert Quad‑Axle 16K Self‑Adjust Brake (12‑1/4″ × 5″, 7‑Bolt) & Grease Hub (8 on 275 mm) Kit
Engineered for heavy‑duty, 16,000‑lb trailers, this Lippert bundle pairs forward self‑adjusting electric brakes with grease‑lubricated threaded hubs. Compatible with Dexter and Alko axle standards, it shortens stopping distance, extends component life and streamlines maintenance in one convenient package.

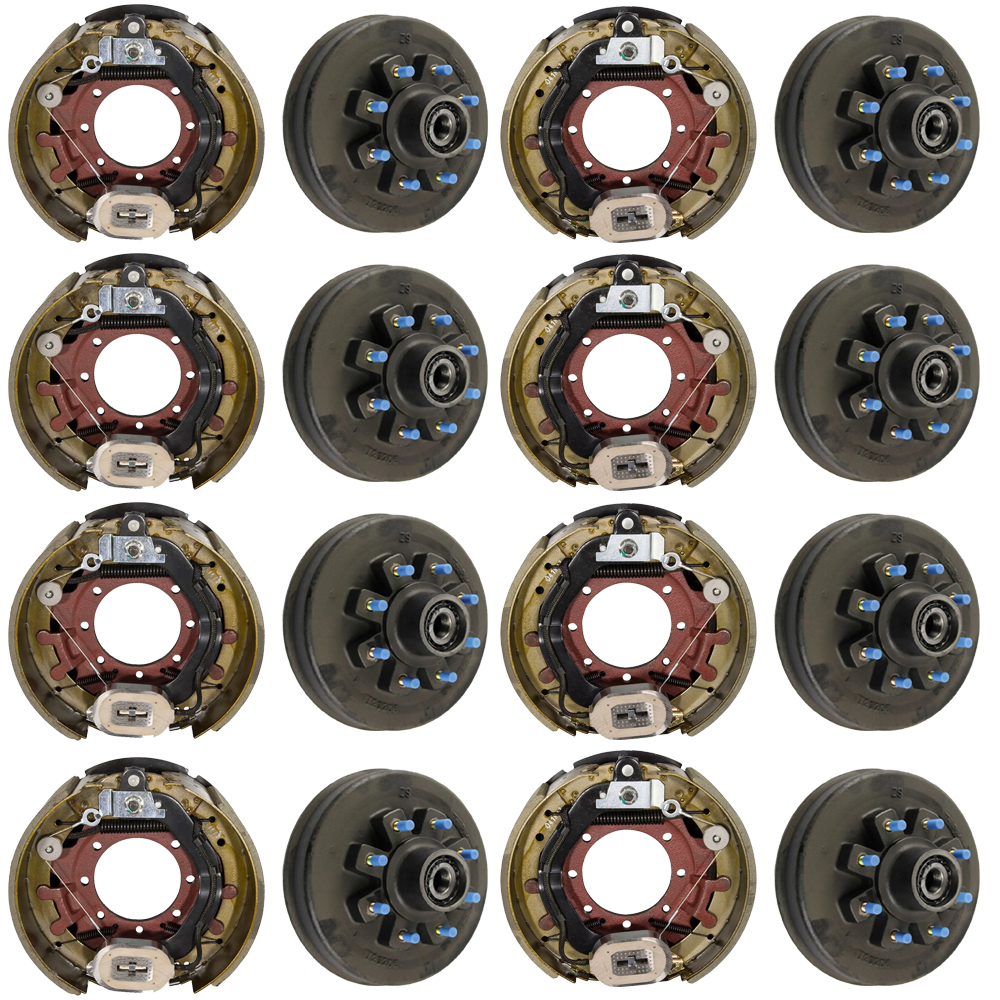

Bundle Contents:
-

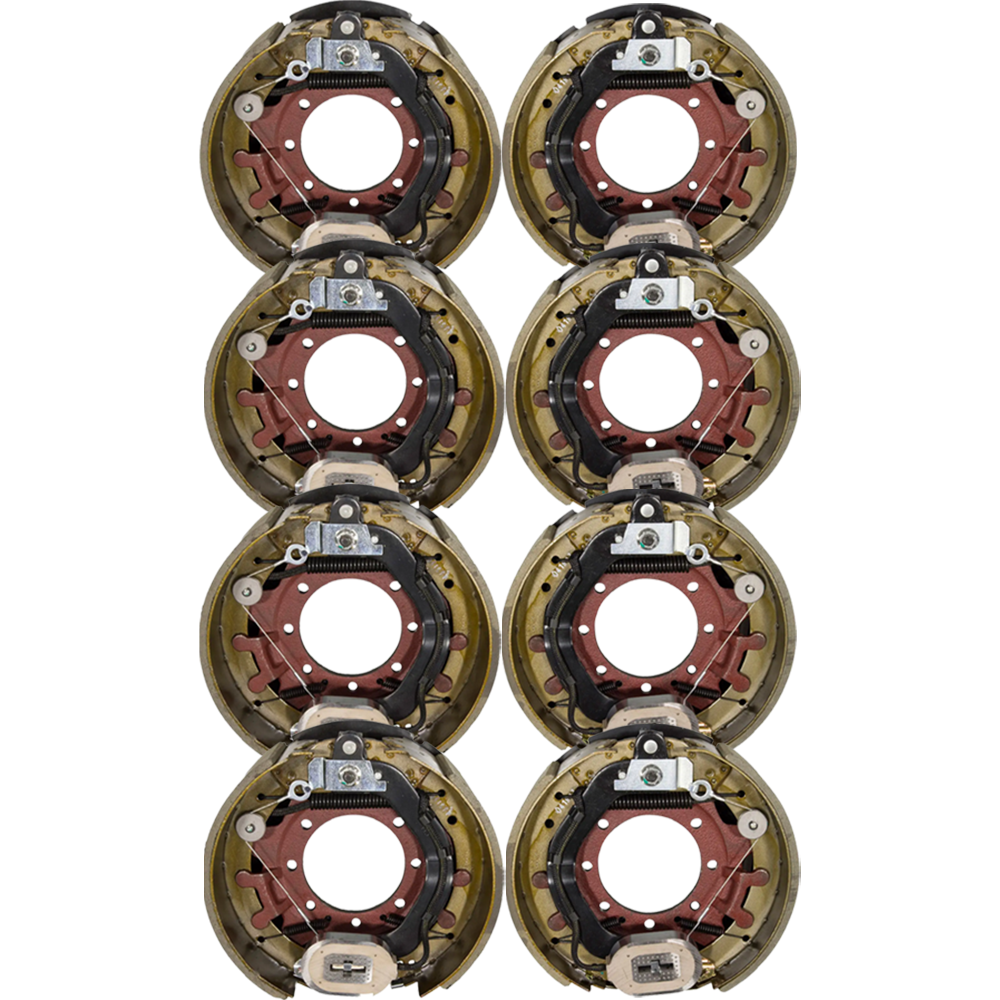

QTY (4): Forward Self‑Adjusting Brake Assembly – Driver/Left, 12‑1/4" × 5", 7‑Bolt
- 12‑1/4" × 5" electric drum brake
- Mounts on driver/left side – 7‑bolt backing plate
- Fits 12K‑16K Lippert, Dexter & Alko axles
- Forward self‑adjust design cuts stopping distance up to 50%
- Magnet & hardware pre‑installed for quick swap‑in
- Dexter Compatible Part Number: K23‑442‑00 | 023‑442‑00
-
QTY (4): Forward Self‑Adjusting Brake Assembly – Passenger/Right, 12‑1/4" × 5", 7‑Bolt
- Passenger/right‑side mirror assembly
- Automatic adjuster maintains optimum shoe‑to‑drum clearance
- Reduces magnet & lining wear for longer service life
- Lippert genuine part – Dexter & Alko compatible
- Dexter Compatible Part Number: K23‑443‑00 | 023‑443‑00
-

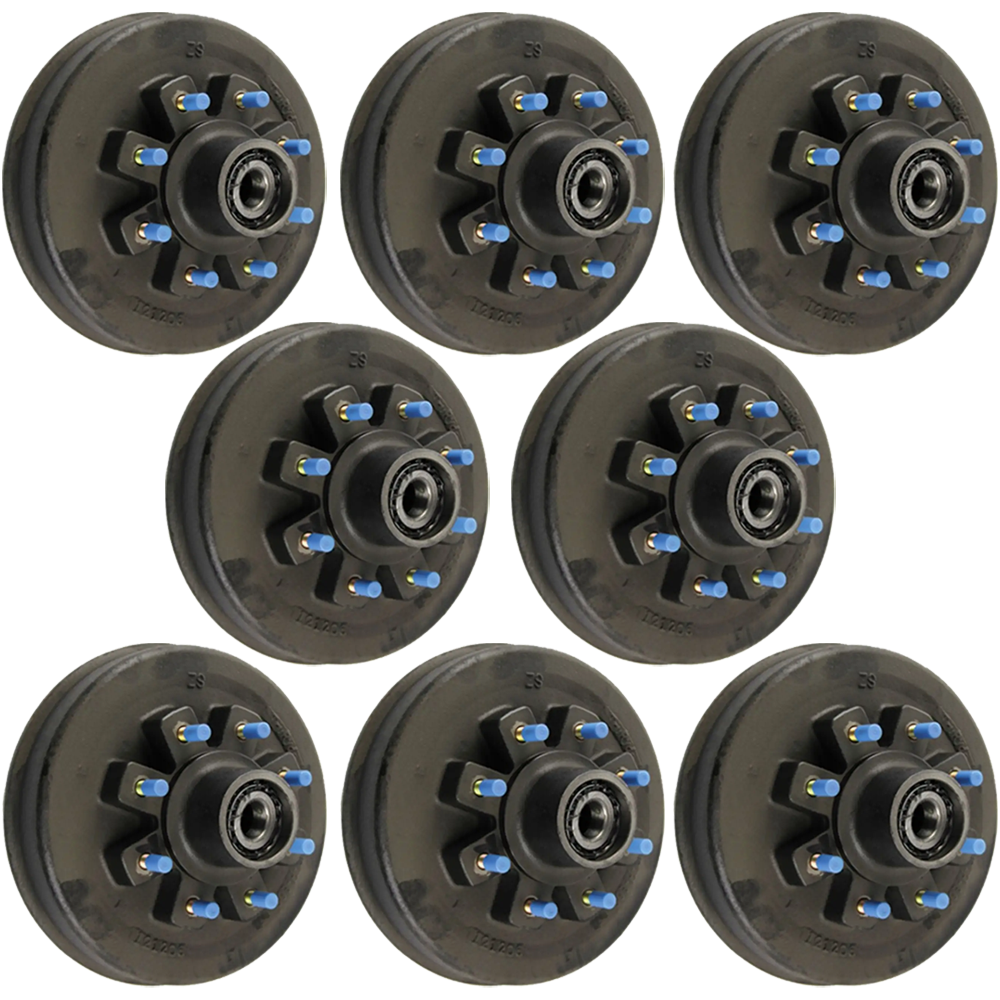

QTY (8): 12‑1/4" Threaded Grease Hub & Drum – 16K, 8 on 275 mm, M22 Studs
- Integrated hub & 12‑1/4" drum for electric or hydraulic brakes
- 8 on 275 mm bolt circle with pre‑installed M22 × 1.5 studs
- Races & wheel studs come pre‑installed
- Rated 16,000 lbs per axle – heavy‑duty cast‑iron construction
- Accepts Valcrum threaded dust caps
- Direct fit for Lippert, Dexter & Alko axles
Perform routine bearing service and brake inspections to ensure maximum safety and longevity.
Product image for reference only — minor cosmetic details (casting style, cap color, stud protectors, packaging) may vary between production runs. All items ship to the exact specifications listed.
| Specifications: | |
|---|---|
| Kit Type | Complete Quad‑Axle Brake & Hub Set |
| Axle Rating | Up to 16,000 lbs |
| Brake Drum Dimensions | 12‑1/4" × 5" |
| Brake Mounting Pattern | 7‑Bolt |
| Hub Bolt Pattern | 8 on 275 mm |
| Hub Type | Threaded Grease Hub with Integrated Drum |
| Stud Size | M22 × 1.5 |
| Type of Adjustment | Forward Self‑Adjusting Electric |
| Brake Location | Quad‑Axle (4 Left, 4 Right) |
| Wheel Size Compatibility | 17‑1/2" Wheels |
Order today or call us at 877‑869‑6690 for expert advice and personalized service.
