Lippert?Self?Adjusting?12"?Electric?Brake?&?Hub?Only?Drum?Kit?�?6?on?5.5",?6K?Axle,?1/2"?Stud?(LH/RH?Pair)?�?Dexter?/?Alko?Compatible

Lippert 12" Electric Brake & Hub‑Only Drum Kit – Single‑Axle LH/RH Pair

Restore confident stopping power on your 6,000‑lb trailer axle with this genuine Lippert bundle. Two forward self‑adjusting 12" electric brakes and matching 6‑on‑5.5" hub‑only drums deliver smooth, consistent performance and drop‑in compatibility with Dexter and Alko setups.

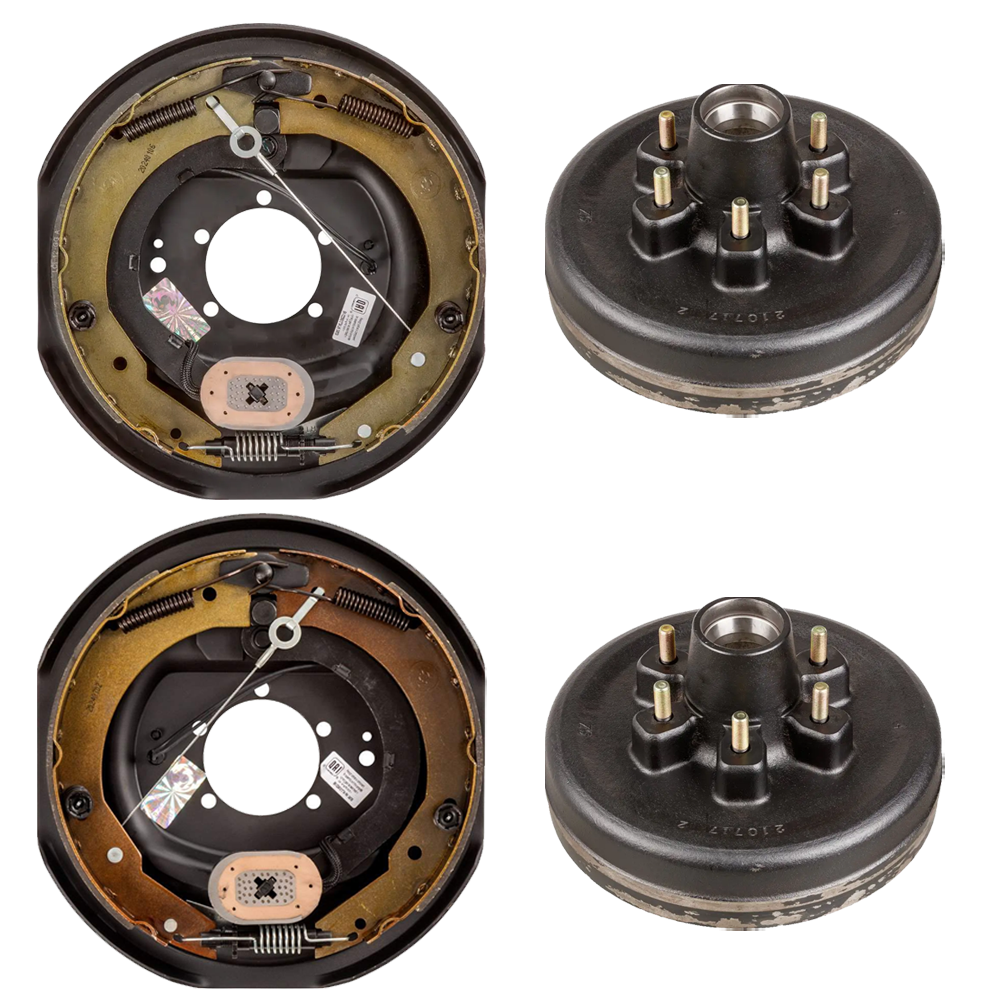

Bundle Contents:

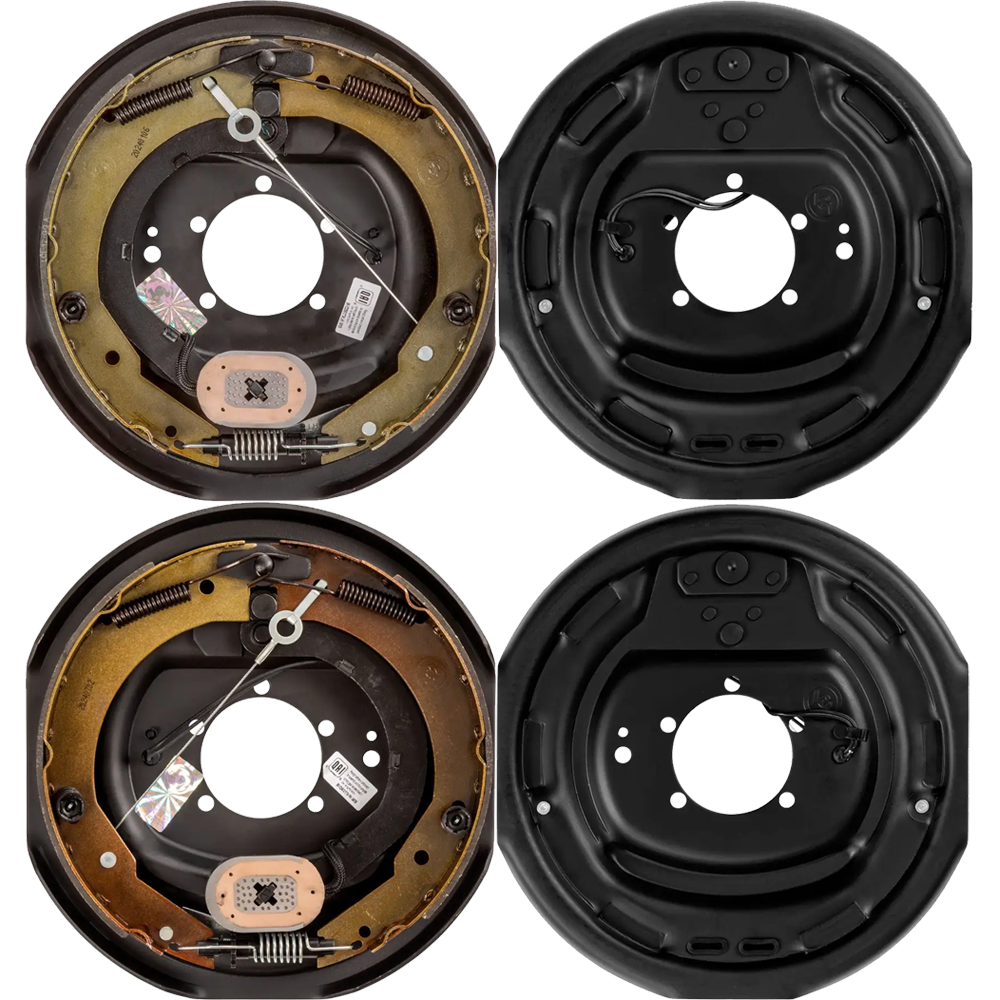

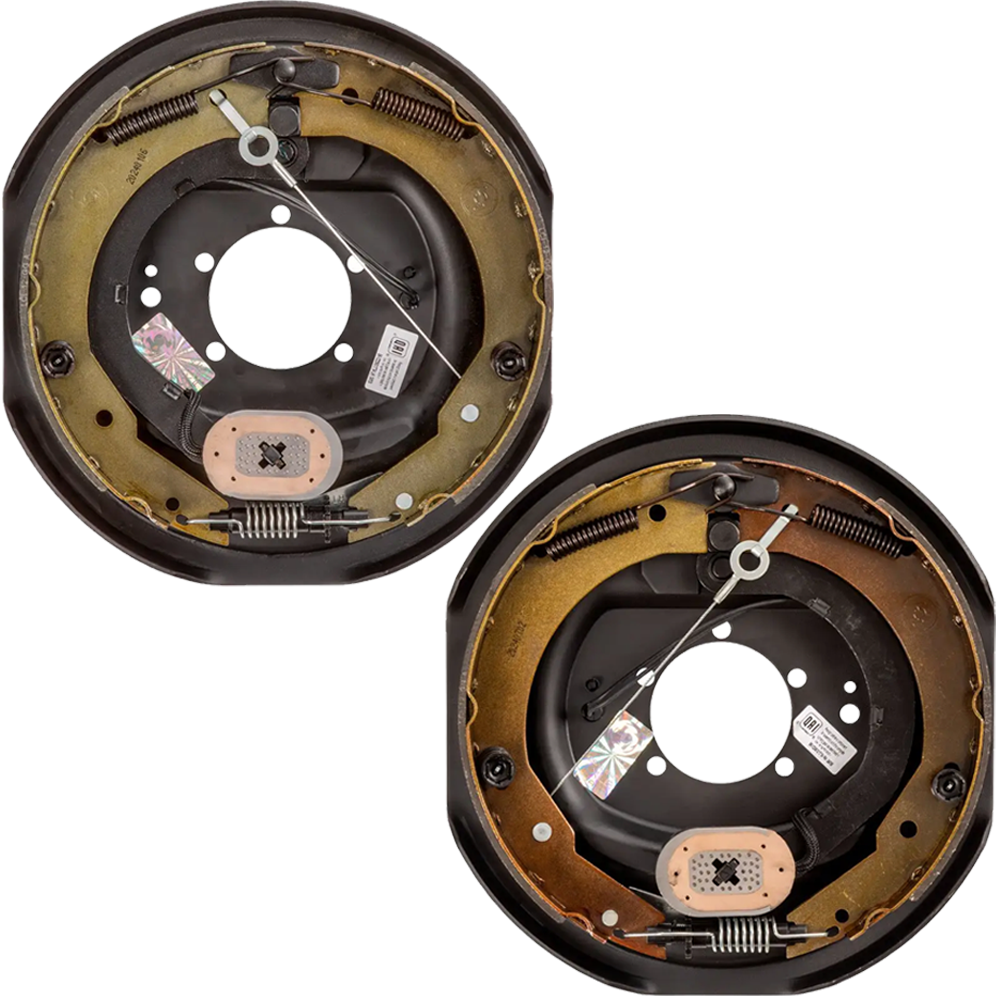

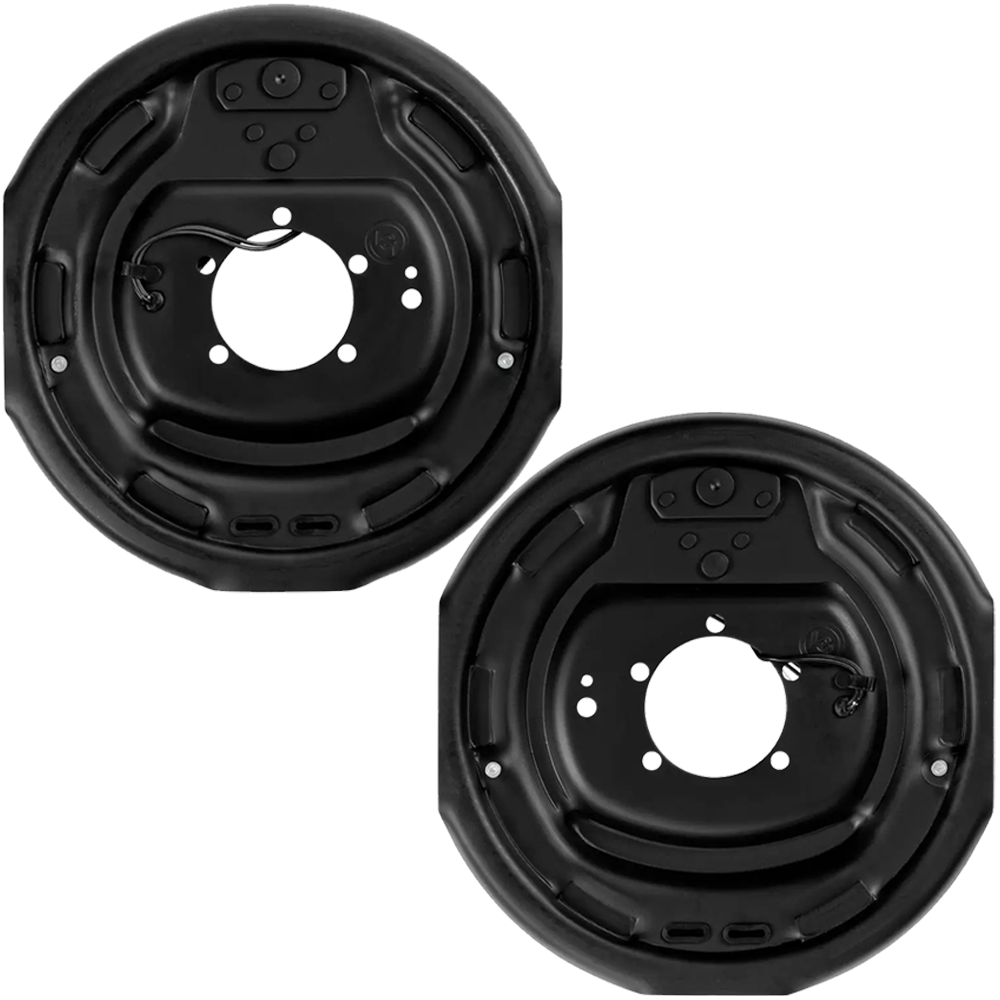

• QTY (1): Lippert Self‑Adjusting Electric Brake Assembly – 12" × 2", 7,000 lbs (Left‑Hand/Road‑Side)
  • Forward self‑adjusting design maintains ideal shoe clearance
  • Fits 15"–17.5" wheels; 12" × 2" drum size
  • Rated for 5,200‑ to 7,000‑lb & 8K hybrid axles
  • Five‑bolt mounting pattern; DIY‑friendly install
  • Dexter compatible part numbers: K23‑464‑00 / 023‑464‑00
  • 1‑year limited warranty
• QTY (1): Lippert Self‑Adjusting Electric Brake Assembly – 12" × 2", 7,000 lbs (Right‑Hand/Curb‑Side)
  • Mirror‑image RH unit with identical performance features
  • Forward self‑adjusting for consistent braking force
  • Five‑bolt mount, 15"–17.5" wheel range
  • Dexter compatible part numbers: K23‑465‑00 / 023‑465‑00
  • 1‑year limited warranty

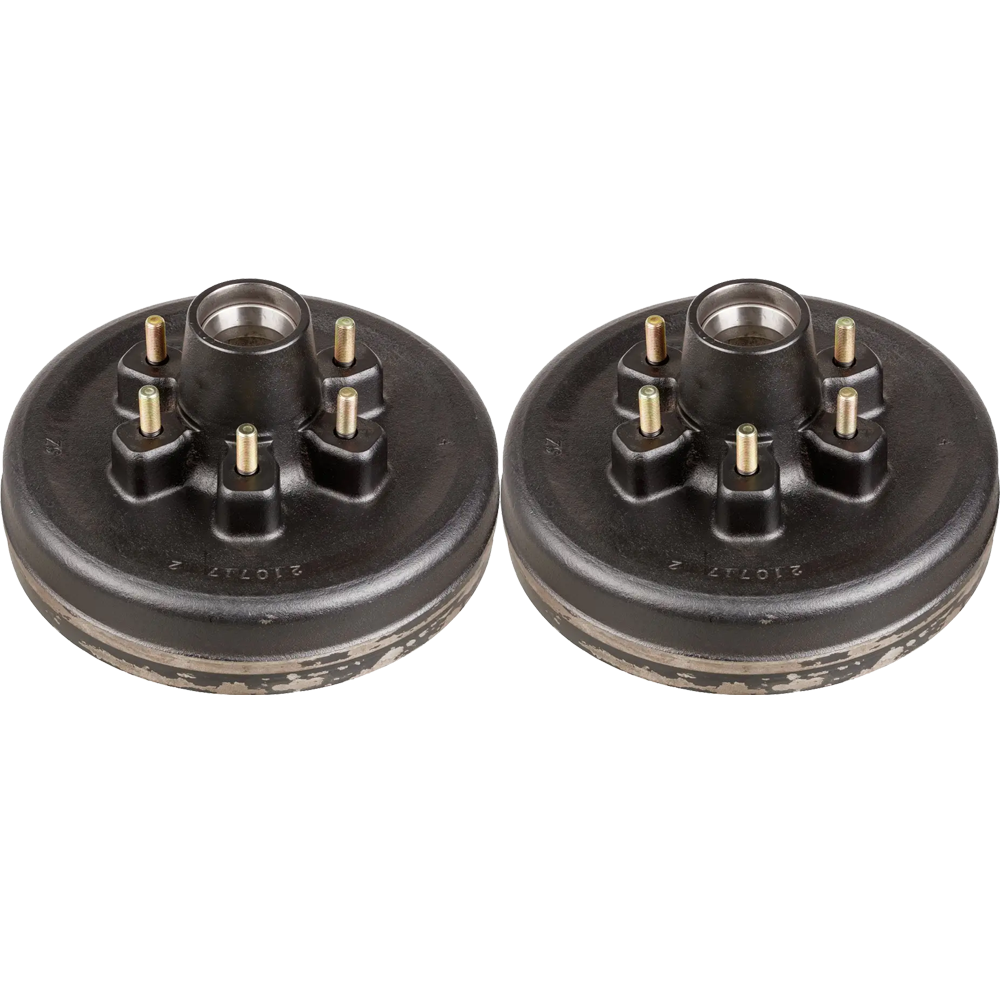

• QTY (2): Lippert 12" Brake Drum Hub – 6 on 5.5" Bolt Pattern, 1/2" Stud (Hub‑Only)
  • Cast‑iron hub‑only drum (bearings & seal sold separately)
  • Designed for 6K axles; pairs perfectly with 12" brakes
  • 6 × 5.5" bolt circle with pre‑installed 1/2" studs
  • Accepts 14.5"–16.5" wheels
  • 1‑year limited warranty

Always confirm fitment with your original equipment, torque lugs to spec, and perform routine brake and bearing maintenance for maximum safety.
