Lippert Single?Axle 12? Manual?Adjust Electric Brake Pair?+?6?on?5.5 Hub?Only Drums � 6K Axle Kit � Dexter?/?Alko Compatible

Lippert 12″ Electric Brake & 6‑on‑5.5 Hub‑Drum Bundle – Complete 6K Single‑Axle Solution

Upgrade or service your 6,000‑lb trailer axle with this all‑in‑one Lippert package. You get a matched pair of 12″ × 2″ manual‑adjust electric brake assemblies for left and right sides, plus two hub‑only drums drilled 6 on 5.5″ with 1/2″ studs. Engineered by Lippert—an industry leader since 1956—these components deliver OE‑grade fit, smooth stopping power and long‑lasting durability.

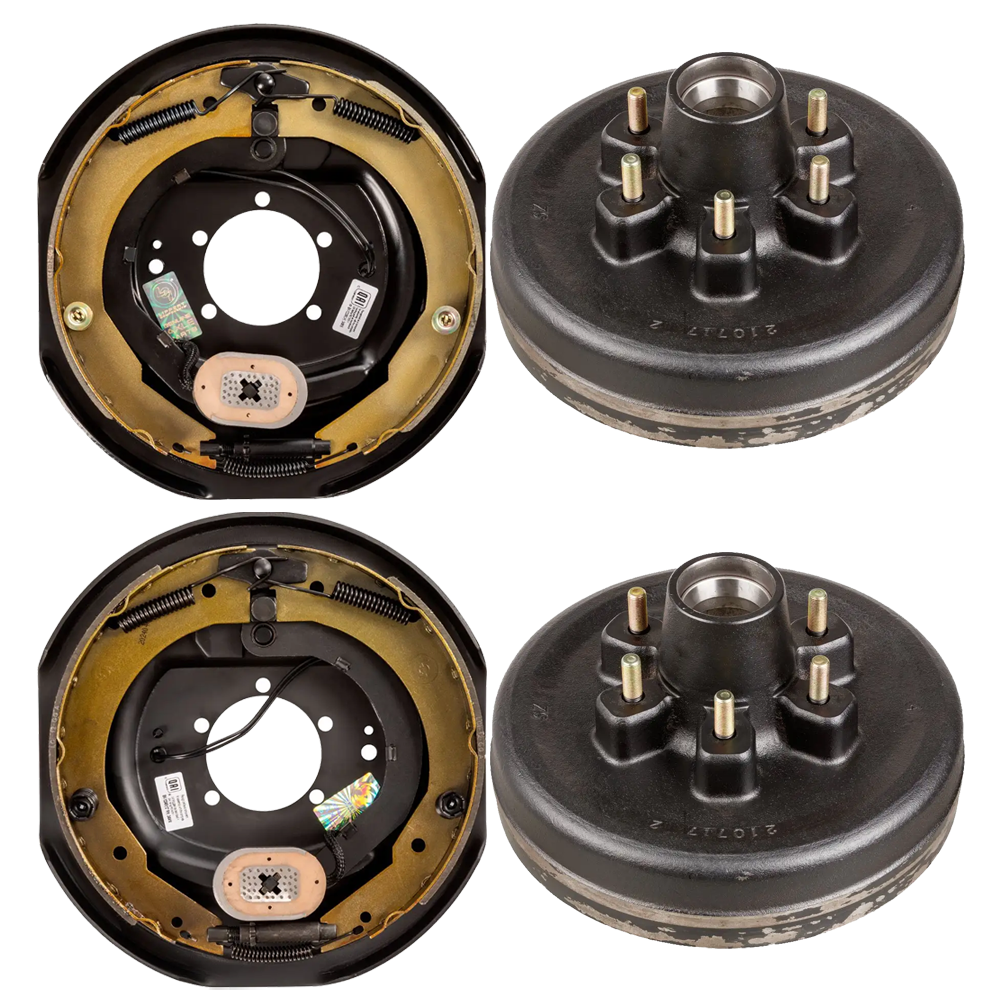

Bundle Contents:

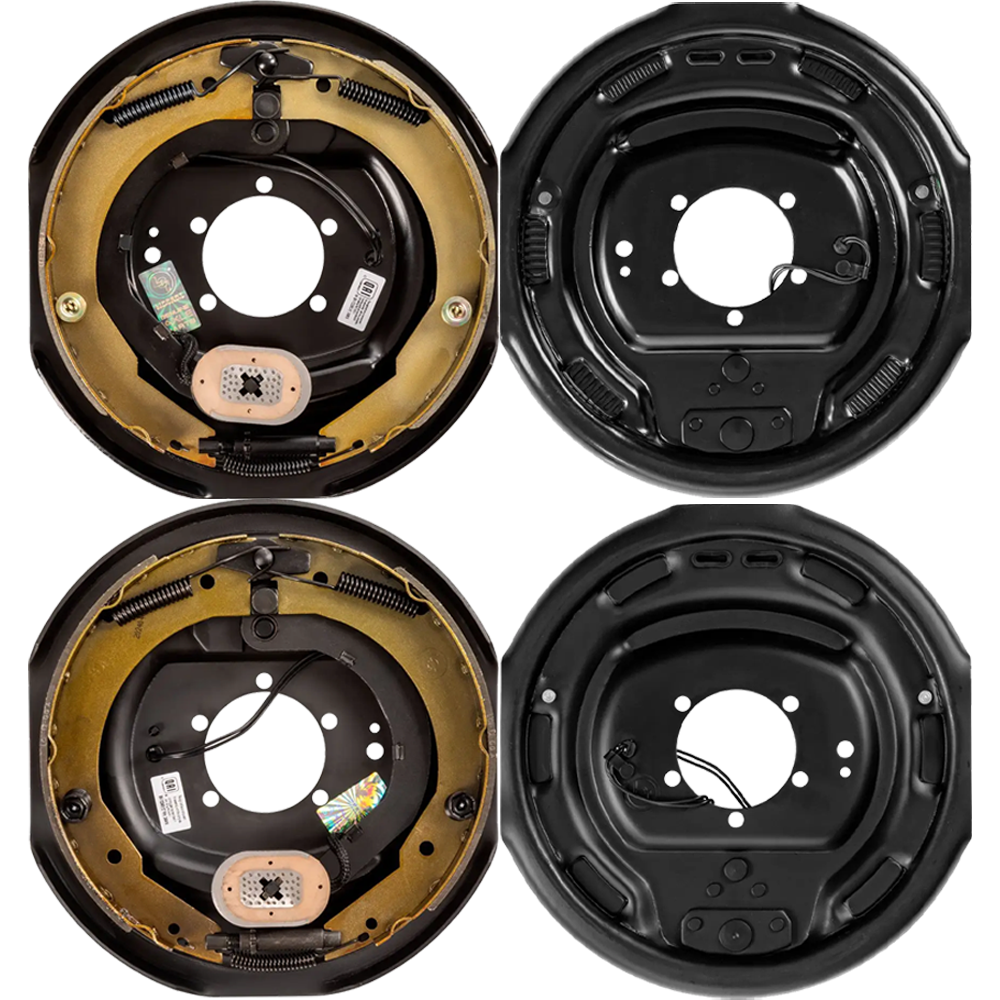

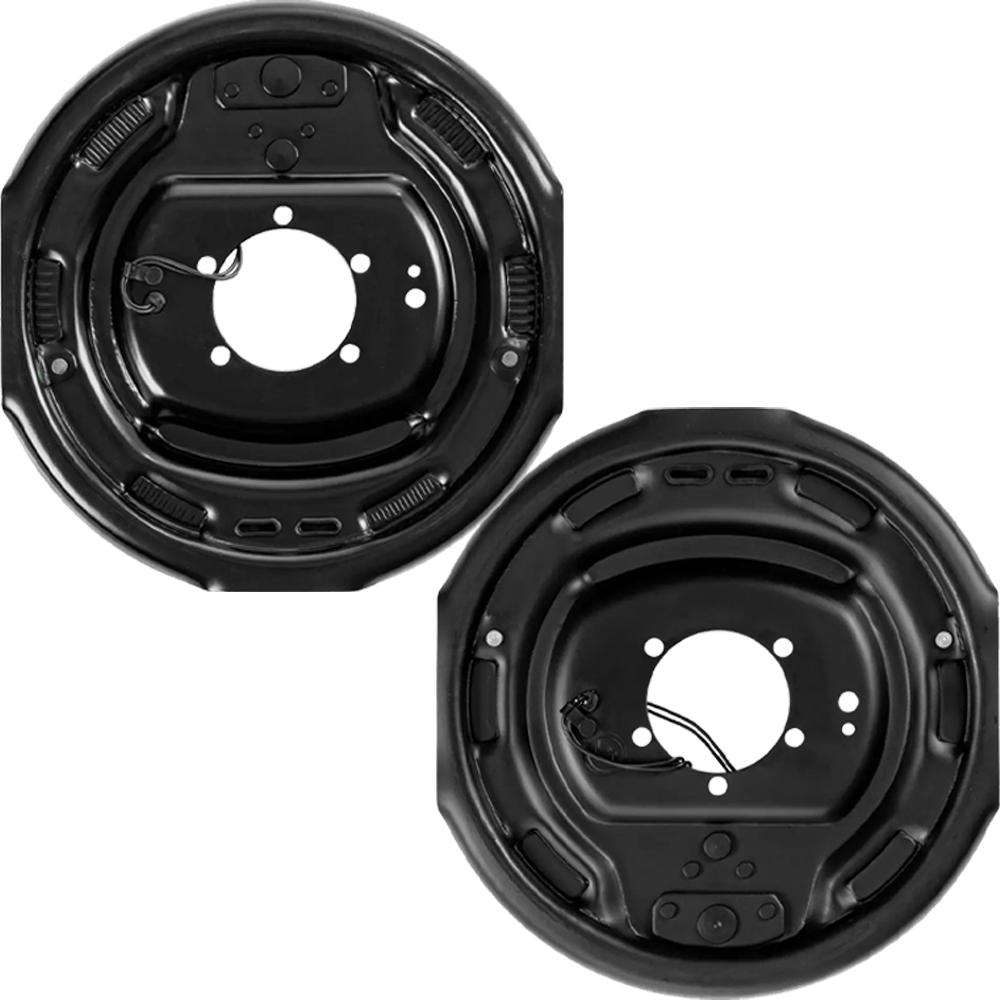

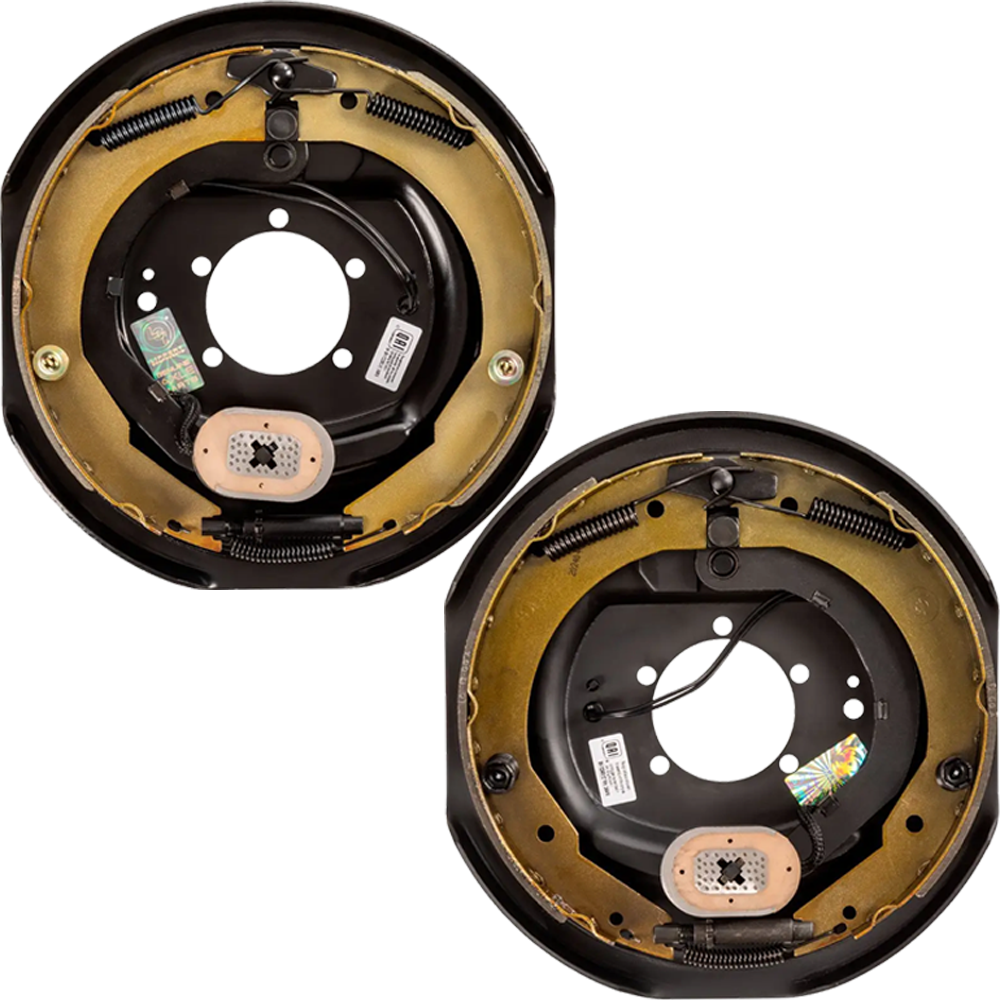

• QTY (1): Lippert 12″ × 2″ Manual‑Adjust Electric Brake Assembly – Left‑Hand (Roadside)
  • Fits 5,200‑7,000‑lb & 8,000‑lb hybrid axles
  • Manual adjustment with parking brake feature
  • Five‑bolt mounting pattern; DIY friendly
  • Works with 15″–17.5″ wheels
  • Dexter compatible part numbers: K23‑180‑00 / 023‑180‑00
  • Lippert‑built for proven reliability
• QTY (1): Lippert 12″ × 2″ Manual‑Adjust Electric Brake Assembly – Right‑Hand (Curbside)
  • Mirror‑image unit of roadside brake
  • Fits 5,200‑7,000‑lb & 8,000‑lb hybrid axles
  • Manual adjust; parking brake provision
  • Five‑bolt mounting; hardware sold separately
  • Dexter compatible part numbers: K23‑181‑00 / 023‑181‑00
  • Requires break‑in for full performance

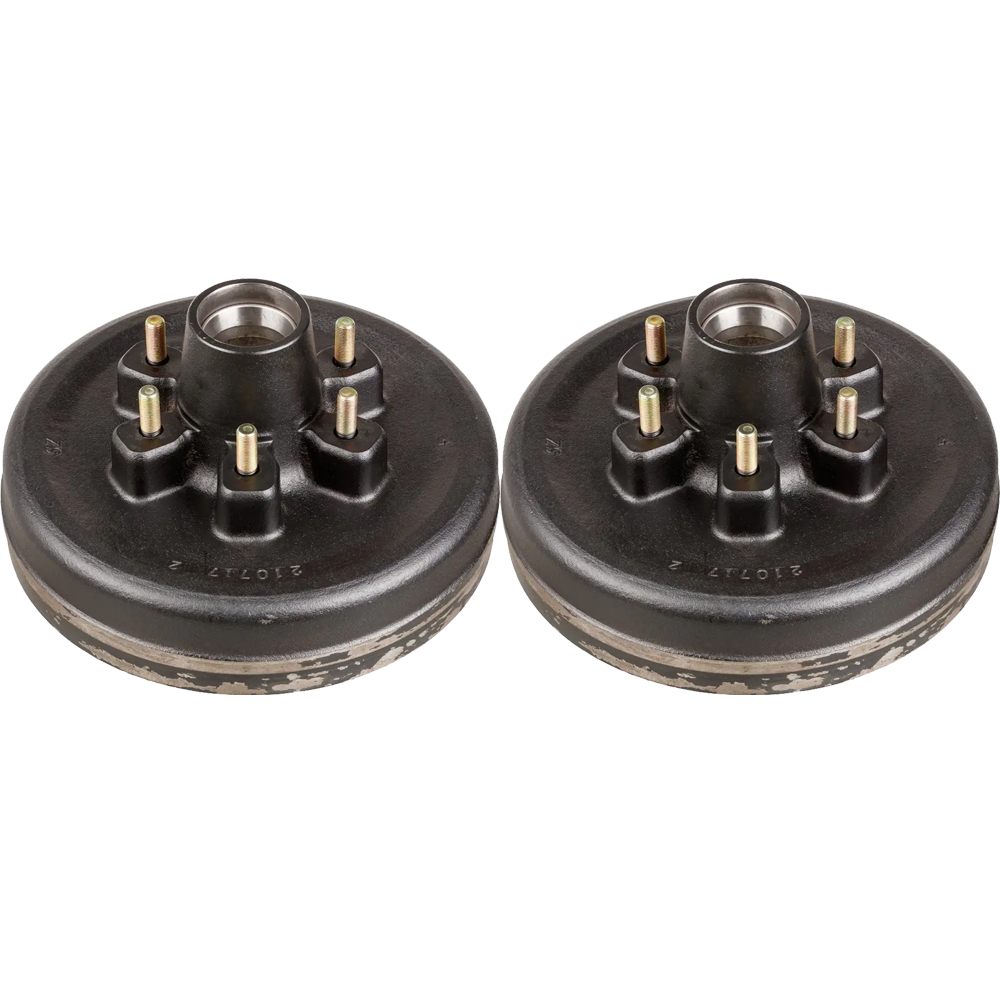

• QTY (2): 12″ Trailer Brake Hub‑Only Drum – 6K, 6 on 5.5″, 1/2″ Studs
  • Brake hub only – full assembly not included
  • Axle rating: 6,000 lbs each
  • 6‑lug (5.5″ circle) bolt pattern
  • For 14.5″–16.5″ wheels
  • 1/2″ press‑in studs installed
  • One‑year limited warranty

Always confirm your existing axle specs, bearing numbers and mounting patterns before ordering. After installation, torque lug nuts, adjust brakes and perform routine inspections for optimal safety and performance.
