Lippert Single-Axle 3,500-lb Park-Ready Brake & Cone-Kit 10? Drum-Hub Package � 1 LH + 1 RH Brakes, 2 Drum-Hubs, 5-on-4.5?

Lippert 3,500-lb Single-Axle Electric Brake & 10″ Drum-Hub Package

This park-ready kit bundles everything you need to refresh a 3,500-lb single axle trailer—matching 10″ × 2.25″ electric brakes (left & right) plus two 5-on-4.5″ drum-hubs with pre-packed bearing components. Get reliable stopping power, simplified installation and fully matched components engineered by Lippert and compatible with Dexter equivalents.

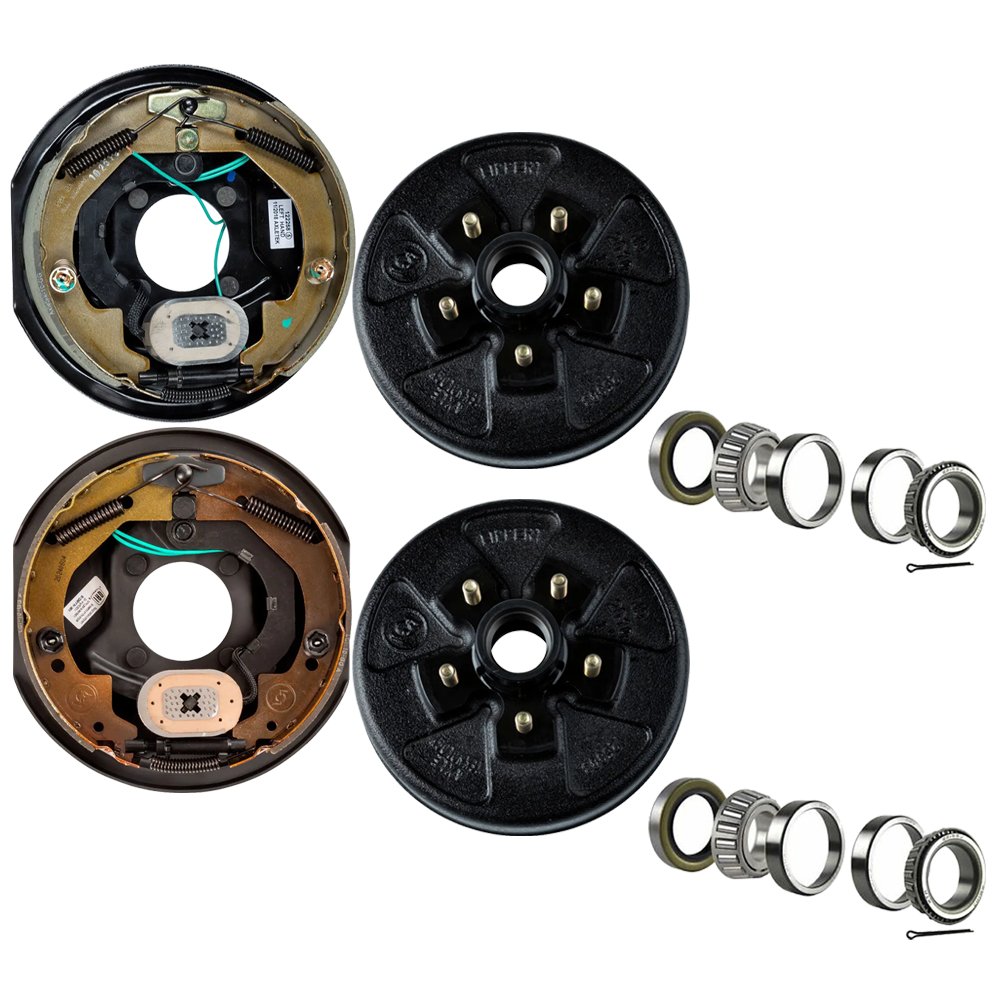

Bundle Contents:

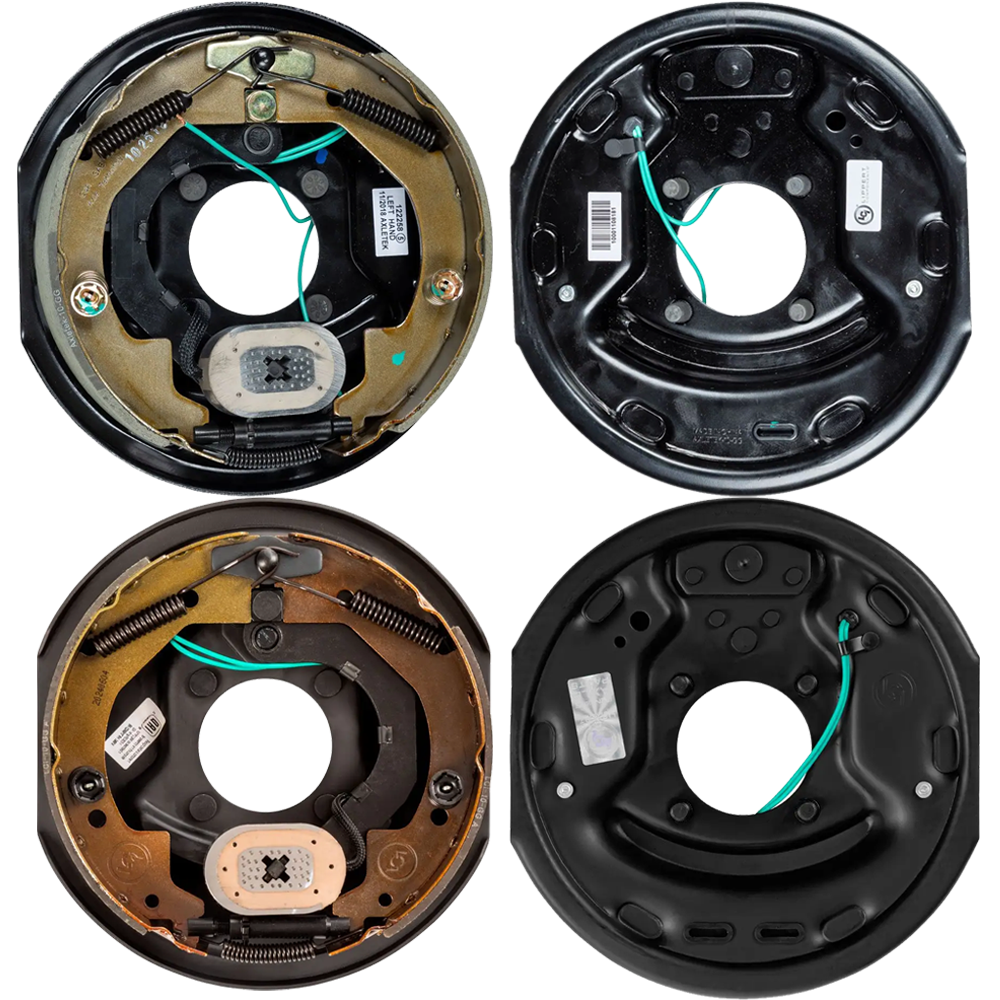

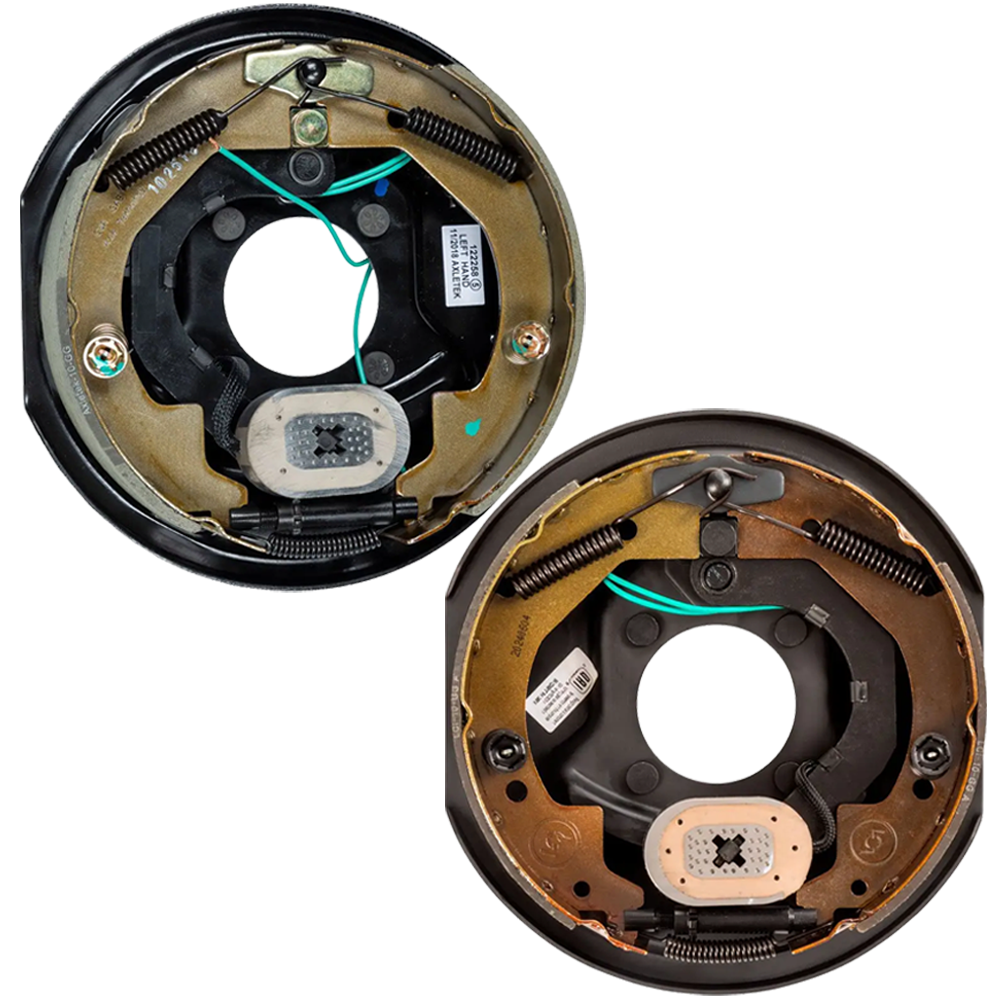

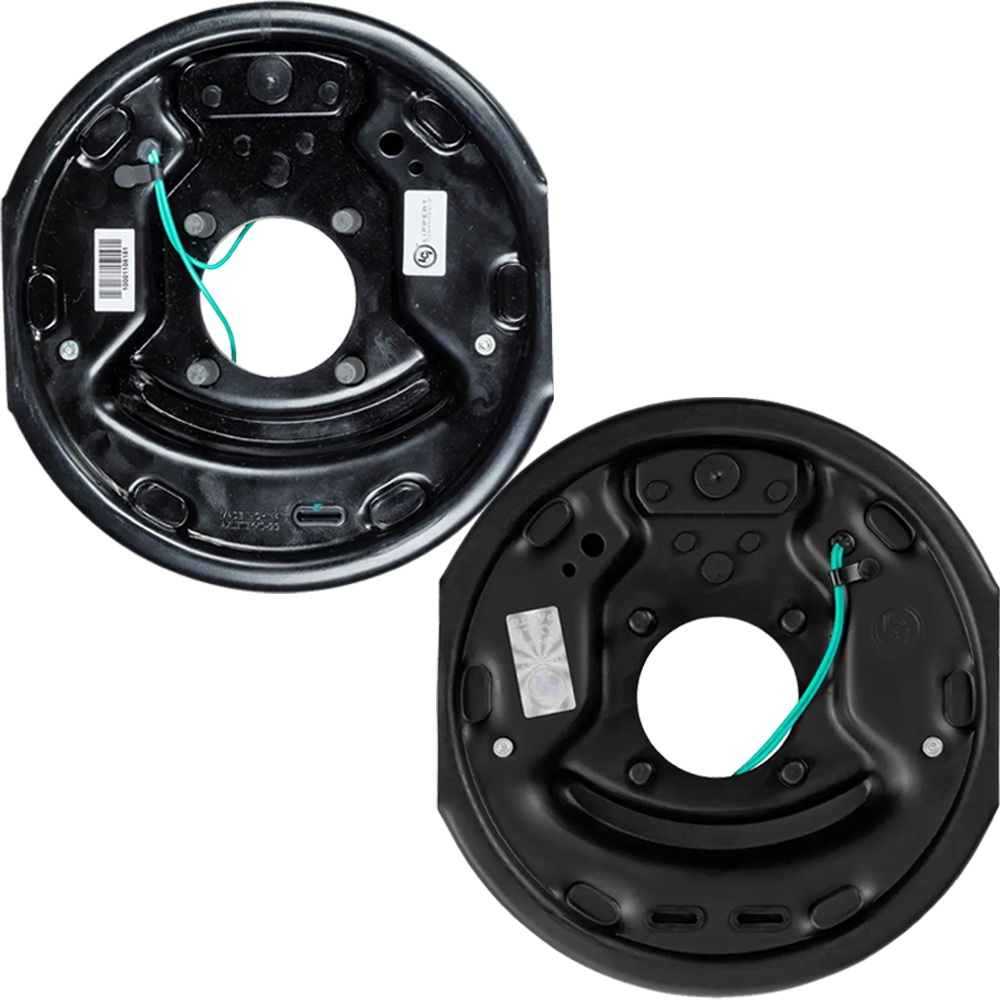

• QTY (1): Lippert 10″ × 2.25″ Electric Brake Assembly – Left-Hand (Roadside)
  • Parking-brake feature, manual adjust
  • Fits 3,500-lb axles, 13 – 15″ wheels
  • 4-bolt mounting pattern
  • Requires break-in for full performance
  • Dexter P/N: K23-026-00 | 023-026-00
• QTY (1): Lippert 10″ × 2.25″ Electric Brake Assembly – Right-Hand (Curbside)
  • Mirror-image of LH unit for passenger side
  • manual adjust, 4-bolt mount
  • For 3,500-lb axles, 13 – 15″ wheels
  • Electric actuation, quick DIY install
  • Dexter P/N: K23-027-00 | 023-027-00

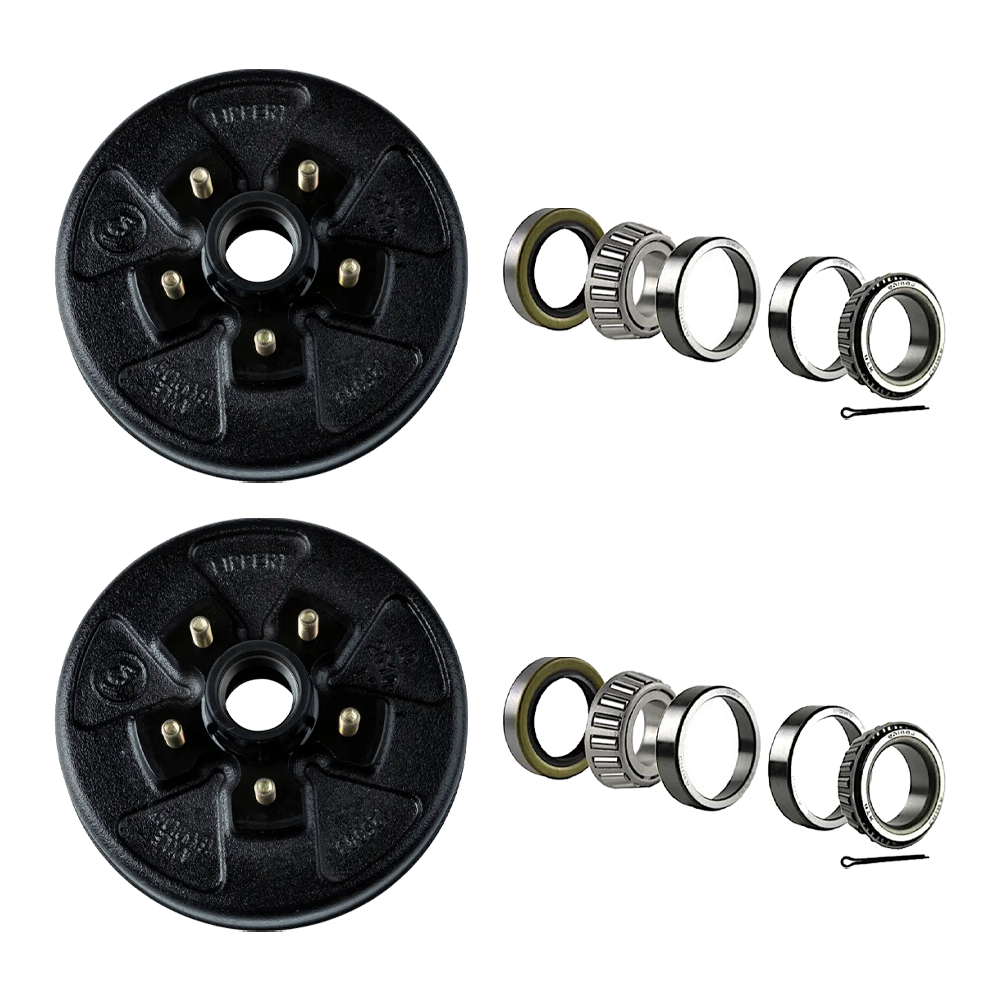

• QTY (2): Lippert 10″ Brake Drum-Hub Assembly – 5 on 4.5″, 1/2″ Stud
  • Solid cast-iron drum with integrated hub
  • 3,500-lb axle rating, fits 13 – 15″ wheels
  • 5 on 4.5″ bolt pattern, 1/2″ studs
  • Dexter P/N: K08-247-94 | 008-247-94
  • Bearing kit (bagged separately, 1 per hub) includes:
    • Inner bearing cone & cup
    • Outer bearing cone & cup
    • Double-lip grease seal
    • Cotter pin
  • Hub #126003 • Bearing Kit #333948

Always match replacement parts to your original equipment label and perform regular brake and bearing maintenance for safe, trouble-free towing.
