Lippert Tandem 12" Brake Drum & Hub Assembly Kit w/ Bearings – 7,000-lb Axles, 8 on 6.5, 9/16" Studs (Set of 4) | Compatible w/ Dexter & Al-Ko
$527.99
Lippert Tandem 12" Brake Drum & Hub Assembly Kit – 7,000-lb Axles (Set of 4)
Restore confident braking on heavy trailers with this complete Lippert drum-and-hub bundle. Engineered for tandem 7K axles, each 12" hub-with-integrated-drum arrives pre-fitted with 9/16" studs and its own sealed bearing kit, giving you a direct OE-grade replacement that installs quickly and keeps you on the road longer.

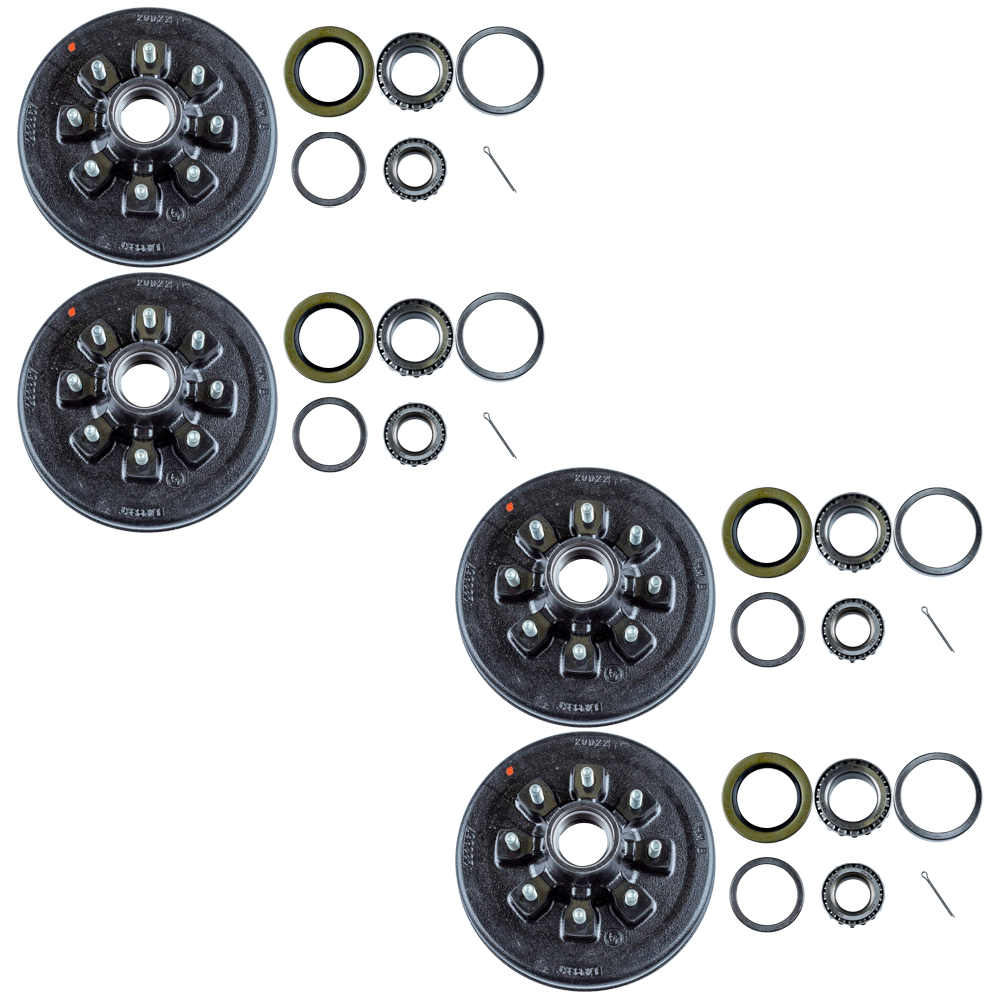

Bundle Contents:
-
QTY (4): Lippert 12" Brake Drum Hub Assembly – 7,000-lb Axle, 8 on 6.5", 9/16" Stud
- Fits Lippert, Dexter, Al-Ko & most other 7K axles
- Dexter compatible part #: K08-219-9C

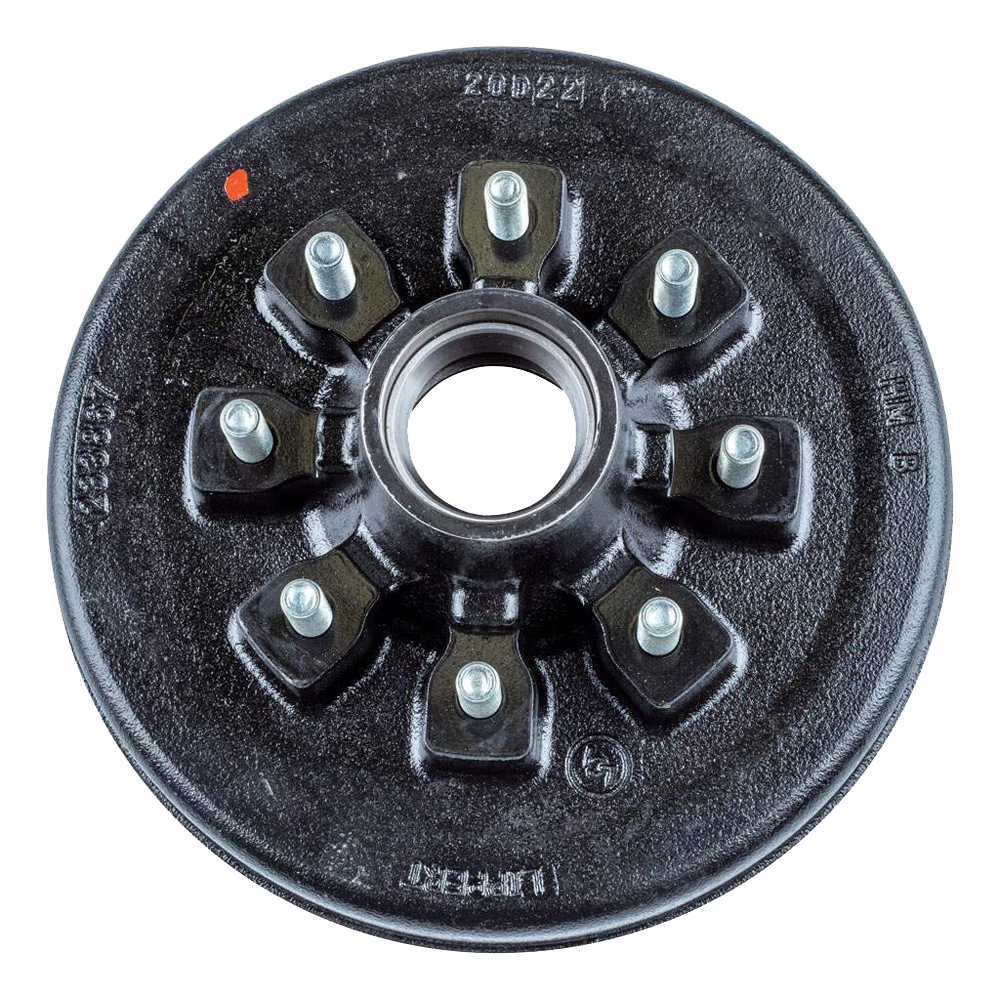

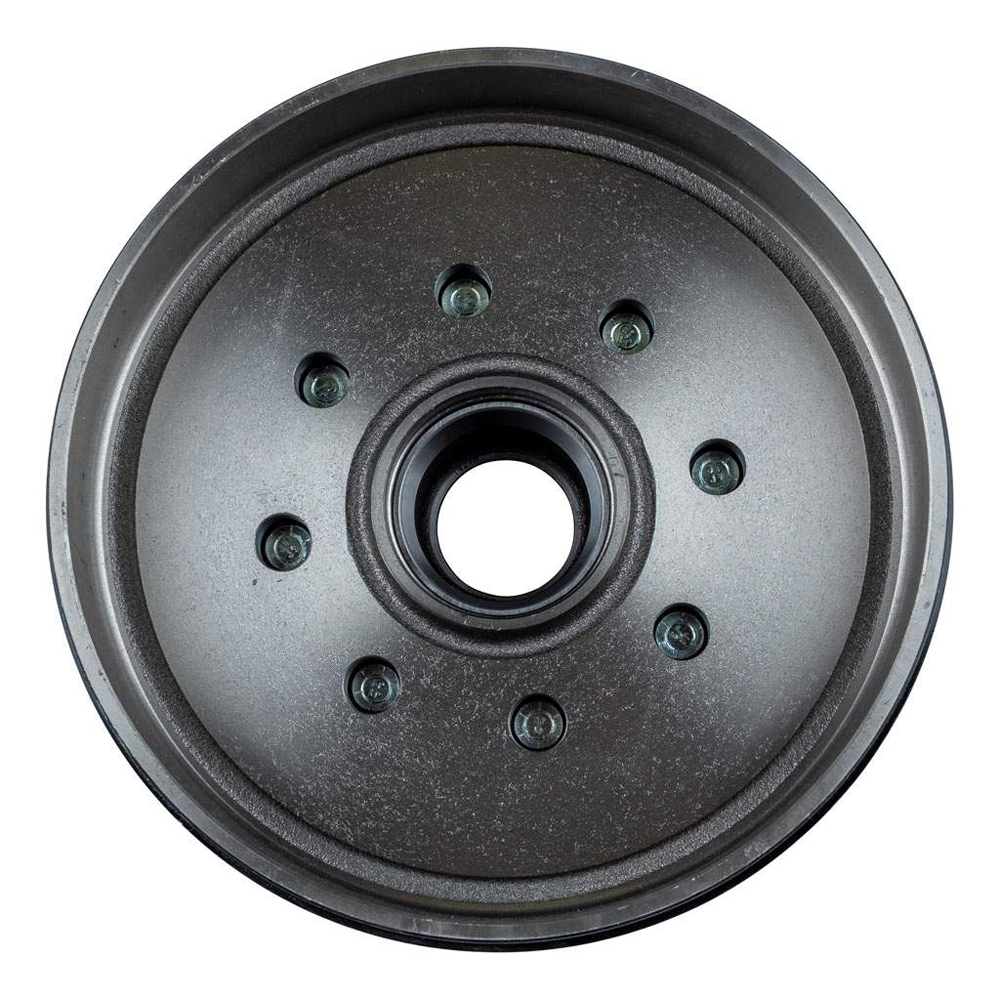

- One-piece 12" cast-iron hub with machined drum face
- 8 on 6.5" bolt circle • 9/16" press-in studs • 16"–17.5" wheel fit
-

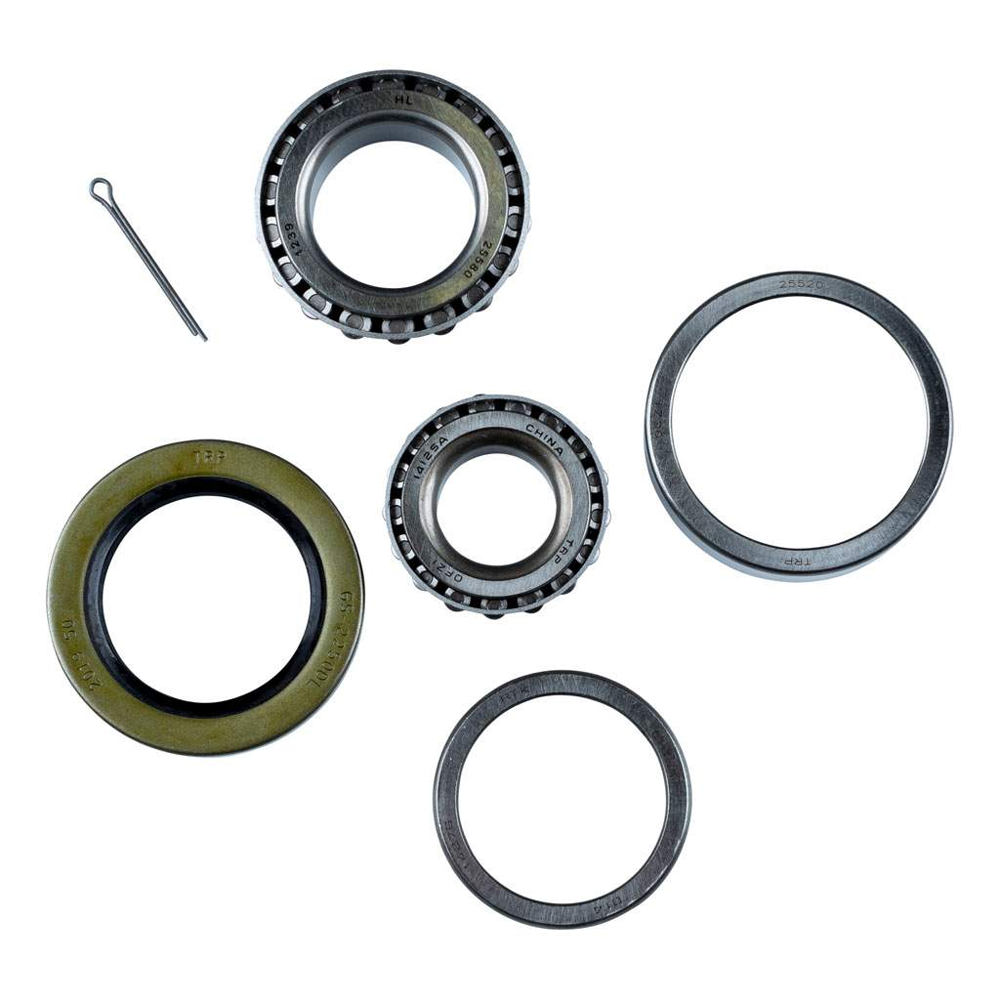

Bearing kit (bagged separately – one kit per hub) includes:
- Inner bearing cone & cup
- Outer bearing cone & cup
- Double-lip grease seal
- Cotter pin
- Lippert Hub #134543 • Bearing Kit #333951 • 1-year limited warranty
Please confirm your original equipment part numbers and service wheel ends regularly for safe, reliable performance.
| Specifications: | Â |
|---|---|
| Kit Type | Tandem Brake Drum & Hub Kit (4-Pack) |
| Axle Rating | 7,000Â lbs |
| Hub Size | 12" Diameter Drum/Hub |
| Bolt Pattern | 8 on 6-1/2" |
| Stud Size | 9/16" |
| Hub Type | Hub with Integrated Drum |
| Wheel Size Compat. | 16" – 17.5" |
| Material | Cast Iron |
| Bearing Kit Included | Cone & Cup #333951 (1 per hub) |
| Warranty | 1-Year Limited |
| Manufacturer | Lippert |
Order today or call us at 877-869-6690 for expert advice and personalized service.
