Lippert Tandem‑Axle 12" Manual‑Adjust Electric Brake & Oil‑Bath Hub Kit

This complete bundle pairs Lippert’s 12" manual‑adjust electric brakes with hybrid oil‑bath drum hubs, giving you a direct‑fit upgrade for heavy‑duty trailers. The 12" x 2" brakes are rated up to 7,000 lbs per axle (and are also used on 8K “hybrid” axles that accept 12" drums), while the hubs are full 8K hybrids—providing robust bearings and oil‑bath convenience without oversizing your stopping system. Perfect for Dexter‑style, Alko, Rockwell American and other common 8‑lug axle setups.:contentReference[oaicite:0]{index=0}

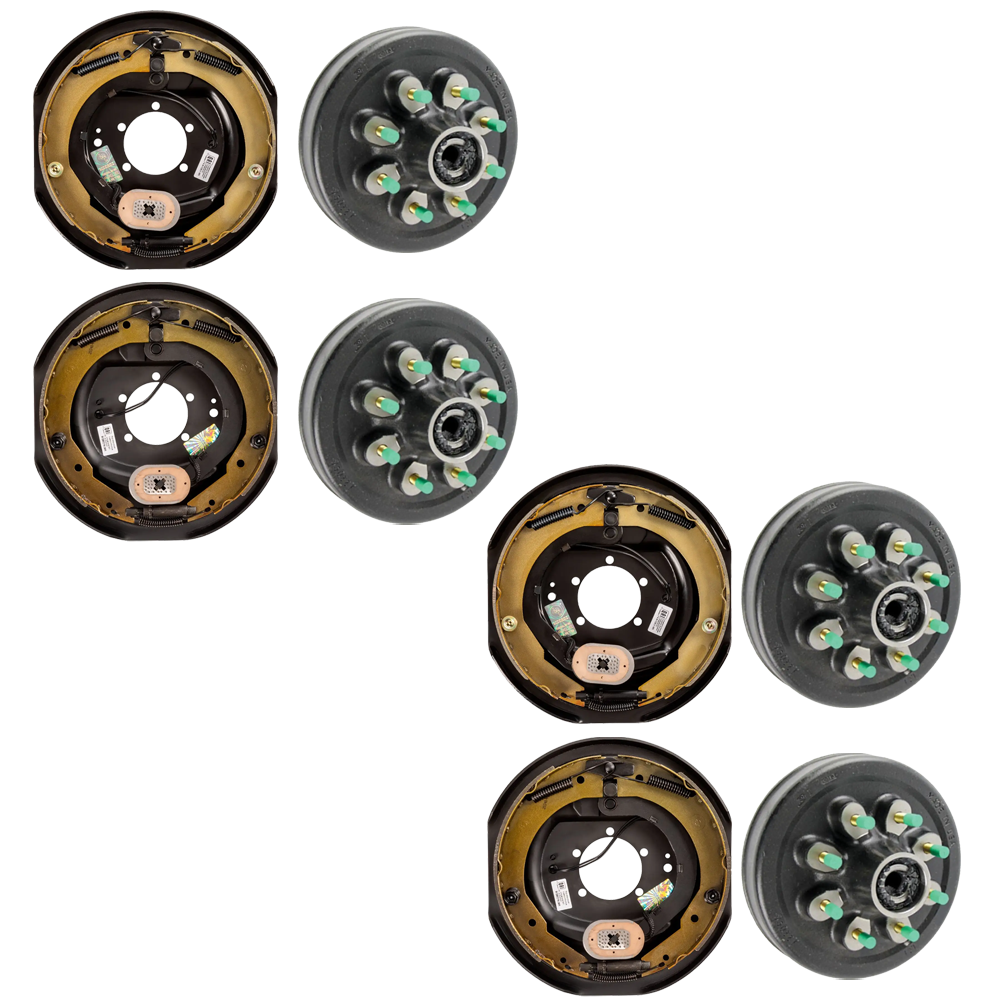

Bundle Contents:

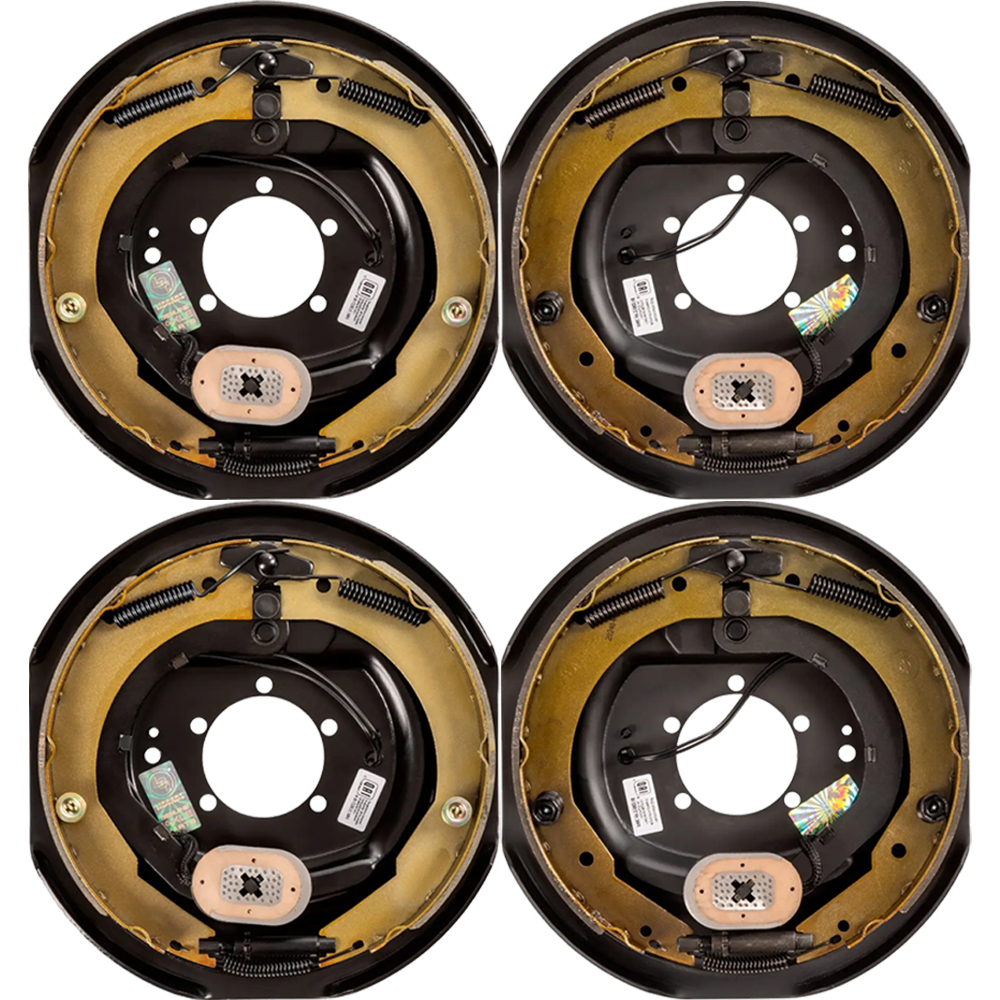

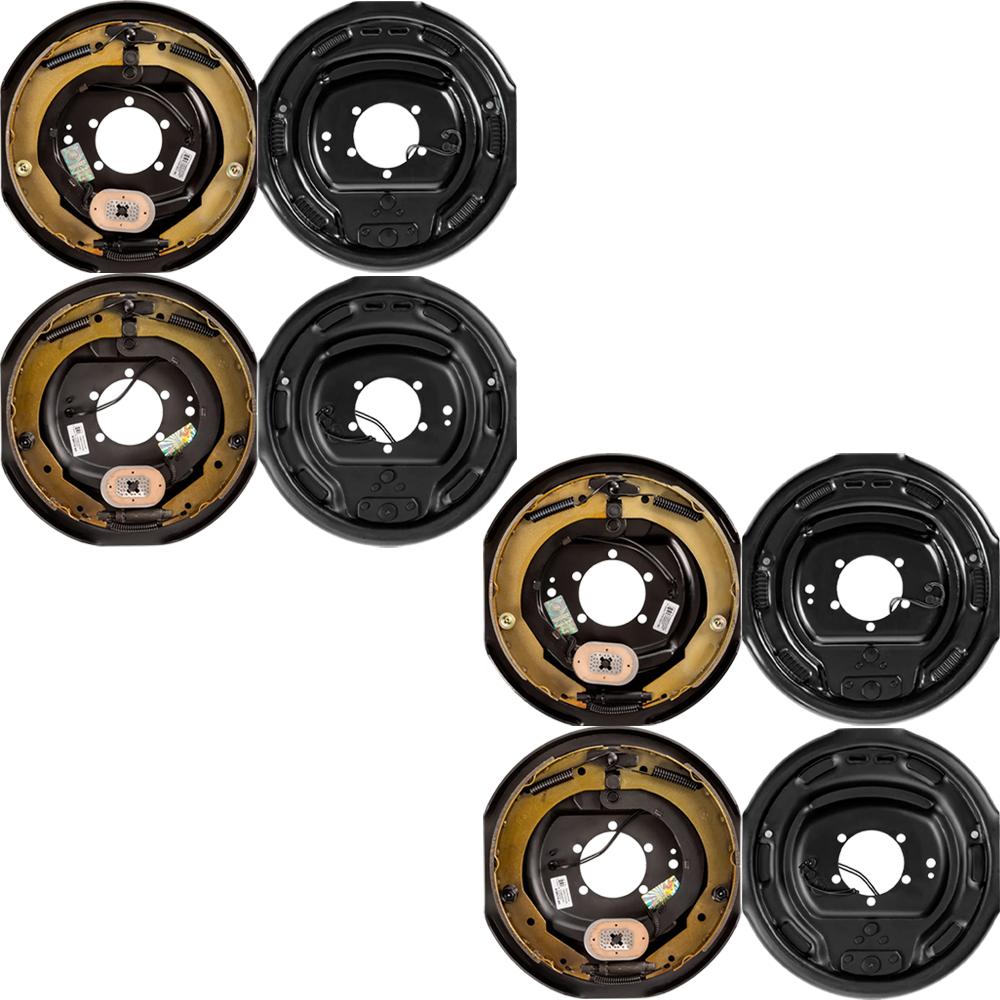

• QTY (2): Lippert 12" x 2" Manual‑Adjust Electric Brake Assembly – Left‑Hand
  • Manual‑adjust design with parking brake feature
  • Roadside (LH) installation; 5‑bolt mount
  • Fits 5.2K‑7K axles & 8K hybrid axles
  • Works with 15"‑17.5" wheels
  • Dexter Compatible PN: K23‑180‑00 | 023‑180‑00
• QTY (2): Lippert 12" x 2" Manual‑Adjust Electric Brake Assembly – Right‑Hand
  • Manual‑adjust design with parking brake feature
  • Curb‑side (RH) installation; 5‑bolt mount
  • Fits 5.2K‑7K axles & 8K hybrid axles
  • Works with 15"‑17.5" wheels
  • Dexter Compatible PN: K23‑181‑00 | 023‑181‑00

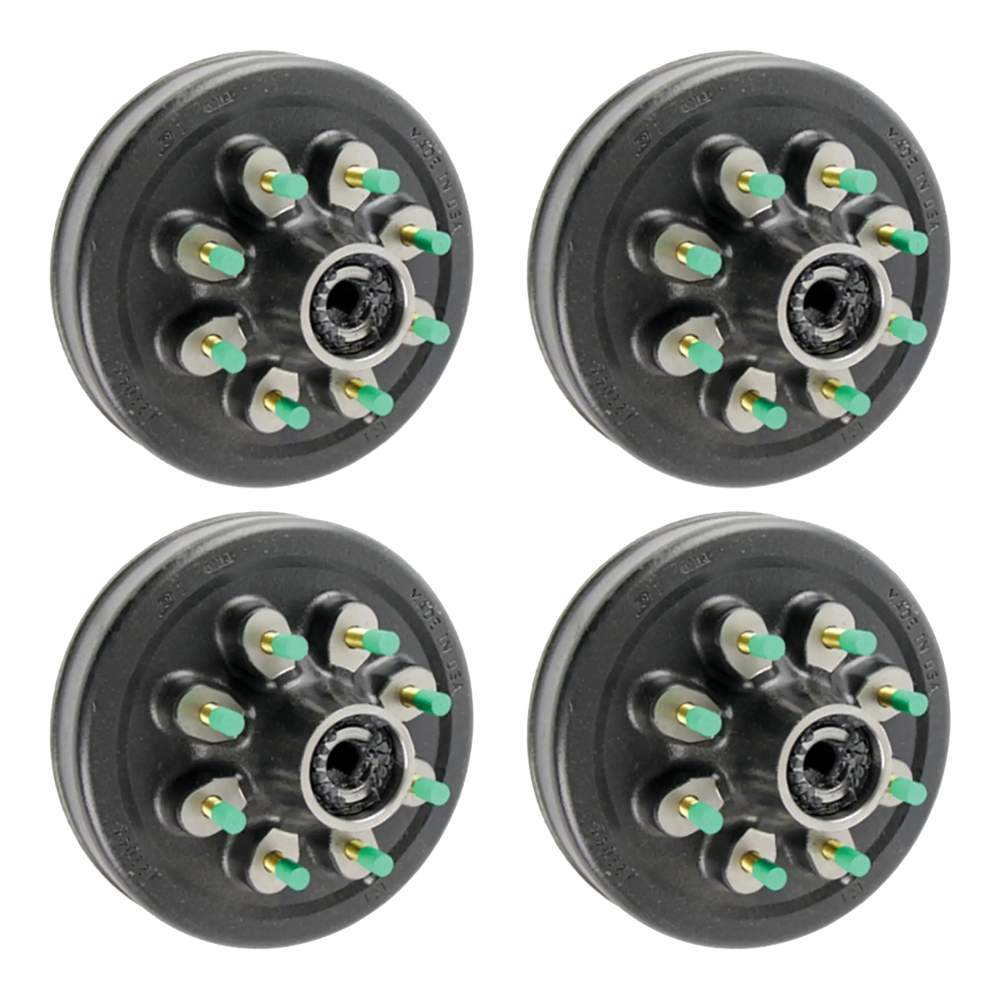

• QTY (4): Lippert 12" Hybrid Oil‑Bath Drum Hub – 8K, 8 on 6‑1/2", 9/16" Studs
  • Hybrid oil‑bath system reduces heat & maintenance
  • Races & wheel studs come pre‑installed
  • 8K axle bearings; 12" drum diameter
  • 8 on 6‑1/2" bolt circle with 9/16" studs
  • Accepts Valcrum threaded dust caps; Dexter compatible

Verify bolt pattern, stud size and axle rating before installation. Adjust brakes after the break‑in period and maintain proper oil levels in the hubs for maximum longevity.
