Lippert Tandem Axle 12" x 2" Electric Brake Assemblies & Pre-Greased Hubs (6 on 5�") for 5,200�7,000 lb Axles
$754.99
Lippert Tandem Axle 12" x 2" Electric Brake & Hub Kit
Equip your tandem axle trailer with this all-inclusive Lippert brake and hub package. Designed for axles rated 5,200–7,000 lbs, this bundle delivers four complete pre-greased hub & drum kits and four electric brake assemblies (two left-hand, two right-hand). Because this set provides four full hub kits, the individual components in each kit are collectively multiplied to meet your tandem axle needs.

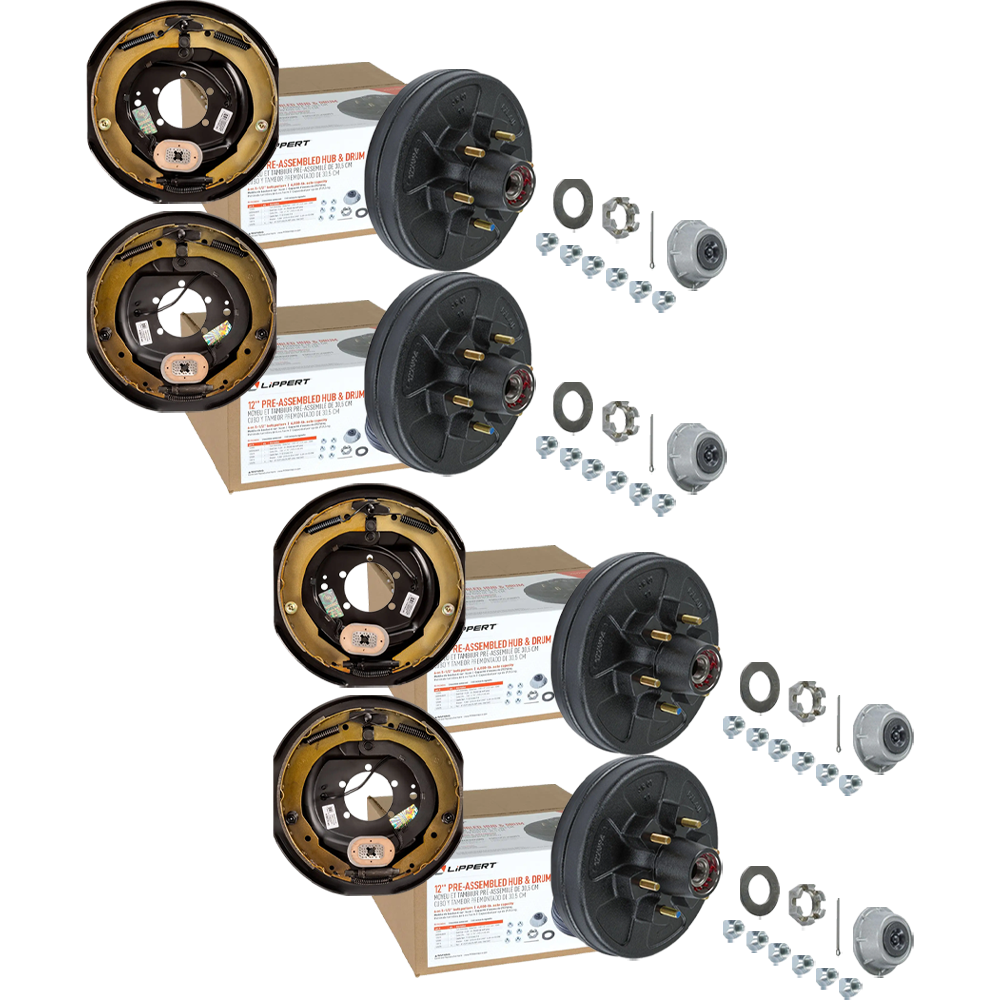

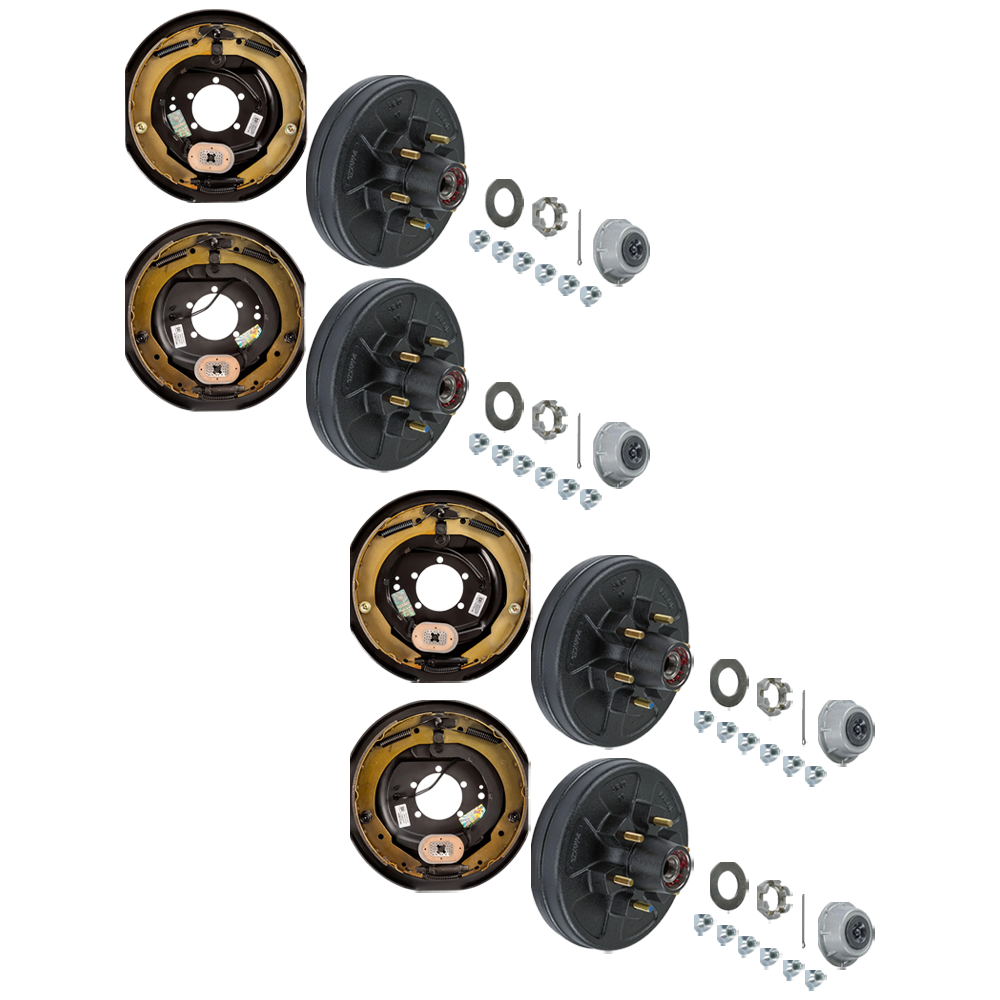

Bundle Contents:
-
QTY (4): Complete Pre-Greased Hub Assembly with Lug Nuts - 6,000-lb. Axles, 1/2" Stud
- Lippert’s proven manufacturing legacy since 1956, producing over 5,000 axles daily
- Each hub kit includes:
- (1) Brake hub assembly
- (1) Dust cap with plug
- (1) 1.75" cotter pin
- (1) 1" 6-slot castle spindle nut
- (1) Round spindle washer (1.06" ID, 2" OD)
- (6) 60° cone trailer lug nuts
- Pre-greased bearings for faster, cleaner installation
- 6-lug on 5½" bolt pattern, rated for 6,000-lb. axles
-

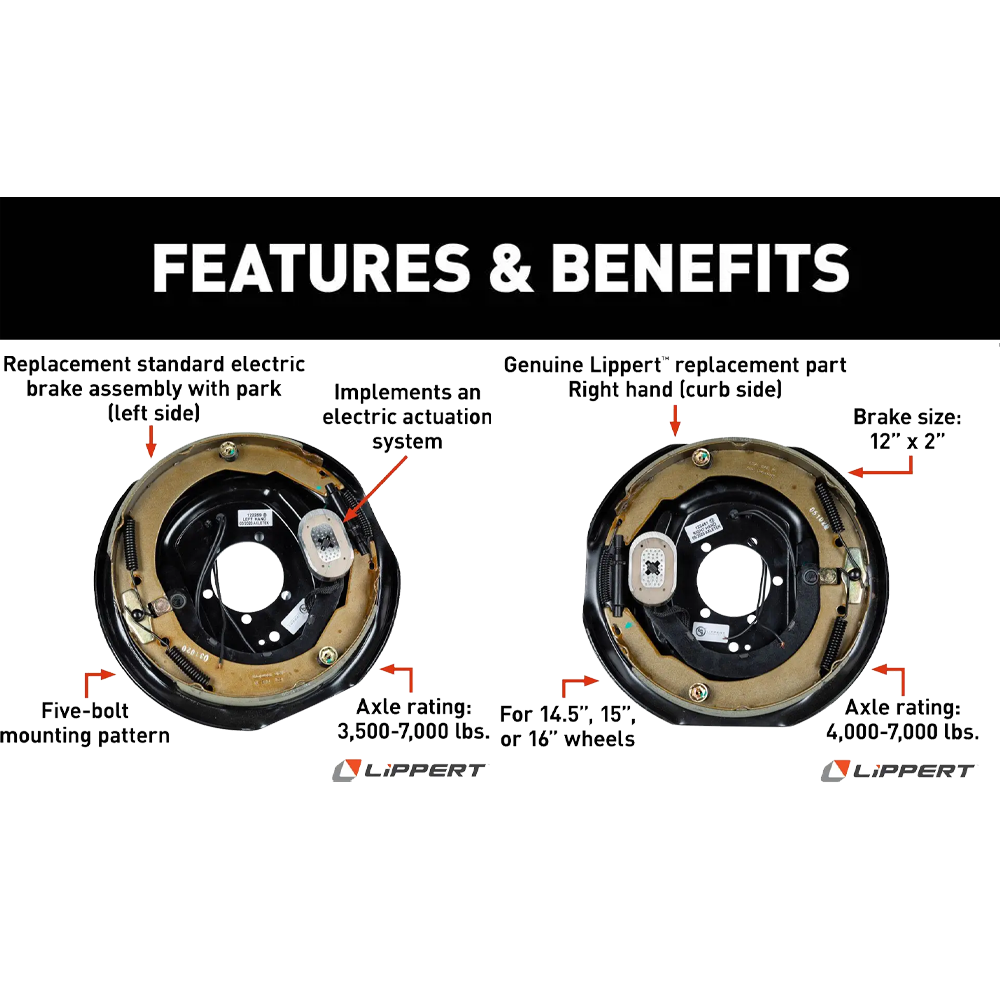

QTY (2): Lippert Electric Trailer Brake Assembly - 12" x 2" (Left-Hand)
- Standard electric drum brake assembly with park feature
- Manual adjustment; five-bolt mounting pattern
- Optimized for left-hand (roadside) installation
- Rated for 5,200–7,000 lb axles (plus 8,000-lb. hybrid)
- Works with 15" to 17.5" wheels
- Requires a brief break-in period for optimal performance
- Dexter Compatible Part Number: K23-180-00|023-180-00
-
QTY (2): Lippert Electric Trailer Brake Assembly - 12" x 2" (Right-Hand)
- Standard electric drum brake assembly with park feature
- Manual adjustment; five-bolt mounting pattern
- Optimized for right-hand (curbside) installation
- Rated for 5,200–7,000 lb axles (plus 8,000-lb. hybrid)
- Works with 15" to 17.5" wheels
- Requires a brief break-in period for optimal performance
- Dexter Compatible Part Number: K23-181-00|023-181-00
Always verify your trailer’s original equipment specifications and follow a routine maintenance schedule to keep your braking system performing reliably and safely.
| Specifications: | |
|---|---|
| Kit Type | Complete Trailer Brake & Hub Kit (4 total hub kits included) |
| Brand | Lippert |
| Hub & Drum Bolt Pattern | 6 on 5½" |
| Hub Axle Rating | 6,000 lbs (each hub) |
| Stud Size | 1/2" |
| Pre-Greased | Yes |
| Brake Size | 12" x 2" |
| Brake Type | Electric Drum |
| Brake Mounting Pattern | 5-Bolt Flange |
| Brake Axle Rating | 5,200–7,000 lbs (plus 8,000-lb. hybrid) |
| Brake Location | 2 Left (roadside), 2 Right (curbside) |
| Wheel Size Compatibility | 15" & 16" |
Order today or call us at 877-869-6690 for expert advice and personalized service.
