Lippert Tandem Axle 3,500 lb 1.75" Tube Suspension Kit, 4,000 lb Leaf (24?7/8"), Tall Equalizer � Hangers & Hardware Included, Dexter/Alko/Rockwell Compatible

Lippert Tandem Axle 3,500 lb 1.75" Tube Suspension Kit with 4,000 lb (24‑7/8") Leaf Springs & Tall Equalizer

Enjoy a smoother, more reliable ride with our Lippert Tandem Axle Suspension Kit. This all-in-one bundle includes hangers, hardware, tall equalizer, and heavy-duty leaf springs designed for 3,500 lb axle ratings and 1.75" axle tubes. It’s also compatible with Dexter, Alko, Rockwell, and Quality Axles.

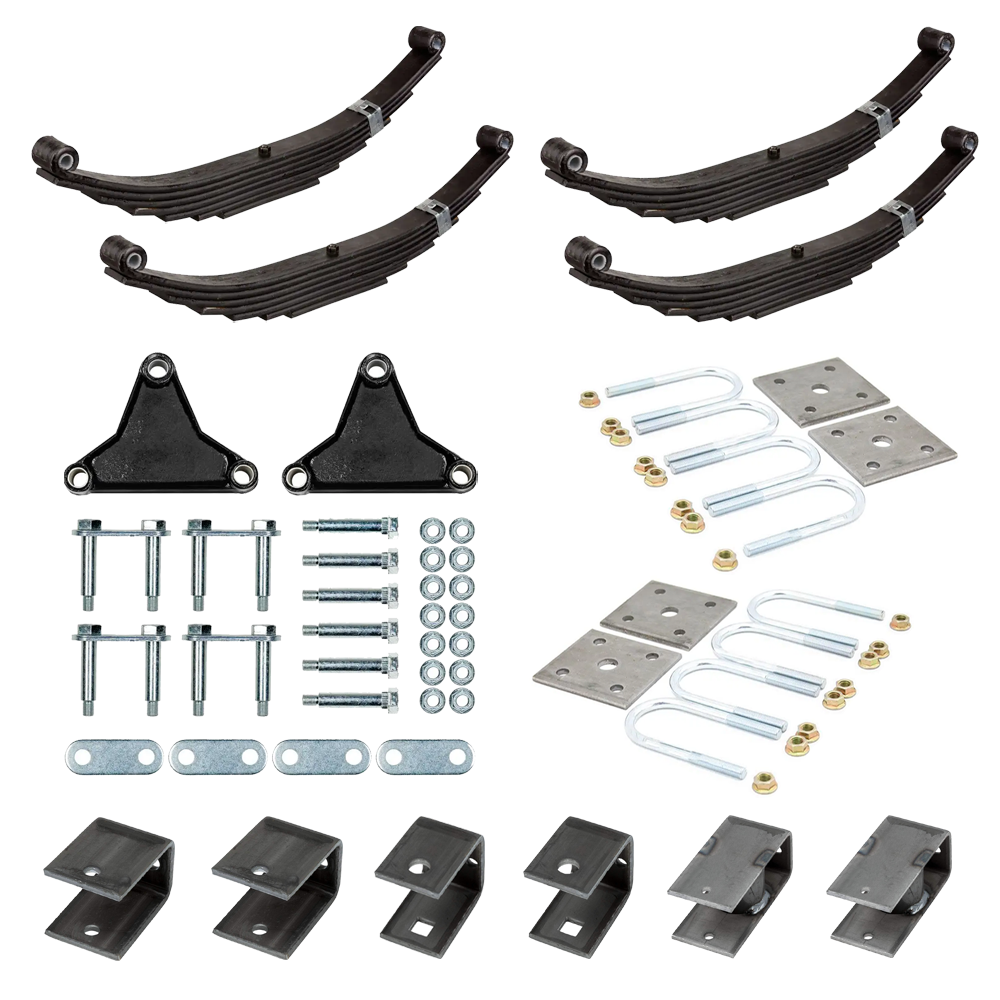

Bundle Contents:

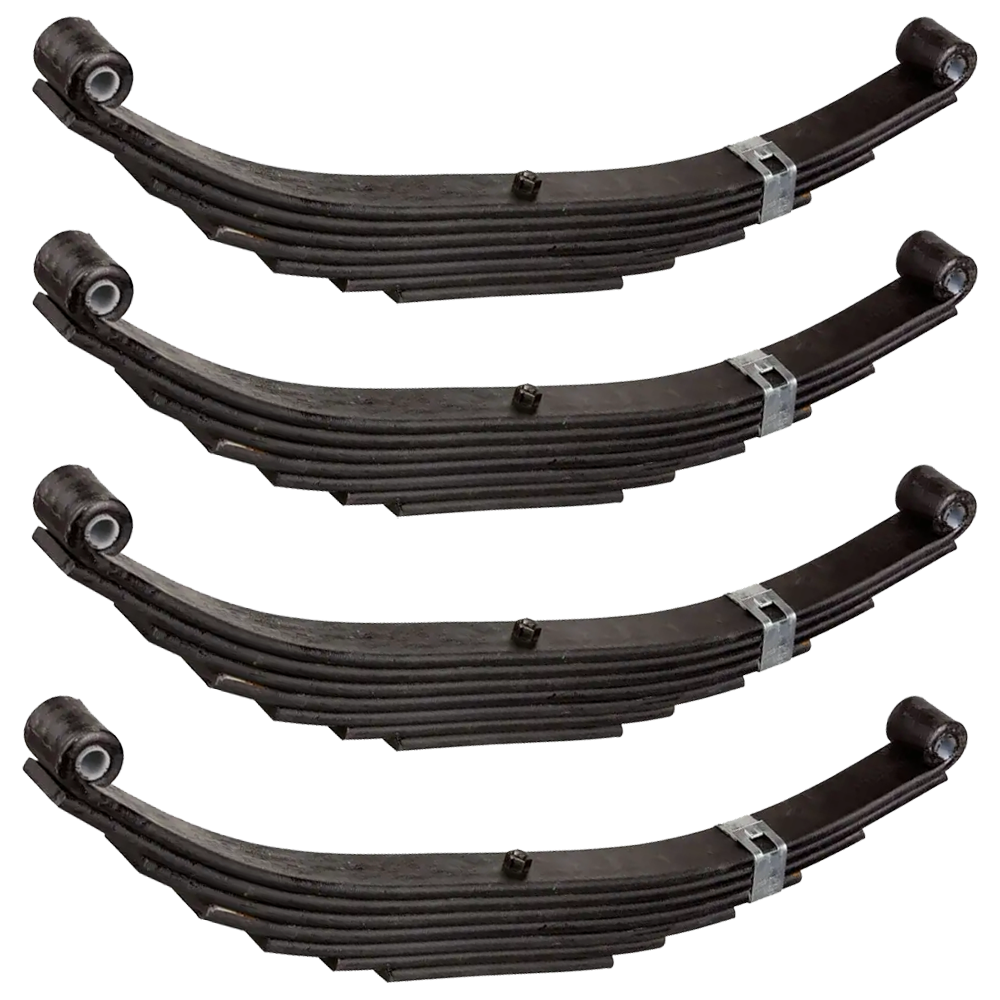

• QTY (4): 4,000 lb Leaf Springs (24‑7/8" length, 7 leaves, 1‑3/4" width)
  • 4,000 lb capacity per spring
  • 7 leaves for added support
  • 24‑7/8" eye-to-eye length (unloaded); 26" loaded
  • Arch height: 3‑1/4" (unloaded), 1‑3/4" (loaded)
  • 9/16" spring eye diameter

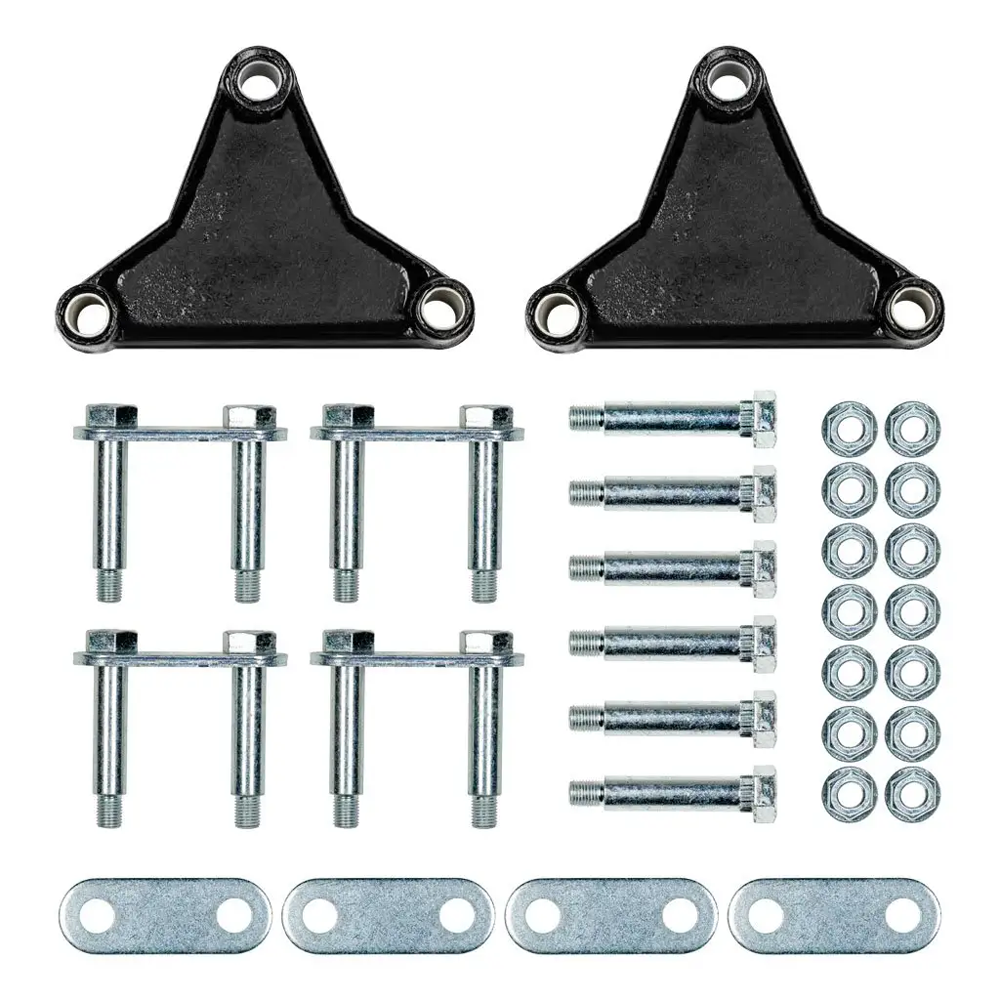

• QTY (1): Lippert Trailer Axle AP Kit for Double-Eye Tandem Axles – Tall Equalizer
  • Equalizer Reference: EQ-310
  • Equalizer Bolt Qty: 3 (2.88" length)
  • Shackle Assembly Qty: 4 (2.25" length)
  • Shackle Plate Qty: 4 (2.25" length)
  • Shackle Bolt Qty: 6 (2.88" length)
  • Equalizer Nut Qty: 2 (7/16"-20 thread)
  • Lock Nut Qty: 14 (7/16"-20 thread)

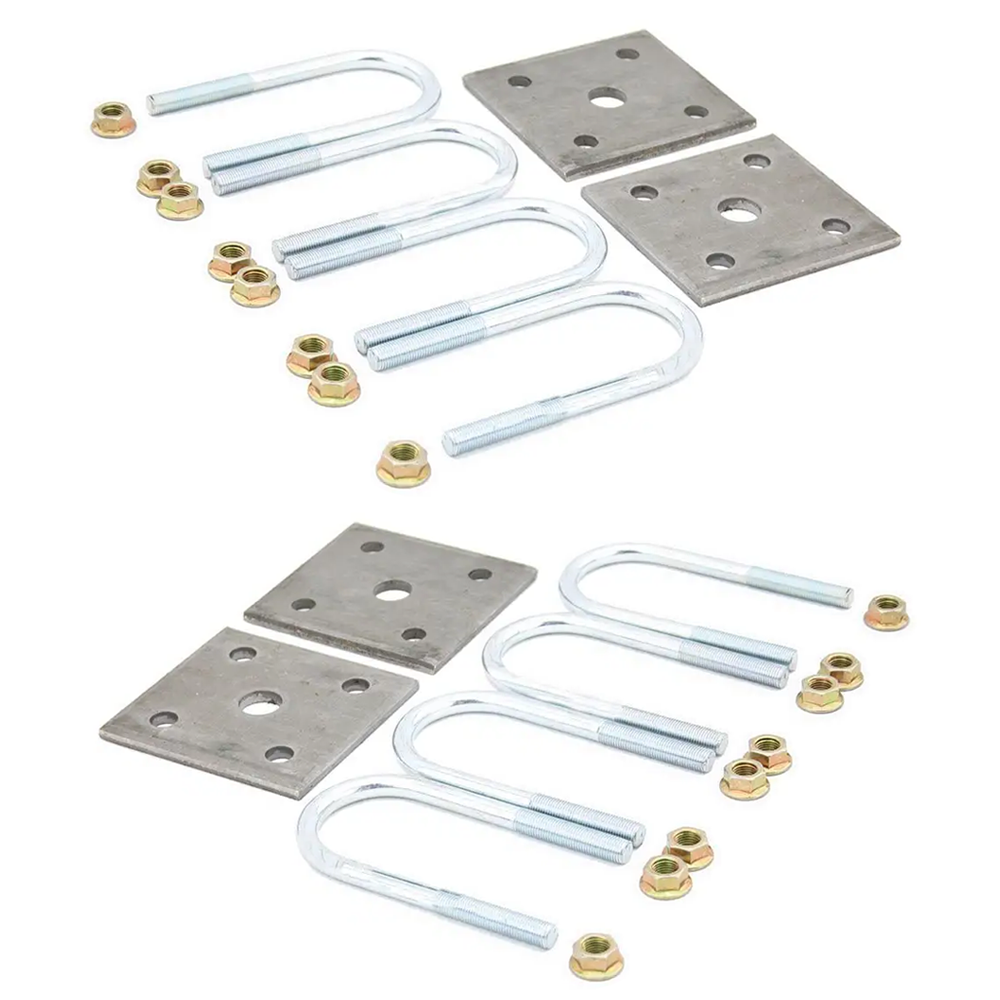

• QTY (2): Axle Mounting Kit – 1.75" Tube
  • Replacement axle mounting kits with U-bolts
  • Designed to fit 1.75" axle tubes
• QTY (2): Front Trailer Axle Hanger – 4‑5/16" x 2‑3/16"
  • Distance to hole: 3‑9/16" on-center
  • Hole size: 9/16"
  • Helps secure and position front portion of the axle
• QTY (2): Center Trailer Axle Hanger – 4‑1/2" x 3‑1/8"
  • Distance to hole: 3‑5/16"
  • Hole size: 7/8"
  • Stabilizes axle alignment for tandem setups
• QTY (2): Rear Trailer Axle Hanger – 6" x 2‑1/4"
  • Distance to hole: 4"
  • Hole size: 5/16"
  • Secures rear portion of the axle

Before installing, verify all existing components match the included parts and specifications. Proper maintenance and inspection of your trailer’s suspension system will help ensure safe and dependable towing for years to come.
