Lippert Tandem Axle 3,500-lb Electric Brake & Pre-Greased Hub Assembly Kit � 10" x 2.25" w/ Parking Brake � 5 on 4.5" Bolt Pattern (Left + Right)
$539.99
Lippert Tandem Axle 3,500-lb Electric Brake & Hub Assembly Kit
Experience a complete solution for upgrading or replacing your tandem axle trailer’s braking system. This Lippert kit features 10" x 2.25" electric drum brakes with parking brake functionality and pre-greased hub assemblies designed for 3,500-lb axles. Lippert has been a trusted leader since 1956, producing over 5,000 axles daily, and offers unmatched compatibility—even with competitor axles. With genuine parts, quick delivery, and a legacy of quality, you can count on Lippert to keep your rig running at its best.

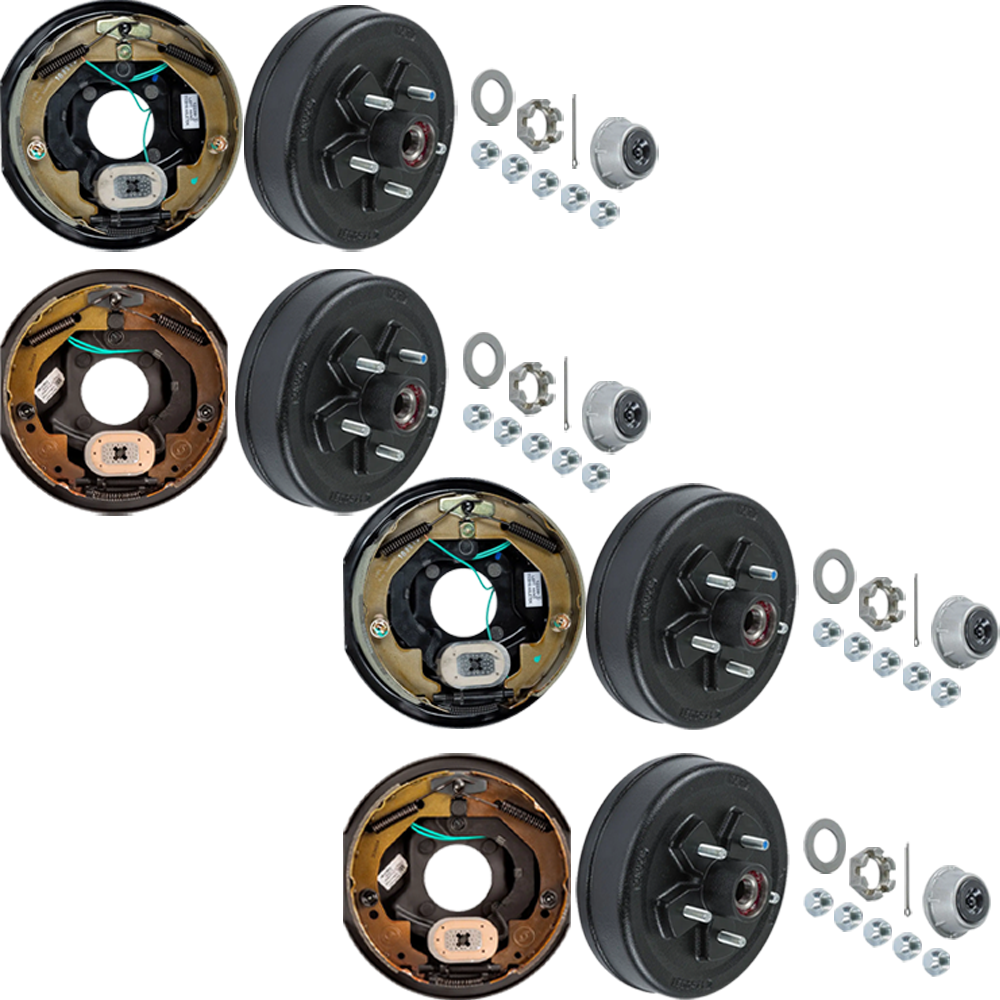

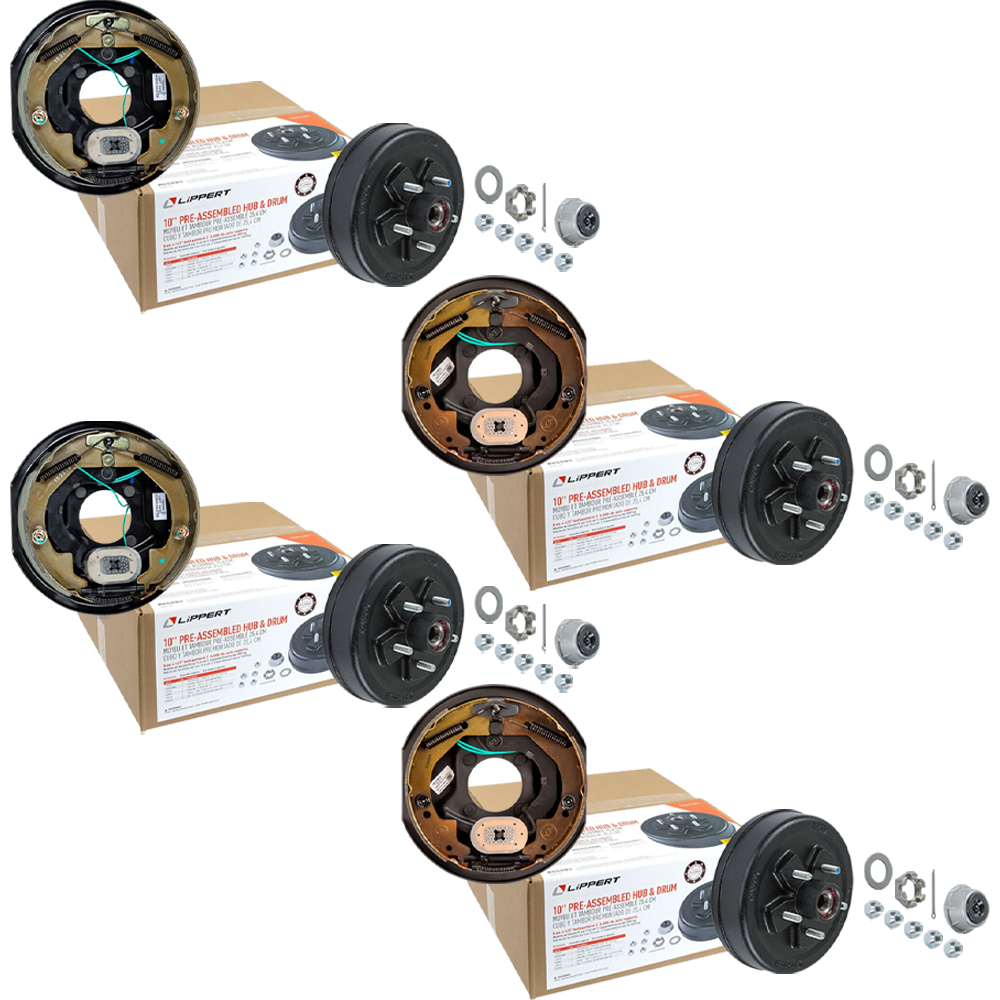

Bundle Contents:
-
QTY (4): Complete Pre-Greased Hub Assembly with Lug Nuts - 3,500-lb. Axles, 1/2" Stud
- Complete pre-greased hub assembly with lug nuts
- (1) Brake hub assembly
- (1) Dust cap with plug
- (1) 1.75" cotter pin
- (1) 1" 6-slot castle spindle nut
- (1) Round spindle washer with 1.03" ID, 1.68" OD
- (5) 60° cone trailer lug nuts
-
QTY (2): Lippert Electric Trailer Brake Assembly - 10" x 2.25" 3,500 lbs. Left Side
- Replacement standard electric brake assembly with park
- Manual adjustment
- Designed for left-hand (roadside) installation only
- For axles rated to 3,500 lbs.
- Four-bolt mounting pattern
- Easy, DIY installation
- For 13", 14", 14.5" or 15" wheels
- Brake size: 10" x 2.25"
- New electric drum brakes will require a break-in period to achieve full performance.
- Dexter Compatible Part Number: K23-026-00|023-026-00
-
QTY (2): Lippert Electric Trailer Brake Assembly - 10" x 2.25" 3,500 lbs. Right Side
- Replacement standard electric brake assembly with park
- Manual adjustment
- Designed for right-hand (curb-side) installation only
- For axles rated to 3,500 lbs.
- Four-bolt mounting pattern
- Easy, DIY installation
- For 13", 14", 14.5" or 15" wheels
- Brake size: 10" x 2.25"
- New electric drum brakes will require a break-in period to achieve full performance.
- Dexter Compatible Part Number: K23-027-00|023-027-00
For best results, always reference your original equipment labels and follow recommended maintenance intervals. Proper upkeep of brakes, bearings, and axle components helps ensure a smooth, safe ride.
| Specifications: | |
|---|---|
| Kit Type | Complete Trailer Brake & Hub Kit |
| Axle Capacity | 3,500 lbs. Axles |
| Brake Drum Dimensions | 10" x 2.25" |
| Mounting Pattern | Four-bolt pattern |
| Bolt Pattern | 5 on 4.5" |
| Hub Type | Hub with Integrated Drum Assembly |
| Stud Size | 1/2" |
| Type of Adjustment | Manual |
| Brake Location | Left & Right |
| Wheel Size Compatibility | 12", 13", 14", 14.5", 15" |
Order today or call us at 877-869-6690 for expert advice and personalized service.
