Lippert Tandem-Axle 3.5K Self-Adjusting Electric Brake & 10" Drum-Hub Kit � 5-on-4.5" (Compatible with Dexter / Al-Ko)

Lippert Tandem-Axle 3.5K Self-Adjusting Brake & 10" Drum-Hub Kit – 5-on-4.5"

Give your tandem-axle trailer dependable stopping power and hassle-free maintenance with this complete Lippert kit. You get forward self-adjusting electric brakes for all four wheels plus matched 10-inch drum hubs with bearing kits—everything you need for a professional-grade overhaul in one box.

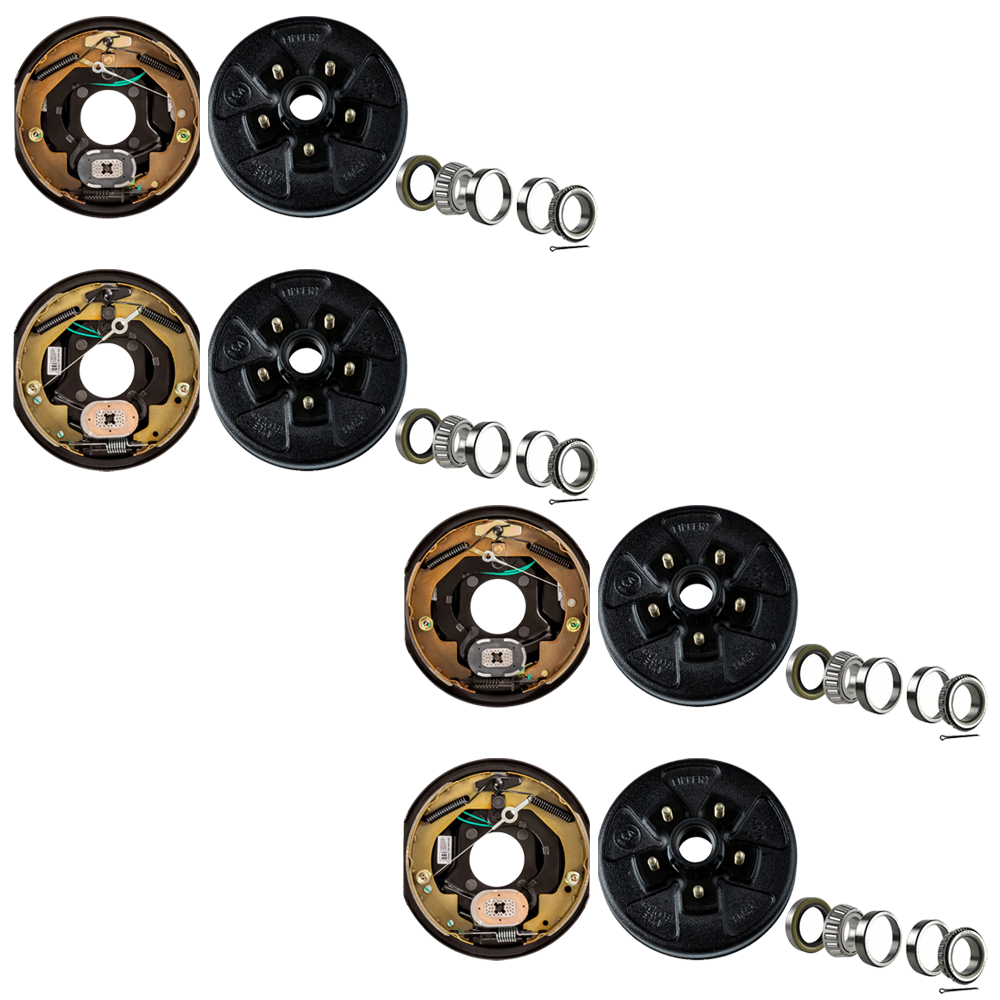

Bundle Contents:

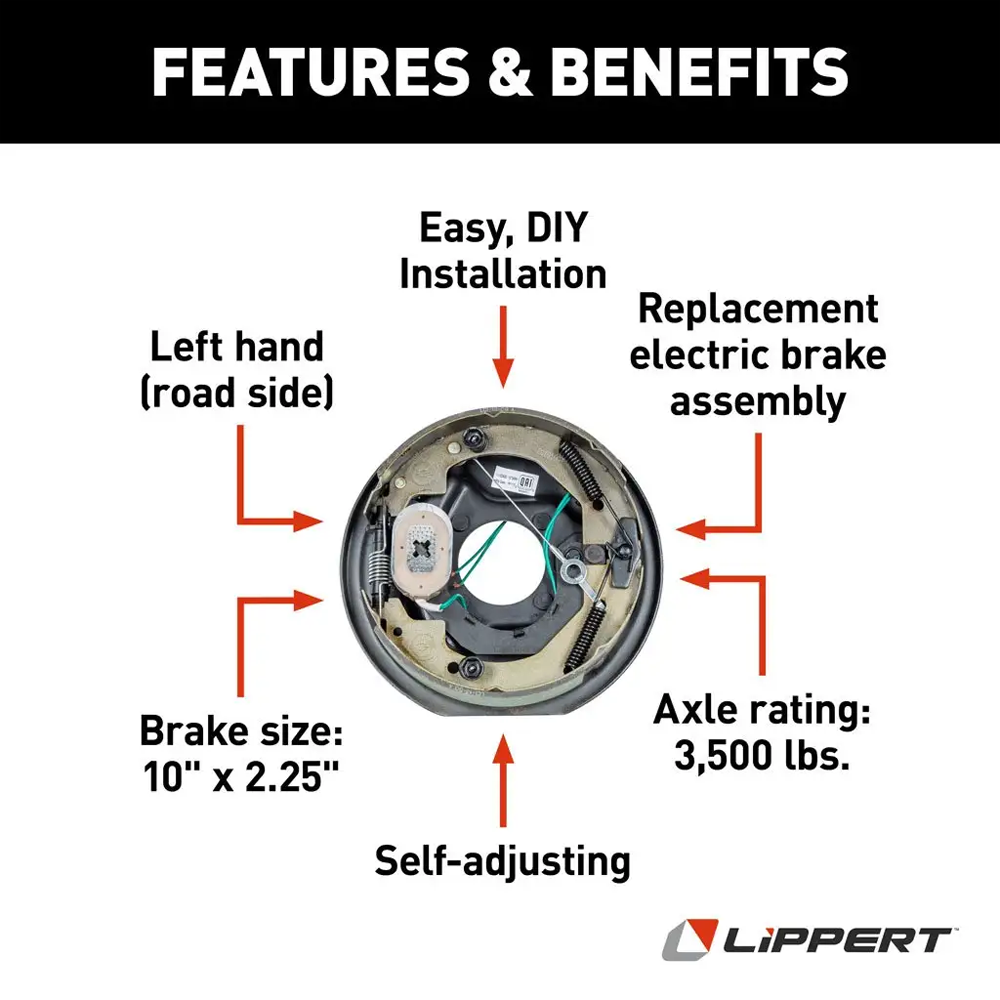

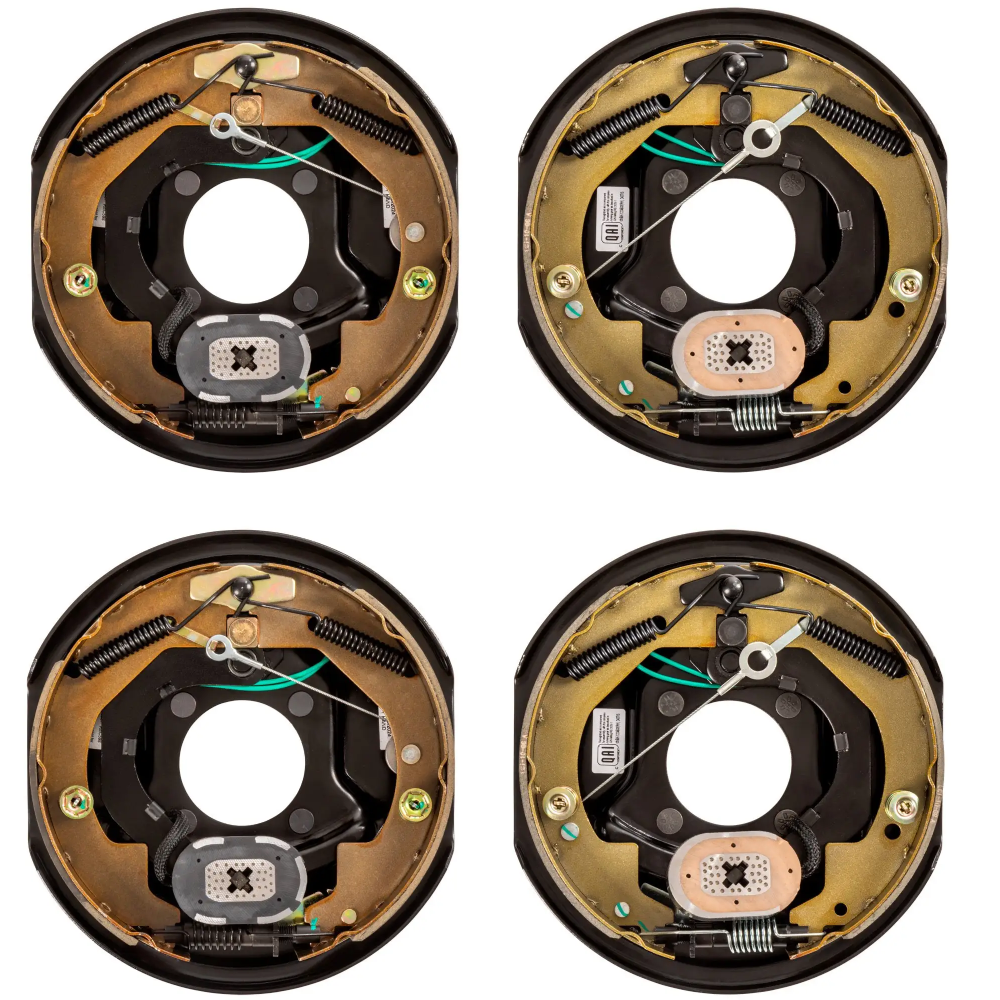

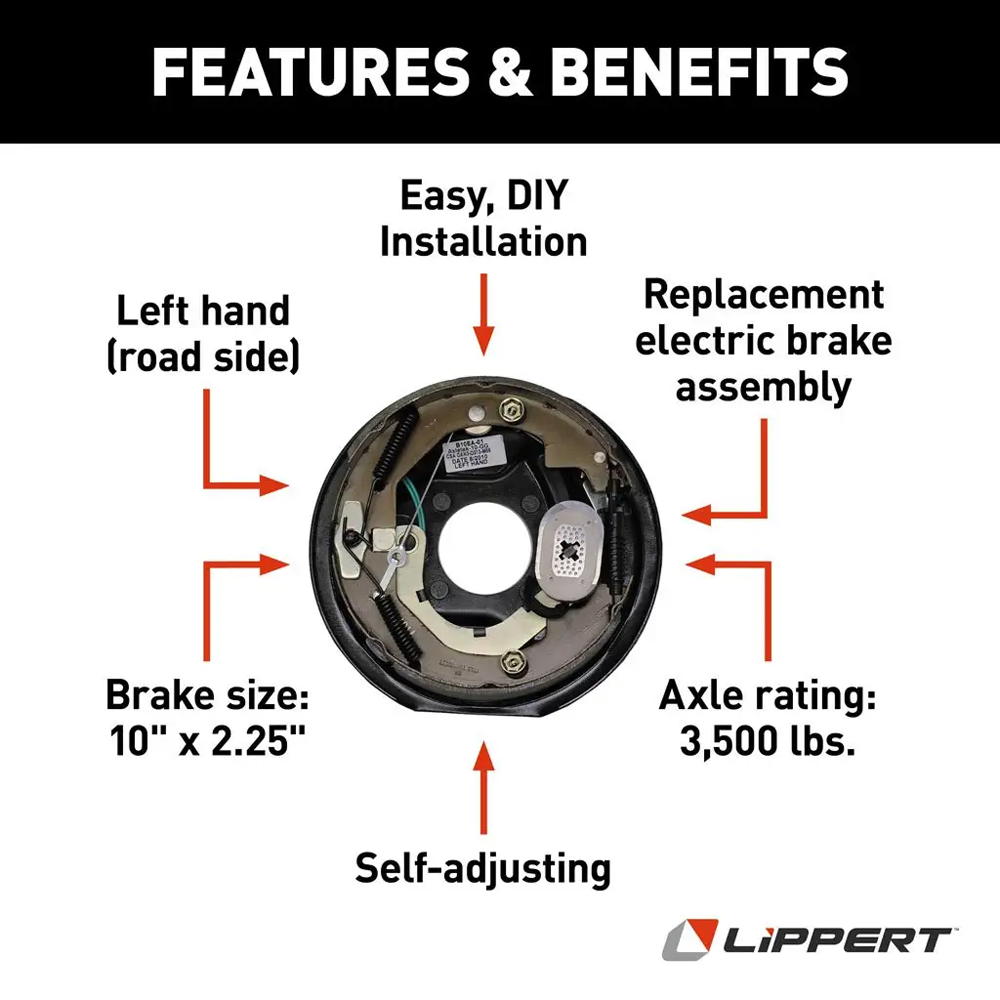

• QTY (2): Lippert Forward Self-Adjusting Electric Brake Assembly – 10" × 2.25" (Left / Road-Side)
  • Automatically self-adjusts during forward stops
  • Fits 3,500-lb axles with 4-bolt brake flange
  • 10" × 2.25" shoe & lining for sure stopping
  • Dexter compatible PN: K23-468-00 / 023-468-00
  • Easy bolt-on replacement; 1-year Lippert warranty
• QTY (2): Lippert Forward Self-Adjusting Electric Brake Assembly – 10" × 2.25" (Right / Curb-Side)
  • Mirror-image of left side for curb-side install
  • Self-adjusting mechanism reduces maintenance
  • 3,500-lb axle / 4-bolt pattern compatibility
  • Dexter compatible PN: K23-469-00 / 023-469-00
  • DIY-friendly; 1-year Lippert warranty

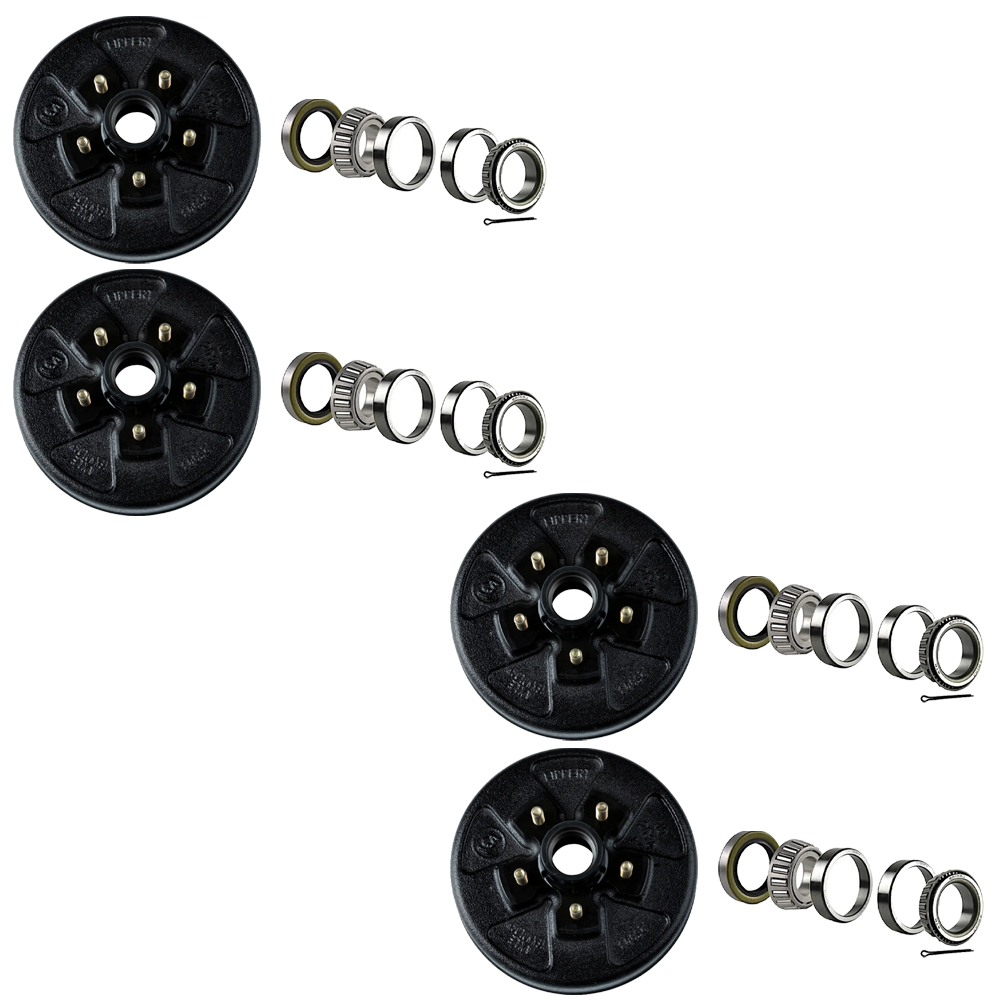

• QTY (4): Lippert 10" Brake Drum Hub Assembly – 5 on 4.5" Bolt Pattern, 1/2" Stud
  • Cast-iron drum hub rated for 3,500-lb axles
  • 5 on 4.5" pattern fits common trailer wheels (13"–15")
  • Dexter compatible PN: K08-247-94 / 008-247-94
  • Hub #126003 / Bearing Kit #333948 – backed by 1-year warranty
  • Bearing kit (bagged separately, 1 per hub) includes:
    • Inner bearing cone & cup
    • Outer bearing cone & cup
    • Double-lip grease seal
    • Cotter pin

Always verify fitment with your axle’s ID tag and perform regular inspections, lubrication, and brake adjustment for safe, smooth towing.
