Lippert Tandem Axle 7? x 1.25? 2,200-lb Manual Electric Brake Assemblies & 5 on 4.5? Hub Kit (Dexter Compatible)

Lippert Tandem Axle 7″ x 1.25″ 2,200-lb Manual Electric Brake Assemblies & 5 on 4.5″ Hub Kit (Dexter Compatible)

Upgrade or replace the braking system on your tandem axle trailer with this complete Lippert® bundle. These manual electric brake assemblies (Dexter compatible) and 5 on 4.5″ brake hubs are built for 2,200 lb. axles, delivering reliable stopping power to keep your trailer rolling safely. The included bearing kits (multiplied by four for each hub) make installation straightforward, so you can get back on the road with confidence.

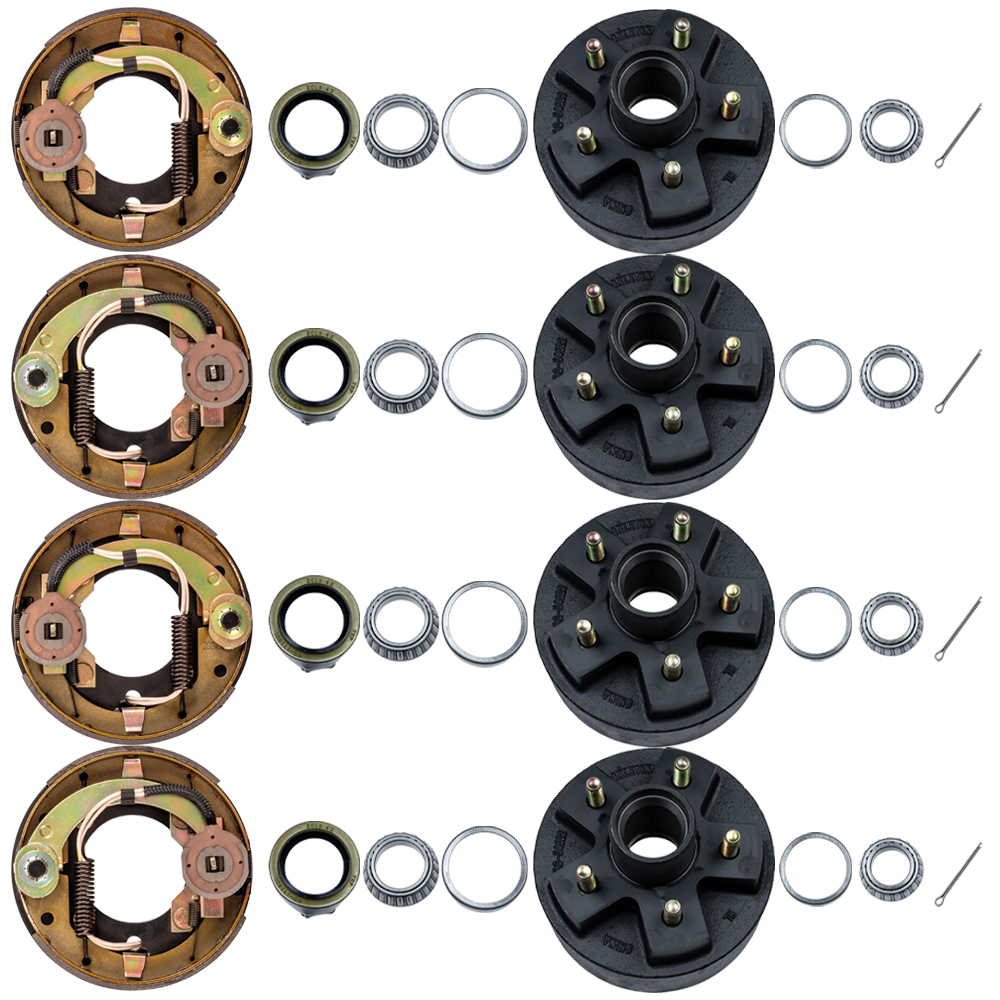

Bundle Contents:

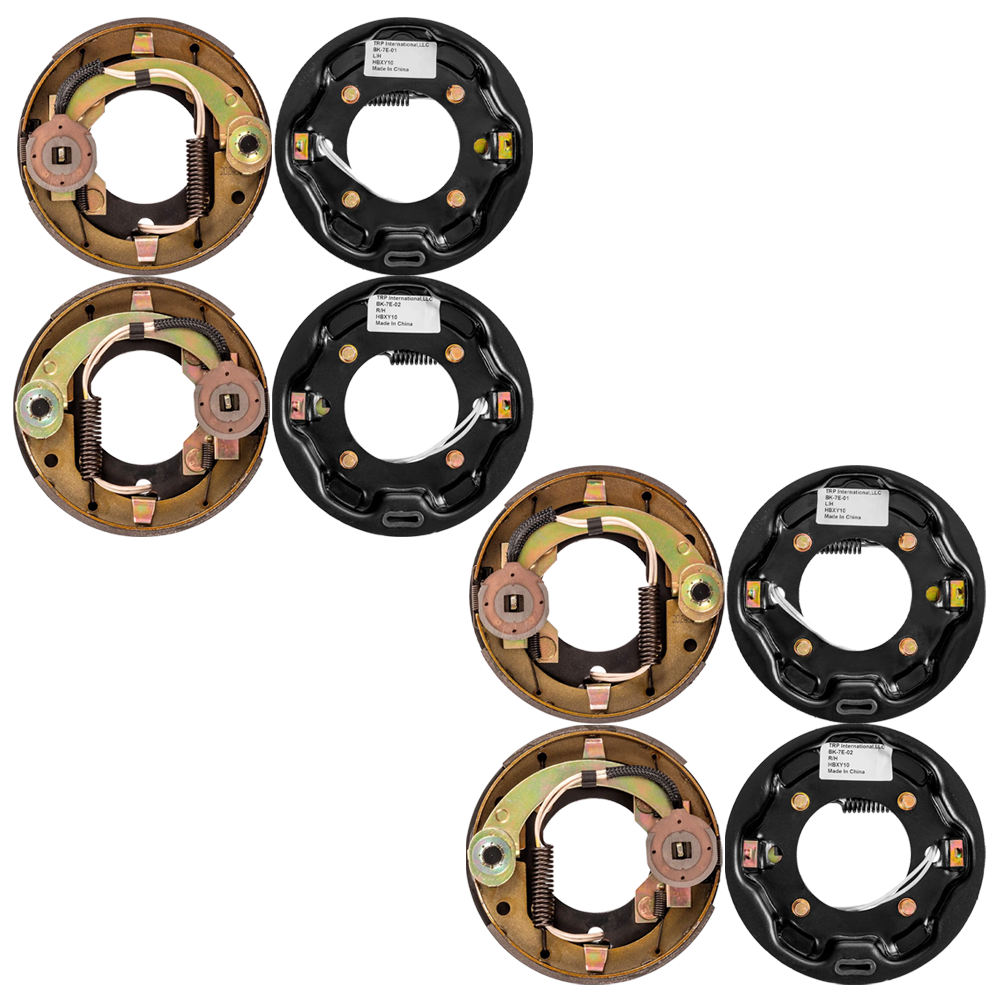

• QTY (2): Electric Brake Assembly, 7" x 1.25", 2,200 lbs. - Left Side
  • Genuine Lippert® replacement part
  • Left hand (roadside)
  • Dexter Compatible Part Number: K23-047-00 / 023-047-00
  • For 10”, 12”, or 13” wheels
  • Brake size: 7” x 1.25”
  • Axle rating: 2,200 lbs.
  • Four-bolt mounting pattern
  • Manual adjustment
  • 1-year warranty
• QTY (2): Electric Brake Assembly, 7" x 1.25", 2,200 lbs. - Right Side
  • Genuine Lippert® replacement part
  • Right hand (curb side)
  • Dexter Compatible Part Number: K23-048-00 / 023-048-00
  • For 10”, 12”, or 13” wheels
  • Brake size: 7” x 1.25”
  • Axle rating: 2,200 lbs.
  • Four-bolt mounting pattern
  • Manual adjustment
  • 1-year warranty

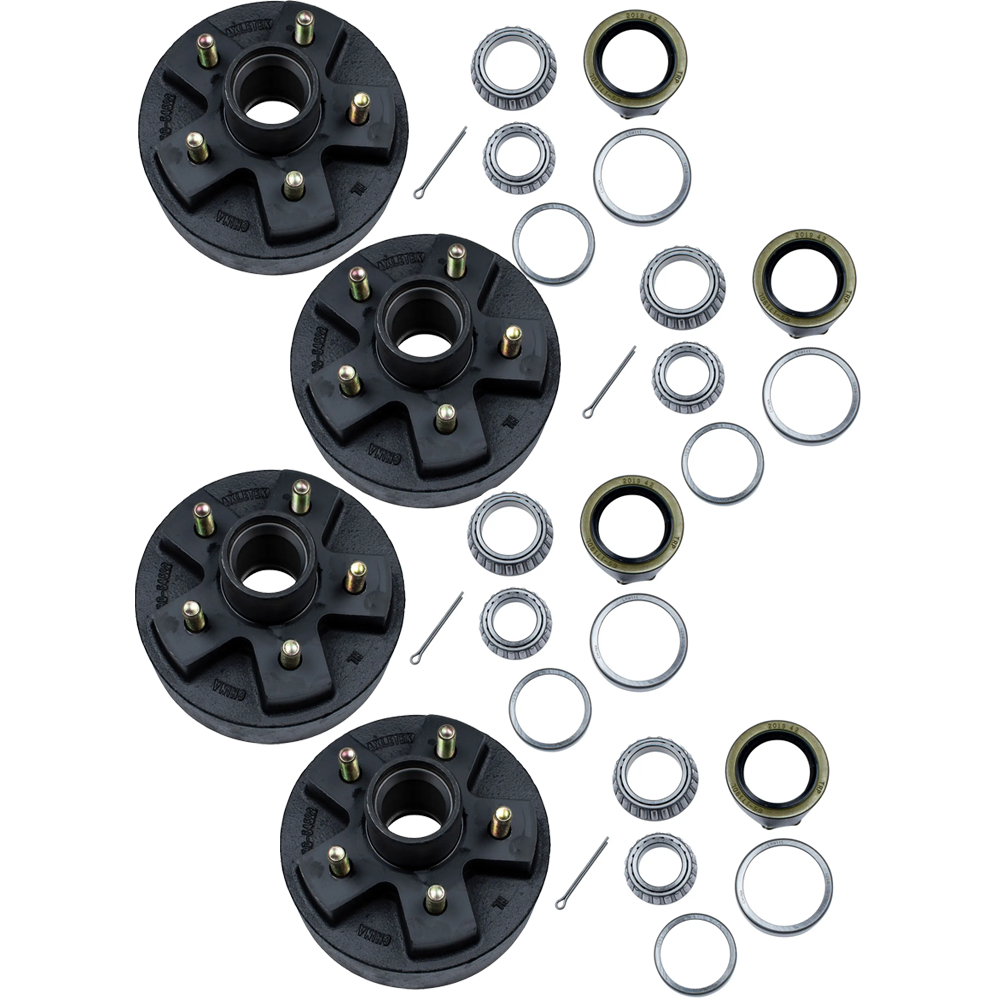

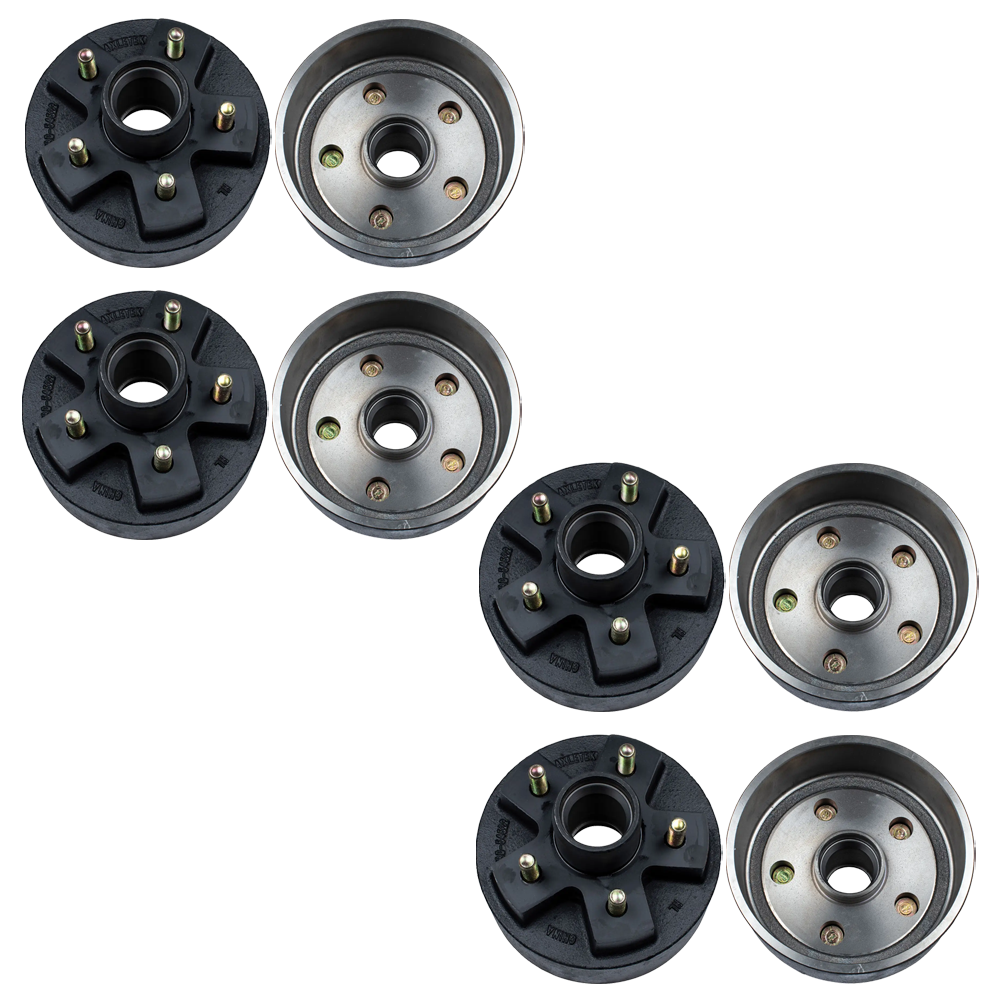

• QTY (4): 7" Brake Hub, 5 on 4.5", 1/2" Stud, 2,200 lbs. (with Bearing Cone Kit)
  • Lippert® genuine replacement part
  • Brake Hub #134206
  • Bearing Kit #333948 (bagged separately)
  • Axle rating: 2,200 lbs.
  • Wheel size compatibility: 8" to 12"
  • Bolt pattern: 5 on 4.5"
  • Stud size: 1/2"

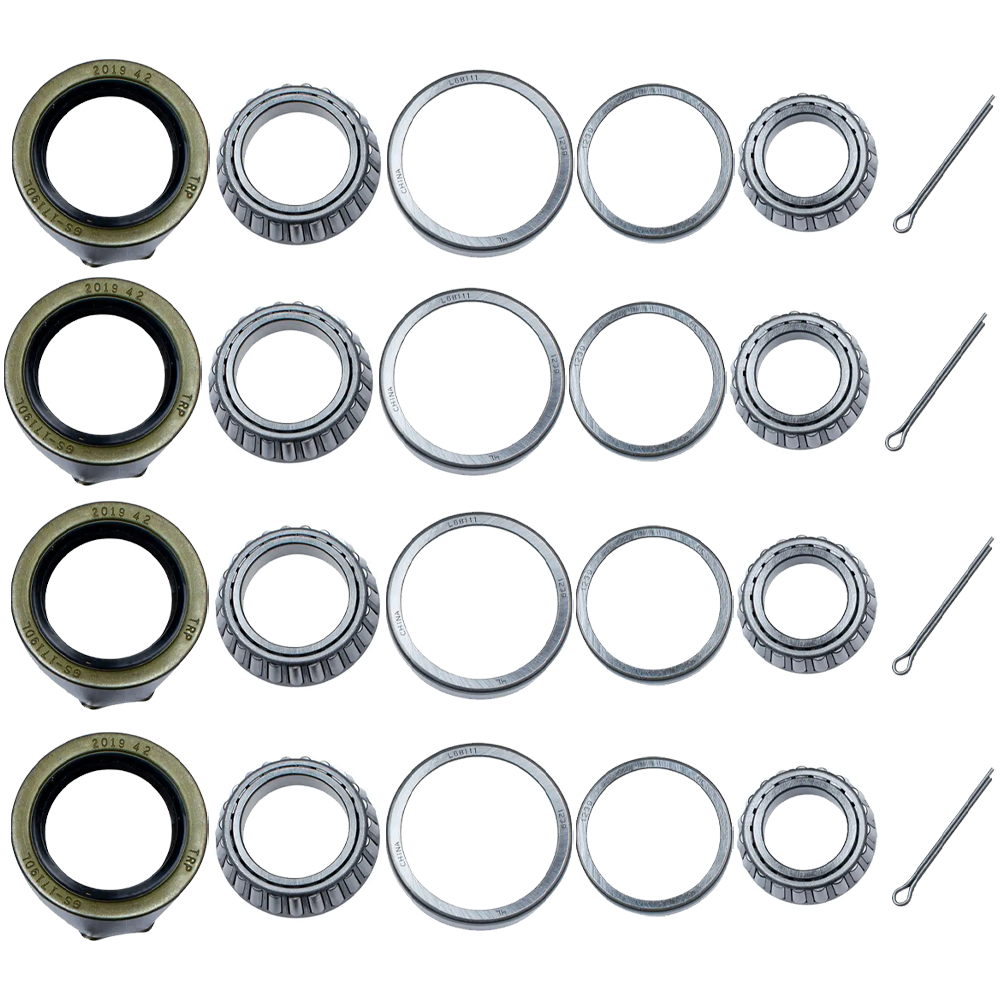

  • Each Hub Includes a Bearing Kit (multiplied by 4 in this bundle):
    • 1x Inner Bearing Cone
    • 1x Outer Bearing Cone
    • 1x Inner Bearing Cup
    • 1x Outer Bearing Cup
    • 1x Cotter Pin
    • 1x Double Lip Grease Seal
  • 1-year warranty

Always confirm your trailer’s original equipment specifications to ensure proper fit and performance. Remember to regularly inspect and service your brakes and hubs for safe towing.

Note: This bundle includes only the brake assemblies and hubs. A version with additional hardware is also available.
