Lippert Tandem Axle Complete Suspension Kit � 3,500 lb, 2.375? Tube, 2,000-lb Leaf Springs (25-1/4? Unloaded), Tall Equalizer, Includes Hangers & Hardware � Dexter/Alko/Rockwell/Quality Axles Compatible

Lippert Tandem Axle Suspension Kit – 3,500 lb, 2.375″ Tube, 2,000-lb Leaf Springs (25-1/4″ Unloaded), Tall Equalizer, Hangers & Hardware Included

Give your trailer a complete suspension overhaul with this Lippert Tandem Axle Suspension Kit. Designed for 3,500 lb axles with 2.375″ tubes, this bundle features 2,000-lb leaf springs (25-1/4″ unloaded length), a tall equalizer for improved weight distribution, plus hangers and mounting hardware. Built to fit Dexter, Alko, Rockwell, and Quality Axles, this kit helps restore a smooth, reliable ride.

Bundle Contents:

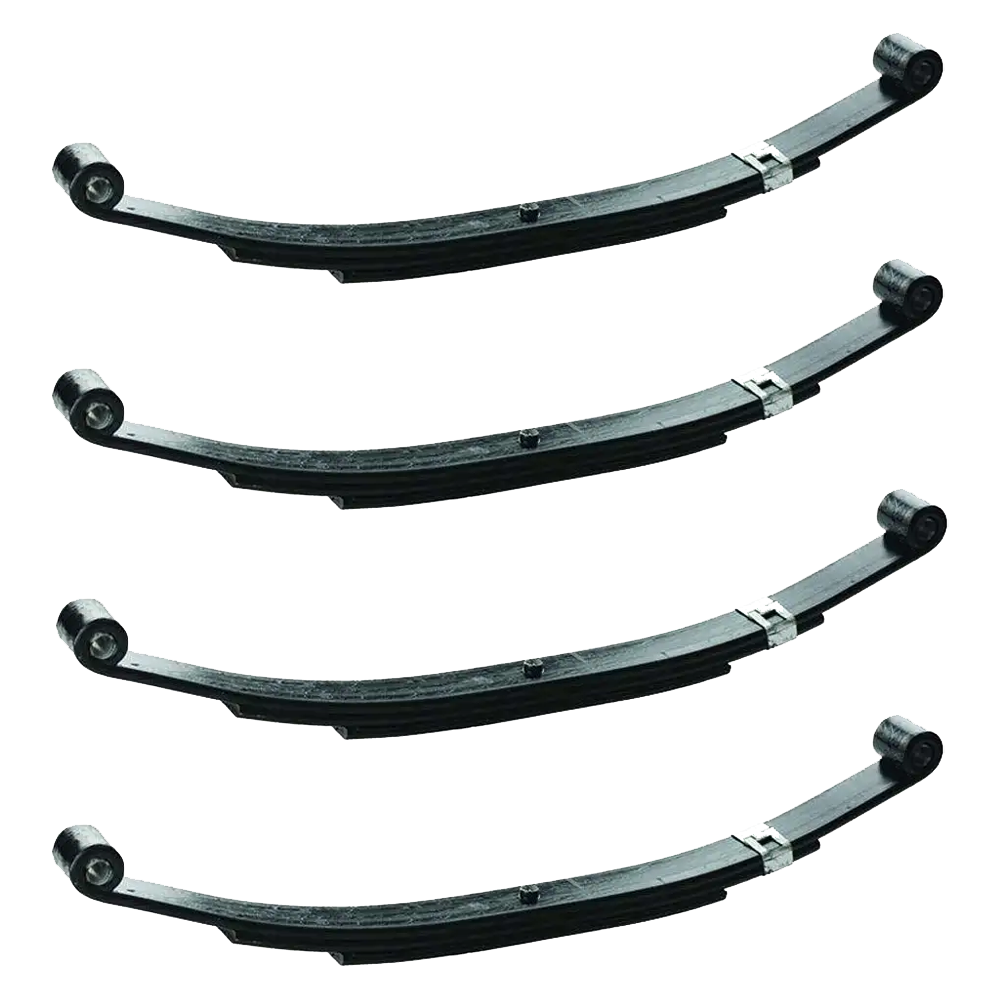

• QTY (4): Replacement Double-Eye Leaf Spring
  • Capacity: 2,000 lbs. per spring
  • 1-3/4″ width, 25-1/4″ eye-to-eye (unloaded)
  • 24″ eye-to-eye (loaded)
  • 3″ arch height unloaded, 2-1/2″ loaded
  • 9/16″ spring eye diameter
  • 3 leaves per spring

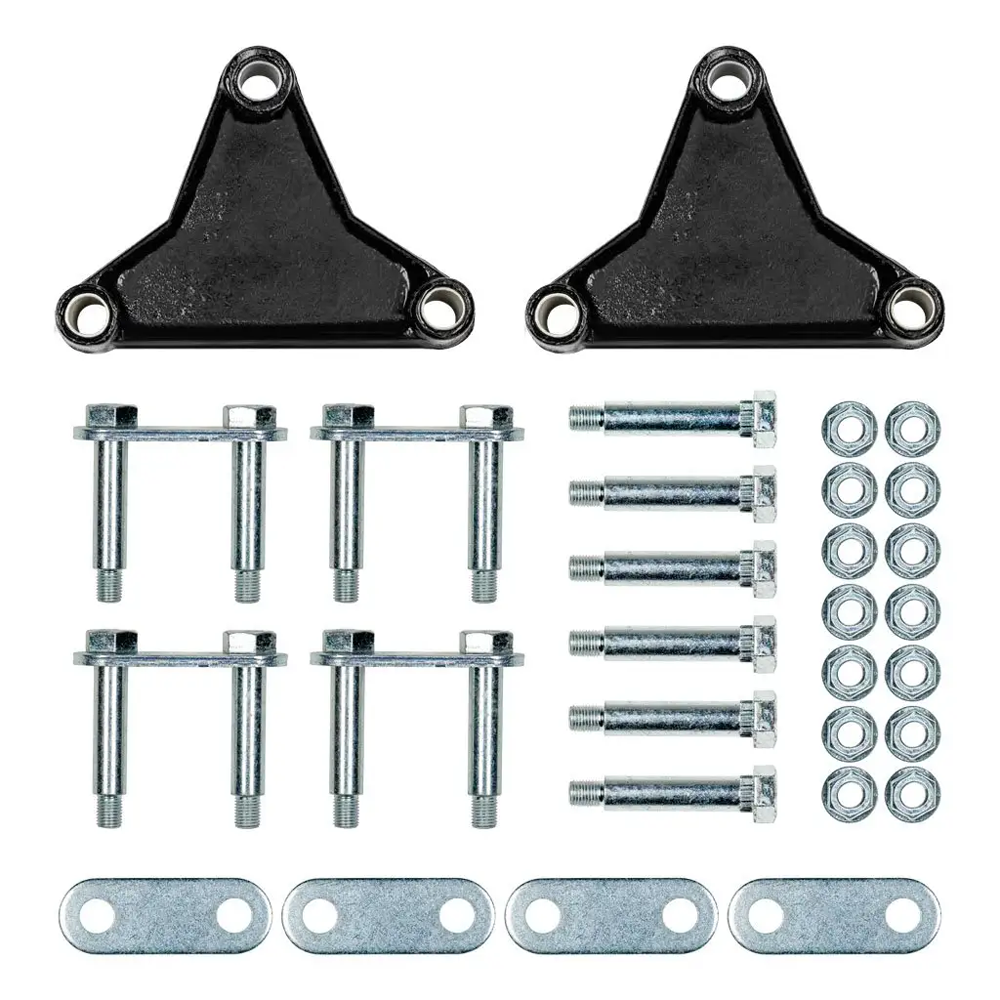

• QTY (1): Lippert AP Kit for 2–7K Tandem Axles – Tall Equalizer
  • Equalizer Reference: EQ-310 (Tall design)
  • Kit Includes:
    • (3) Equalizer Bolts (2.88″ length)
    • (2) Equalizer Nuts
    • (4) Shackle Assemblies
    • (4) Shackle Plates
    • (6) Shackle Bolts (2.88″ length)
    • (14) Lock Nuts (7/16″–20)

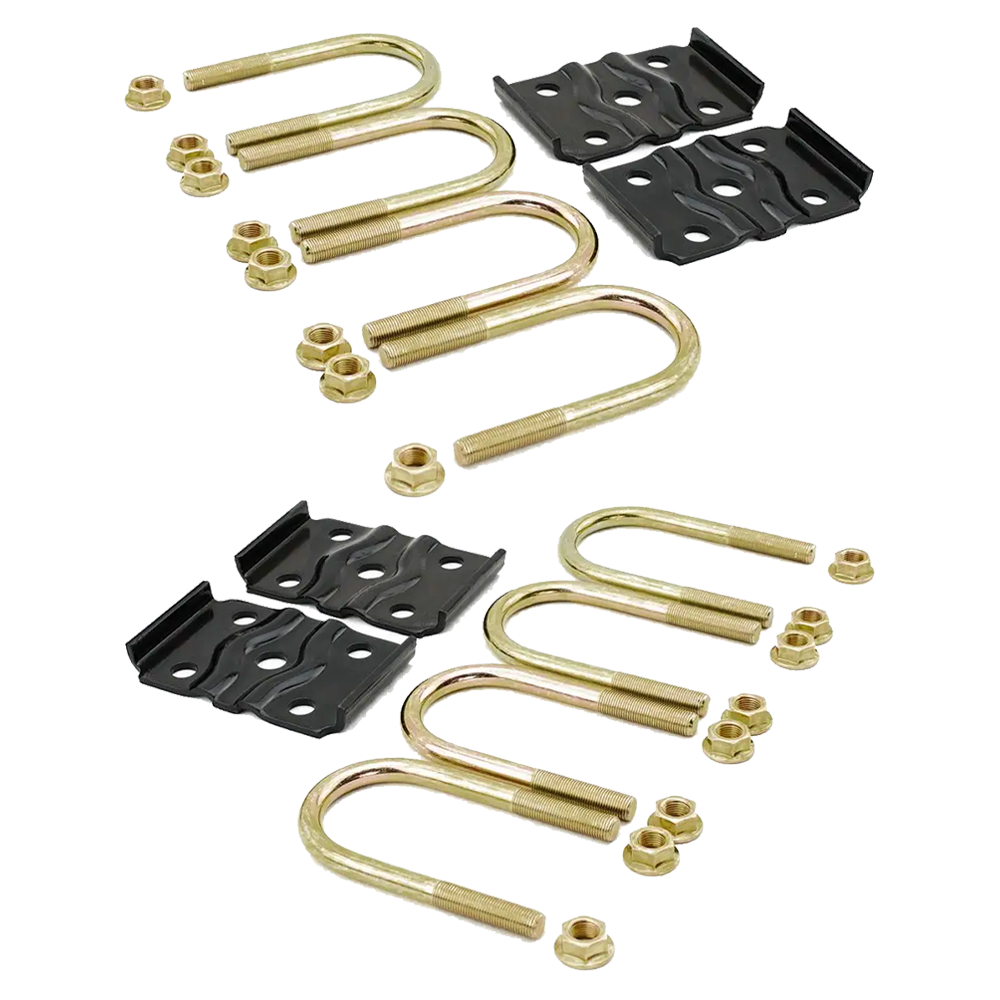

• QTY (2): Lippert Axle Mounting Kit – 2.375″ Tube
  • U-bolt kits sized to fit 2.375″ diameter tubes
  • Secures leaf springs to axle
  • Standard hardware included for easy installation
• QTY (2): Front Trailer Axle Hanger – 4-5/16″ x 2-3/16″, 2,200–8,000-lb. Rating
  • Welds to front position on chassis
  • Length: 4-5/16″, Width: 2-3/16″
  • Distance to hole (center on center): 3-9/16″
  • Hole size: 9/16″
• QTY (2): Center Trailer Axle Hanger – 4-1/2″ x 3-1/8″, 2,200–8,000-lb. Rating
  • Welds to center position on chassis for tandem setups
  • Length: 4-1/2″, Width: 3-1/8″
  • Distance to hole (center on center): 3-5/16″
  • Hole size: 7/8″
• QTY (2): Rear Trailer Axle Hanger – 6″ x 2-1/4″, 2,200–8,000-lb. Rating
  • Welds to rear position on chassis
  • Length: 6″, Width: 2-1/4″
  • Distance to hole: 4″
  • Hole size: 5/16″

For optimal performance and safety, always verify original equipment specifications and perform regular inspections. Properly installed suspension components help reduce wear and extend the life of your trailer.
