Lippert Tandem‑Axle Slipper‑Spring Suspension Bundle – Complete OE‑Fit Upgrade

Refresh or upgrade the suspension on tandem 3,500‑lb axles with this precision‑matched Lippert bundle. Designed for 2.375″ round tubes, it pairs four 24″ (26‑7/8″ eye‑to‑end) slipper springs with a standard AP equalizer, plus front, center and rear hangers and all mounting hardware for a simple, factory‑style installation compatible with Dexter, Alko, Rockwell and Quality axles.

Bundle Contents:

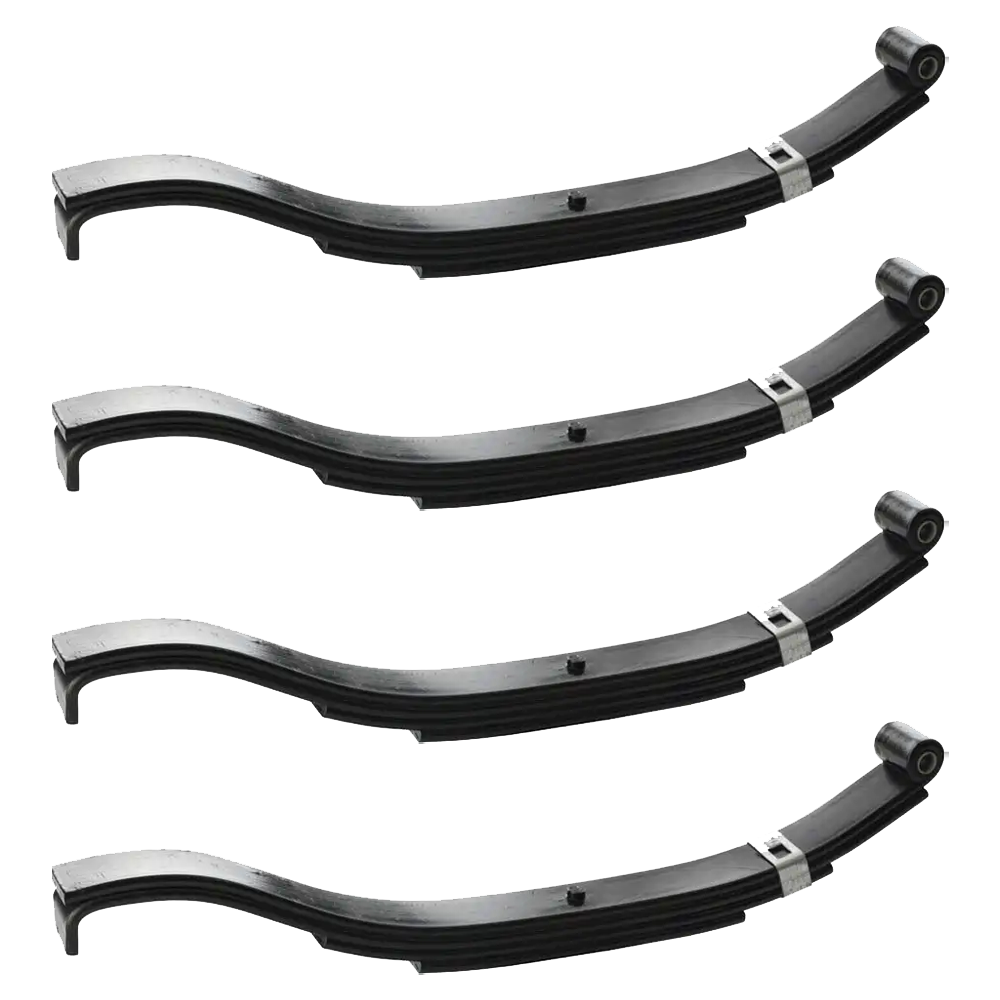

• QTY (4): 24″ Slipper Leaf Spring
  • Dexter Compatible Part Number: 072‑030‑00
  • 26‑7/8″ eye‑to‑end length
  • 2″ wide • 4 leaves
  • 3″ arch unloaded • 2″ loaded
  • 9/16″ eye diameter • 2,000 lb rating each

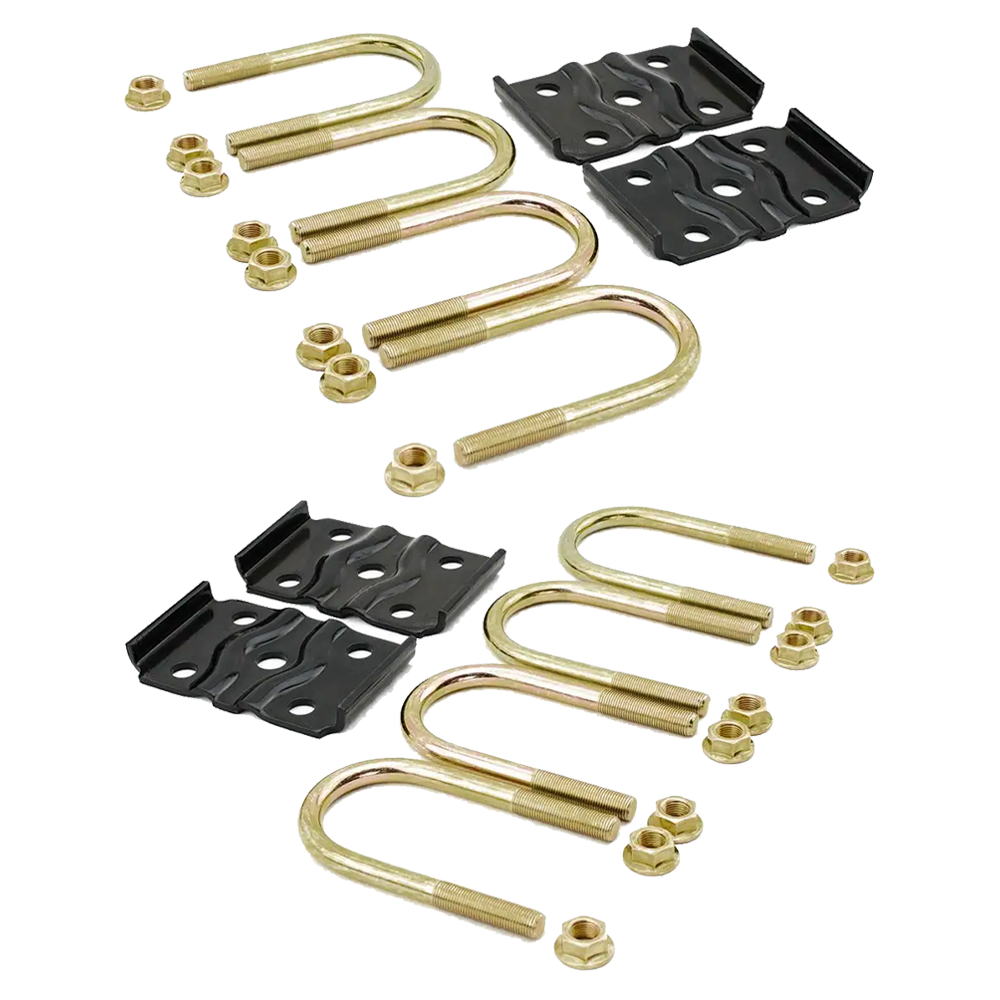

• QTY (2): Axle Mounting Kit – Fits 2.375″ Tube
  • (4) U‑bolts – 4‑1/4″ L × 3/8″ Ø
  • (2) Tie plates
  • (8) Hex nuts – fine‑thread
  • Zinc‑plated bolts • powder‑coated plates

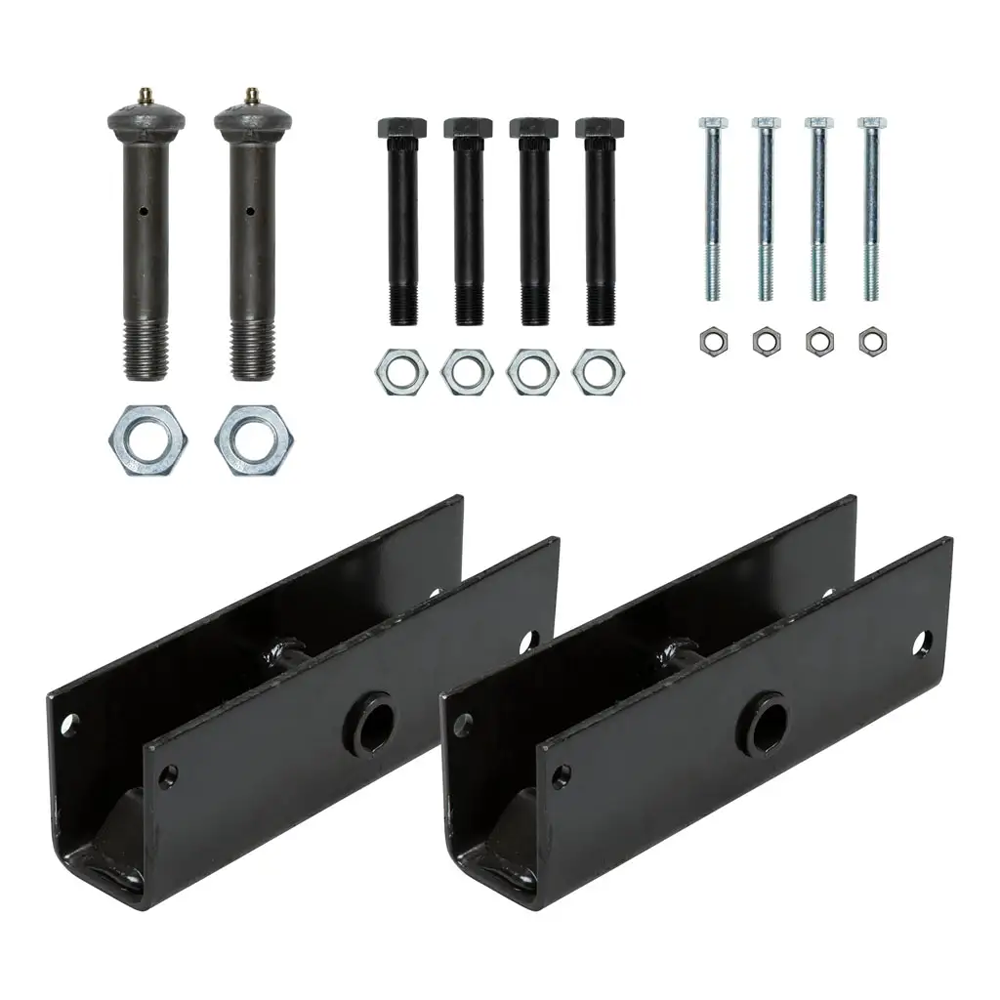

• QTY (1): AP Suspension Hardware Kit – Standard AP Equalizer (EQ‑1304)
  • Dexter Compatible Part Number: A/P-202-00
  • (2) AP equalizers – 33‑½″ axle spacing
  • (2) 4.7″ equalizer bolts
  • (4) 3.5″ shackle bolts
  • (4) 3.25″ keeper bolts
  • (2) Equalizer nuts – 7/8″‑9 thread
  • (4) Lock nuts – 9/16″‑18 thread
  • (4) Keeper nuts – 5/16″‑18 thread
• QTY (2): Front Trailer Axle Hanger – 4‑5/16″ L × 2‑3/16″ W
  • 3‑9/16″ hole spacing
  • 9/16″ hole size
  • Weld‑on steel • Fits 2,200 – 8,000 lb axles
• QTY (2): Center Trailer Axle Hanger – 4‑1/2″ L × 3‑1/8″ W
  • 3‑5/16″ hole spacing
  • 7/8″ hole size
  • Weld‑on steel • Fits 2,200 – 8,000 lb axles
• QTY (2): Rear Trailer Axle Hanger – 6″ L × 2‑1/4″ W
  • 4″ hole spacing
  • 5/16″ hole size
  • Finishes slipper layout for smooth articulation

Verify axle tube diameter and spring length before installation, and service bushings and fasteners periodically for optimal ride quality.
