Lippert?Tandem?Axle Slipper?Spring Suspension?Kit �?2,200?lb Axles, 33?�? Axle?Spacing, 1.75? Tube, 25??4?Leaf Springs, Hangers?&?Hardware � Dexter?/?Alko?/?Rockwell Compatible

Lippert Tandem‑Axle Slipper‑Spring Suspension Kit – Complete Upgrade for 2,200 lb Axles

Refresh your trailer’s ride with this precision‑matched Lippert bundle. Engineered for tandem 2,200 lb axles, it combines high‑capacity 25″ 4‑leaf slipper springs with the robust EQ‑1304 equalizer, weld‑on hangers and a 1.75″ tube U‑bolt kit—everything required for a no‑guesswork swap‑out.

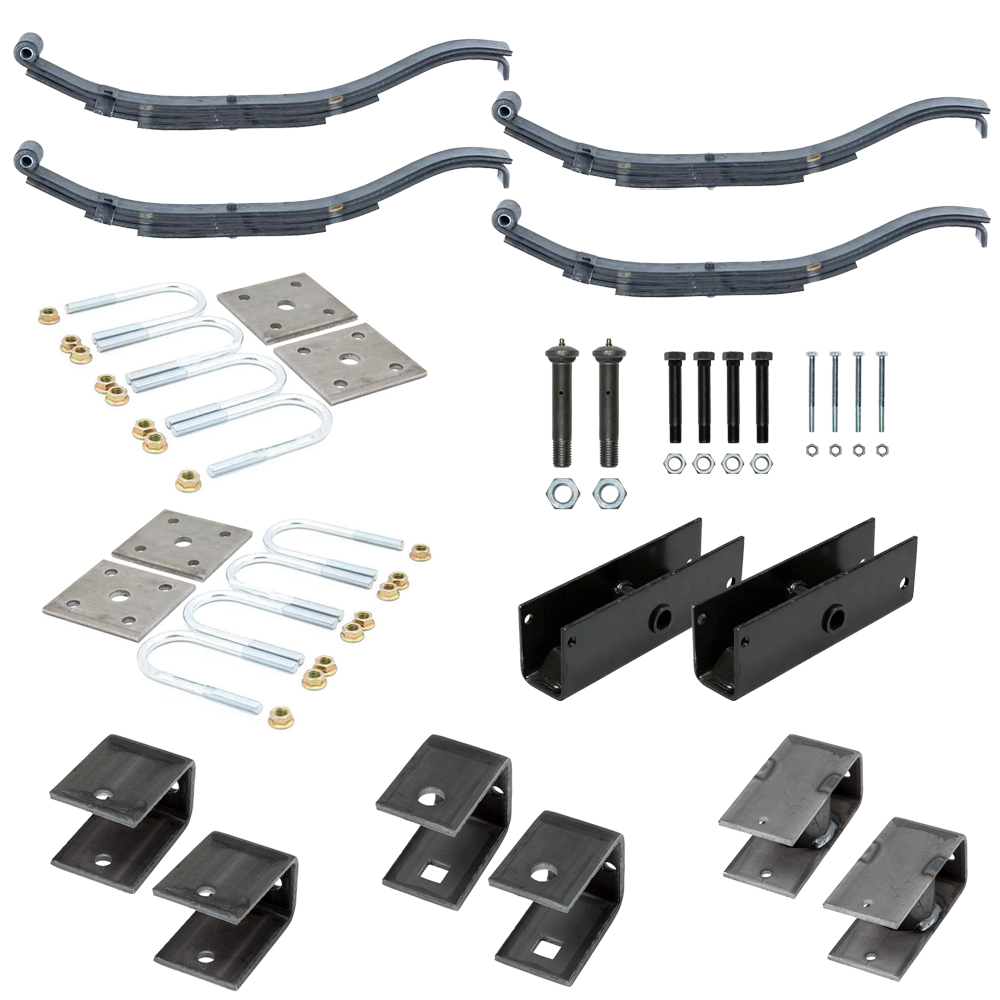

Bundle Contents:

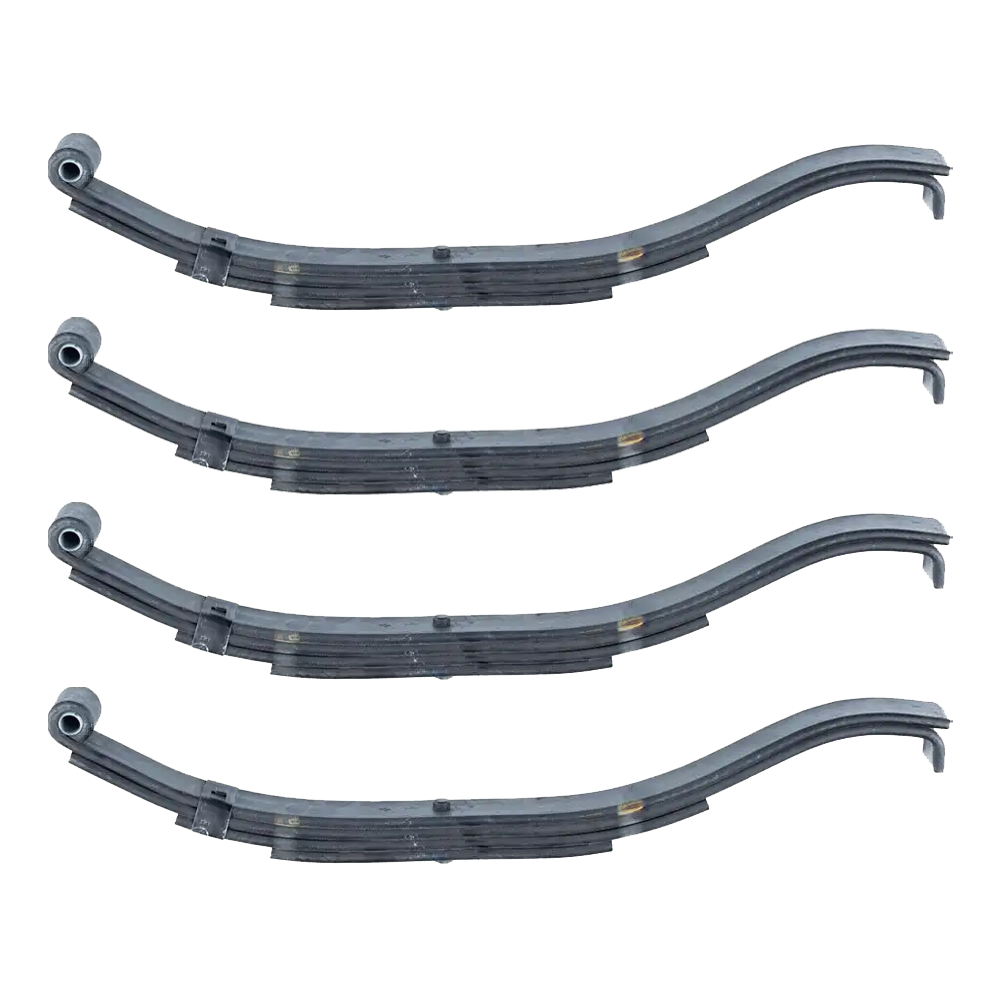

• QTY (4): 25″ Slipper Leaf Spring – 2,500 lb Capacity
  • Axle capacity per spring: 2,200 lb
  • Dexter Compatible PN: 072‑031‑00
  • 26‑7/8″ eye‑to‑slipper length • 2″ width • 4 leaves
  • Arch height: 3‑1/16″ unloaded • 2″ loaded
  • Eye diameter: 9/16″

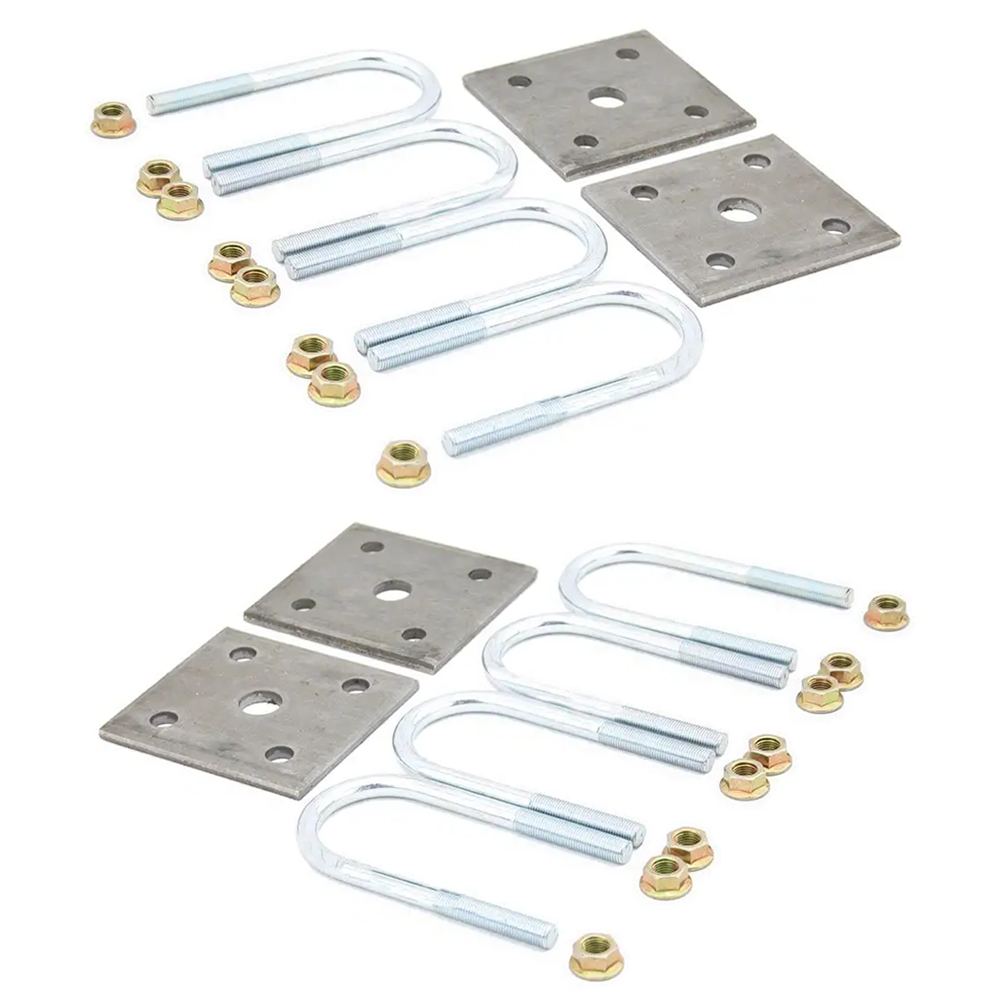

• QTY (2): Axle Mounting (U‑Bolt) Kit – 1.75″ Tube
  • Dexter Compatible PN: K71‑391‑00
  • Fits 1.75″ round axle tubes
  • Includes (4) 3/8″‑24 × 4″ U‑bolts, (2) tie‑plates, (8) nuts
  • Zinc‑plated bolts • Powder‑coated plates

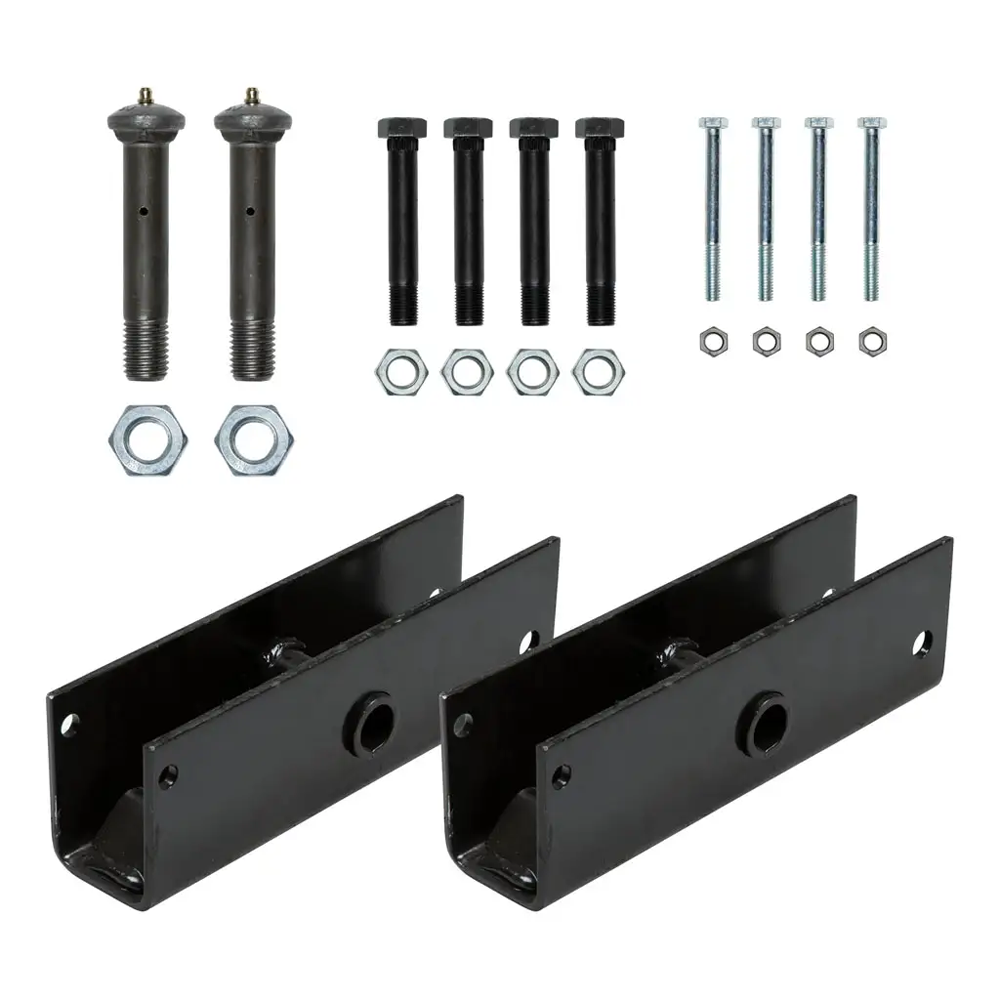

• QTY (1): Trailer Axle AP Suspension Kit (EQ‑1304)
  • Dexter Compatible PN: A/P‑302‑00
  • Kit Contents:
  •  • (2) Equalizers
  •  • (2) Equalizer bolts – 4.7″ L
  •  • (4) Shackle bolts – 3.5″ L
  •  • (4) Keeper bolts – 3.25″ L
  •  • (2) Equalizer nuts – 7/8″‑9 thread
  •  • (4) Lock nuts – 9/16″‑18 thread
  •  • (4) Keeper nuts – 5/16″‑18 thread
  • Robotic‑welded, traceable production run
• QTY (2): Front Trailer Axle Hanger – 4‑5/16″ L × 2‑3/16″ W
  • Axle capacity: 2,200 lb • Weld‑on
  • Distance to hole: 3‑9/16″ OC • Hole size: 9/16″
• QTY (2): Center Trailer Axle Hanger – 4‑1/2″ L × 3‑1/8″ W
  • Axle capacity: 2,200‑8,000 lb • Weld‑on
  • Distance to hole: 3‑5/16″ OC • Hole size: 7/8″
• QTY (2): Rear Trailer Axle Hanger – 6″ L × 2‑1/4″ W
  • Axle capacity: 2,200‑8,000 lb • Weld‑on
  • Distance to hole: 4″ OC • Hole size: 5/16″

Always confirm your OEM specs before installation and perform regular maintenance for safe, trouble‑free towing.
