Lippert Tandem‑Axle Slipper‑Spring Suspension Kit – Complete Rebuild for 2,200 lb Axles

Refresh your trailer’s ride with this all‑inclusive Lippert suspension bundle. Built for tandem‑axle trailers that run 1.75″ round tubes and 26‑7/8″ × 2″ 4‑leaf slipper springs, the kit supplies every component—springs, equalizers, hangers, U‑bolts and hardware—for a fast, worry‑free install. Genuine Lippert parts deliver long‑lasting performance and are fully compatible with Dexter, Al‑Ko, Rockwell and Quality Axles.

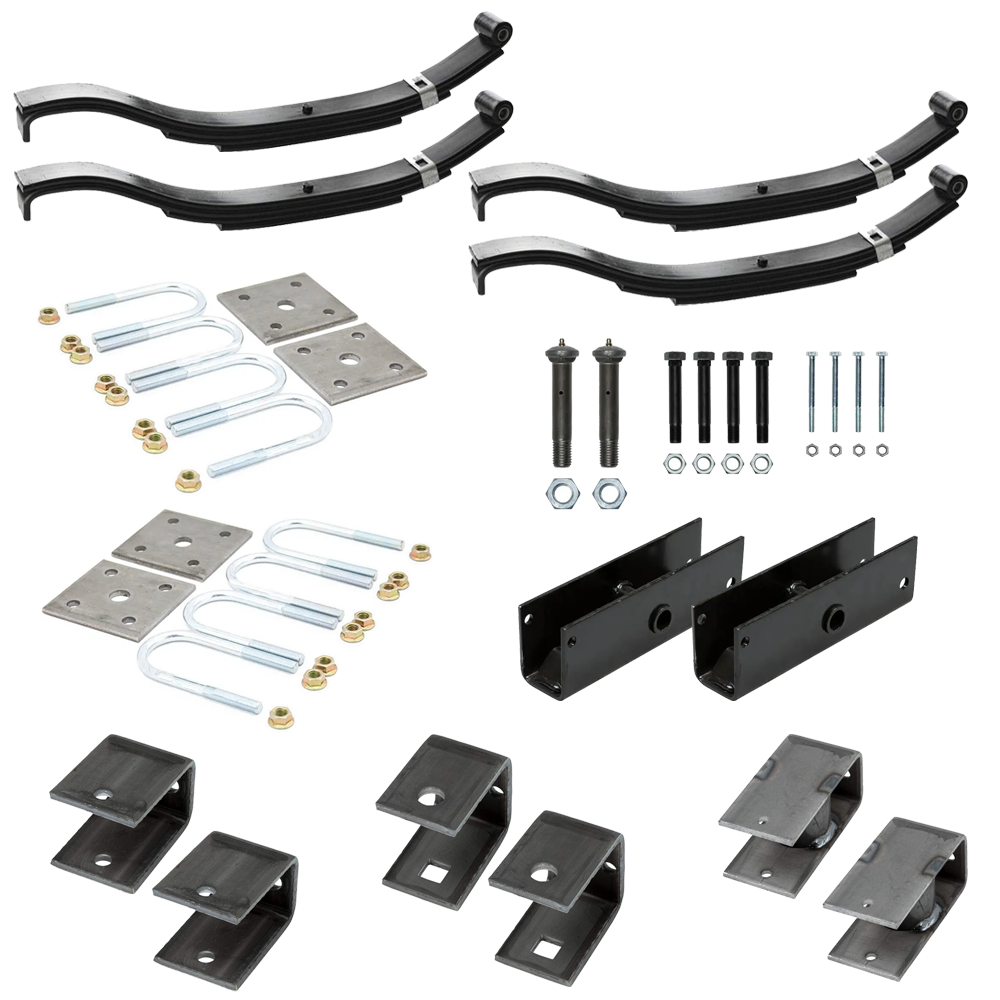

Bundle Contents:

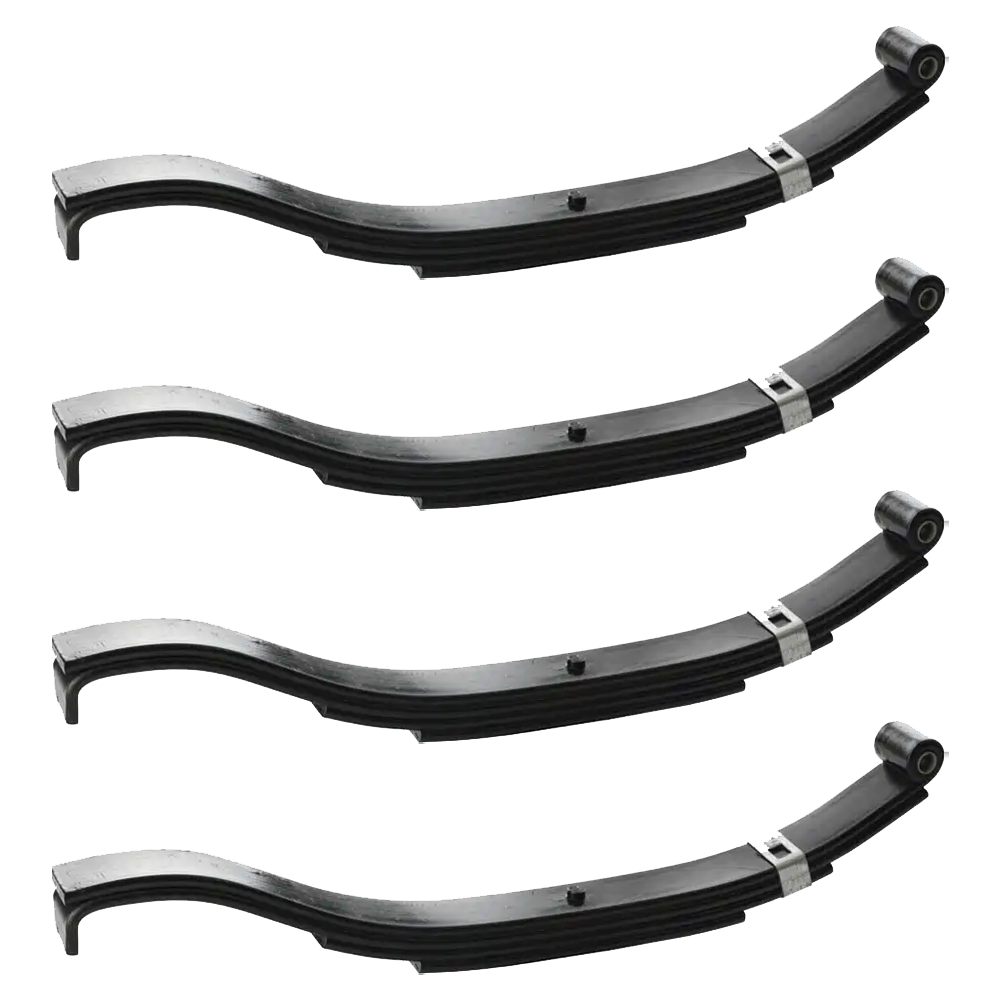

• QTY (4): 26‑7/8" × 2" 4‑Leaf Slipper Spring – 2,000 lb Capacity
  • Axle rating per spring: 2,000 lb
  • 4‑leaf, 2″ wide; 26‑7/8″ eye‑to‑end; 9/16″ eye diameter
  • Arch height – 3″ unloaded / 2″ loaded
  • Dexter compatible PN: 072‑030‑00

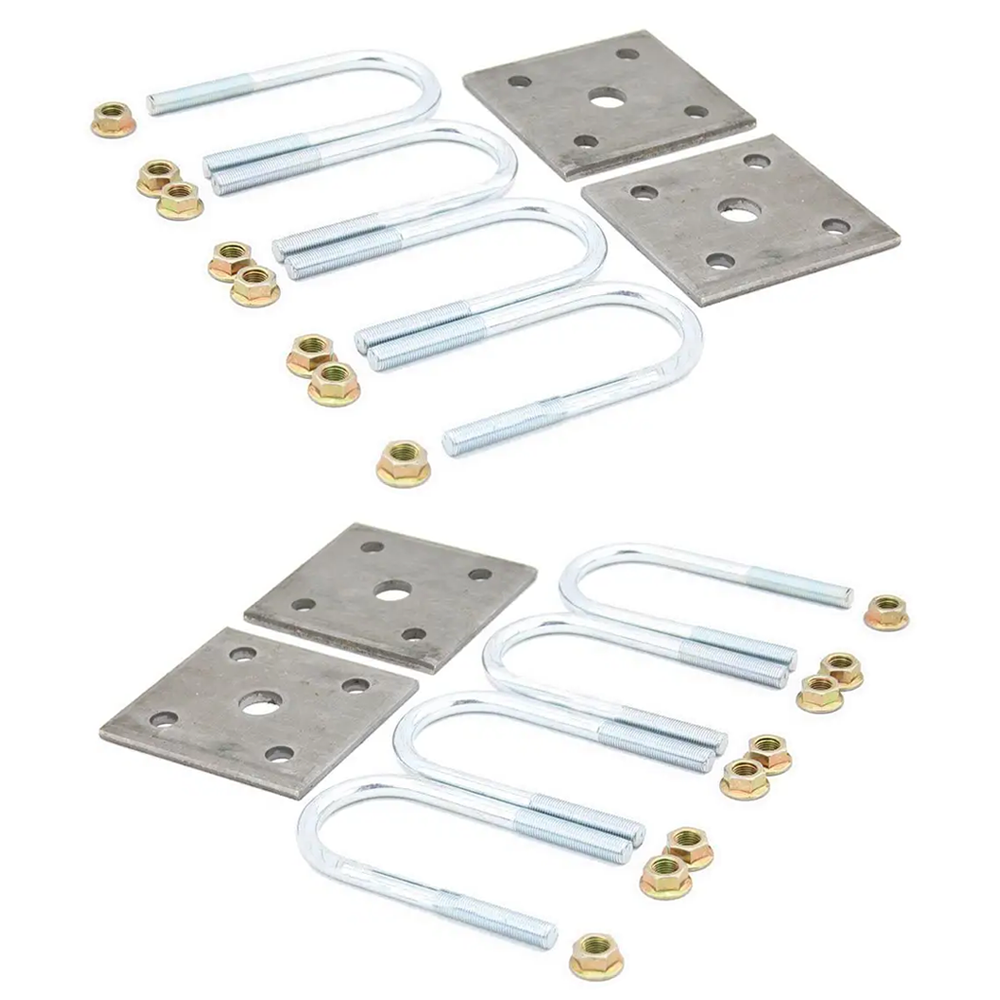

• QTY (2): Axle U‑Bolt Mounting Kit – 1.75" Tube
  • Axle rating: 2,200 lb per axle
  • (4) U‑bolts – 3/8″‑24 × 4‑1/4″, (2) tie‑plates, (8) nuts
  • Zinc‑plated hardware for 1.75″ round axles
  • Dexter compatible PN: K71‑391‑00

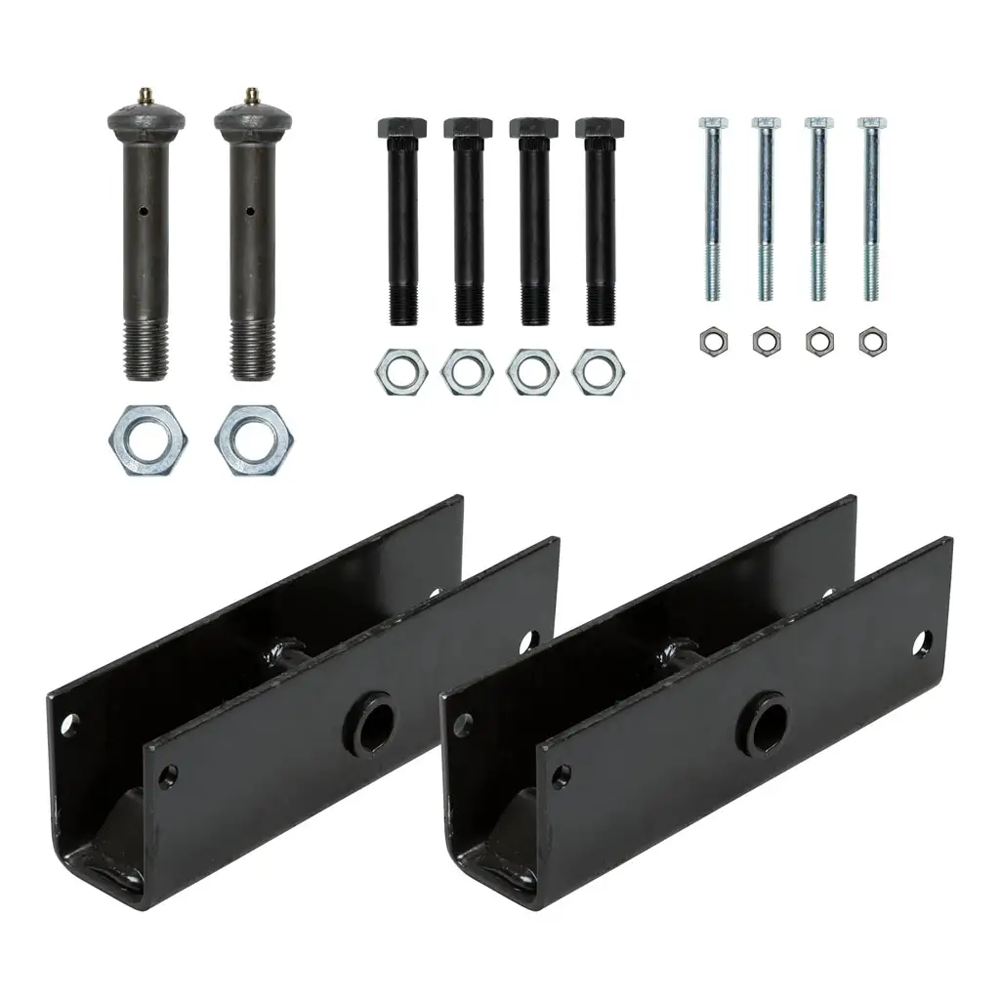

• QTY (1): AP Equalizer & Hardware Kit – Standard, 33‑1/2" Spacing
  • Axle rating: 7,000‑8,000 lb tandem slipper axles
  • (2) EQ‑1304 equalizers – 33‑1/2″ axle spacing
  • Hardware included:
    • (2) equalizer bolts 4.7″ L, 7/8″‑9 thread + nuts
    • (4) shackle bolts 3.5″ L + (4) 9/16″‑18 lock nuts
    • (4) keeper bolts 3.25″ L + (4) 5/16″‑18 keeper nuts
  • Dexter compatible PN: A/P‑202‑00
• QTY (2): Front Axle Hanger – 4‑5/16" L × 2‑3/16" W
  • Axle rating: 2,200‑8,000 lb
  • 3‑9/16″ hole spacing; 9/16″ hole diameter
• QTY (2): Center Axle Hanger – 4‑1/2" L × 3‑1/8" W
  • Axle rating: 2,200‑8,000 lb
  • 3‑5/16″ hole spacing; 7/8″ hole diameter
• QTY (2): Rear Axle Hanger – 6" L × 2‑1/4" W
  • Axle rating: 2,200‑8,000 lb
  • 4″ hole spacing; 5/16″ hole diameter

Always confirm measurements against your original equipment, torque all fasteners to specification, and inspect suspension components regularly for safe, trouble‑free towing.
