Lippert Tandem Axle Suspension Kit – 3,500 lb, 1.75″ Tube, 2,200 lb Leaf (25-1/4″), Tall Equalizer

Upgrade or replace your trailer’s suspension with this complete Lippert kit designed for tandem axle configurations rated at 3,500 lbs. Featuring four 25-1/4" leaf springs (each rated at 2,200 lbs), a tall equalizer AP kit, plus front, center, and rear hangers with all necessary hardware, this bundle delivers reliable performance for Dexter, Alko, Rockwell, and Quality Axles. It’s everything you need to outfit your trailer with trusted Lippert engineering.

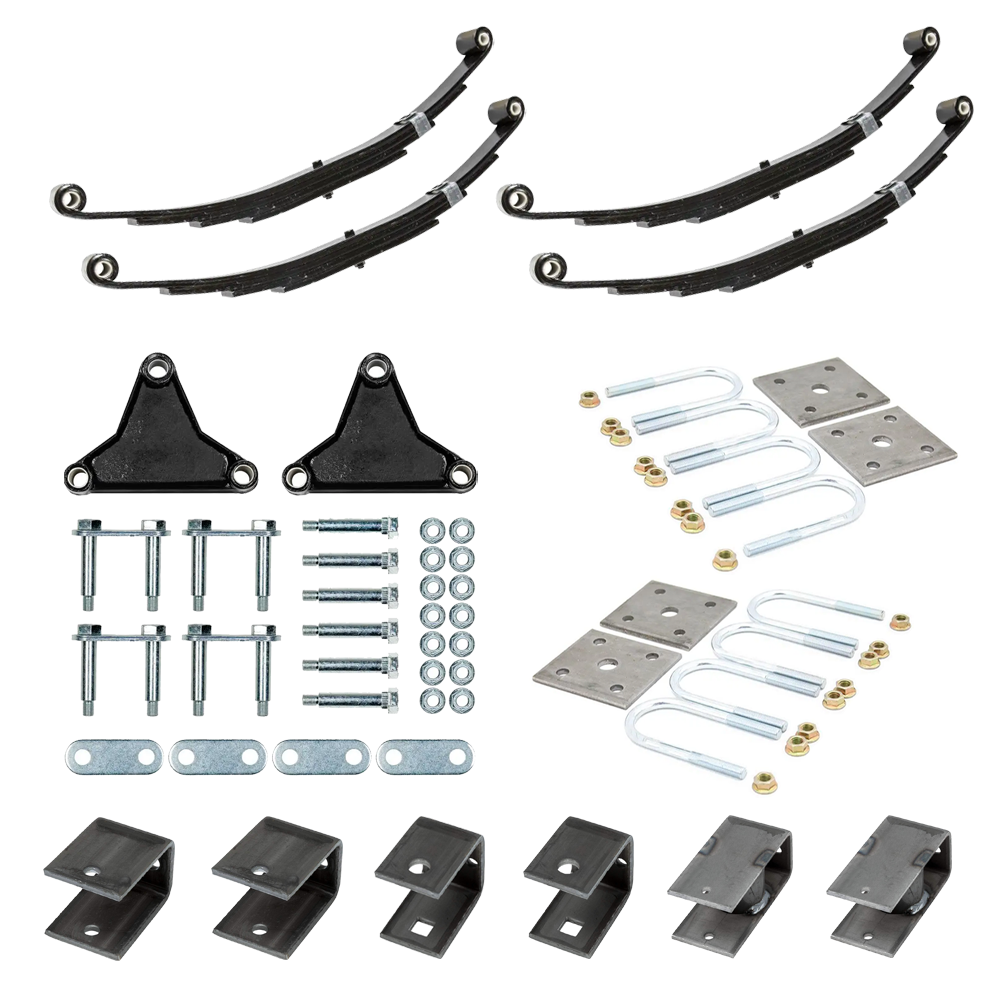

Bundle Contents:

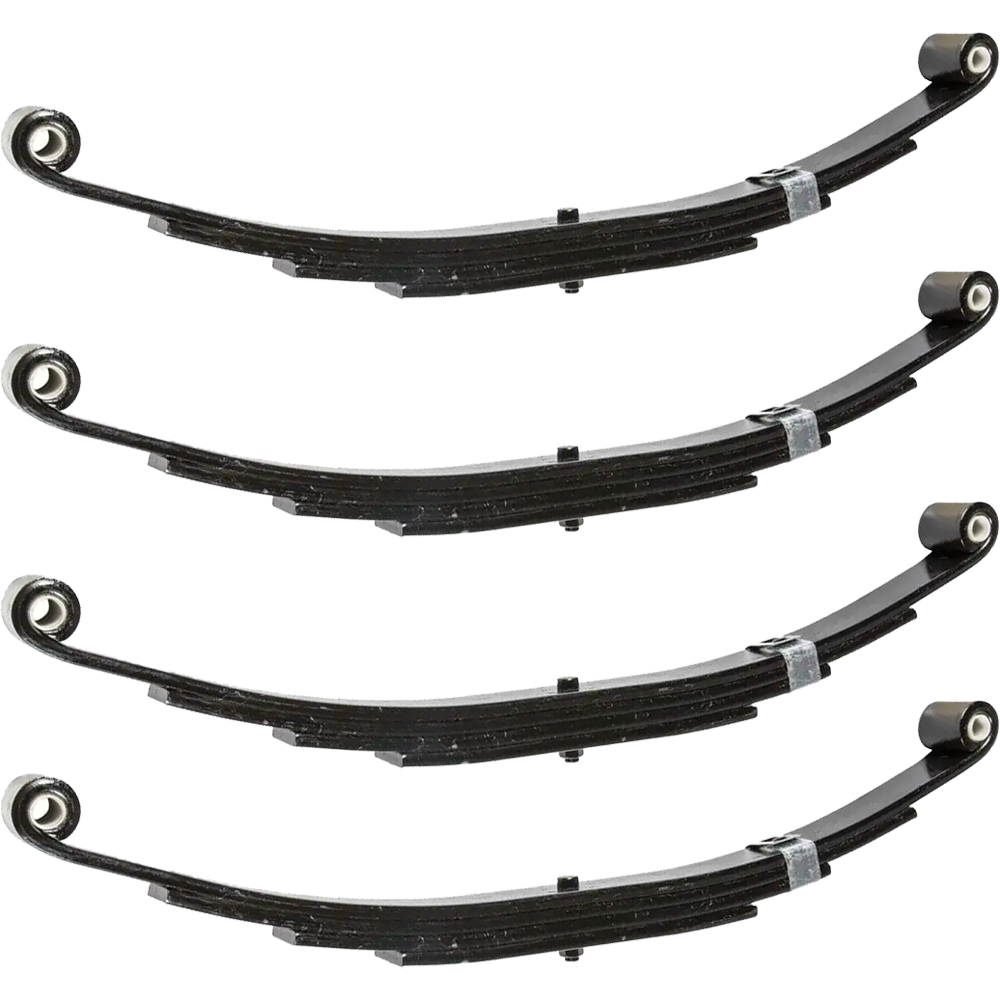

• QTY (4): Replacement Leaf Spring – 25-1/4", 2,200 lb Capacity
  • Double-eye leaf spring for RV/trailer use
  • 1-3/4" width; 4-layer construction
  • Unloaded eye-to-eye length: 25-1/4"; loaded eye-to-eye length: 26"
  • Arch height unloaded: 3-1/8"; arch height loaded: 2"
  • Spring eye diameter: 9/16"

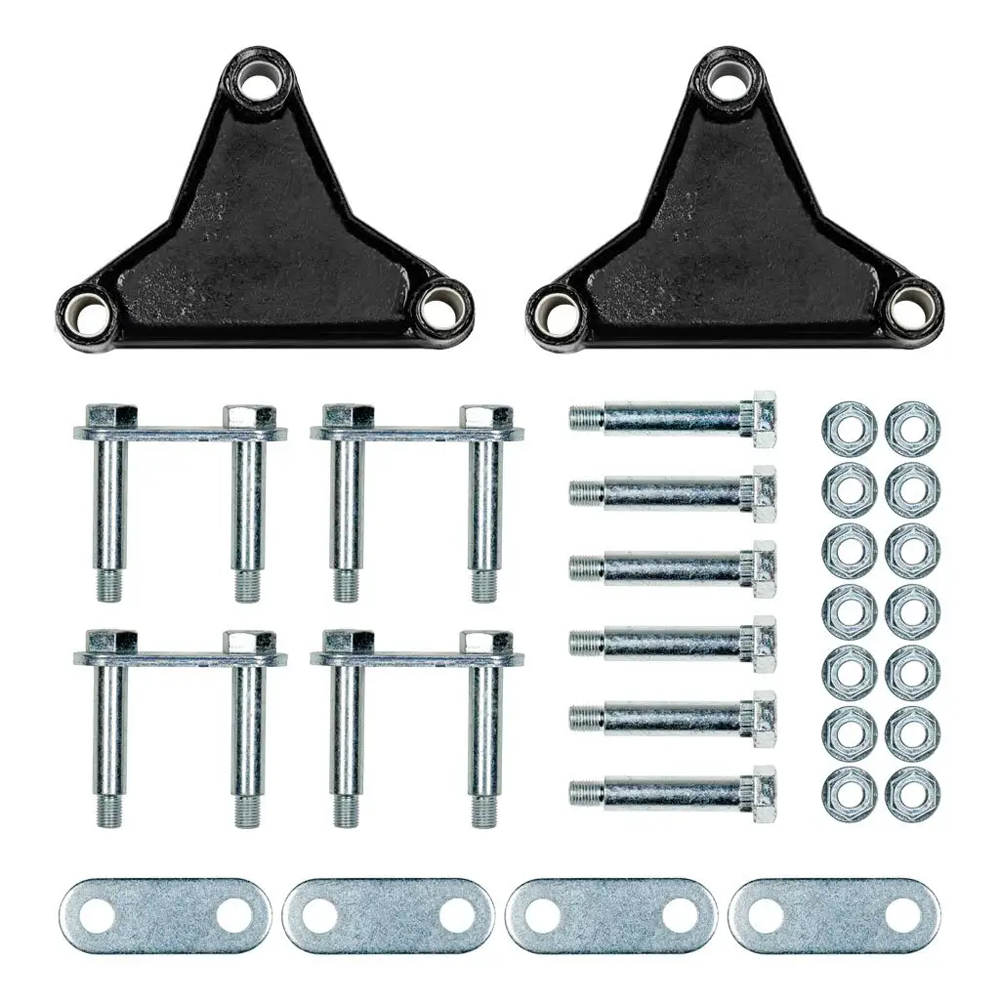

• QTY (1): Lippert AP Kit for Double-Eye Tandem Axles – Tall Equalizer
  • Equalizer Reference: EQ-310 (tall style)
  • Equalizer Bolt (Qty 3) – 2.88" length
  • Shackle Assembly (Qty 4) – 2.25" length
  • Shackle Plate (Qty 4) – 2.25" length
  • Shackle Bolt (Qty 6) – 2.88" length
  • Equalizer Nut (Qty 2) – 7/16"-20 thread
  • Lock Nut (Qty 14) – 7/16"-20 thread

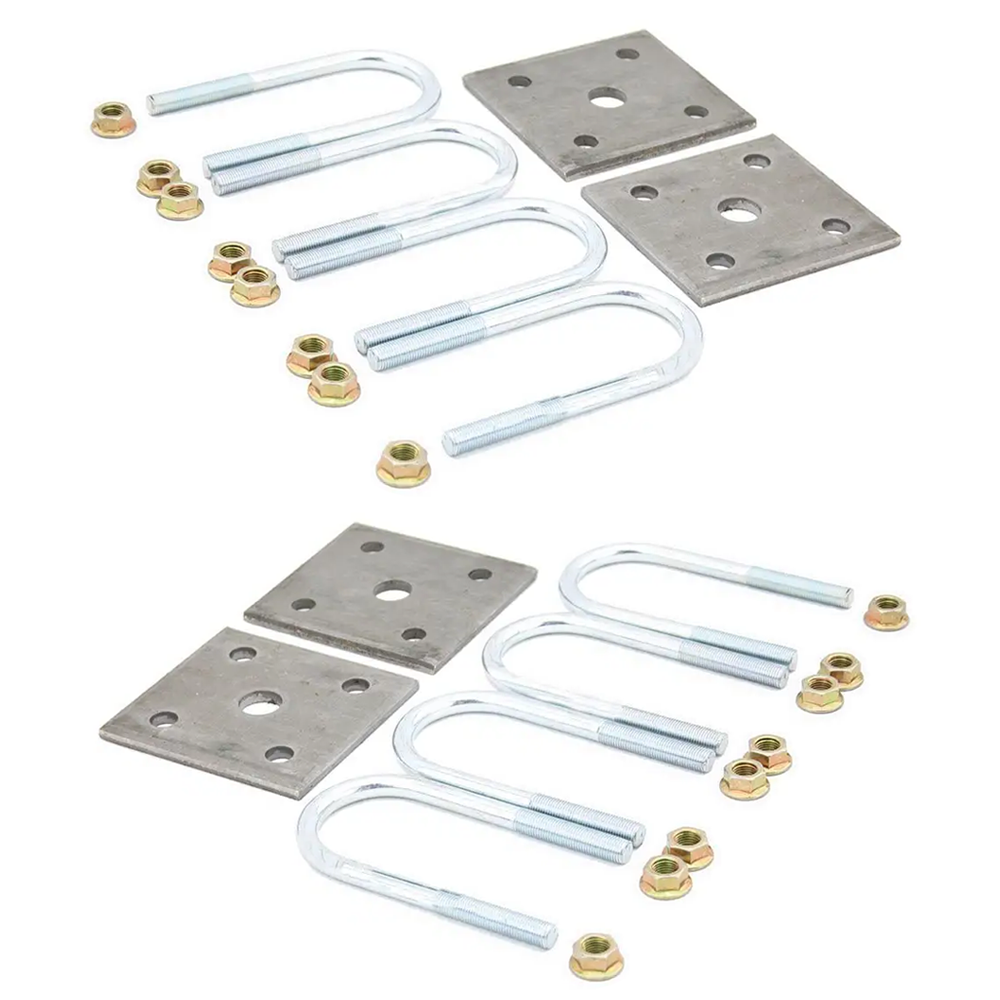

• QTY (2): Axle Mounting Kit – 1.75" Tube
  • U-bolts sized to fit 1.75" axle tubes
  • Direct replacement for worn or damaged mounting hardware
• QTY (2): Front Trailer Axle Hanger – 4-5/16" x 2-3/16"
  • Axle capacity range: 2,200–8,000 lbs.
  • Distance to hole: 3-9/16" on-center; hole size: 9/16"
  • Length: 4-5/16"; width: 2-3/16"
• QTY (2): Center Trailer Axle Hanger – 4-1/2" x 3-1/8"
  • Axle capacity range: 2,200–8,000 lbs.
  • Distance to hole: 3-5/16"; hole size: 7/8"
  • Length: 4-1/2"; width: 3-1/8"
• QTY (2): Rear Trailer Axle Hanger – 6" x 2-1/4"
  • Axle capacity range: 2,200–8,000 lbs.
  • Distance to hole: 4"; hole size: 5/16"
  • Length: 6"; width: 2-1/4"

To ensure top performance and safety, confirm compatibility with your original axle components and follow recommended service intervals. Regular inspection of suspension parts helps maintain a smooth, reliable tow.
