Lippert Tandem Axle Suspension Kit – 3,500 lb, 2.375" Tube, 2,600 lb Leaf (25-1/4"), Standard Equalizer

This comprehensive Lippert tandem axle suspension kit is designed for 3,500 lb axles with 2.375" axle tubes. Each leaf spring supports 2,600 lb of capacity (25-1/4" length), providing excellent load handling for RVs and utility trailers. The Standard Equalizer ensures a smoother ride, while included hangers and hardware make installation hassle-free. Compatible with Dexter, Alko, Rockwell, and Quality Axles.

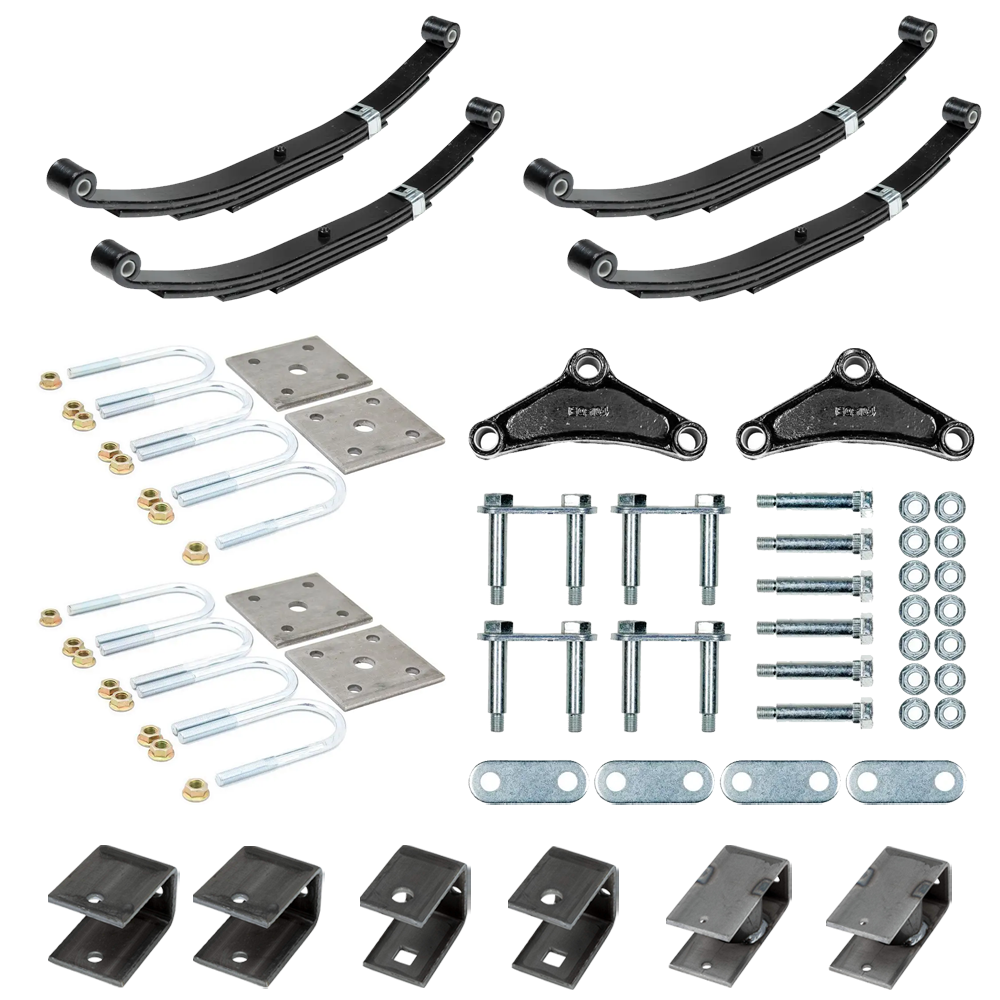

Bundle Contents:

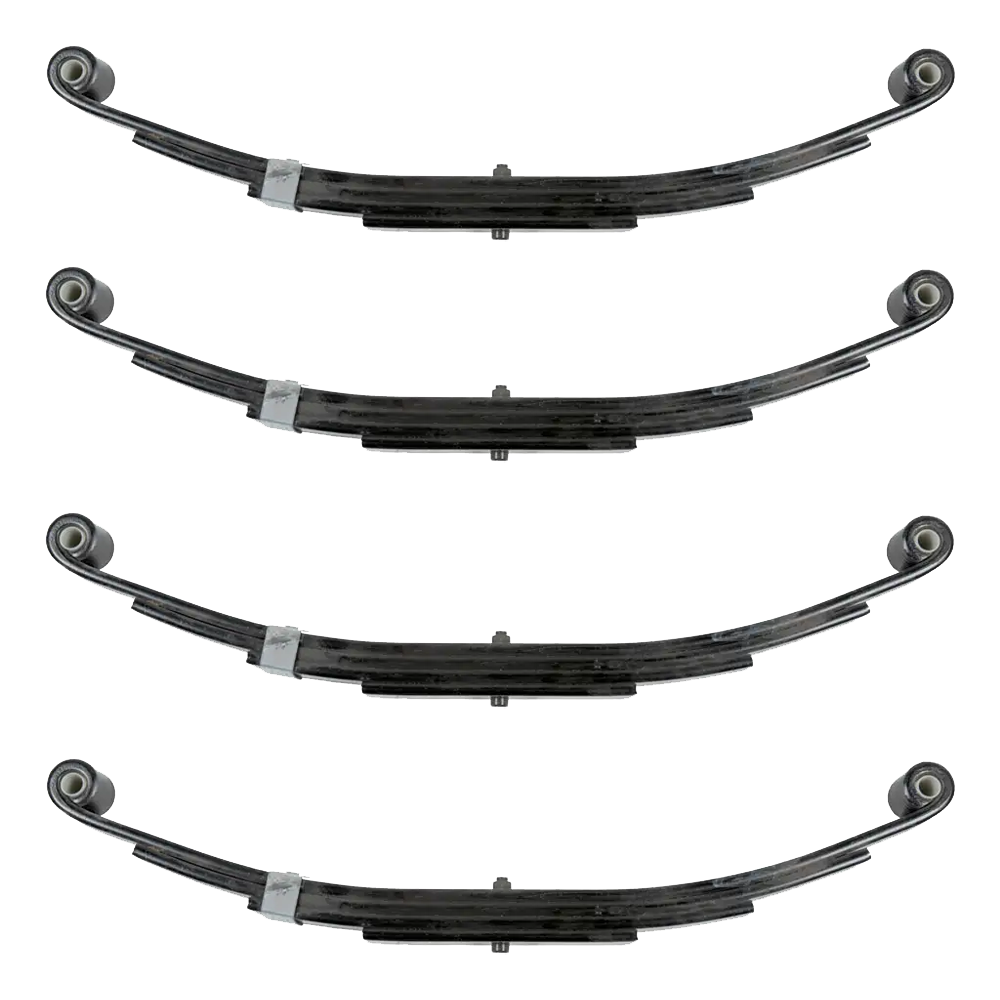

• QTY (4): Double-Eye Leaf Spring (2,600 lb Capacity, 25-1/4" Length)
  • 1-3/4" wide, 4-leaf configuration
  • Provides reliable support and smoother towing
  • Check existing suspension for exact fit

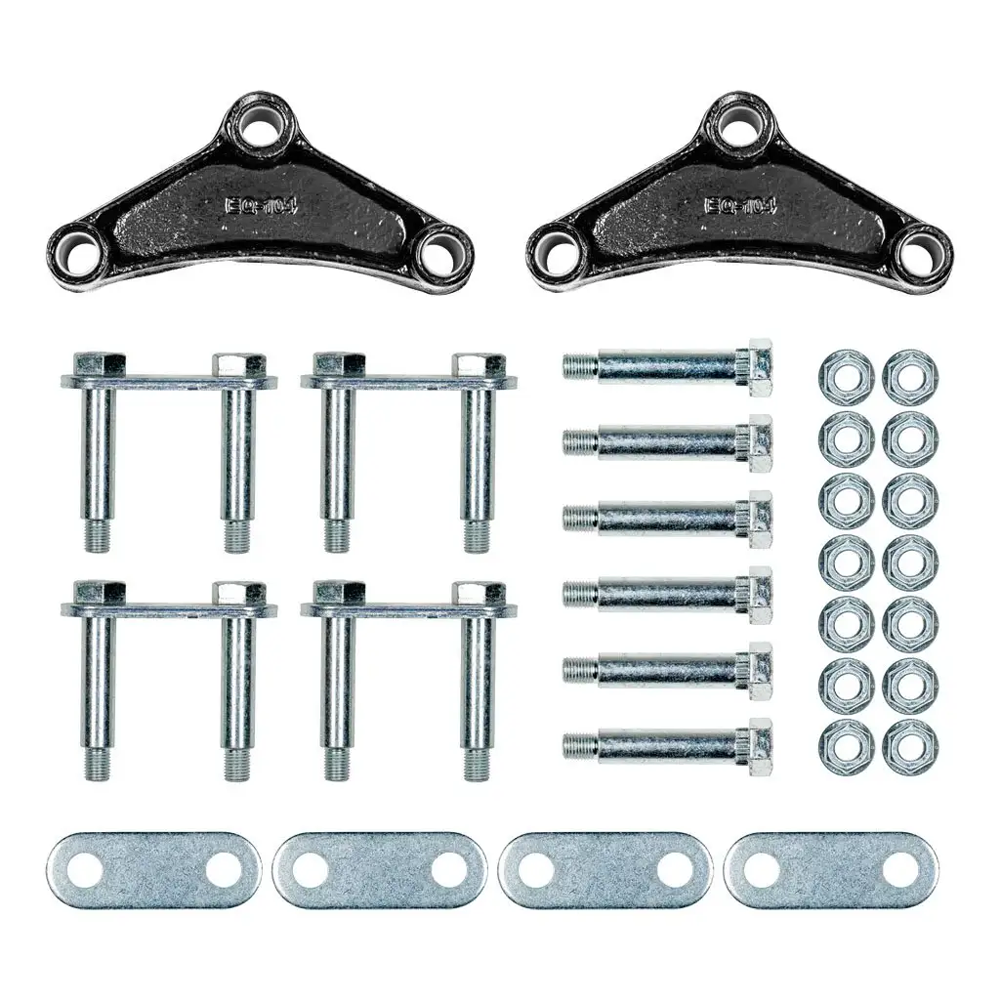

• QTY (1): Standard Equalizer Attaching Parts Kit for 2-7K Tandem Axles
  • Equalizer Reference: EQ-104
  • 1 x Standard Equalizer
  • 2 x Equalizer Bolts (2.88" length)
  • 4 x Shackle Assemblies (2.25" length)
  • 4 x Shackle Plates (2.25" length)
  • 6 x Shackle Bolts (2.88" length)
  • 2 x Equalizer Nuts (7/16"-20 thread)
  • 14 x Lock Nuts (7/16"-20 thread)

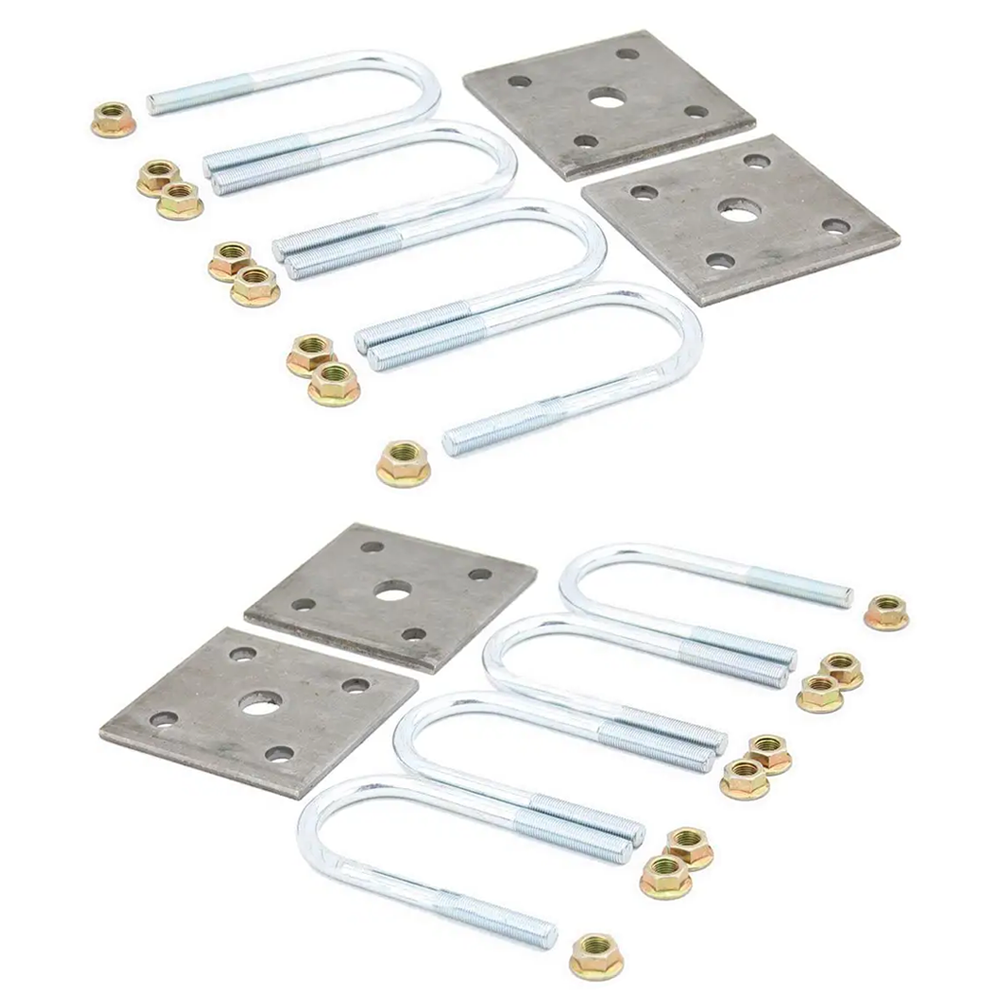

• QTY (2): Axle Mounting Kit – 2.375" Tube
  • Replacement U-bolts and tie plates
  • Perfect fit for 2.375" axle tubes
  • Securely fastens axle to leaf springs
• QTY (2): Front Trailer Axle Hanger
  • Length: 4-5/16", Width: 2-3/16"
  • Hole size: 9/16", Distance to hole (on-center): 3-9/16"
  • Welds to chassis; supports front spring eye
• QTY (2): Center Trailer Axle Hanger
  • Length: 4-1/2", Width: 3-1/8"
  • Hole size: 7/8", Distance to hole (on-center): 3-5/16"
  • Supports equalizer connection between the axles
• QTY (2): Rear Trailer Axle Hanger
  • Length: 6", Width: 2-1/4"
  • Hole size: 5/16", Distance to hole (on-center): 4"
  • Mounts at rear spring eye location

Always confirm measurements and capacities with your original components. Regular inspection and maintenance of suspension parts ensure safe, reliable towing.
