Lippert Tandem Axle Suspension Kit � 3,500 lb, 2.375" Tube, 24-7/8" 3,500 lb Leaf, Standard Equalizer, with Hangers & Hardware (Dexter, Alko, Rockwell, Quality Axles Compatible)

Lippert 3,500 lb Tandem Axle Suspension Kit – 2.375" Tube, 24-7/8" Leaf, Standard Equalizer

Upgrade or replace your tandem axle trailer’s suspension with this Lippert bundle designed for 3,500 lb axles featuring a 2.375" tube and 24-7/8" leaf springs. This all-in-one kit includes leaf springs, a standard equalizer AP kit, heavy-duty hangers, and all necessary mounting hardware for a smooth, stable ride. Compatible with Dexter, Alko, Rockwell, and other quality axles.

Bundle Contents:

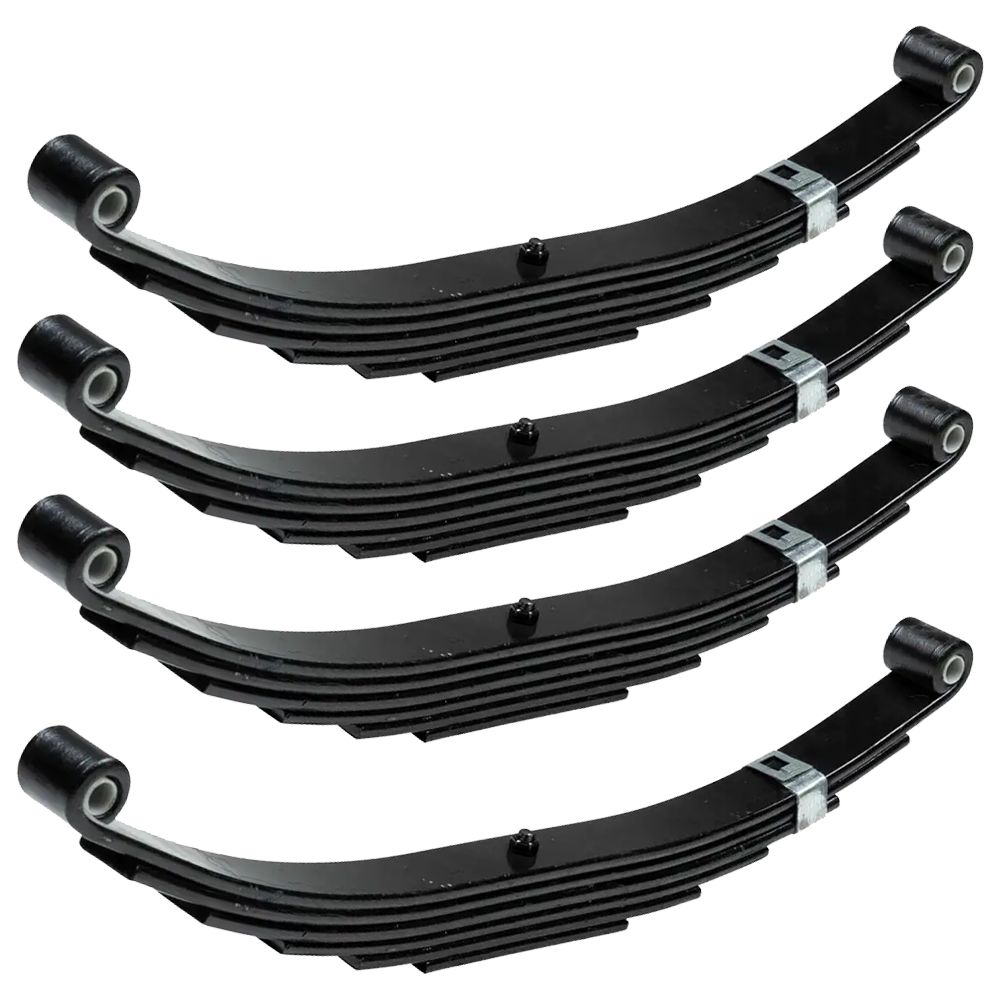

• QTY (4): Replacement Leaf Spring for RV Trailer (24-7/8" Length, 3,500 lb)
  • Capacity: 3,500 lbs.
  • Length: 24-7/8"
  • Width: 1-3/4"
  • 6 leaves per spring
  • Eye diameter: 9/16"

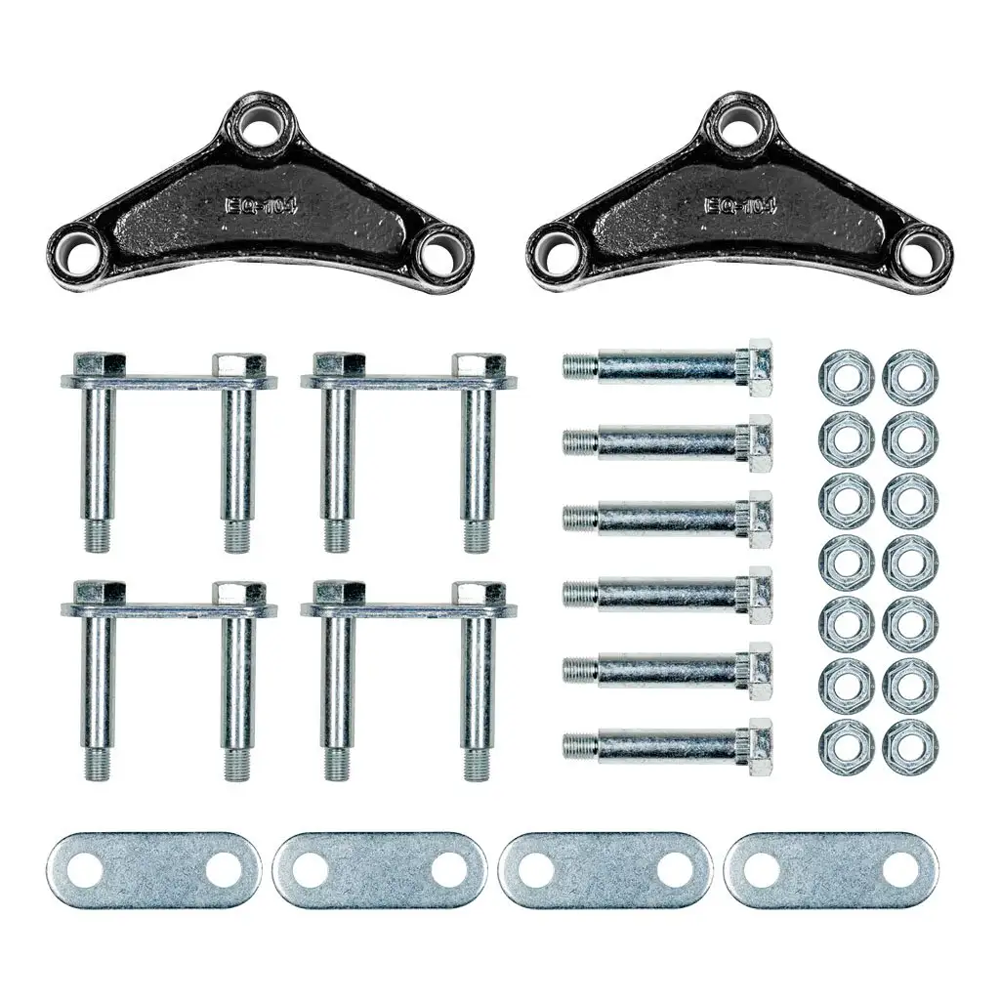

• QTY (1): Lippert Trailer Axle AP Kit for 2-7K Double-Eye Tandem Axles – Standard Equalizer
  • Equalizer Reference: EQ-104 (Standard)
  • Equalizer Bolts (2) – 2.88" length
  • Shackle Assemblies (4) – 2.25" length
  • Shackle Plates (4) – 2.25" length
  • Shackle Bolts (6) – 2.88" length
  • Equalizer Nuts (2) – 7/16"-20 thread
  • Lock Nuts (14) – 7/16"-20 thread

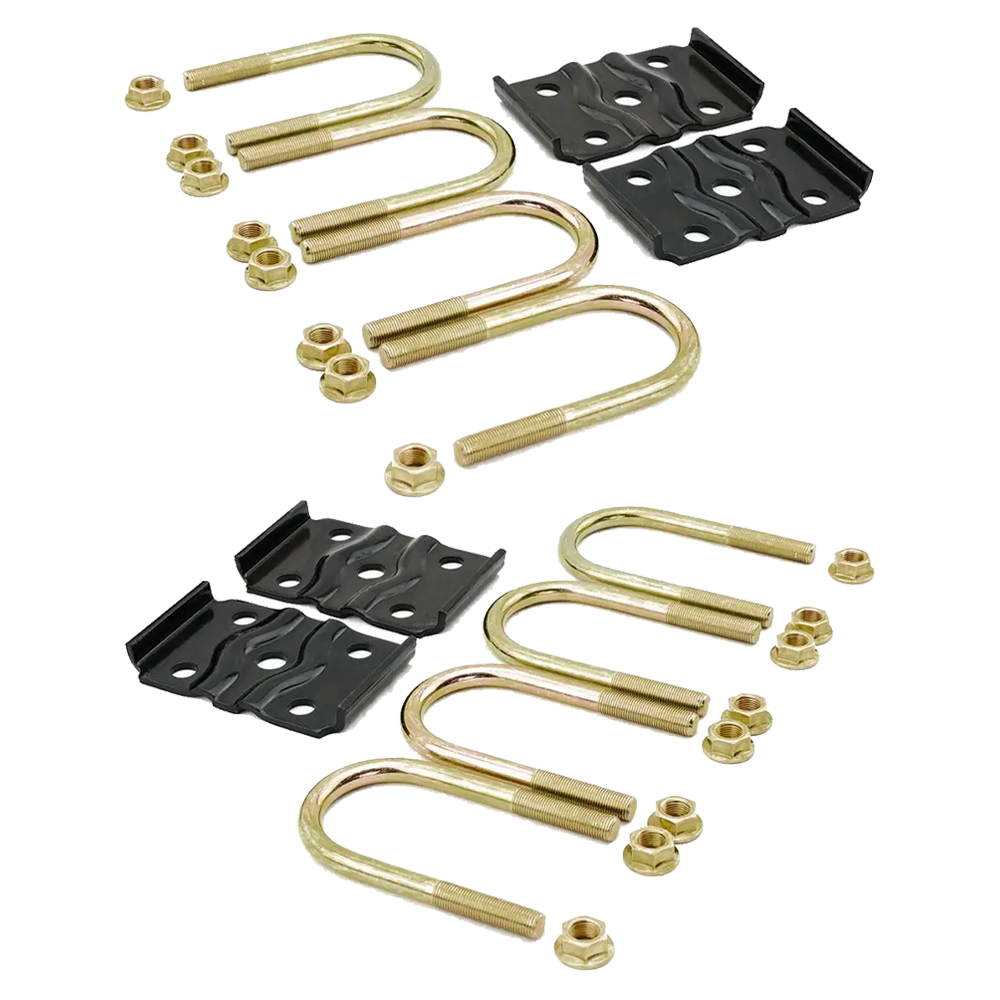

• QTY (2): Lippert Axle Mounting Kit – 2.375" Tube
  • Includes U-bolts and tie plates
  • Exact-match replacement for 2.375" axle tubes
• QTY (2): Front Trailer Axle Hanger – 4-5/16" x 2-3/16", 2,200 lb Axle Capacity
  • Welded to chassis for axle mounting
  • Length: 4-5/16"
  • Width: 2-3/16"
  • Hole size: 9/16"
  • Distance to hole: 3-9/16" on-center
• QTY (2): Center Trailer Axle Hanger – 4-1/2" x 3-1/8", 2,200-8,000 lb Axle Capacity
  • Length: 4-1/2"
  • Width: 3-1/8"
  • Hole size: 7/8"
  • Distance to hole: 3-5/16"
• QTY (2): Rear Trailer Axle Hanger – 6" x 2-1/4", 2,200-8,000 lb Axle Capacity
  • Length: 6"
  • Width: 2-1/4"
  • Hole size: 5/16"
  • Distance to hole: 4"

For best results, confirm all original equipment specifications, inspect your suspension system regularly, and follow manufacturer guidelines to maintain maximum safety and performance.
