Lippert Tandem Axle Suspension Kit – 3,500 lb, 2.375″ Tube, 3,000 lb Leaf Springs 25‑1/4″, Tall Equalizer

Upgrade your tandem axle trailer with this complete Lippert suspension kit designed for 3,500 lb axles (2.375″ tube). This bundle features 3,000 lb leaf springs (25‑1/4″ length), a tall equalizer kit (EQ-310) with all associated bolts, nuts, and plates, plus front, center, and rear hangers for a fully assembled system. Compatible with Dexter, Alko, Rockwell, Quality Axles, and more, this suspension solution helps provide a smoother, more reliable ride.

Bundle Contents:

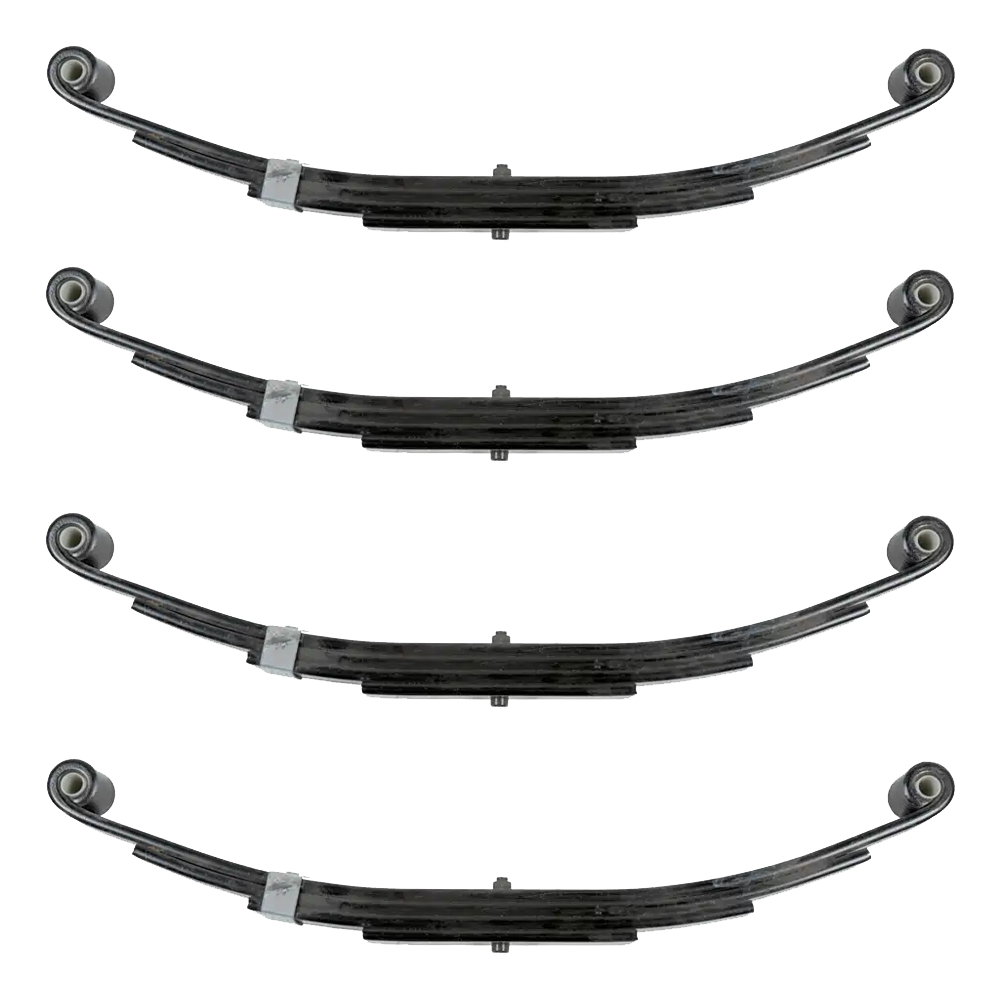

• QTY (4): Leaf Spring – 3,000 lb Capacity, 25‑1/4″ Length (4 Leaves)
  • Designed to fit tandem axle RV or trailer configurations
  • 3,000 lb capacity per spring, 1‑3/4″ wide
  • 25‑1/4″ eye‑to‑eye length
  • 9/16″ spring eye diameter

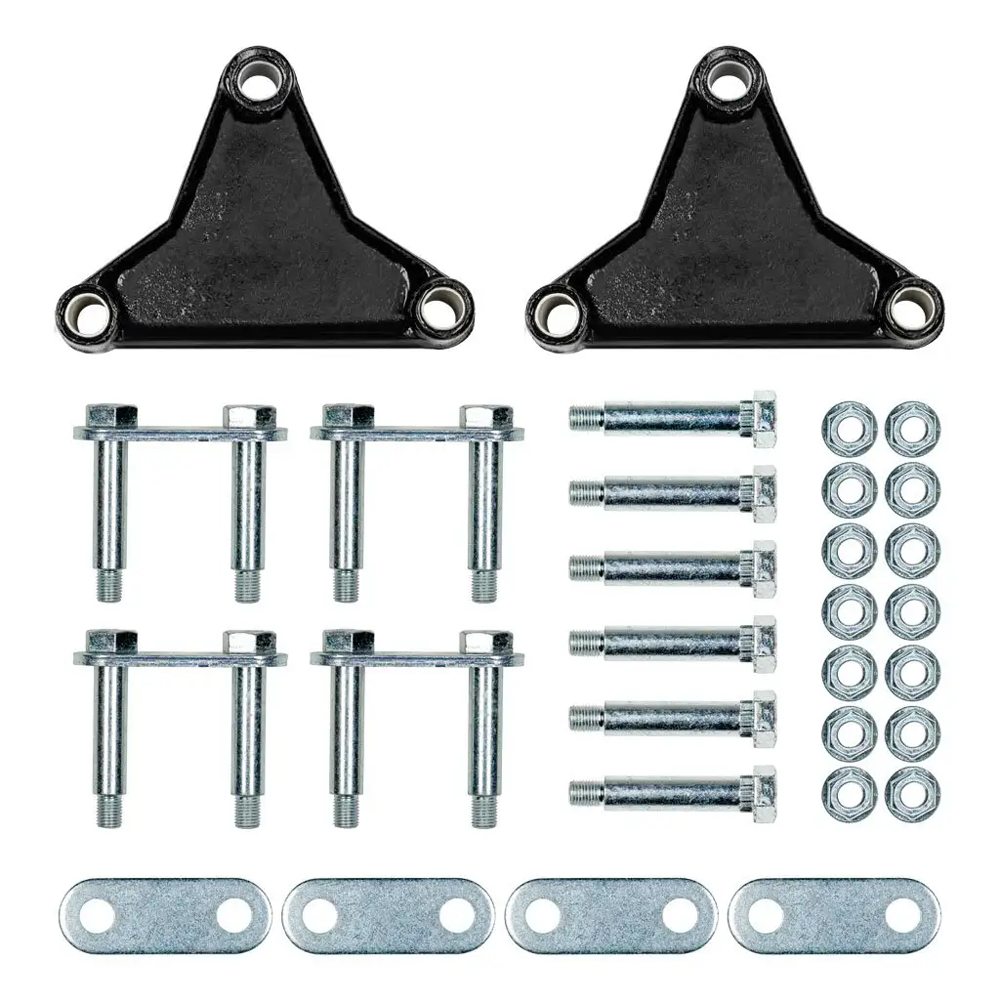

• QTY (1): Lippert Tall Equalizer Kit
  • Equalizer Reference: EQ-310 (tall equalizer design)
  • Equalizer Bolt Qty: 3 (2.88" length)
  • Shackle Assembly Qty: 4 (2.25" length each)
  • Shackle Plate Qty: 4 (2.25" length each)
  • Shackle Bolt Qty: 6 (2.88" length each)
  • Equalizer Nut Qty: 2 (7/16"-20 thread)
  • Lock Nut Qty: 14 (7/16"-20 thread)

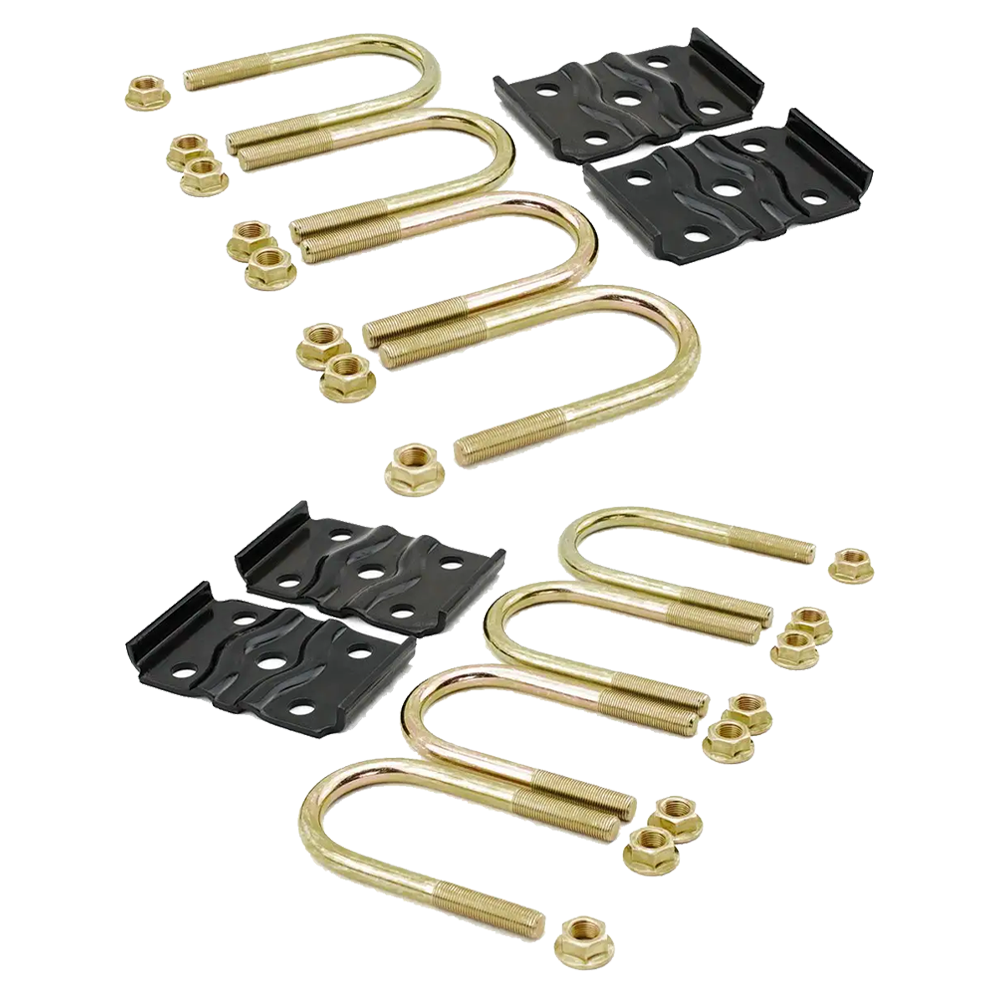

• QTY (2): Axle Mounting Kit (Fits 2.375″ Tube)
  • Complete U-bolt kits for 2.375″ diameter axle tubes
  • Ensures secure spring-to-axle mounting
• QTY (2): Front Trailer Axle Hanger (#127784)
  • Welded to chassis to mount axle and suspension components
  • Length: 4‑5/16″, Width: 2‑3/16″
  • Distance to hole (on-center): 3‑9/16″
  • Hole size: 9/16″
• QTY (2): Center Trailer Axle Hanger (#127782)
  • Welded to chassis for center mounting point
  • Length: 4‑1/2″, Width: 3‑1/8″
  • Distance to hole (on-center): 3‑5/16″
  • Hole size: 7/8″
• QTY (2): Rear Trailer Axle Hanger (#127783)
  • Welded to chassis for rear mounting of axle and components
  • Length: 6″, Width: 2‑1/4″
  • Distance to hole: 4″
  • Hole size: 5/16″

For optimal performance, always confirm compatibility with your trailer’s existing configuration and adhere to recommended maintenance schedules. Quality components and regular inspections help keep you safe on the road.
