Lippert Tandem Axle Suspension Kit – 3,500 lb, 3" Tube, 2,200‑lb Leaf (25‑1/4" Unloaded / 26" Loaded), Tall Equalizer, with Hangers & Hardware

This complete Lippert Tandem Axle Suspension Kit is designed for trailers running 3,500 lb axles with 3" tubes and 2,200‑lb leaf springs. The leafs measure 25‑1/4" from eye to eye when unloaded, and 26" loaded per official Lippert data. Included are front, center, and rear hangers plus hardware and a tall equalizer — everything you need for a stable, reliable ride. Compatible with Dexter, Alko, Rockwell and Quality Axles, this kit ensures smoother towing and easier installation.

Bundle Contents:

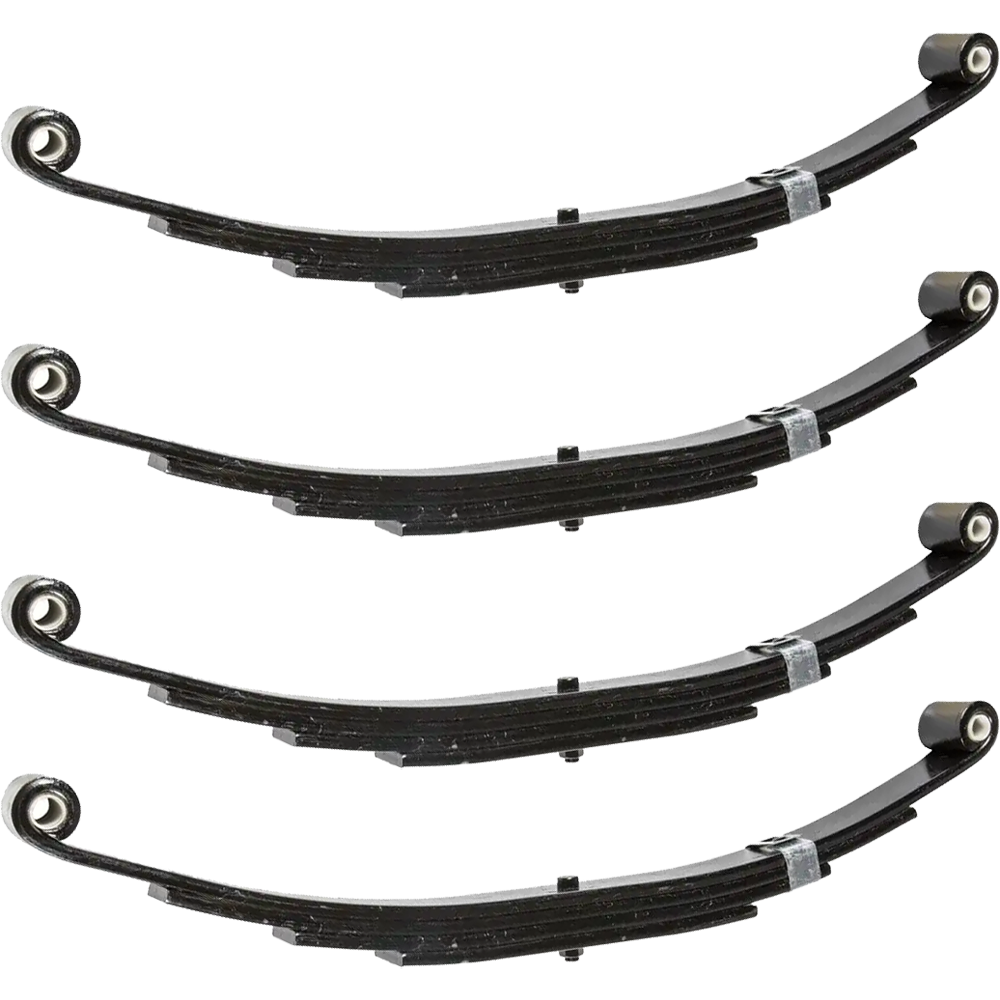

• QTY (4): Replacement Leaf Spring – 2,200 lb Capacity
  • 25‑1/4" unloaded eye‑to‑eye length
  • 26" loaded eye‑to‑eye length
  • Double‑eye design with four leaves
  • 1‑3/4" width, 9/16" eye diameter

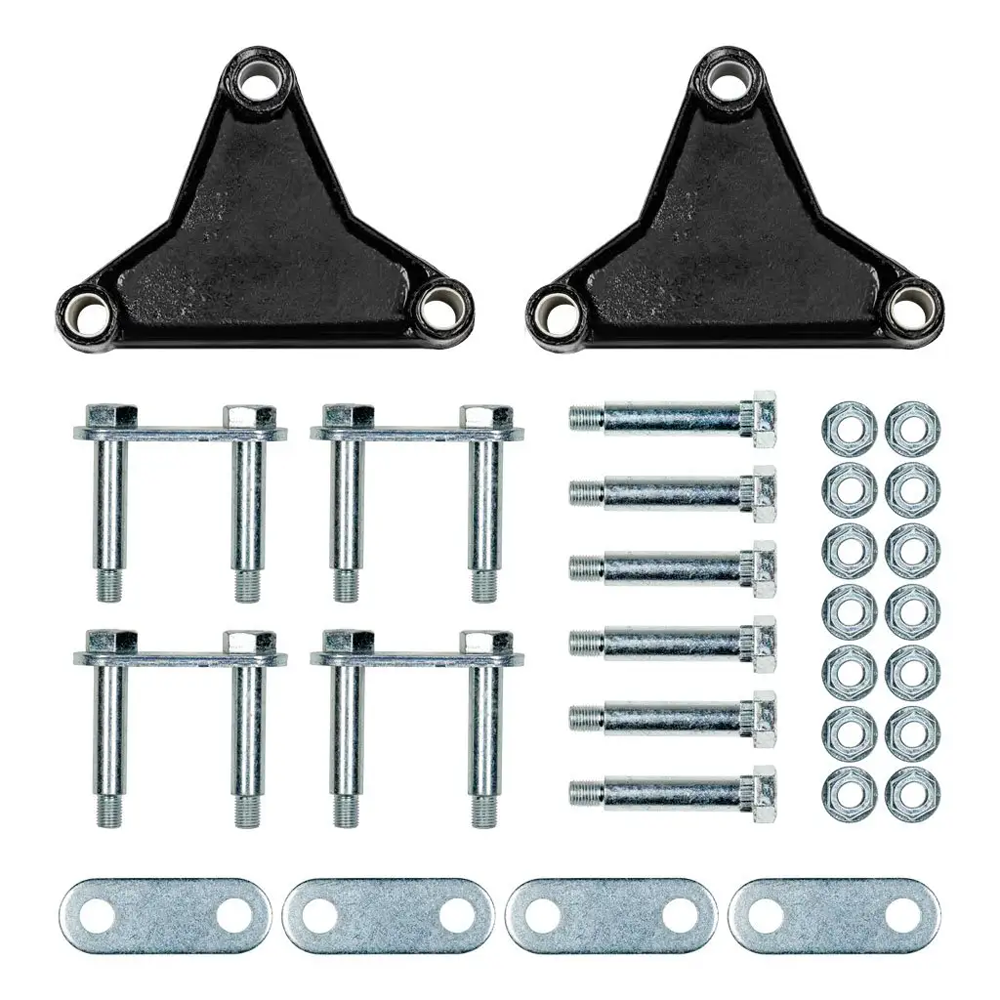

• QTY (1): Lippert Trailer Axle AP Kit – Tall Equalizer, Standard Bolts
  • Equalizer Reference: EQ‑310 (Tall equalizer)
  • Equalizer Bolt Qty: 3 (2.88" length)
  • Shackle Assembly Qty: 4 (2.25" length)
  • Shackle Plate Qty: 4 (2.25" length)
  • Shackle Bolt Qty: 6 (2.88" length)
  • Equalizer Nut Qty: 2 (7/16"‑20)
  • Lock Nut Qty: 14 (7/16"‑20)

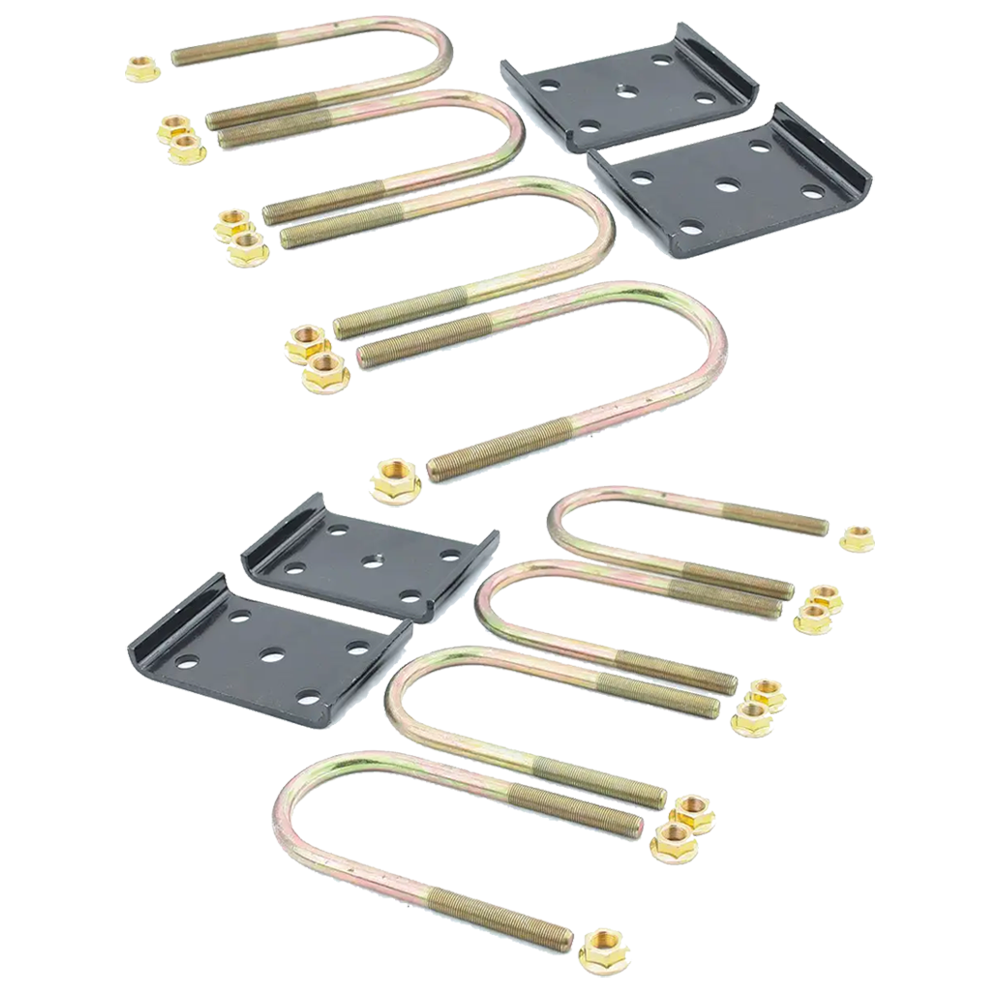

• QTY (2): Lippert Axle Mounting Kit – 3" Tube
  • Replacement mounting kit for 3" axle tubes
  • U‑bolt design for secure attachment
  • Installs just like original equipment
• QTY (2): Front Trailer Axle Hanger – 4‑5/16" x 2‑3/16"
  • Axle capacity: 2,200 lb (front placement)
  • Distance to hole: 3‑9/16" on‑center
  • Length: 4‑5/16", Width: 2‑3/16"
  • Hole size: 9/16"
• QTY (2): Center Trailer Axle Hanger – 4‑1/2" x 3‑1/8"
  • Axle capacity: 2,200–8,000 lb (center placement)
  • Distance to hole: 3‑5/16"
  • Length: 4‑1/2", Width: 3‑1/8"
  • Hole size: 7/8"
• QTY (2): Rear Trailer Axle Hanger – 6" x 2‑1/4"
  • Axle capacity: 2,200–8,000 lb (rear placement)
  • Distance to hole: 4"
  • Length: 6", Width: 2‑1/4"
  • Hole size: 5/16"

To ensure the best performance, always check your trailer’s requirements, follow proper installation procedures and maintain your suspension system according to your owner’s manual.
