Lippert Tandem Axle Suspension Kit � 3,500 lb, 3" Axle Tube, 24-7/8" Leaf Springs (Unloaded), Tall Equalizer � Complete w/ Hangers & Hardware (Dexter, Alko, Rockwell, Quality Compatible)
$652.99
Lippert Tandem Axle Suspension Kit – 3,500 lb Capacity, 3" Axle Tube, 24-7/8" Leaf Springs (Unloaded), Tall Equalizer
Upgrade or repair your trailer’s suspension with the comprehensive Lippert Tandem Axle Suspension Kit. Specifically engineered for tandem axles rated at 3,500 lbs, this kit features heavy-duty 24-7/8" leaf springs (unloaded length), a tall equalizer (EQ-310), complete axle mounting hardware, and precision-fit axle hangers. Compatible with Dexter, Alko, Rockwell, and Quality Axles, this kit provides reliable performance and long-lasting durability.
Bundle Contents:
-

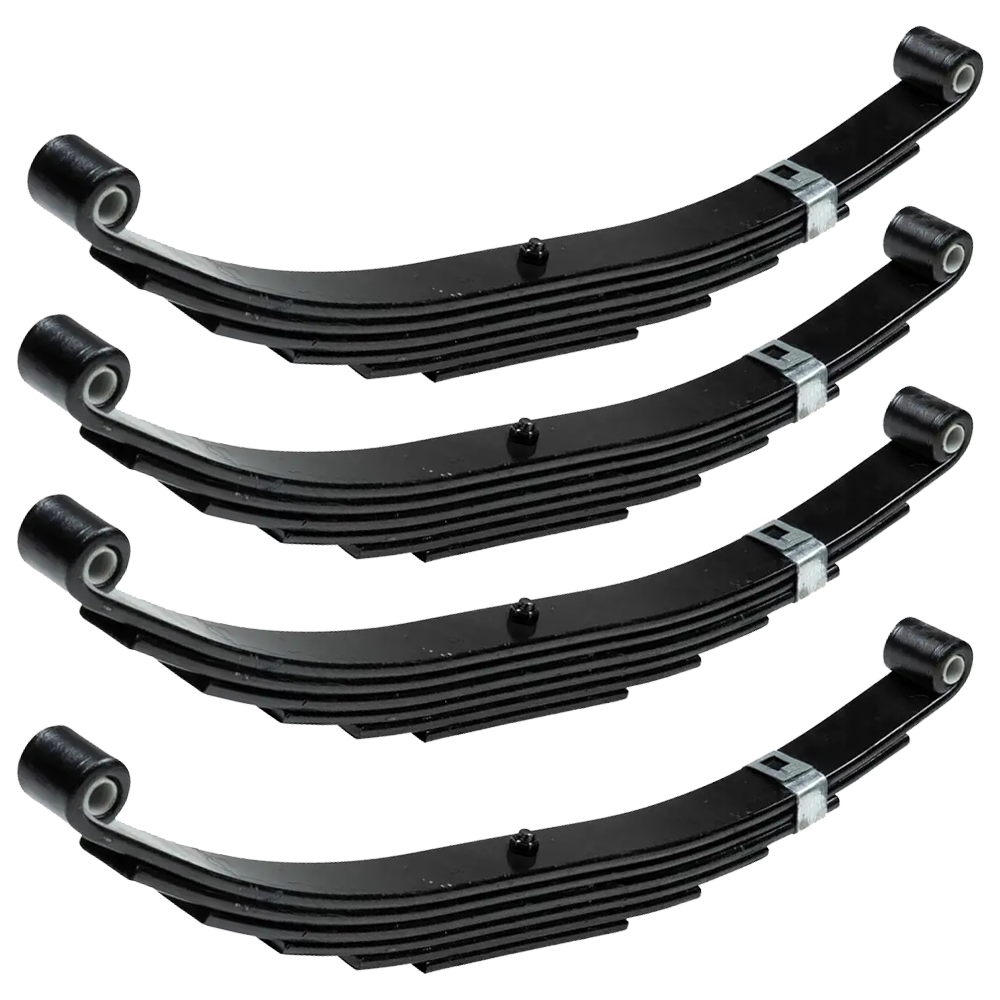

QTY (4): Replacement Leaf Spring – 3,500 lb Capacity, 24-7/8" Length (Unloaded)
- Capacity: 3,500 lbs. per spring
- Number of leaves: 6
- Spring Width: 1-3/4", Eye Diameter: 9/16"
-

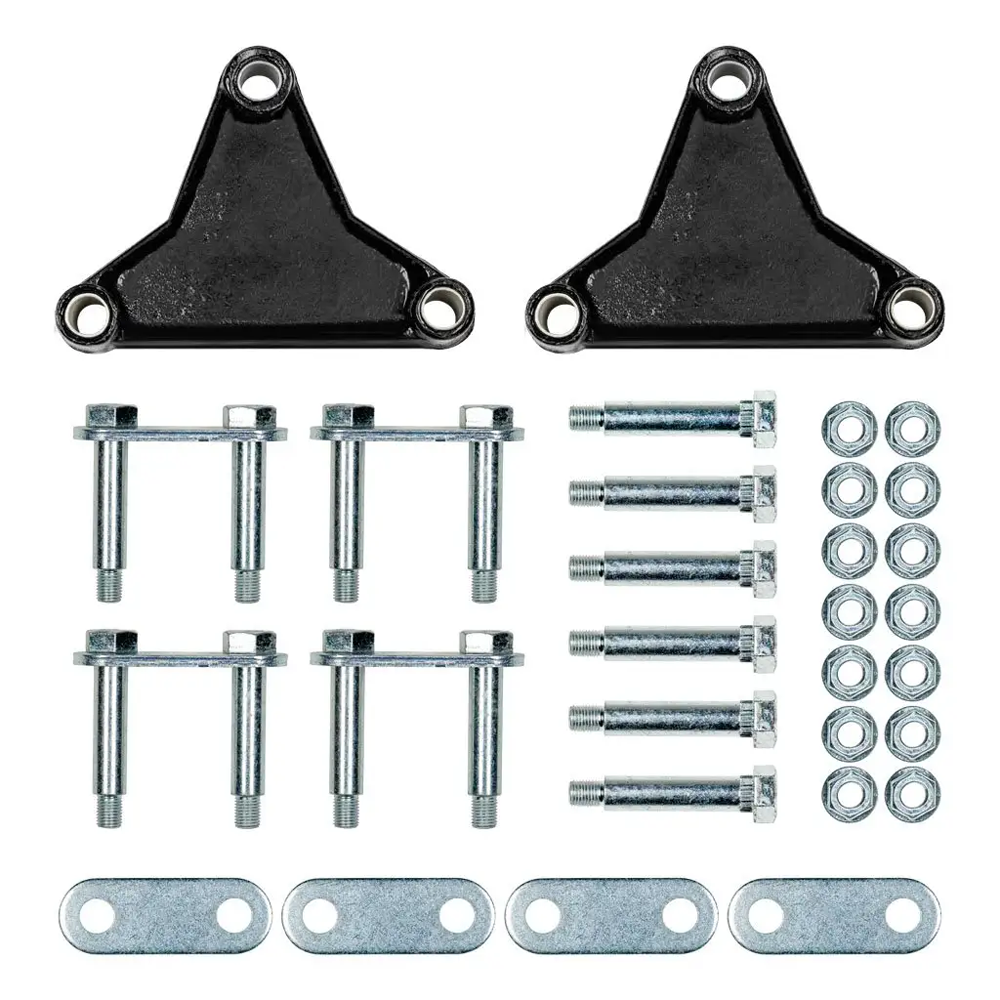

QTY (1): Lippert AP Kit for 2-7K Double-Eye Tandem Axles – Tall Equalizer (EQ-310)
- Equalizer Reference: EQ-310
- Equalizer Bolt Quantity: 3 (Length: 2.88")
- Shackle Assembly Quantity: 4 (Length: 2.25")
- Shackle Plate Quantity: 4 (Length: 2.25")
- Shackle Bolt Quantity: 6 (Length: 2.88")
- Equalizer Nut Quantity: 2 (Thread: 7/16"-20)
- Lock Nut Quantity: 14 (Thread: 7/16"-20)
-

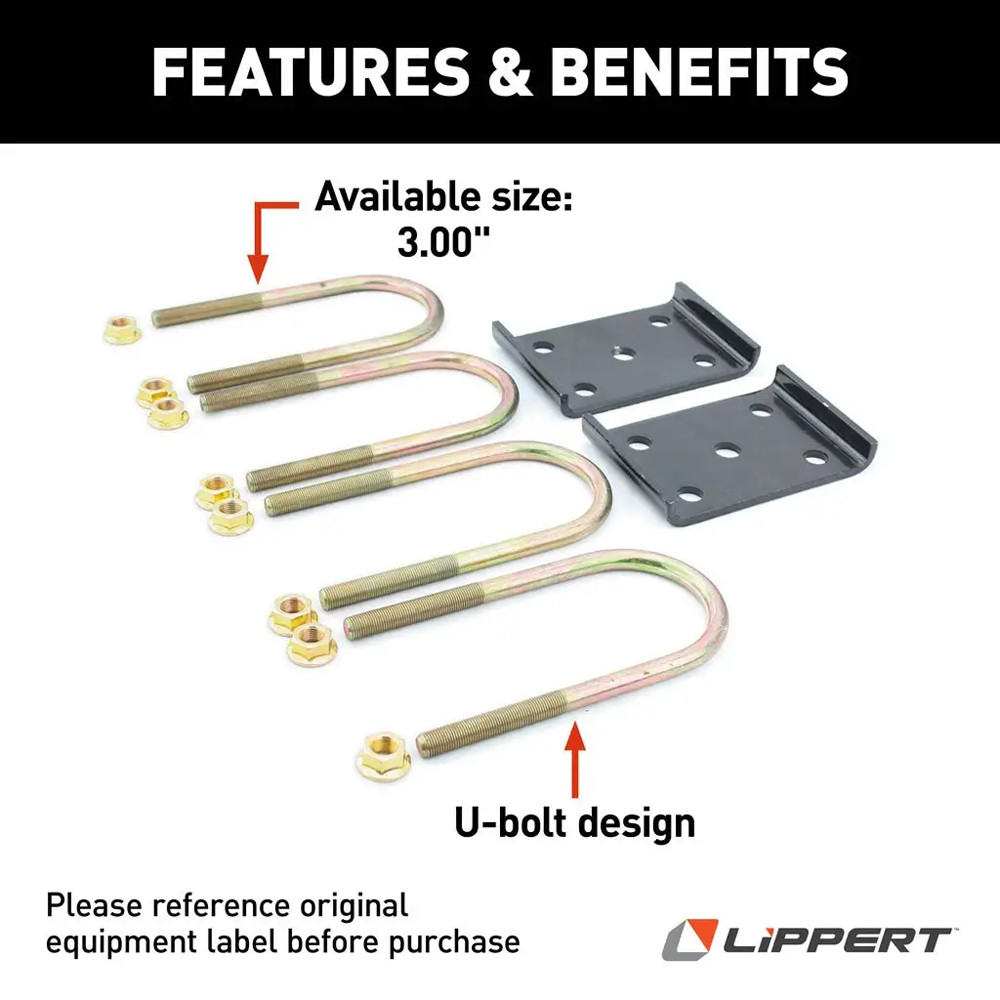

QTY (2): Lippert Axle Mounting Kit – 3" Tube
- Designed for 3" axle tubes (U-bolt style)
- Exact-match OEM hardware
-
QTY (2): Front Trailer Axle Hanger – 4-5/16" x 2-3/16"
- Axle Capacity: 2,200–8,000 lbs.
- Length: 4-5/16", Width: 2-3/16"
- Hole size: 9/16", Hole spacing: 3-9/16"
-
QTY (2): Center Trailer Axle Hanger – 4-1/2" x 3-1/8"
- Axle rating: 2,200–8,000 lbs.
- Length: 4-1/2", Width: 3-1/8"
- Hole size: 7/8", Hole spacing: 3-5/16"
-
QTY (2): Rear Trailer Axle Hanger – 6" x 2-1/4"
- Axle rating: 2,200–8,000 lbs.
- Length: 6", Width: 2-1/4"
- Hole size: 5/16", Hole spacing: 4"
Always confirm compatibility with your original trailer components prior to installation. Regular inspections and proper maintenance maximize performance and safety.
| Specifications: | |
|---|---|
| Kit Type | Complete Tandem Axle Suspension Kit |
| Axle Rating | 3,500 lbs. (per axle) |
| Leaf Spring Capacity | 3,500 lbs. each |
| Number of Leaves per Spring | 6 |
| Leaf Spring Width | 1-3/4" |
| Unloaded Eye-to-Eye Length | 24-7/8" |
| Loaded Eye-to-Eye Length | 26" |
| Arch Height Unloaded | 3-1/4" |
| Arch Height Loaded | 1-3/4" |
| Spring Eye Diameter | 9/16" |
| Axle Tube Diameter | 3" |
| Equalizer Type | Tall Equalizer (EQ-310) |
| Axle Configuration | Tandem |
