Lippert Tandem Axle Suspension Kit – 3,500 lb, 3″ Tube, 2,600 lb Leaf (25 1/4″), Standard Equalizer

Get the complete solution for your trailer’s suspension needs. This Lippert Tandem Axle Suspension Kit is designed for 3,500 lb axles (3″ tube), featuring four 2,600 lb leaf springs (25 1/4″), a standard equalizer with all bolts and shackles, plus front, center, and rear hangers. It’s fully compatible with Dexter, Alko, Rockwell, and Quality Axles, helping ensure a smoother, more stable ride.

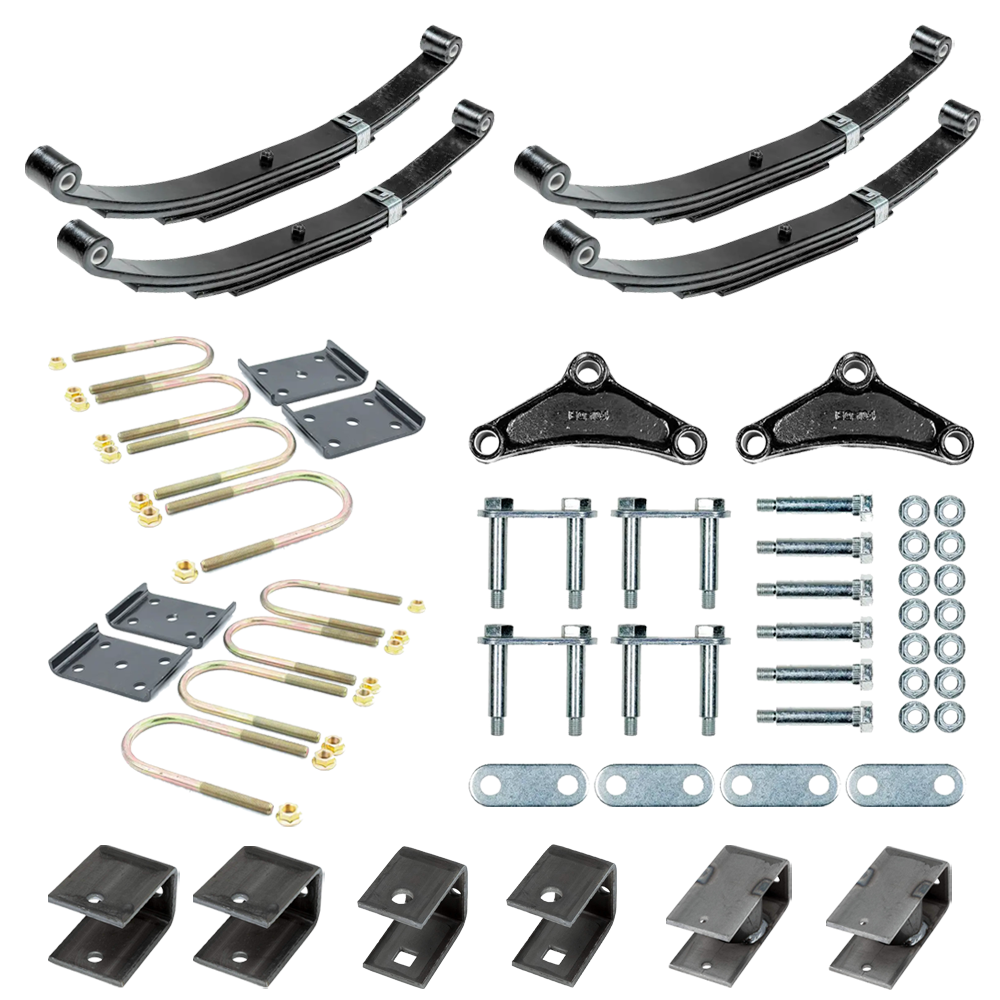

Bundle Contents:

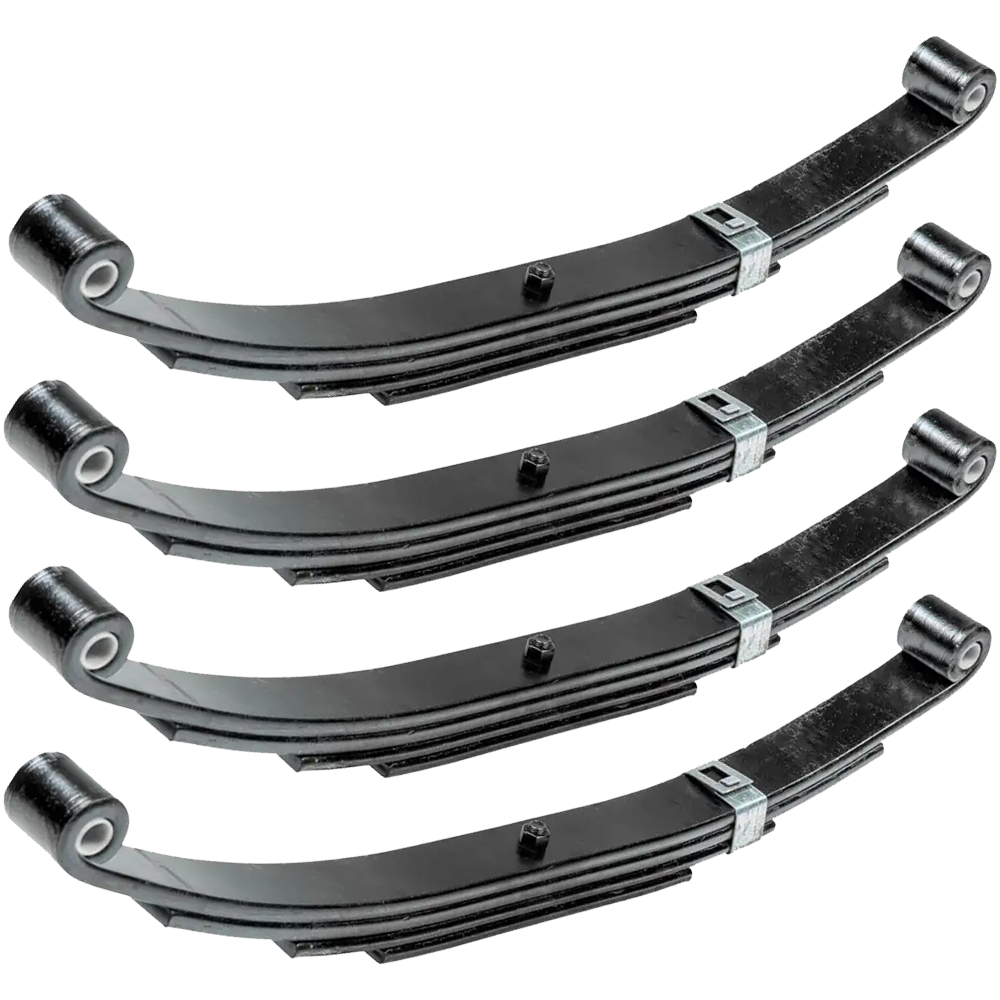

• QTY (4): Lippert Leaf Springs (2,600 lb capacity, 25 1/4″ length, 1-3/4″ width, 4 leaves)
  • 2,600 lb per spring, 4-leaf design
  • 25 1/4″ eye-to-eye (unloaded), 26″ loaded length
  • 1-3/4″ spring width, 9/16″ eye diameter
  • Ensures a smooth ride and proper load support

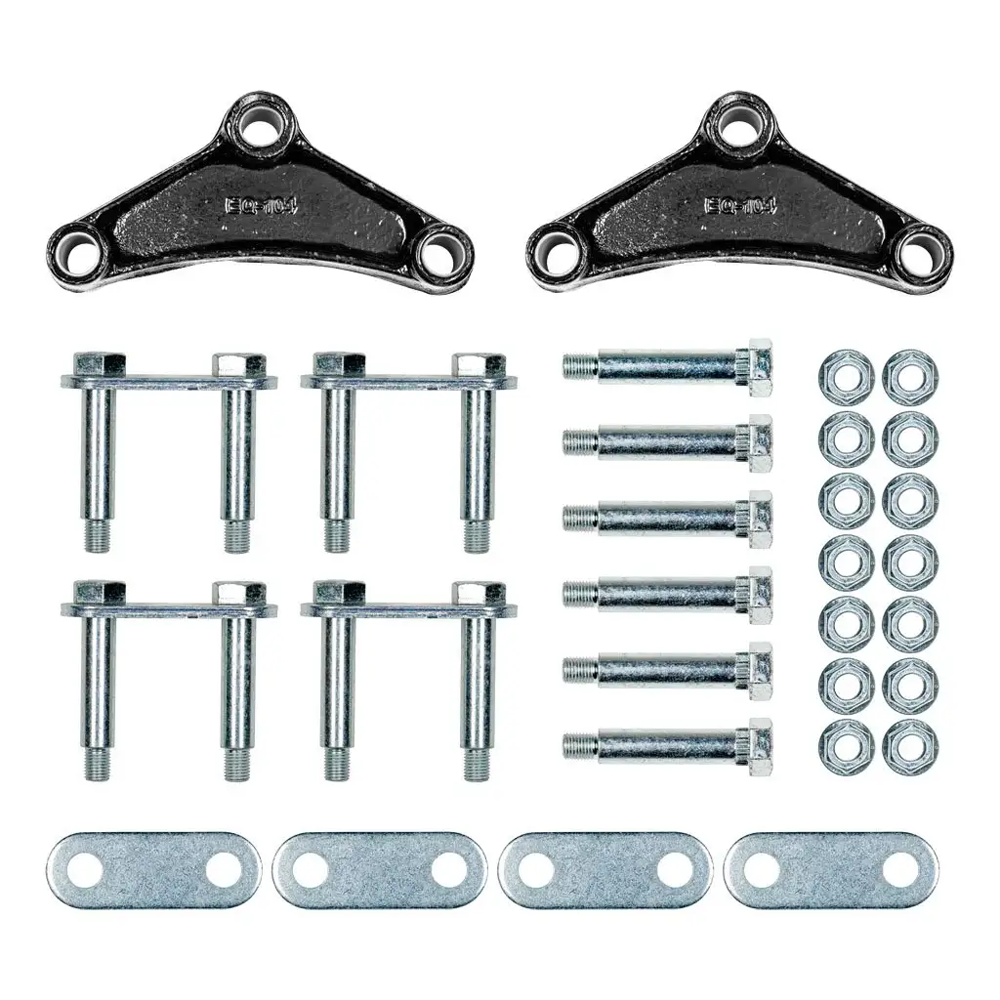

• QTY (1): Lippert Trailer Axle AP Kit – Standard Equalizer
  • Equalizer Reference: EQ-104
  • Equalizer Bolt Qty: 2 (Length: 2.88″)
  • Shackle Assembly Qty: 4 (Length: 2.25″)
  • Shackle Plate Qty: 4 (Length: 2.25″)
  • Shackle Bolt Qty: 6 (Length: 2.88″)
  • Equalizer Nut Qty: 2 (Thread: 7/16″ - 20)
  • Lock Nut Qty: 14 (Thread: 7/16″ - 20)
  • All necessary hardware included

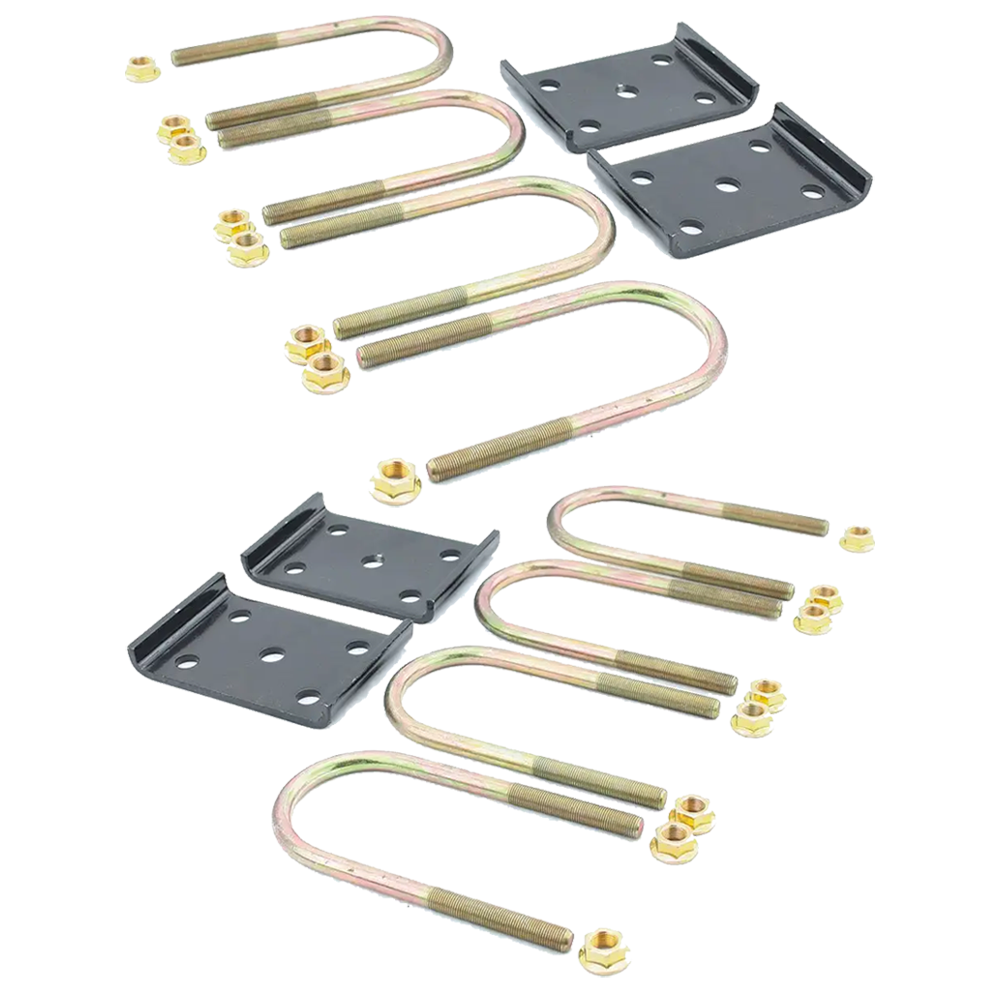

• QTY (2): Lippert Axle Mounting Kit – 3″ Tube
  • U-bolt style mounting kit for 3″ axle tube
  • Installs just like your original components
• QTY (2): Front Trailer Axle Hanger – 4-5/16″ x 2-3/16″
  • Axle capacity range: 2,200 lb – 8,000 lb
  • Length: 4-5/16″, Width: 2-3/16″
  • Hole size: 9/16″, Distance to hole: 3-9/16″ on-center
• QTY (2): Center Trailer Axle Hanger – 4-1/2″ x 3-1/8″
  • Axle capacity range: 2,200 lb – 8,000 lb
  • Length: 4-1/2″, Width: 3-1/8″
  • Hole size: 7/8″, Distance to hole: 3-5/16″
• QTY (2): Rear Trailer Axle Hanger – 6″ x 2-1/4″
  • Axle capacity range: 2,200 lb – 8,000 lb
  • Length: 6″, Width: 2-1/4″
  • Hole size: 5/16″, Distance to hole: 4″

This all-in-one kit eliminates the guesswork when replacing or upgrading your tandem axle suspension. Always verify your existing measurements and follow proper installation guidelines. Routine maintenance will help extend the life of your trailer’s suspension.
