Lippert Tandem Axle Suspension Kit – 3,500 lb, 3″ Tube, 26″ Leaf Springs (1,750 lb), Standard Equalizer

Upgrade your tandem axle trailer with this complete Lippert suspension kit. Specifically designed for 3,500 lb axles on a 3″ tube and featuring 26″ leaf springs rated at 1,750 lbs, this bundle also includes standard equalizers, hangers, and all necessary mounting hardware. Compatible with Lippert, Dexter, Alko, Rockwell, and Quality Axles for a hassle-free installation.

Bundle Contents:

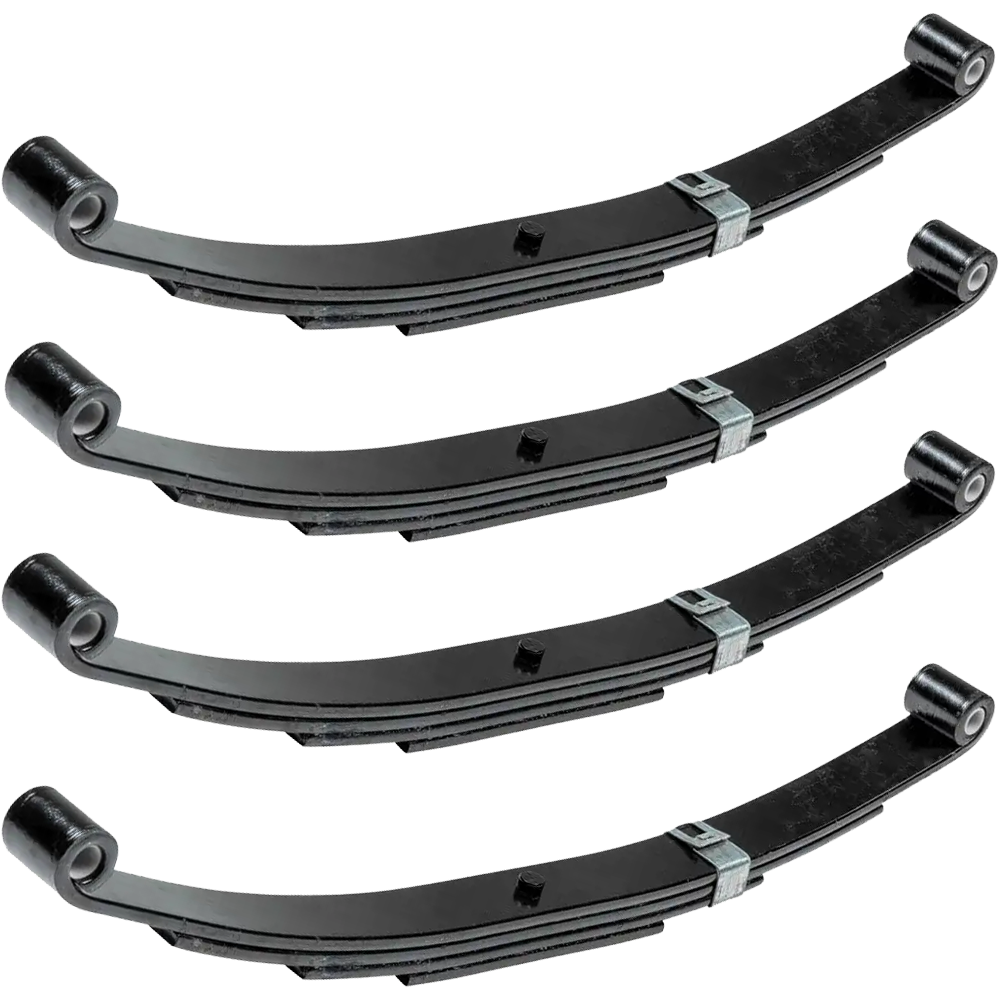

• QTY (4): Lippert Replacement Leaf Spring for Trailer Suspension System – 26″, 1,750 lbs.
  • Replacement leaf spring for RV/trailer suspension
  • Length: 26″
  • Weight capacity: 1,750 lbs.
  • 4-leaf, double-eye design (1-3/4″ wide, 9/16″ eye diameter)

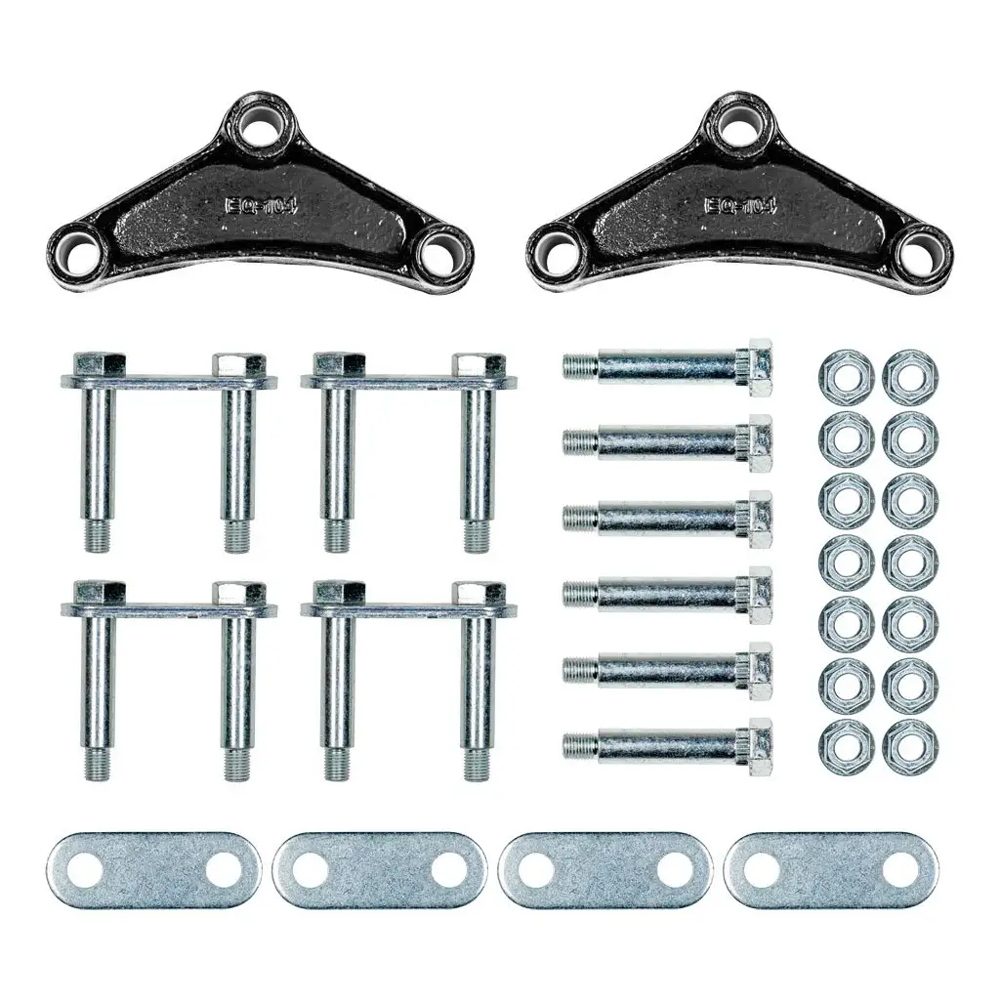

• QTY (1): Lippert Trailer Axle AP Kit for 2–7K Double-Eye Tandem Axles – Standard Equalizer
  • Equalizer Reference: EQ-104
  • Equalizer Bolt Qty: 2 (Length: 2.88″)
  • Shackle Assembly Qty: 4 (Length: 2.25″)
  • Shackle Plate Qty: 4 (Length: 2.25″)
  • Shackle Bolt Qty: 6 (Length: 2.88″)
  • Equalizer Nut Qty: 2 (Thread: 7/16″-20)
  • Lock Nut Qty: 14 (Thread: 7/16″-20)

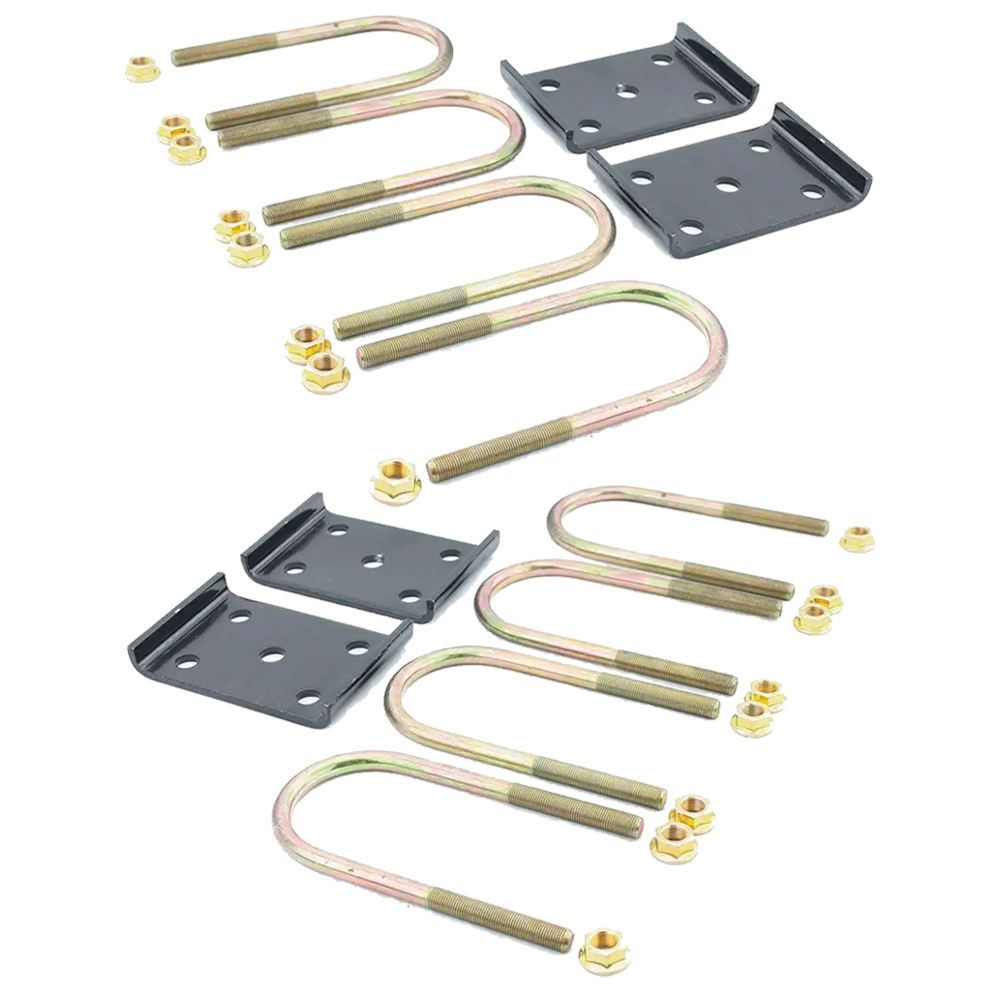

• QTY (2): Lippert Axle Mounting Kit – 3″ Tube
  • Replacement axle mounting kit for RV/trailer
  • U-bolt design for 3″ axle tubes
  • Includes nuts and tie plates
• QTY (2): Front Trailer Axle Hanger – 4-5/16″ x 2-3/16″, 2,200–8,000 lb Axle Rating
  • Welded to chassis for axle and component mounting
  • Distance to hole (on-center): 3-9/16″
  • Length: 4-5/16″, Width: 2-3/16″
  • Hole size: 9/16″
• QTY (2): Center Trailer Axle Hanger – 4-1/2″ x 3-1/8″, 2,200–8,000 lb Axle Rating
  • Welded to chassis for center support
  • Distance to hole: 3-5/16″
  • Length: 4-1/2″, Width: 3-1/8″
  • Hole size: 7/8″
• QTY (2): Rear Trailer Axle Hanger – 6″ x 2-1/4″, 2,200–8,000 lb Axle Rating
  • Welded to chassis for rear spring eye placement
  • To hole: 4″
  • Length: 6″, Width: 2-1/4″
  • Hole size: 5/16″

Always confirm fitment with your trailer’s original equipment specifications and perform routine maintenance for safe, reliable towing.
