Lippert Tandem Axle Suspension Kit � 3,500?lb, 3? Tube, 3,000?lb (25?1/4?) Leaf, Long Equalizer � Includes Hangers & Hardware (Dexter, Alko, Rockwell Compatible)
$581.99
Lippert Tandem Axle Suspension Kit – 3,500 lb, 3″ Tube, 3,000 lb (25‑1/4″) Leaf, Long Equalizer
Upgrade your trailer or RV with this complete Lippert tandem axle suspension bundle. Built for 3,500 lb axles with a 3″ tube, each leaf spring handles up to 3,000 lb and measures 25‑1/4″ in length (unloaded). This kit features a long equalizer for enhanced stability, front/center/rear hangers, and all necessary hardware. Compatible with Dexter, Alko, Rockwell, and other quality axles.

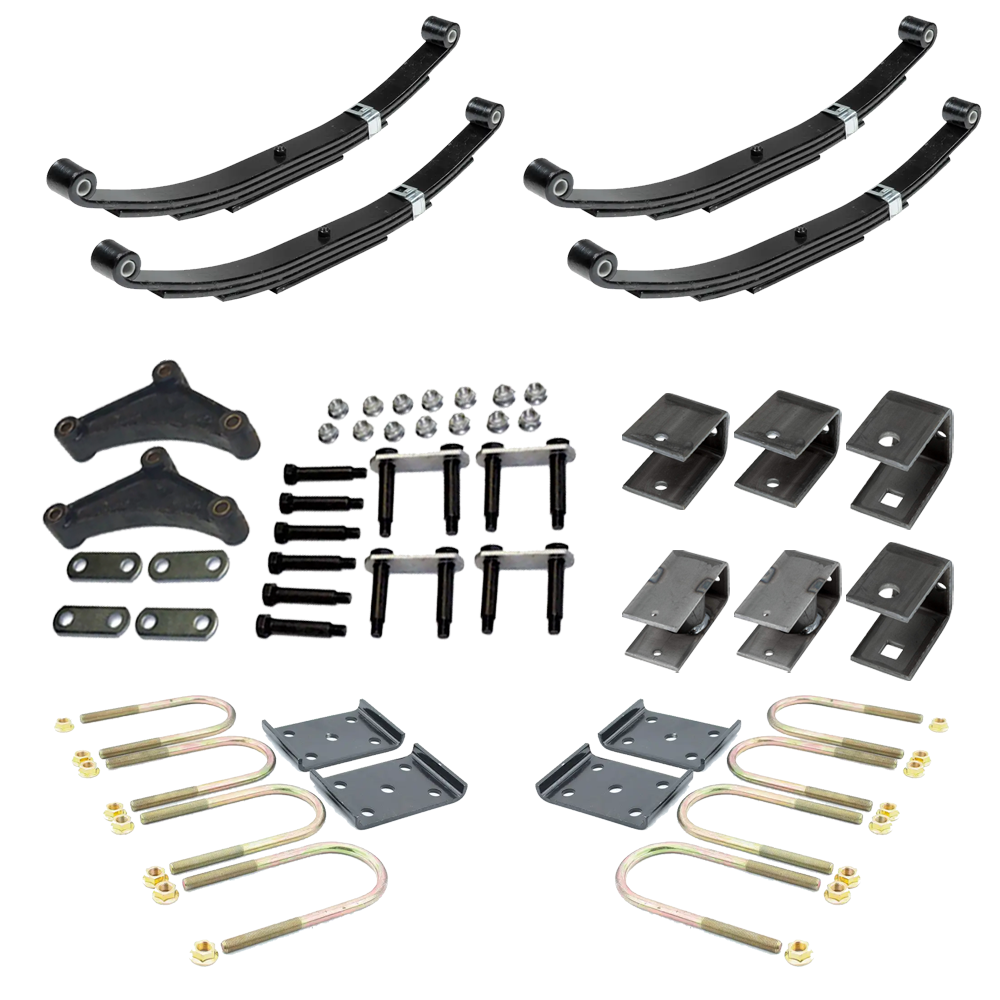

Bundle Contents:
-

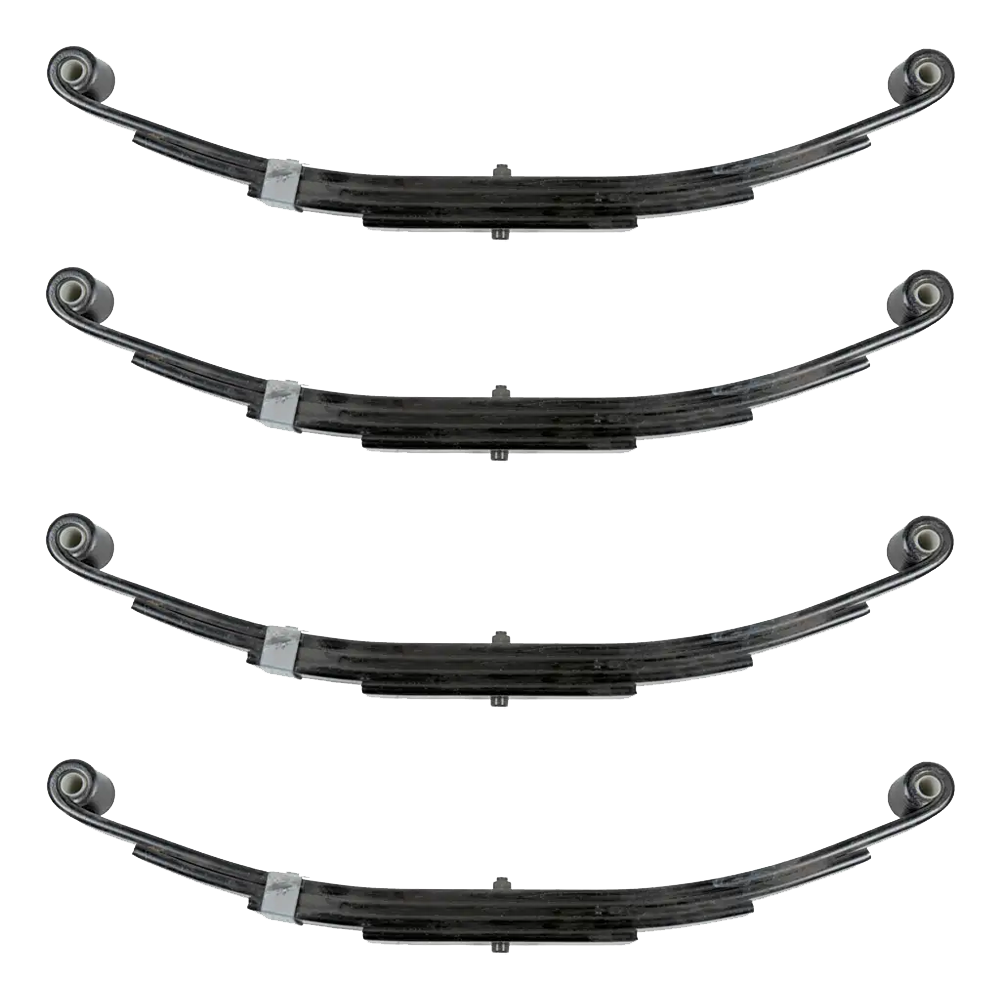

QTY (4): Replacement Leaf Spring – 25‑1/4″ x 1‑3/4″, 3,000 lb
- 4‑leaf design for improved load distribution
- Spring width: 1‑3/4″, unloaded length: 25‑1/4″, loaded length: 26″
- Arch height (unloaded): 3‑1/8″; loaded: 1‑3/4″
- Spring eye diameter: 9/16″
-

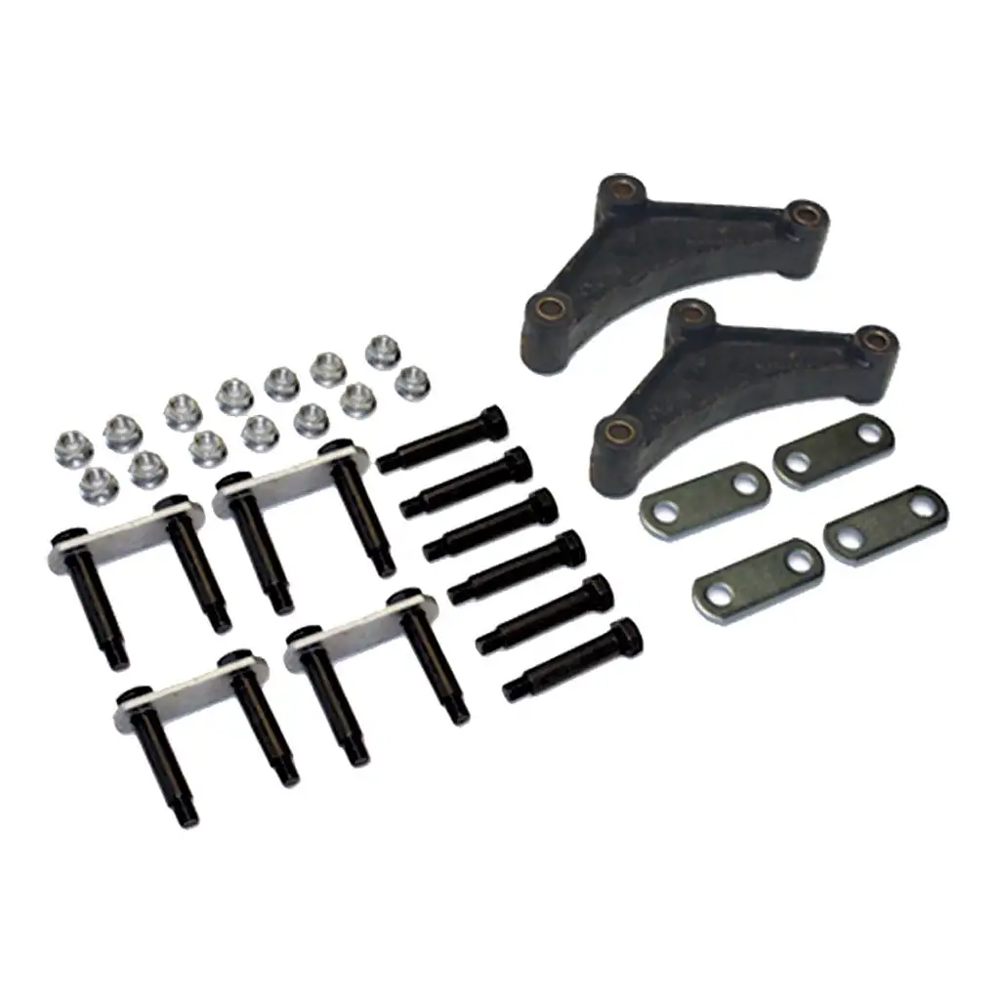

QTY (1): Tandem Axle AP Kit with Long Equalizer (Standard Bolts)
- Includes equalizer, shackle links, bolts, and locknuts
- Long equalizer offers smoother weight transfer
- Installs just like the original equipment
-

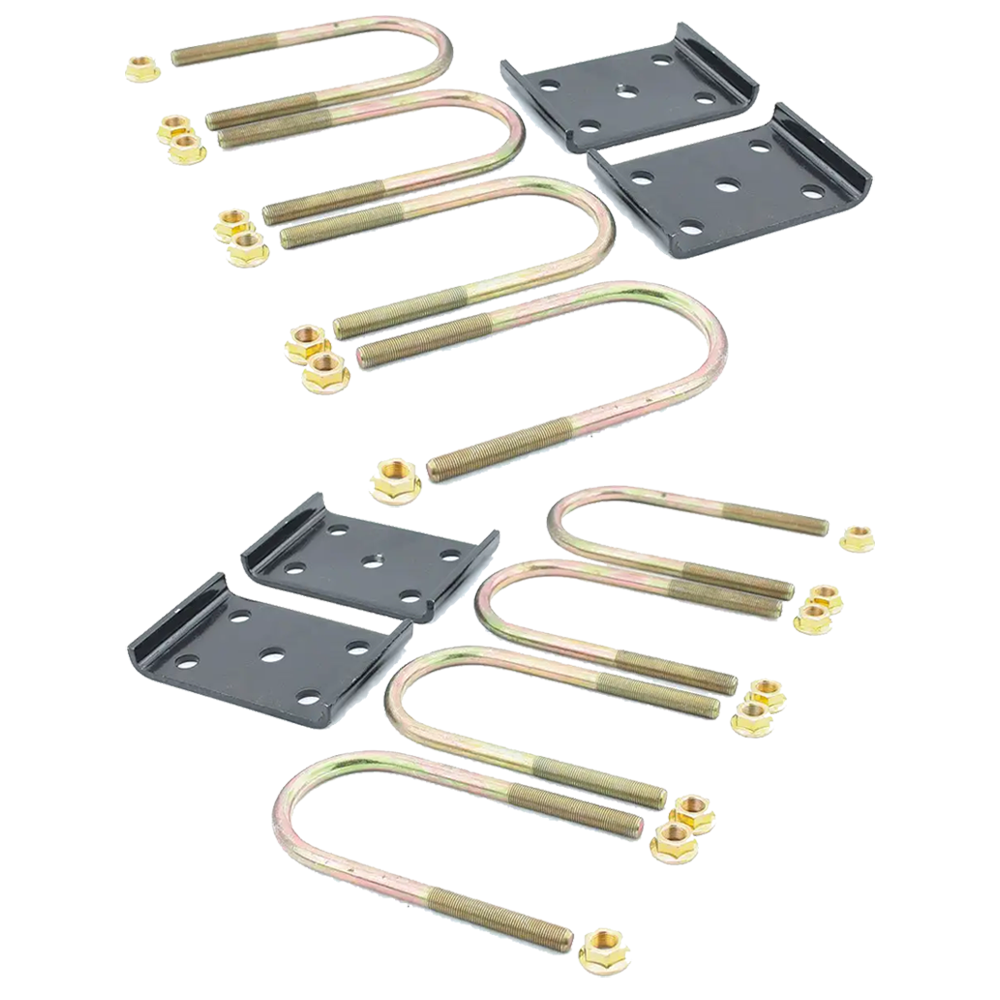

QTY (2): Lippert Axle Mounting Kit – 3″ Tube
- U‑bolt design sized for 3″ axle tubes
- All necessary mounting hardware included
-
QTY (2): Front Trailer Axle Hanger – 4‑5/16″ x 2‑3/16″
- Axle rating: 2,200–8,000 lb
- Distance to hole (on‑center): 3‑9/16″
- Length: 4‑5/16″, Width: 2‑3/16″, Hole size: 9/16″
- Weld‑on hanger for front axle positioning
-
QTY (2): Center Trailer Axle Hanger – 4‑1/2″ x 3‑1/8″
- Axle rating: 2,200–8,000 lb
- Distance to hole: 3‑5/16″
- Length: 4‑1/2″, Width: 3‑1/8″, Hole size: 7/8″
- Ideal for tandem‑axle center mounting
-
QTY (2): Rear Trailer Axle Hanger – 6″ x 2‑1/4″
- Axle rating: 2,200–8,000 lb
- Distance to hole: 4″
- Length: 6″, Width: 2‑1/4″, Hole size: 5/16″
- Weld‑on hanger for rear axle position
Always confirm your axle rating, leaf spring length, and tube diameter before installation. Periodic inspections help ensure a safer, smoother ride.
| Specifications: | |
|---|---|
| Kit Type | Complete Trailer Suspension Kit |
| Axle Rating | 3,500 lb |
| Leaf Spring Capacity | 3,000 lb |
| Number of Leaves per Spring | 4 |
| Leaf Spring Width | 1‑3/4″ |
| Unloaded Eye‑to‑Eye Length | 25‑1/4″ |
| Loaded Eye‑to‑Eye Length | 26″ |
| Arch Height Unloaded | 3‑1/8″ |
| Arch Height Loaded | 1‑3/4″ |
| Spring Eye Diameter | 9/16″ |
| Axle Tube Diameter | 3″ |
| Equalizer Type | Long |
| Axle Configuration | Tandem |
Order today or call us at 877-869-6690 for expert advice and personalized service.
