Lippert Tandem Axle Suspension Kit – 3,500 lb Capacity, 1.75″ Axle Tube, 24-7/8″ Leaf Spring (Unloaded), Long Equalizer, Includes Hangers & Hardware, Dexter, Alko, Rockwell, Quality Axles Compatible

This Lippert Tandem Axle Suspension Kit is designed to provide superior performance and durability for your RV trailer suspension system. With a 3,500 lb capacity, 1.75″ axle tube, and 24-7/8″ unloaded leaf spring length (26″ loaded), this complete kit includes all necessary hangers, hardware, and components to overhaul your suspension. Compatible with Dexter, Alko, Rockwell, and Quality Axles, it is built for easy installation and ensures smooth and safe operation on the road. Whether you’re replacing worn-out parts or upgrading, this suspension kit offers the perfect solution for your trailer.

Bundle Contents:

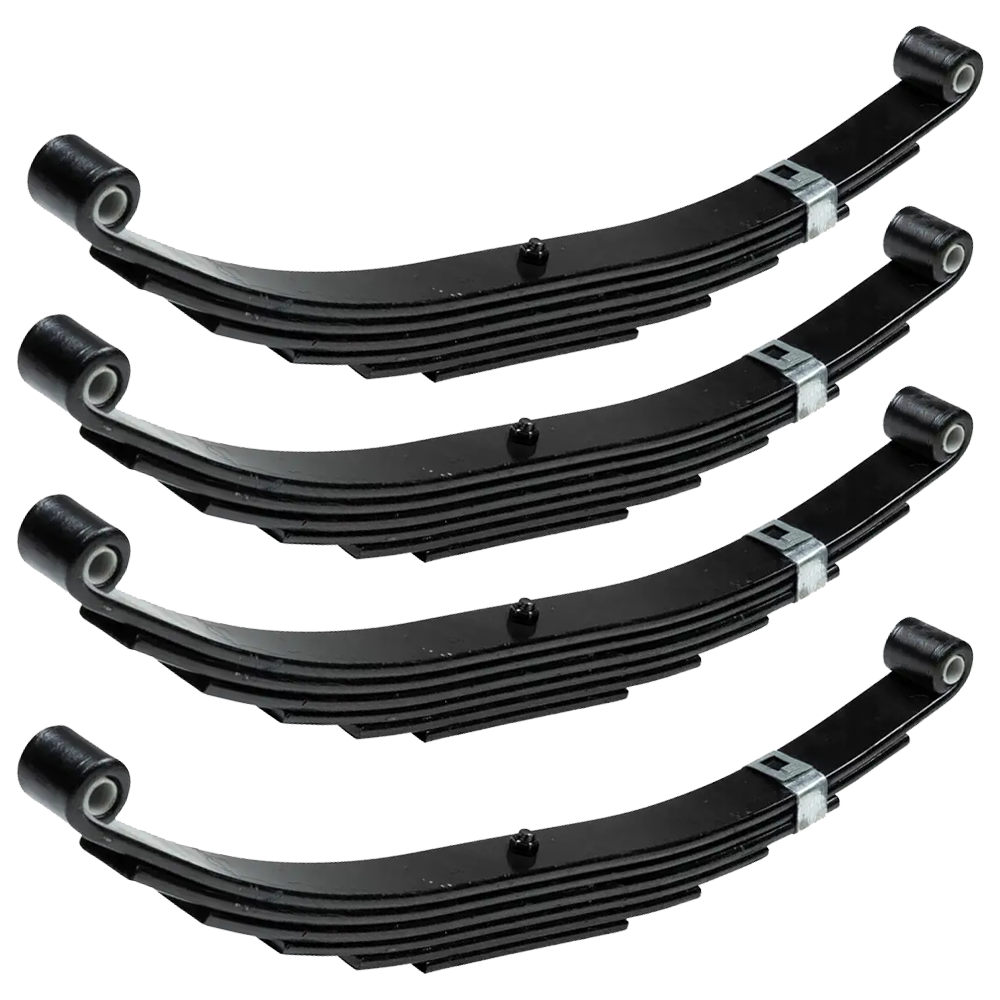

• QTY (4): Replacement Leaf Spring for RV Trailer Suspension System – 24-7/8" Unloaded (26" Loaded)
  • Leaf spring for RV trailer suspension system
  • Unloaded length: 24-7/8" (26" when loaded)
  • Capacity: 3,500 lbs
  • Width: 1-3/4"
  • Arch height unloaded: 3-1/4", loaded: 1-3/4"
  • Eye diameter: 9/16"
  • Number of leaves: 6
  • Compatible with Dexter, Alko, Rockwell, and Quality Axles
• QTY (1): Tandem Axle AP Kit with Long Equalizer and Standard Bolts
  • Includes long equalizer, shackle links, and mounting hardware
  • Compatible with 1.75" axle tube; easy to install
• QTY (2): Axle Mounting Kit – 1.75" Tube
  • Includes all necessary U-bolts for axle mounting
  • Compatible with 1.75" axle tube
• QTY (2): Front Trailer Axle Hanger – 4-5/16" x 2-3/16", 2,200-8,000 lb Axle Rating
  • Axle capacity: 2,200-8,000 lbs
  • Dimensions: 4-5/16" x 2-3/16"
  • Hole size: 9/16"
• QTY (2): Center Trailer Axle Hanger – 4-1/2" x 3-1/8", 2,200-8,000 lb Axle Rating
  • Axle capacity: 2,200-8,000 lbs
  • Dimensions: 4-1/2" x 3-1/8"
  • Hole size: 7/8"
• QTY (2): Rear Trailer Axle Hanger – 6" x 2-1/4", 2,200-8,000 lb Axle Rating
  • Axle capacity: 2,200-8,000 lbs
  • Dimensions: 6" x 2-1/4"
  • Hole size: 5/16"

Before purchasing, please ensure compatibility with your trailer’s specifications. Regular maintenance and timely replacement of suspension components can ensure a smooth and safe ride for your RV trailer.
