Lippert Tandem Axle Suspension Kit – 3,500 lb Capacity, 1.75″ Axle Tube, 25‑1/4″ 2,600 lb Leaf Springs (Unloaded), Standard Equalizer

This complete suspension bundle is designed for tandem RV and trailer axles rated at 3,500 lbs. It features four 25‑1/4″ (unloaded) leaf springs (2,600 lb capacity each), a Lippert standard equalizer kit (EQ-104) with all mounting bolts and plates, front/center/rear hangers, plus (2) axle mounting kits (U‑bolts, tie plates, nuts) for 1.75″ tubes. Hardware is included for easy installation. Compatible with Lippert, Dexter, Alko, Rockwell, and other quality axles.

Bundle Contents:

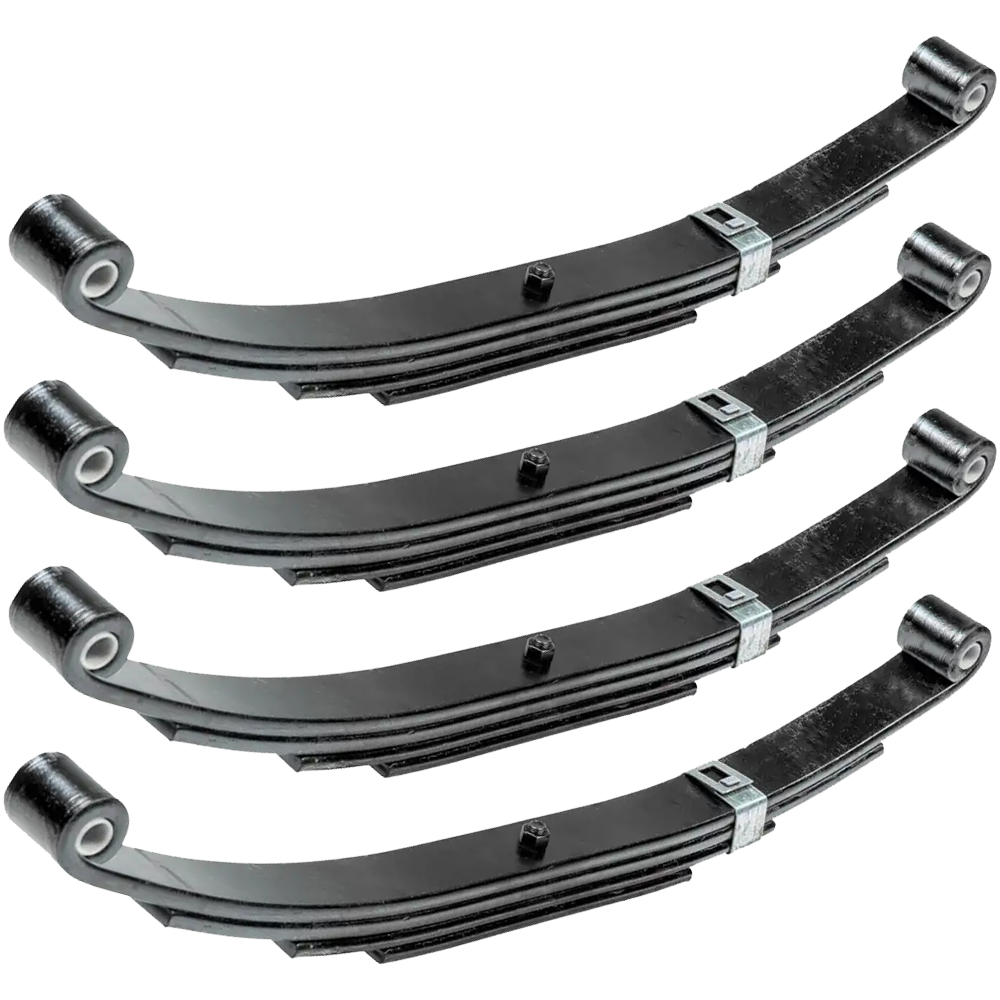

• QTY (4): Replacement 25‑1/4″ Leaf Spring – 2,600 lb Capacity
  • Unloaded eye-to-eye length: 25‑1/4″
  • Loaded eye-to-eye length: 26″
  • 4 leaves, 1.75″ width, double-eye design
  • Eye diameter: 9/16″

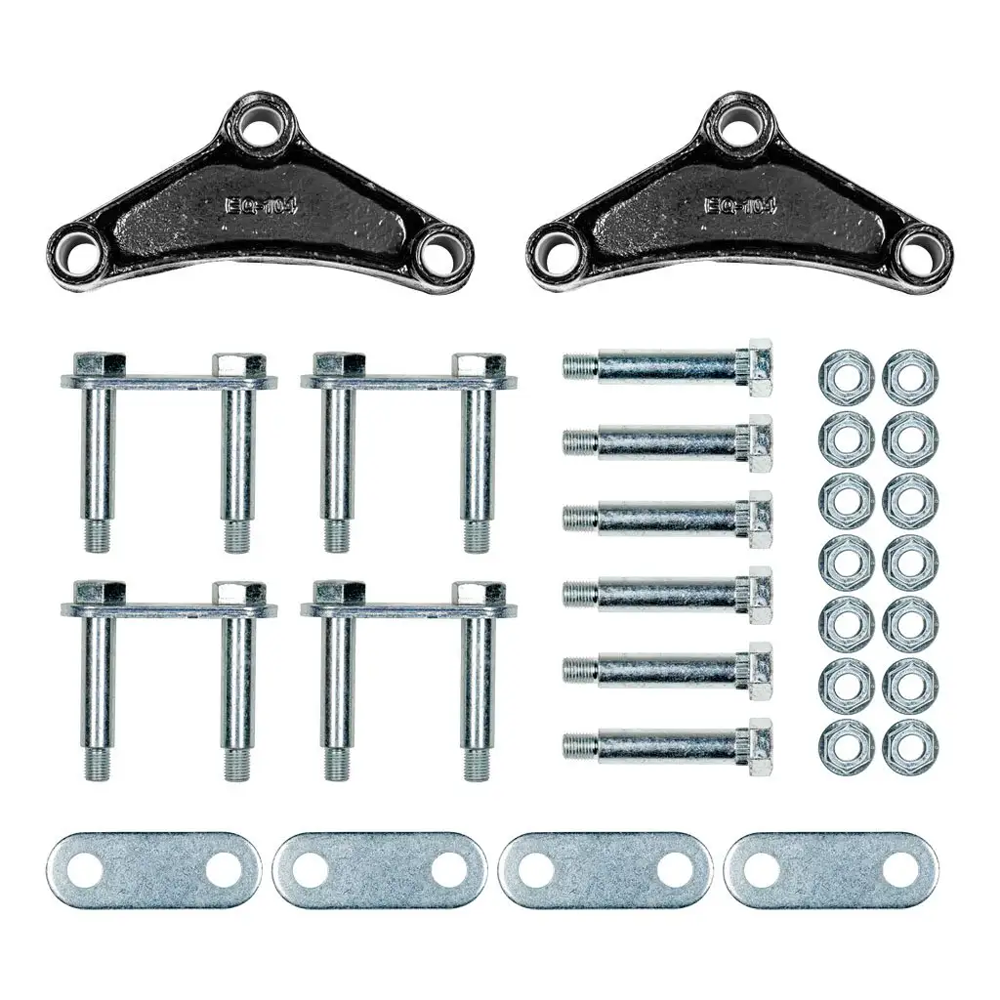

• QTY (1): Lippert Standard Equalizer Kit (EQ-104)
  • (1) Standard Equalizer (EQ-104)
  • (2) Equalizer bolts (2.88″)
  • (4) Shackle assemblies (2.25″)
  • (4) Shackle plates (2.25″)
  • (6) Shackle bolts (2.88″)
  • (14) Lock nuts (7/16″-20)

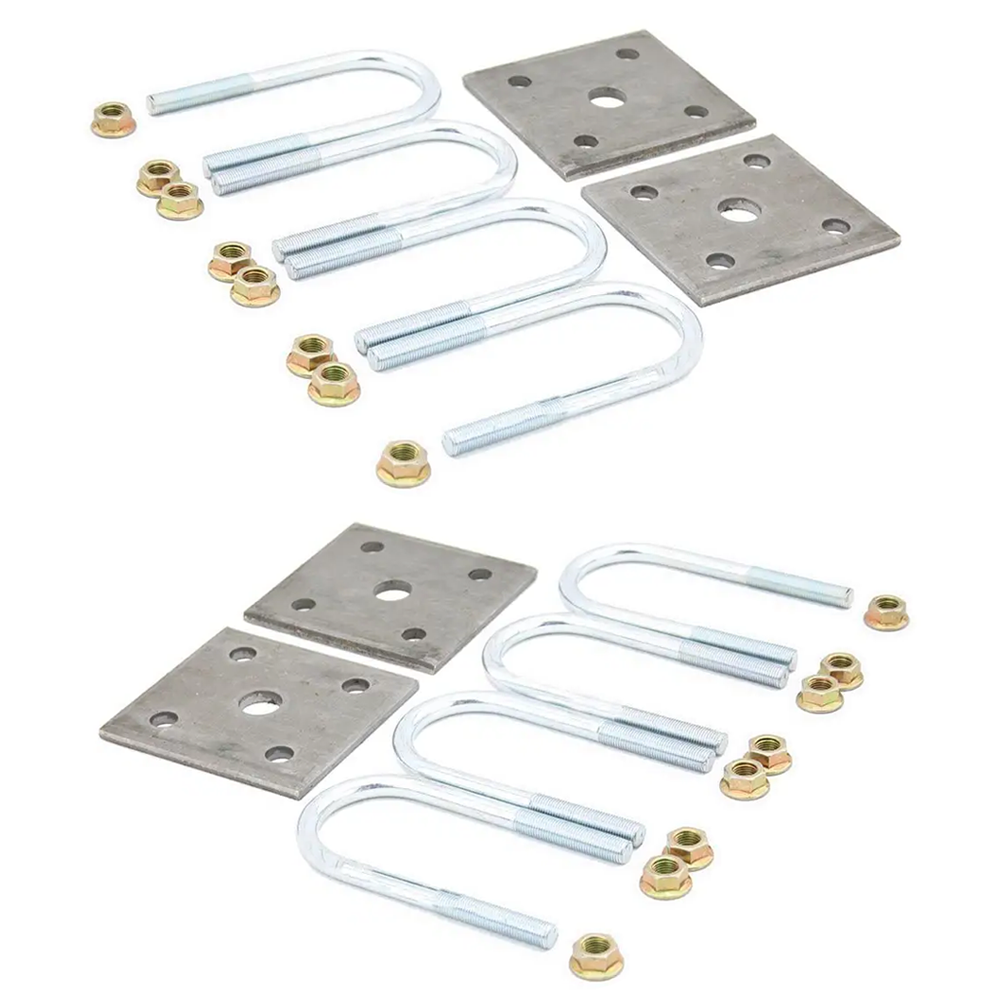

• QTY (2): Axle Mounting Kit – 1.75″ Tube
  • Includes U‑bolts, tie plates, and hardware for 1.75″ axle tubes
  • U‑bolt design ensures secure spring-to-axle attachment
  • Direct replacement for worn or damaged axle mounting hardware
• QTY (2): Front Trailer Axle Hanger – 4‑5/16″ x 2‑3/16″
  • Axle capacity: 2,200–8,000 lbs.
  • Distance to hole: 3‑9/16″ on-center
  • Hole size: 9/16″
  • Length: 4‑5/16″ • Width: 2‑3/16″
• QTY (2): Center Trailer Axle Hanger – 4‑1/2″ x 3‑1/8″
  • Axle capacity: 2,200–8,000 lbs.
  • Distance to hole: 3‑5/16″
  • Hole size: 7/8″
  • Length: 4‑1/2″ • Width: 3‑1/8″
• QTY (2): Rear Trailer Axle Hanger – 6″ x 2‑1/4″
  • Axle capacity: 2,200–8,000 lbs.
  • Distance to hole: 4″
  • Hole size: 5/16″
  • Length: 6″ • Width: 2‑1/4″

Always verify your trailer’s axle rating and existing suspension specifications before installation. Routine inspections and maintenance will help ensure a smoother ride and a longer life for your components.
