Lippert Tandem Axle Suspension Kit – 3,500 lb Capacity – 2.375″ Axle Tube – 26″ Leaf Springs (2,000 lb Each)

Enhance your trailer’s ride, handling and durability with this complete Lippert Tandem Axle Suspension Kit. Designed for 3,500 lb axles using 2.375″ tubes and 26″, 2,000 lb-rated leaf springs, this bundle includes all hangers and mounting hardware. It’s also compatible with Dexter, Alko, Rockwell and Quality Axles — perfect for any standard tandem axle trailer setup.

Bundle Contents:

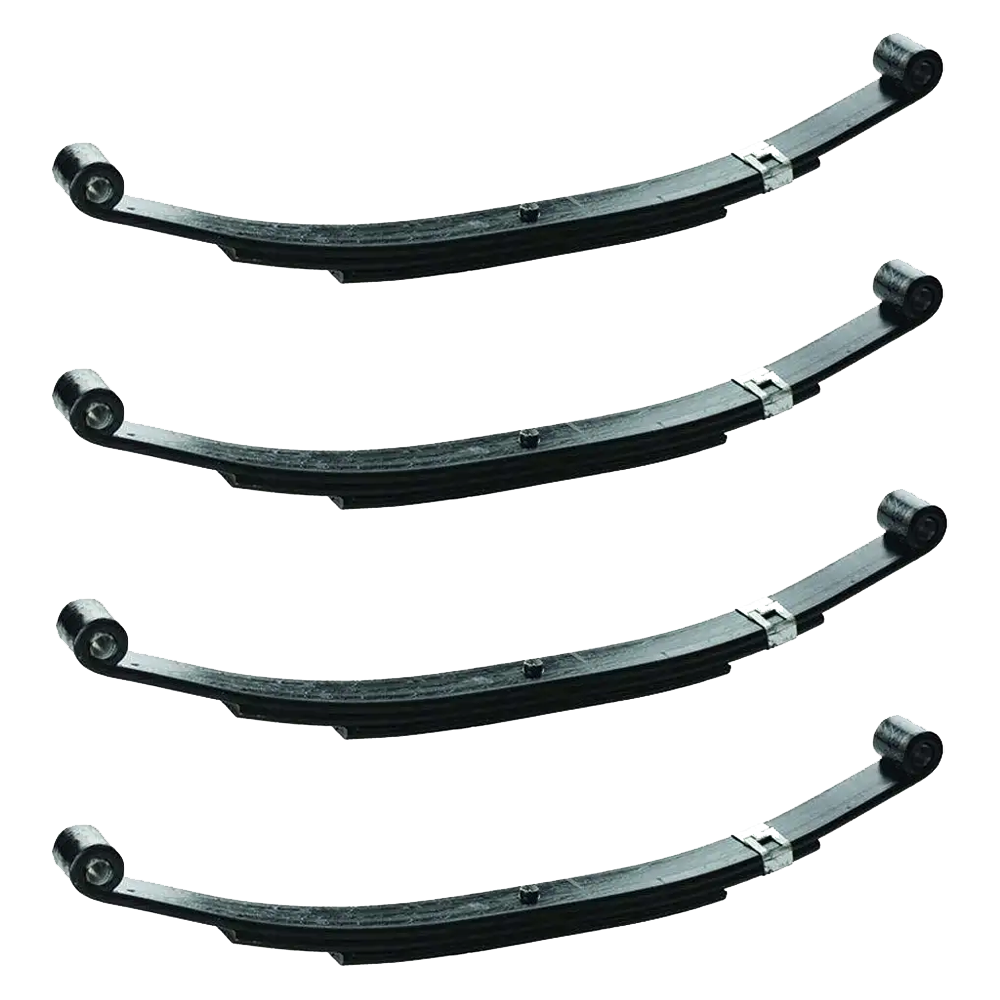

• QTY (4): Replacement Double-Eye Leaf Spring – 26", 2,000 lb Capacity
  • 26" loaded length
  • 2,000 lb capacity
  • 1-3/4" leaf width, 9/16" eye diameter
  • 25-1/4" unloaded eye-to-eye length
  • Arch height unloaded: 3"
  • Arch height loaded: 2-1/2"
  • Direct replacement for RV/trailer suspension

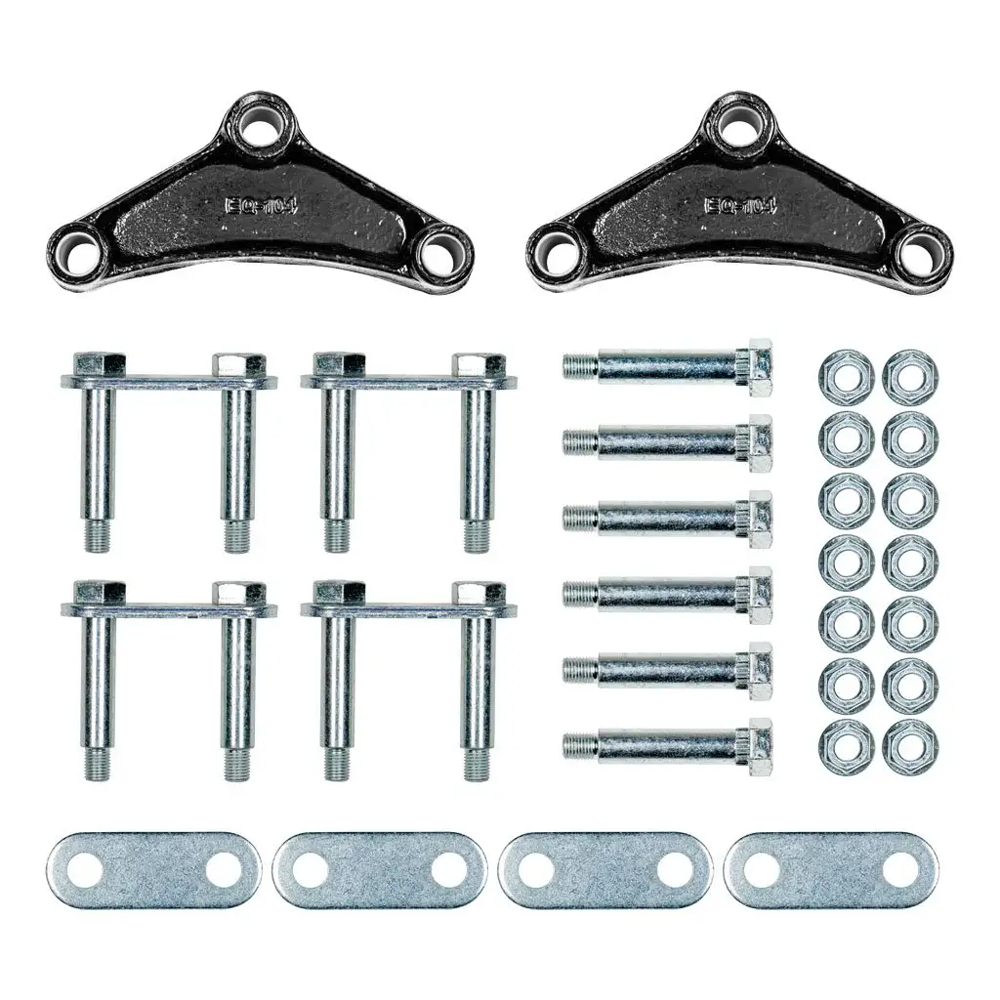

• QTY (1): Lippert AP Kit (Standard Equalizer) for 2–7K Double-Eye Tandem Axles
  • Equalizer Reference: EQ-104
  • Equalizer Bolt Qty: 2 (2.88" length)
  • Shackle Assembly Qty: 4 (2.25" length)
  • Shackle Plate Qty: 4 (2.25" length)
  • Shackle Bolt Qty: 6 (2.88" length)
  • Equalizer Nut Qty: 2 (7/16"-20 thread)
  • Lock Nut Qty: 14 (7/16"-20 thread)

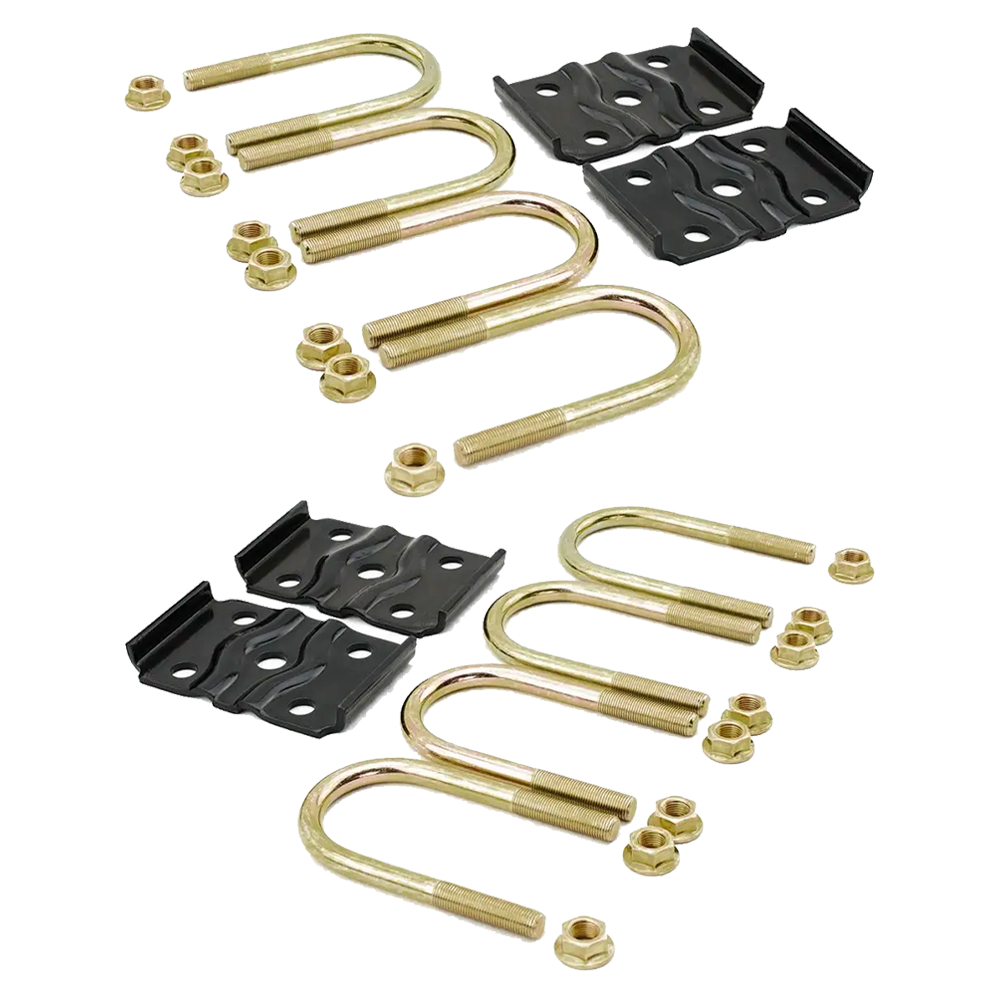

• QTY (2): Lippert Axle Mounting Kit – 2.375" Tube
  • Replacement U-bolt kit for 2.375" axle tubes
  • Installs like original equipment
  • All necessary nuts and washers included
• QTY (2): Front Trailer Axle Hanger – 4-5/16" x 2-3/16", 2,200-8,000 lb Rating
  • Length: 4-5/16"
  • Width: 2-3/16"
  • Hole size: 9/16"
  • Distance to hole (on-center): 3-9/16"
• QTY (2): Center Trailer Axle Hanger – 4-1/2" x 3-1/8", 2,200-8,000 lb Rating
  • Length: 4-1/2"
  • Width: 3-1/8"
  • Hole size: 7/8"
  • Distance to hole: 3-5/16"
• QTY (2): Rear Trailer Axle Hanger – 6" x 2-1/4", 2,200-8,000 lb Rating
  • Length: 6"
  • Width: 2-1/4"
  • Hole size: 5/16"
  • Distance to hole: 4"

Always verify compatibility with your trailer’s original specifications and perform regular maintenance for optimal performance and safety.
